Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

11 part groups · 3 illustrations

Illustrations

Figure 874800E

874800E 2001-05 → 2003-10

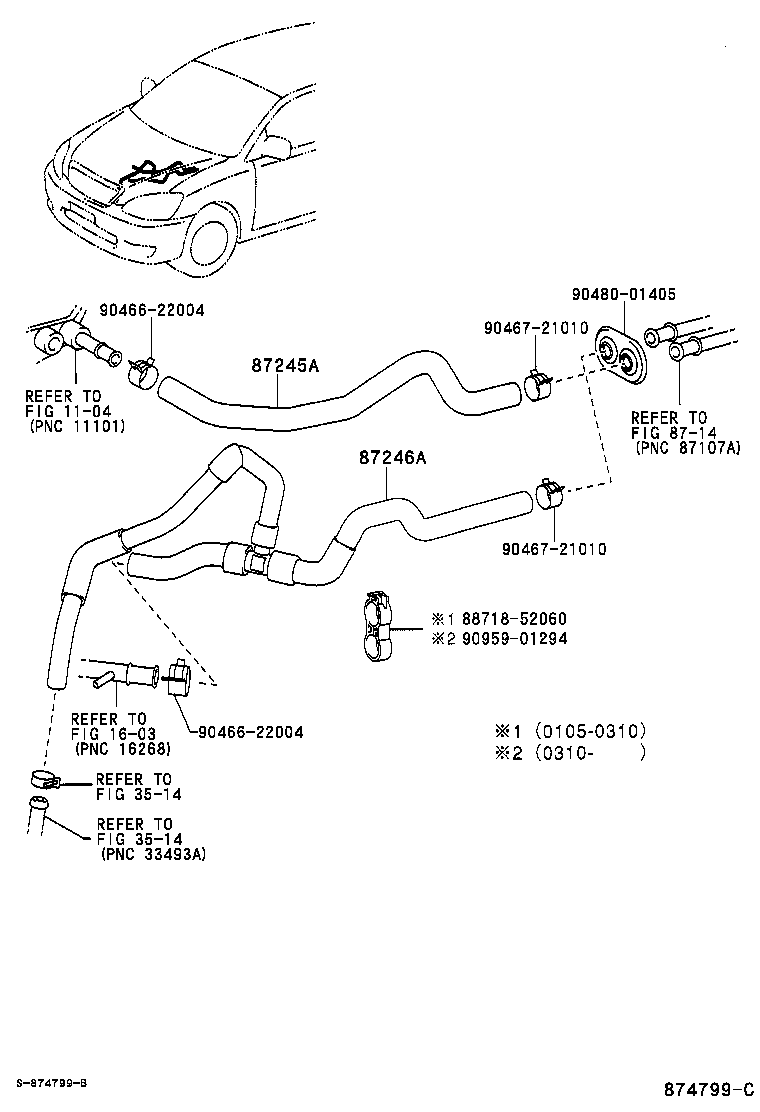

Figure 874799C

874799C 2001-05 → —

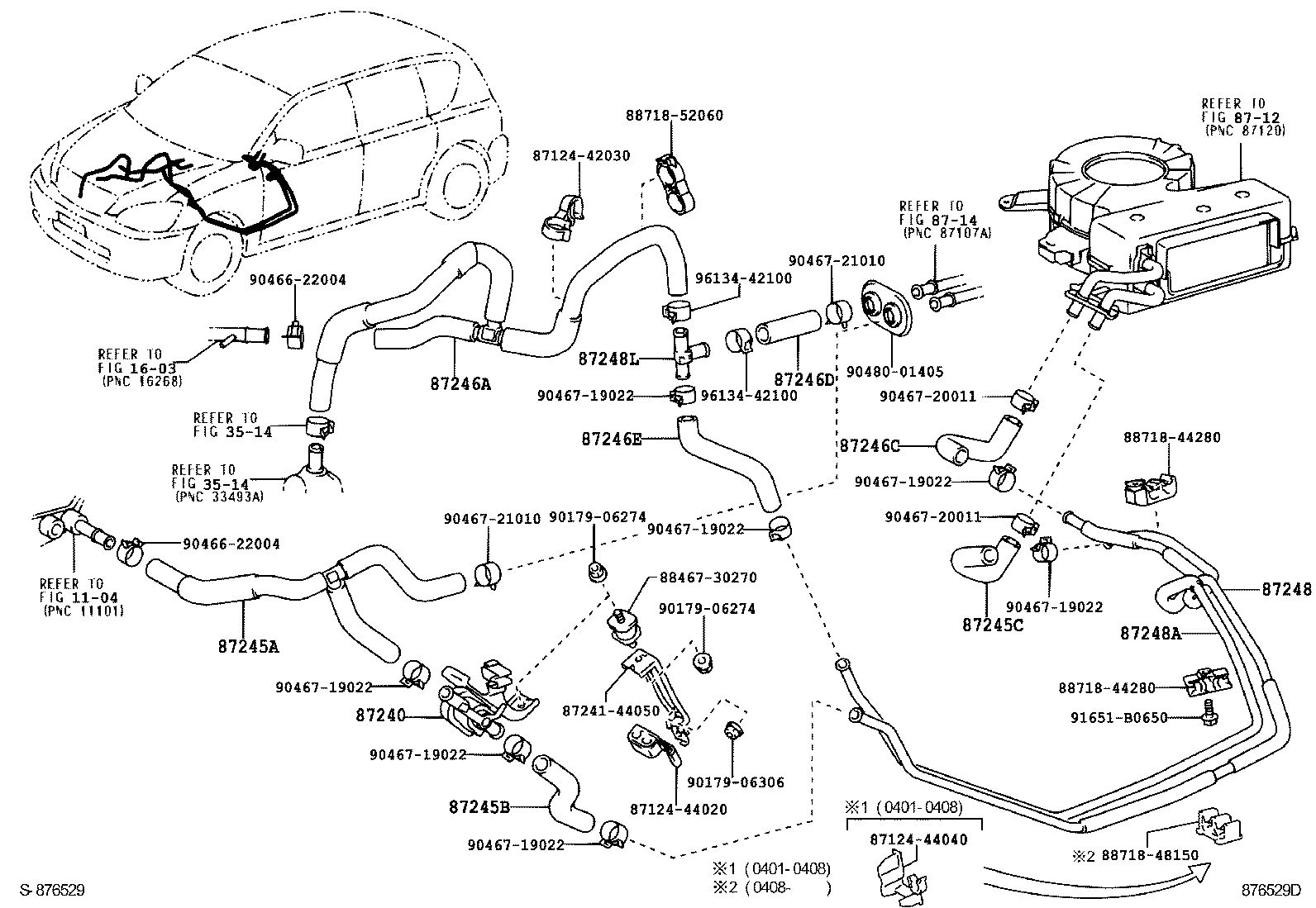

Figure 876529D

876529D 2003-10 → —

Part groups

PNC	Description
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87246A	Hose, Heater Water, Outlet A
87246C	Hose, Heater Water, Outlet C
87246D	Hose, Heater Water, Outlet D
87246E	Hose, Heater Water, Outlet E
87248	Pipe Sub-assy, Water
87248A	Pipe, Heater Water Inlet, A
87248L	Pipe, Heater Water, L

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
