Heating & Air Conditioning - Cooler Piping

16 part groups · 4 illustrations

Illustrations

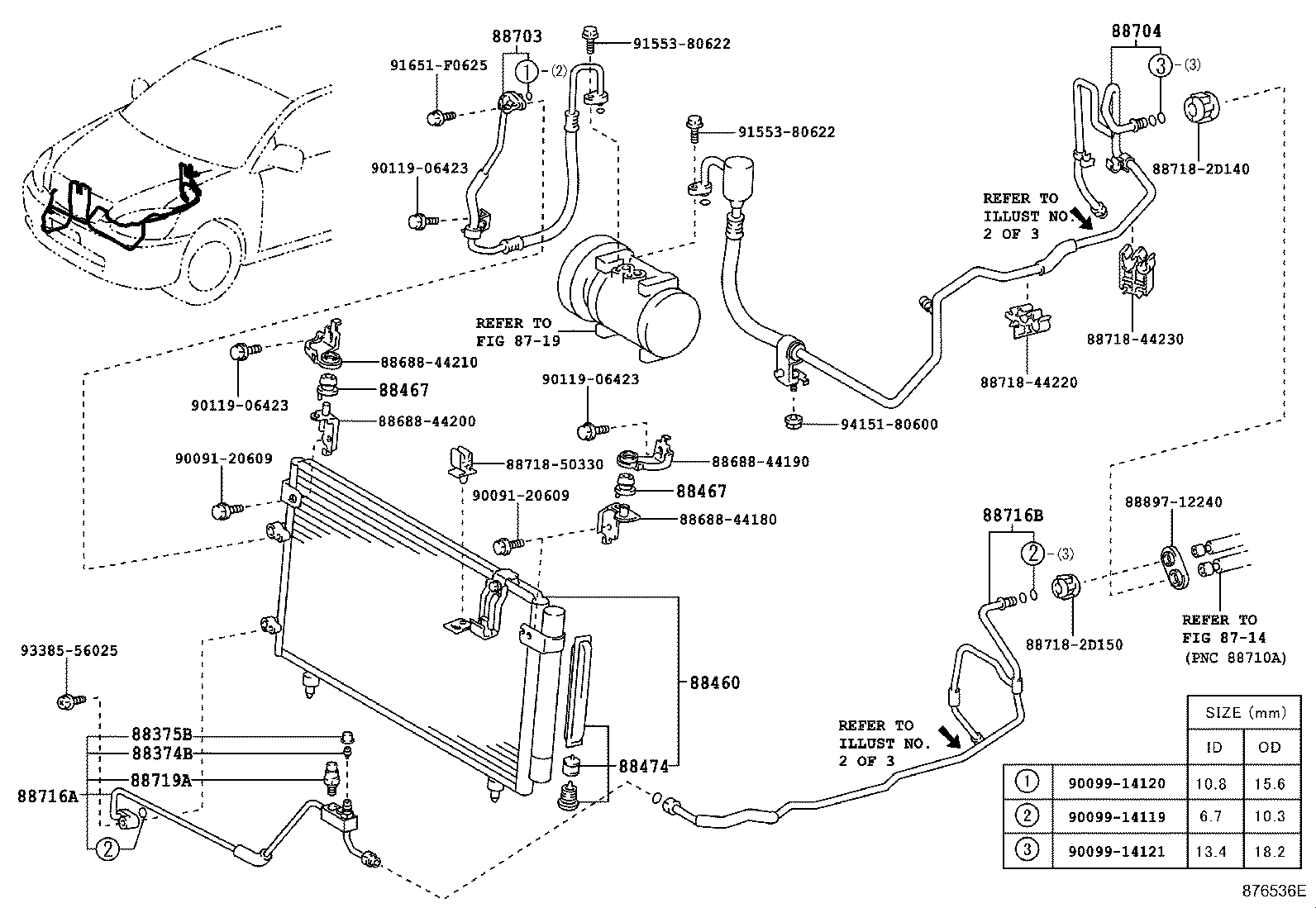

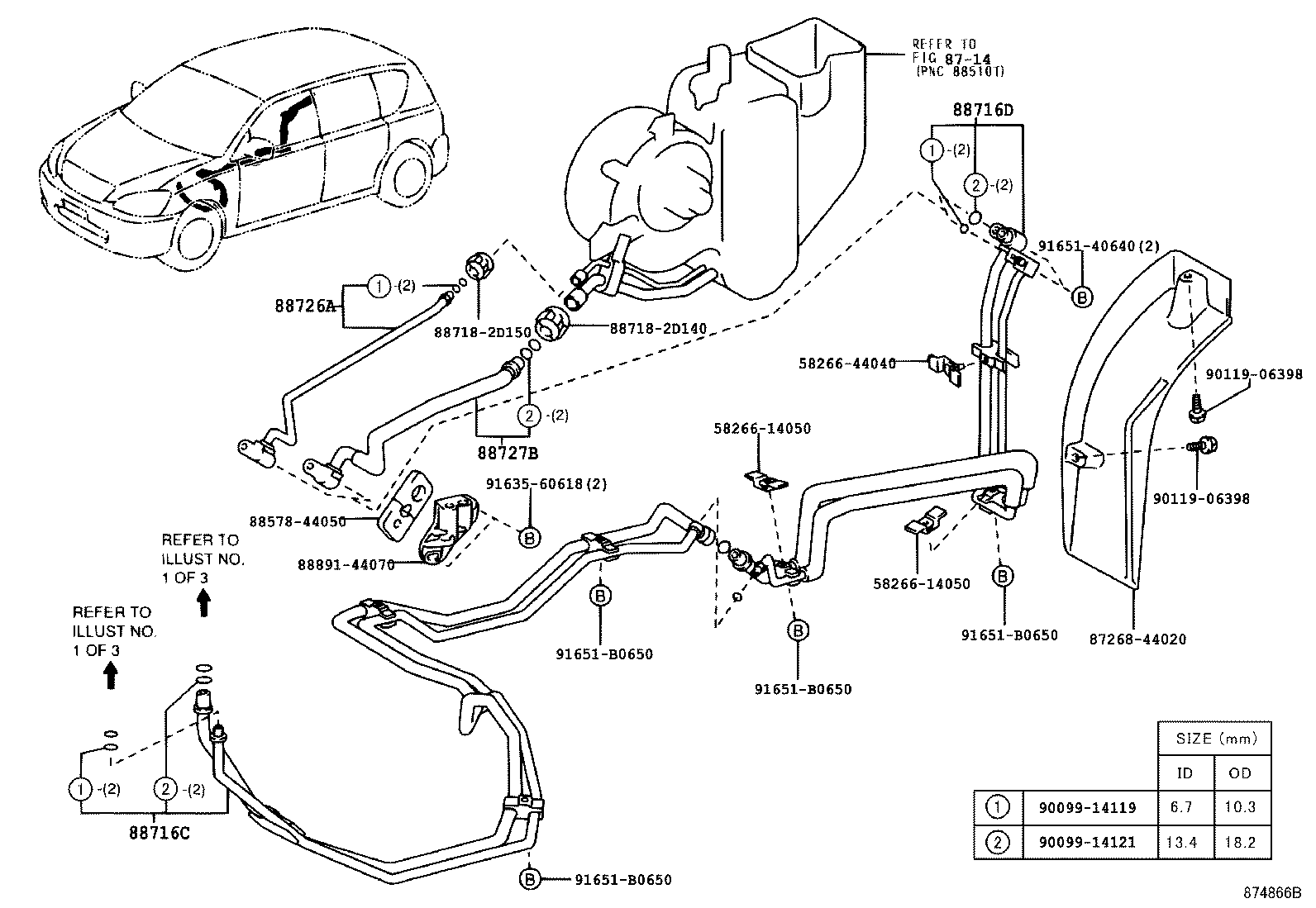

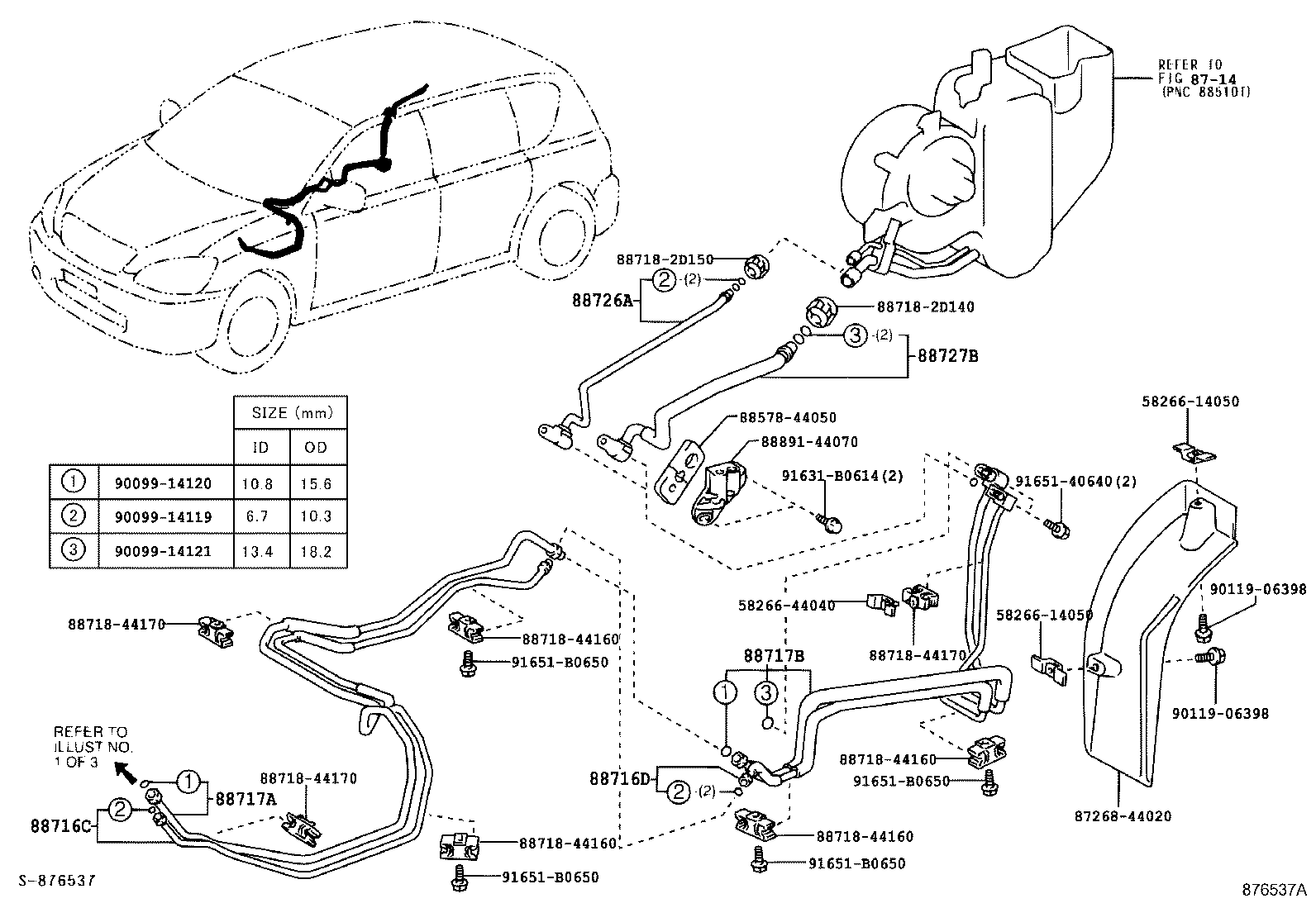

Figure 875403E 875403E 2001-05 → 2003-10 Figure 876536E 876536E 2003-10 → — Figure 874866B 874866B 2001-05 → 2003-10 Figure 876537A 876537A 2003-10 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88719A Sensor, Air Conditioner Pressure
88726A Pipe, Cooler Refrigerant Liquid, A
88727B Pipe, Cooler Refrigerant Suction, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
