Toyota Nadia
1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan
Discontinued model
Data version 2004-01

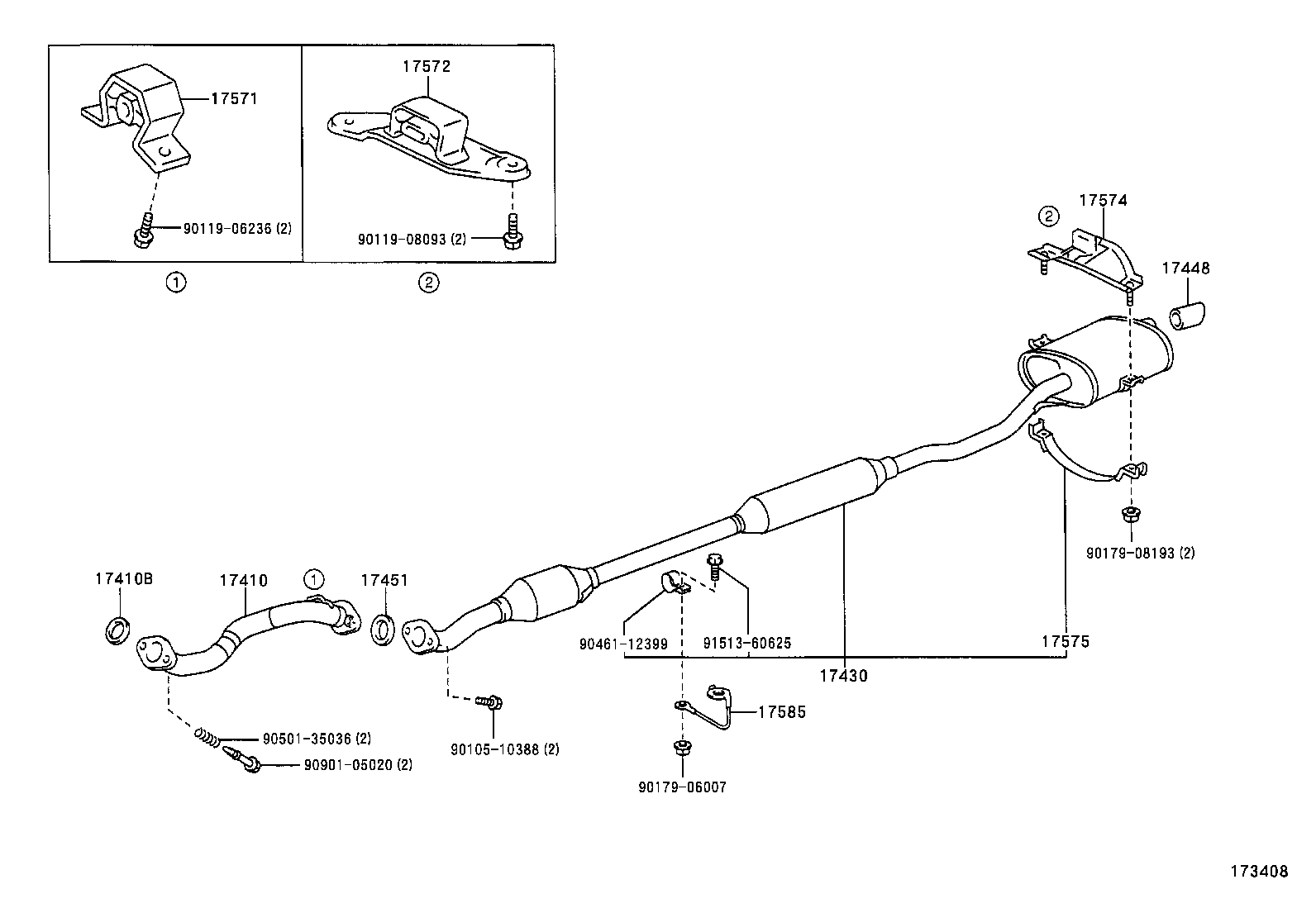

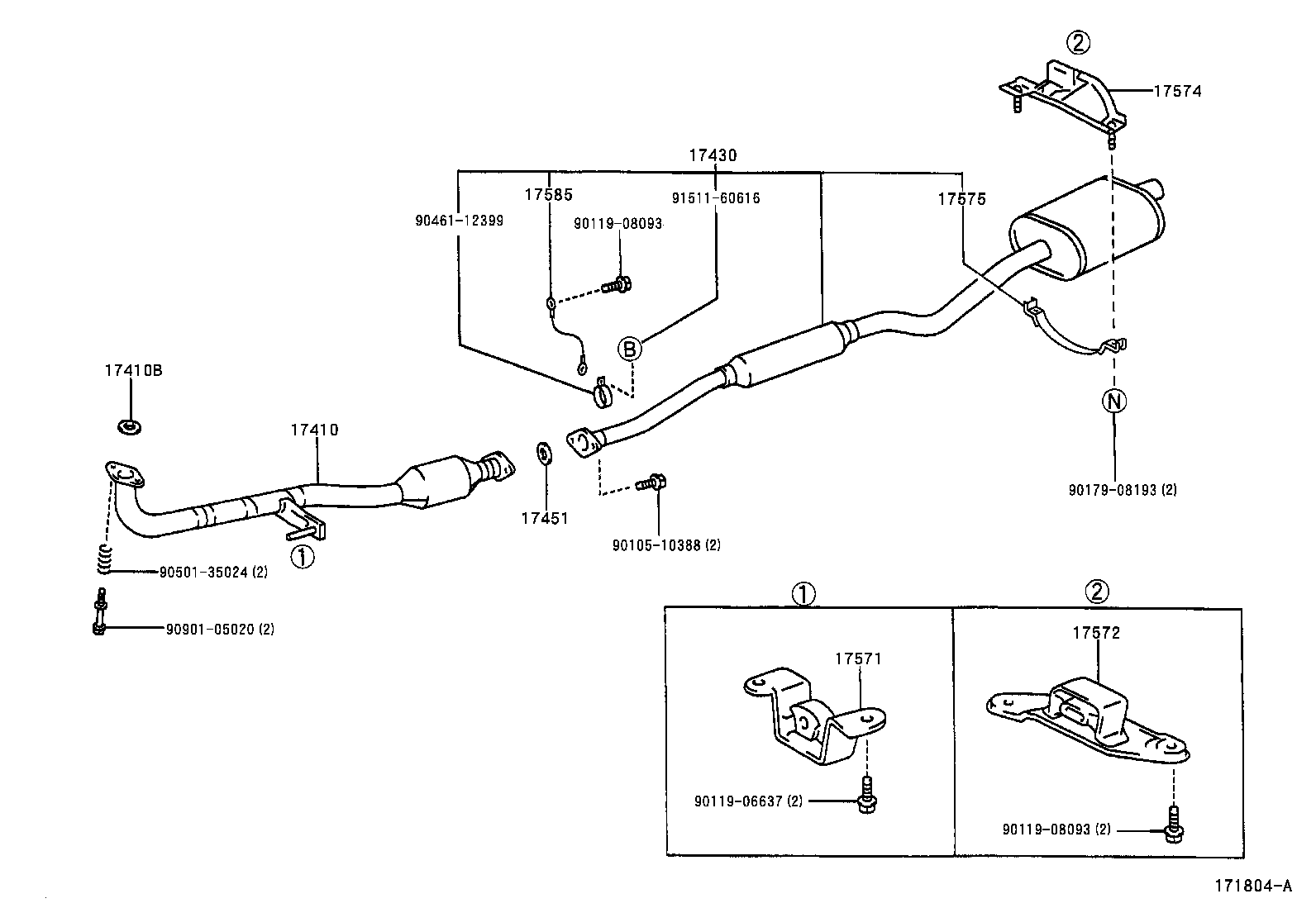

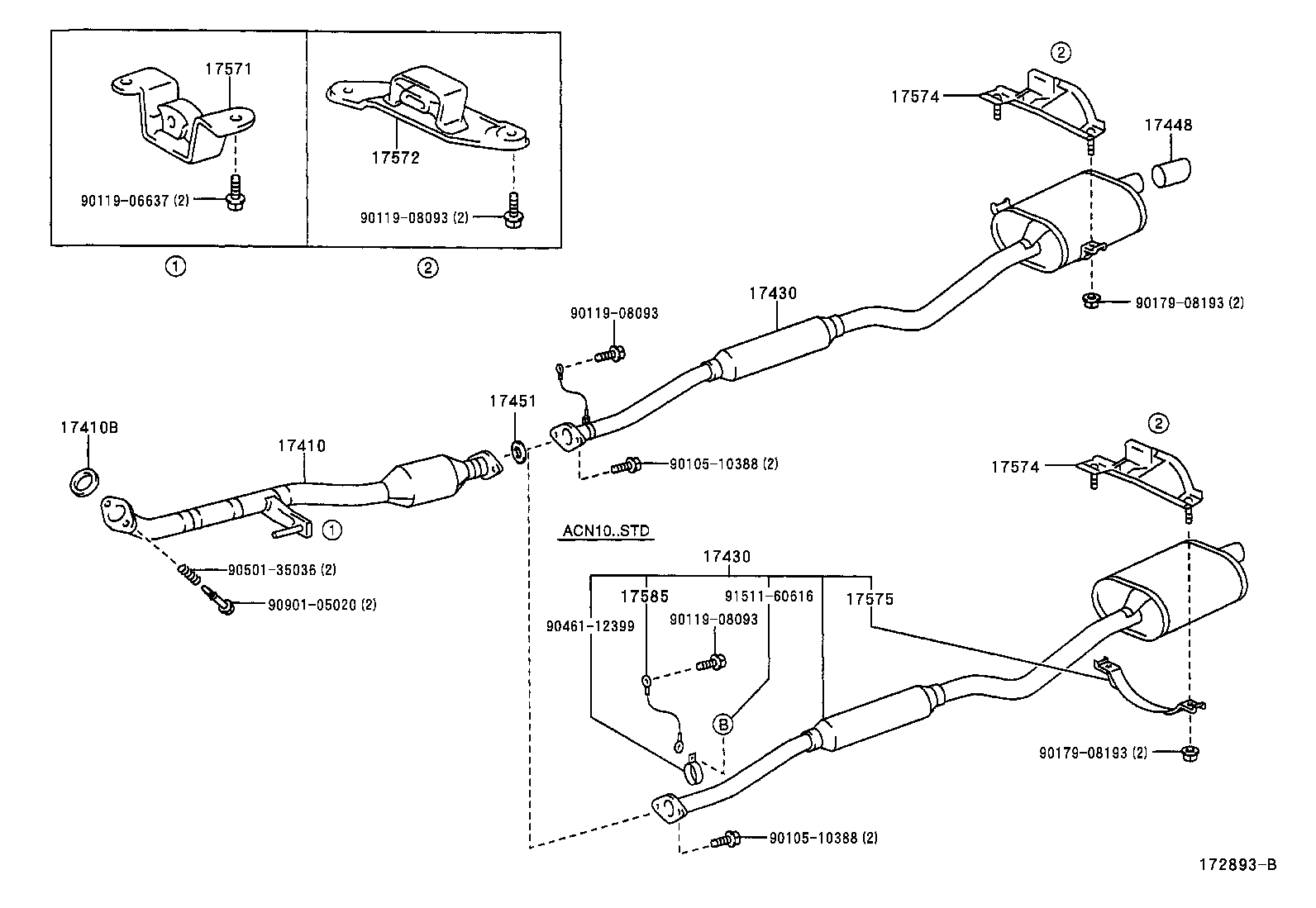

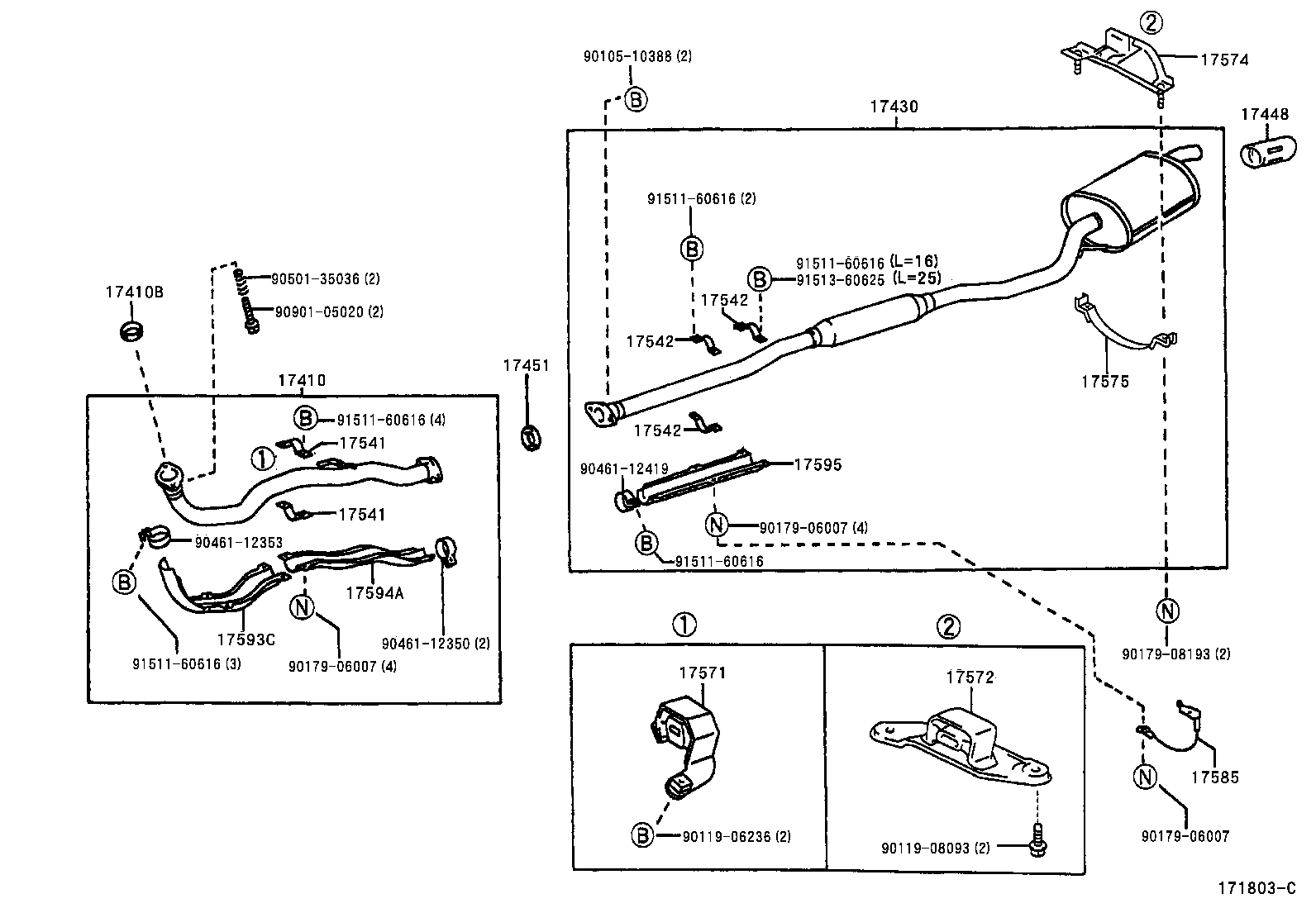

Exhaust Pipe
15 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17448 | Baffle, Tailpipe |
| 17451 | Gasket, Exhaust Pipe |
| 17541 | Stay, Exhust Pipe Protector, NO.1 |
| 17542 | Stay, Exhaust Pipe Protector, NO.2 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17574 | Bracket, Exhaust Pipe Support, NO.4 |
| 17575 | Bracket, Exhaust Pipe Support, NO.5 |
| 17585 | Hanger, Exhaust Pipe |
| 17593C | Protector, Exhaust Pipe, Lower NO.1 |
| 17594A | Protector, Exhaust Pipe, Lower NO.2 |
| 17595 | Protector, Exhaust Pipe, Lower NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
