Toyota Nadia
1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan
Discontinued model
Data version 2004-01
Air Cleaner

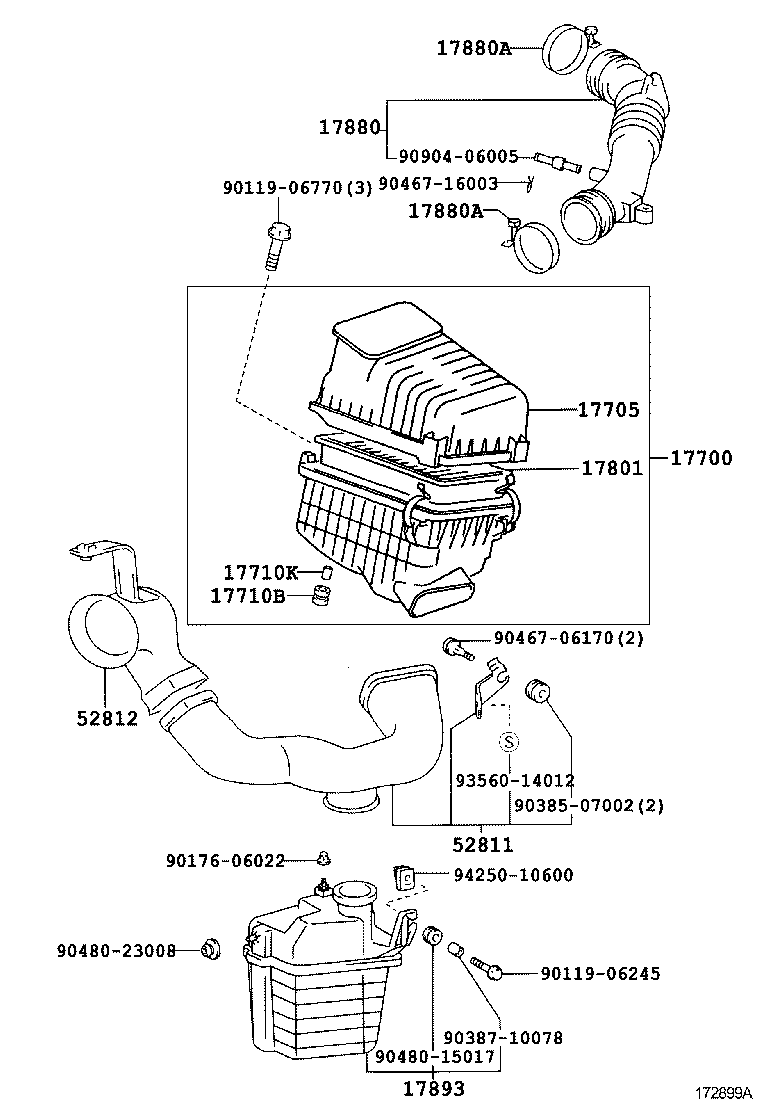

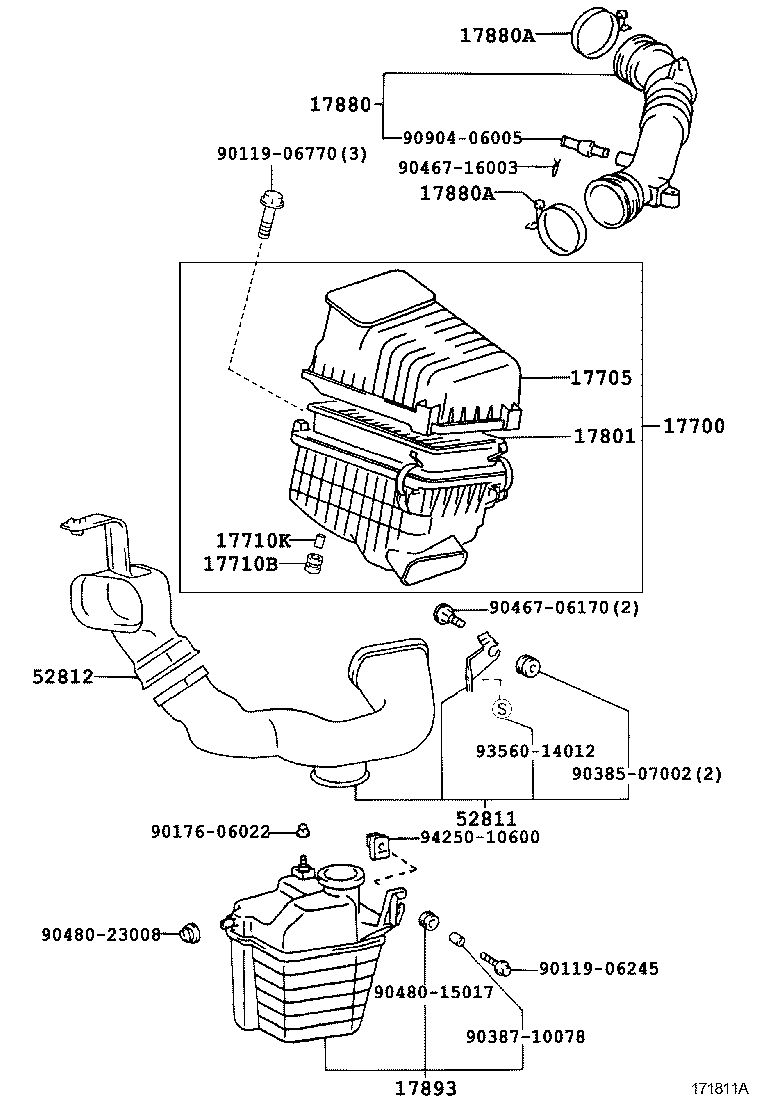

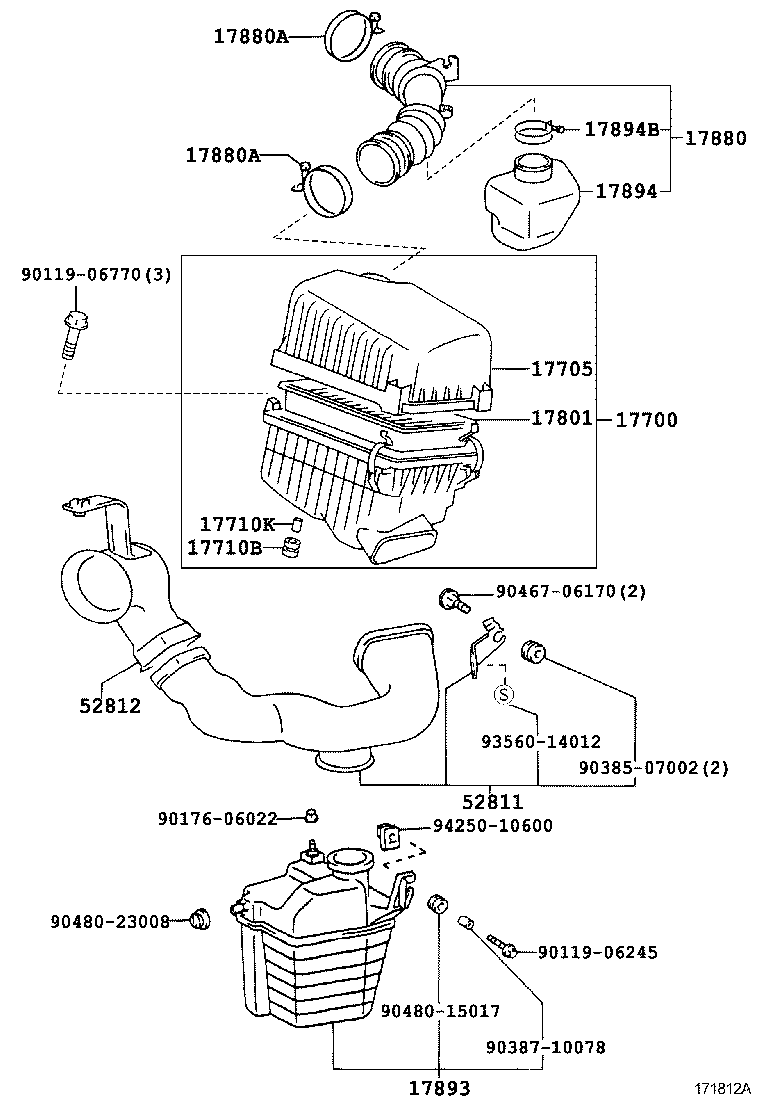

14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17710B | Grommet |
| 17710K | Collar(FOR AIR CLEANER) |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17880 | Hose Assy, Air Cleaner |
| 17880A | Clamp, Hose |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17893 | Resonator, Intake Air |
| 17894 | Bracket, Resonator |
| 17894A | Resonator, Intake Air, NO.2 |
| 17894B | Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2) |
| 52811 | Duct, Cool Air Intake, NO.1 |
| 52812 | Duct, Cool Air Intake, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
