Toyota Nadia
1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan
Discontinued model
Data version 2004-01

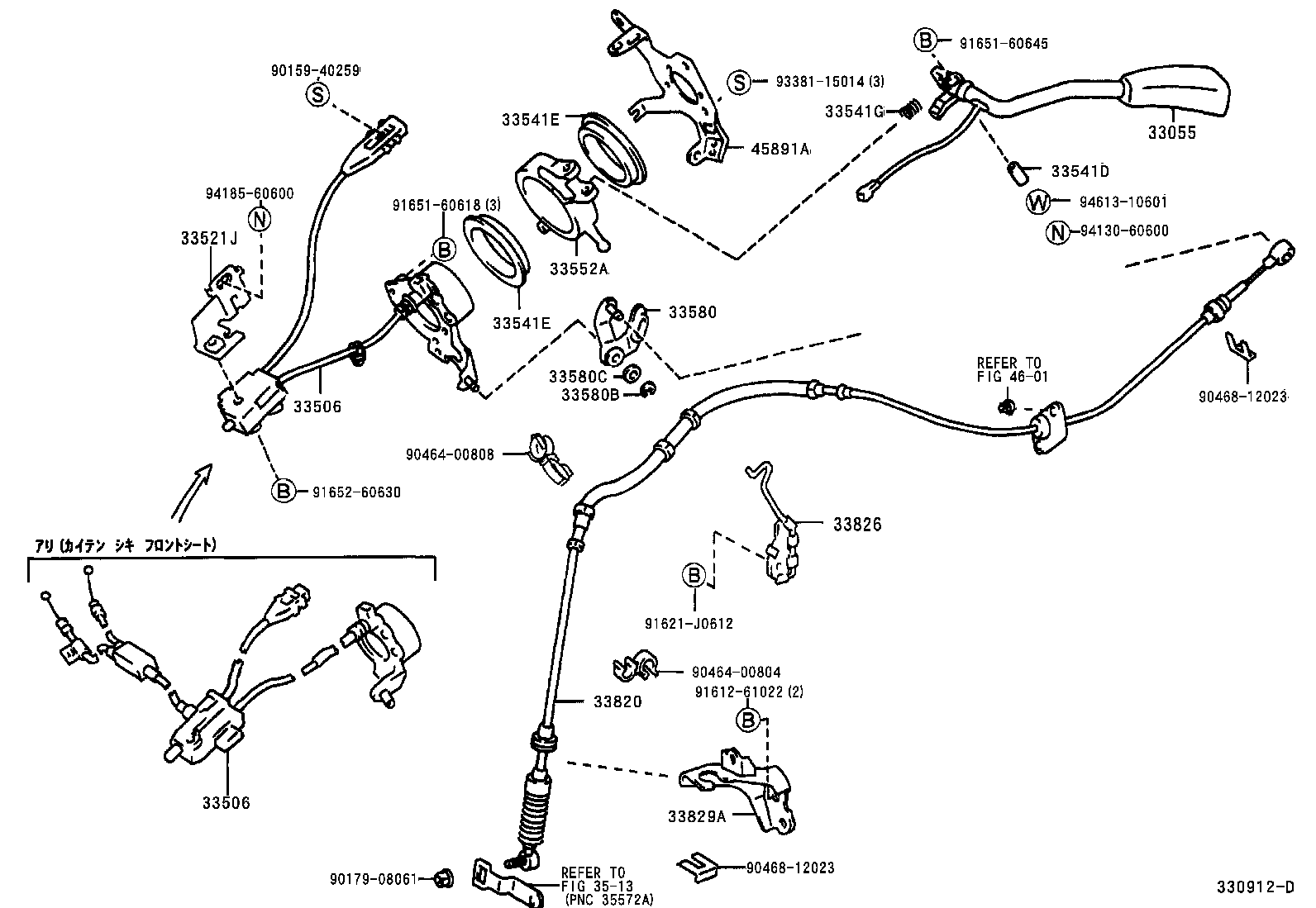

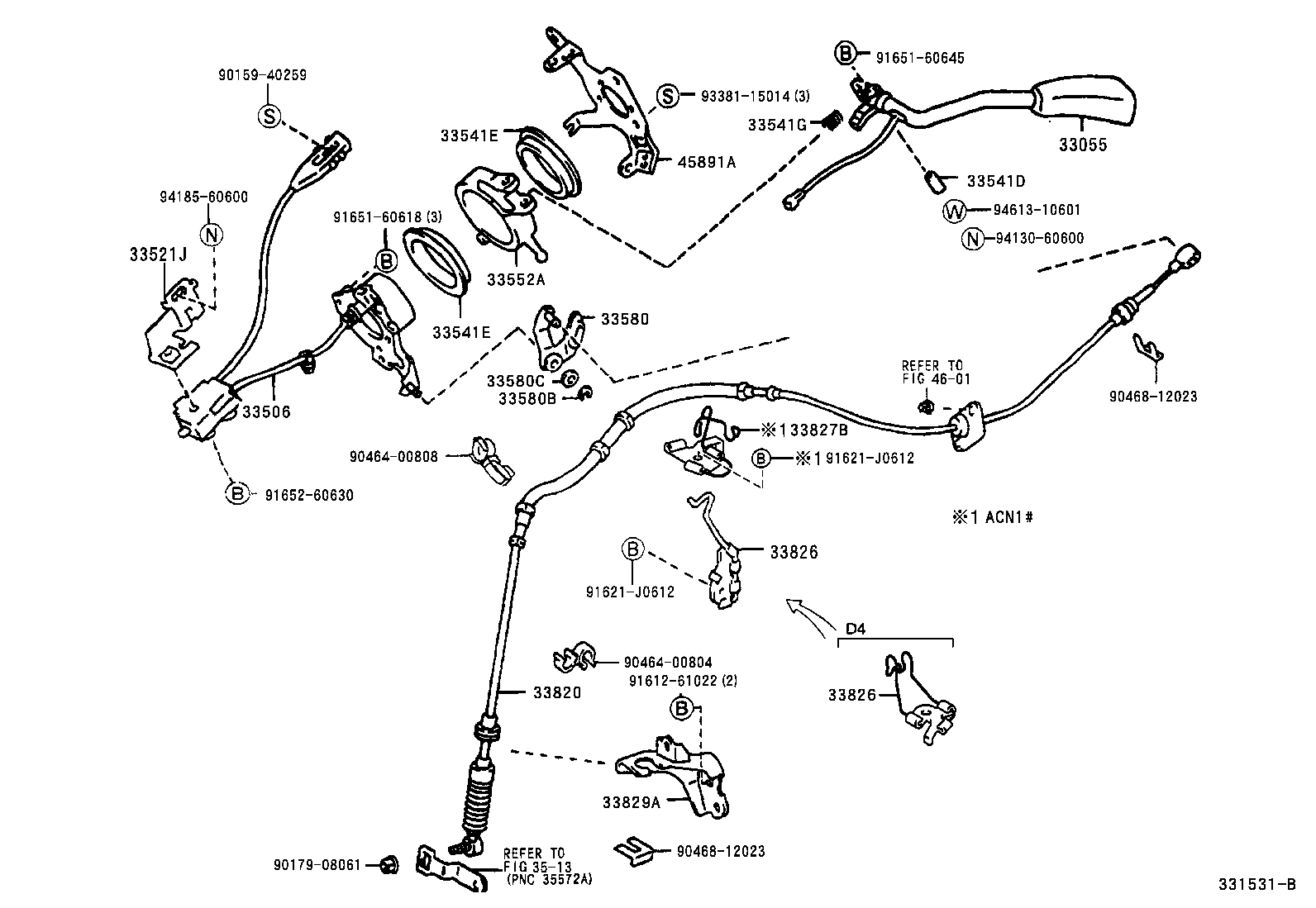

Control Shaft & Crossshaft
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33055 | Lever Sub-assy, Column Shift |
| 33506 | Retainer Sub-assy, Control Shift Lever (FOR COLUMN SHIFT) |
| 33521J | Housing, Shift Lever (FOR COLUMN SHIFT) |
| 33541D | Collar (FOR COLUMN SHIFT LEVER) |
| 33541E | Bush (FOR COLUMN SHIFT LEVER) |
| 33541G | Spring, Compression (FOR COLUMN SHIFT LEVER) |
| 33552A | Arm, Shift Lever |
| 33580 | Bellcrank Assy, Shifting (FOR COLUMN SHIFT) |
| 33580B | Ring, Shaft Snap (FOR SHIFTING BELLCRANK) |
| 33580C | Washer, Plate (FOR SHIFTING BELL CRANK) |
| 33820 | Cable Assy, Transmission Control (FOR COLUMN SHIFT) |
| 33823A | Bracket, Transmission Control Cable |
| 33826 | Bracket, Transmission Control Cable, NO.2 |
| 33827B | Bracket, Transmission Control Cable, NO.3 |
| 33829A | Support, Transmission Control Cable |
| 45891A | Bracket, Turn Signal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
