Toyota Nadia

1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 3 illustrations

Illustrations

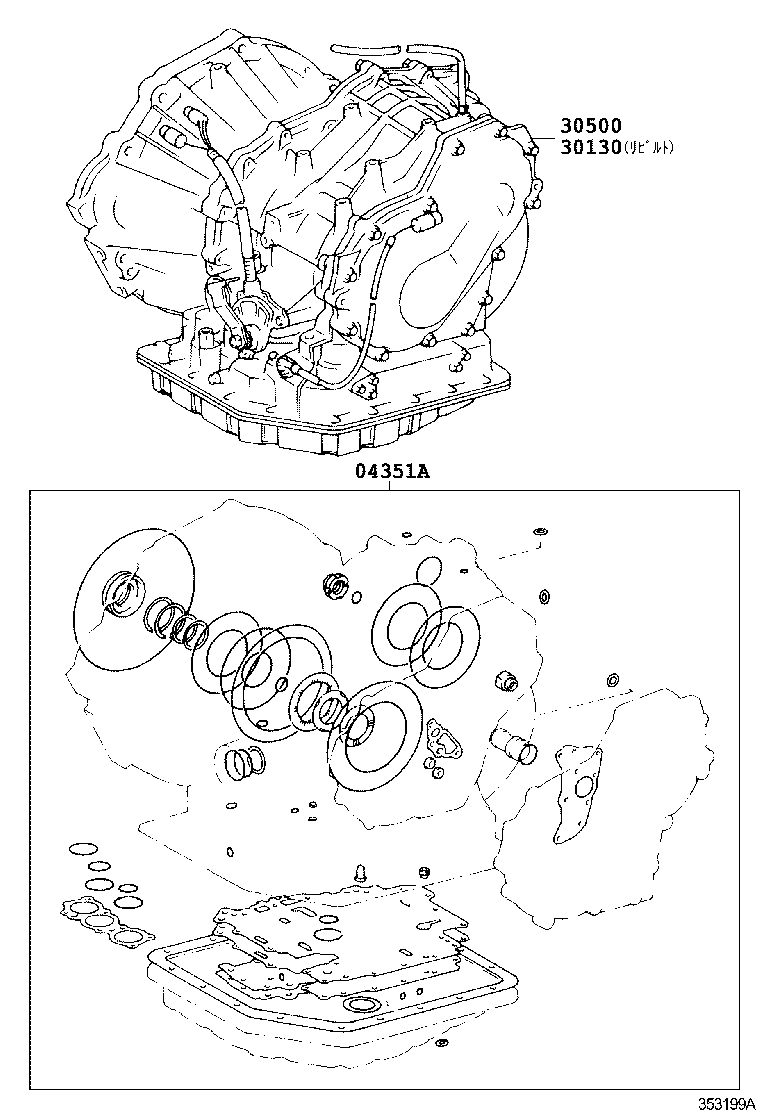

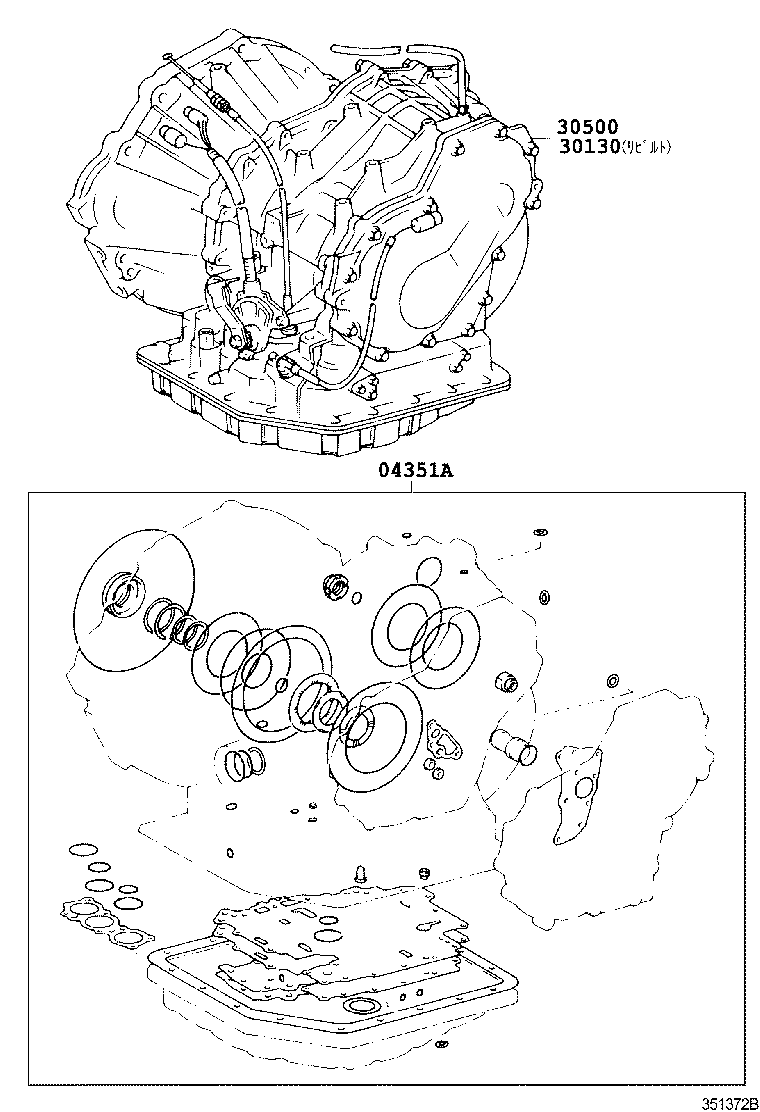

Figure 351373A 351373A 1998-07 → 2001-04 Figure 351372B 351372B 1998-07 → 2002-08 Figure 353199A 353199A 2001-04 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30130 Transaxle Assy, Rebuilt
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
