Toyota Nadia

1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

12 part groups · 5 illustrations

Illustrations

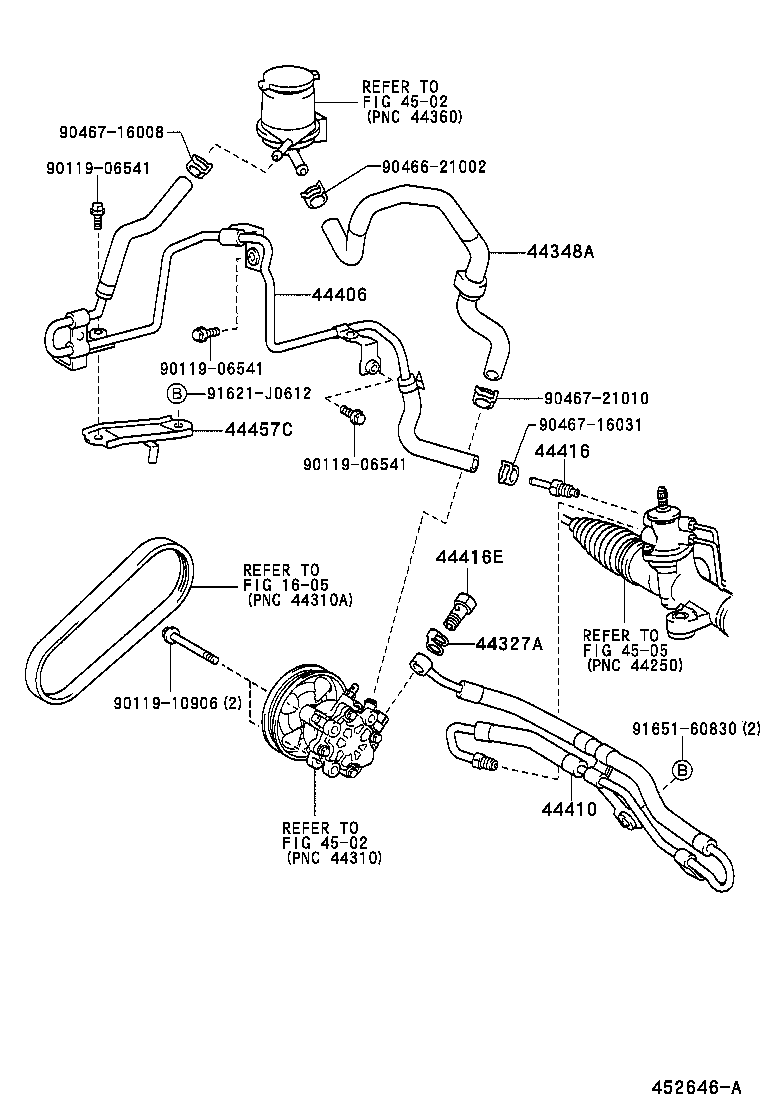

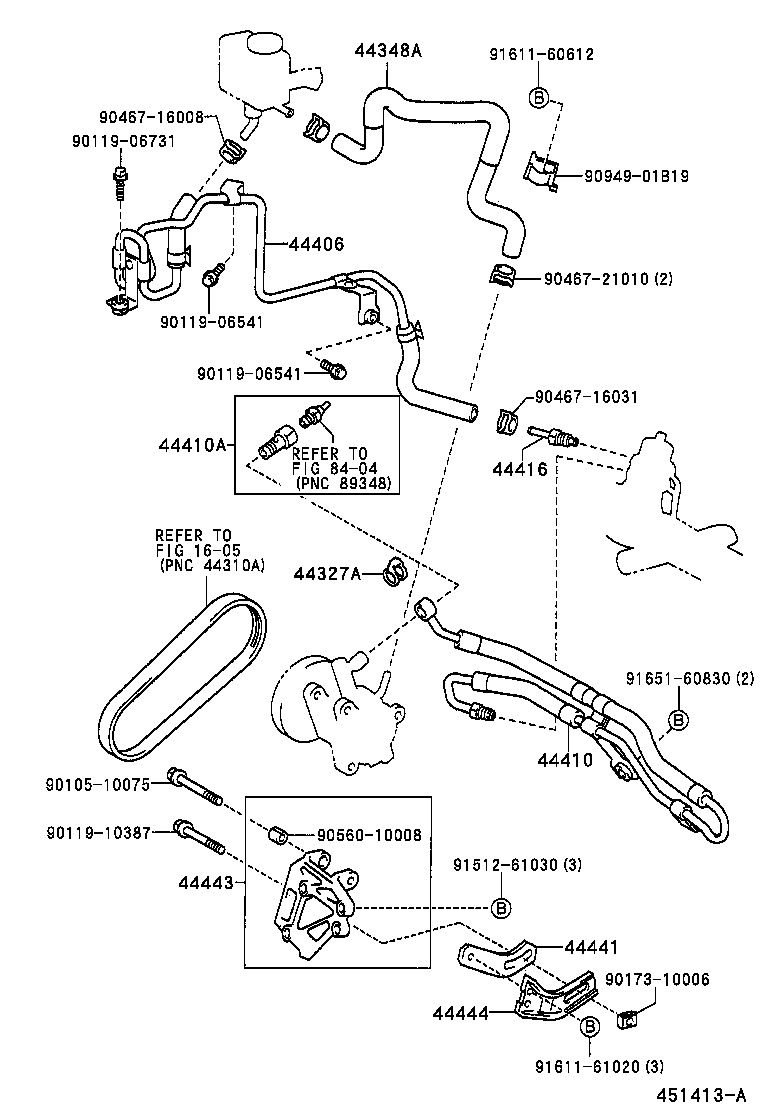

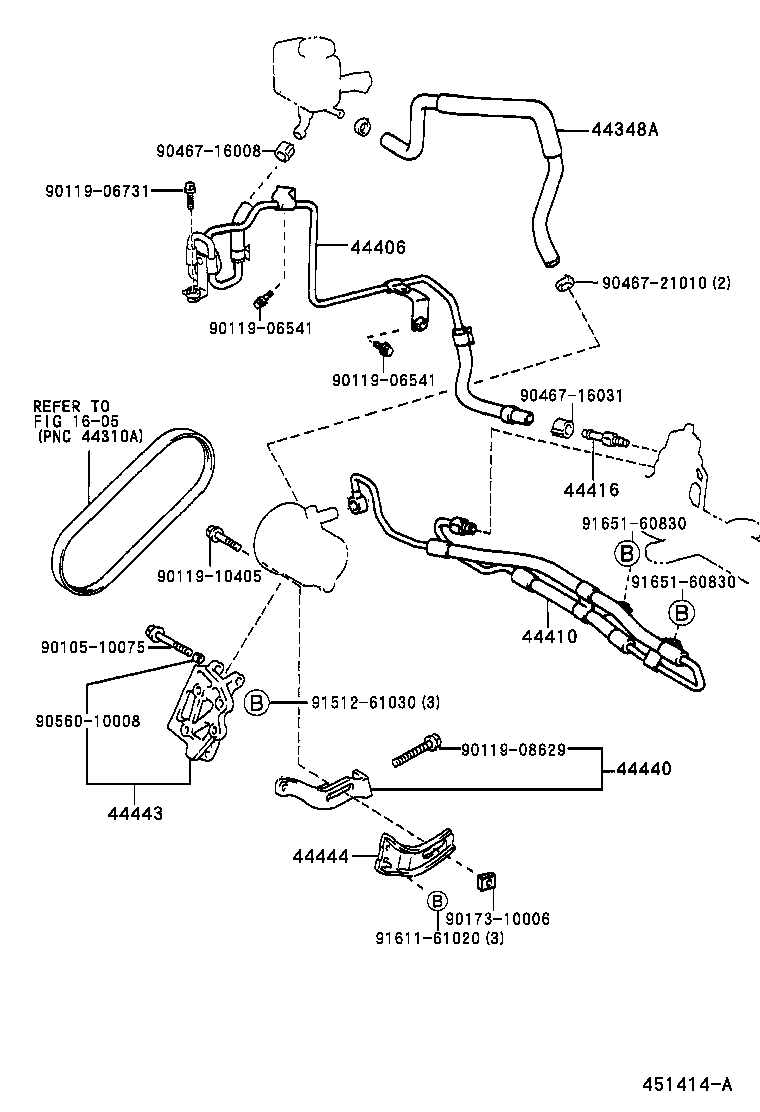

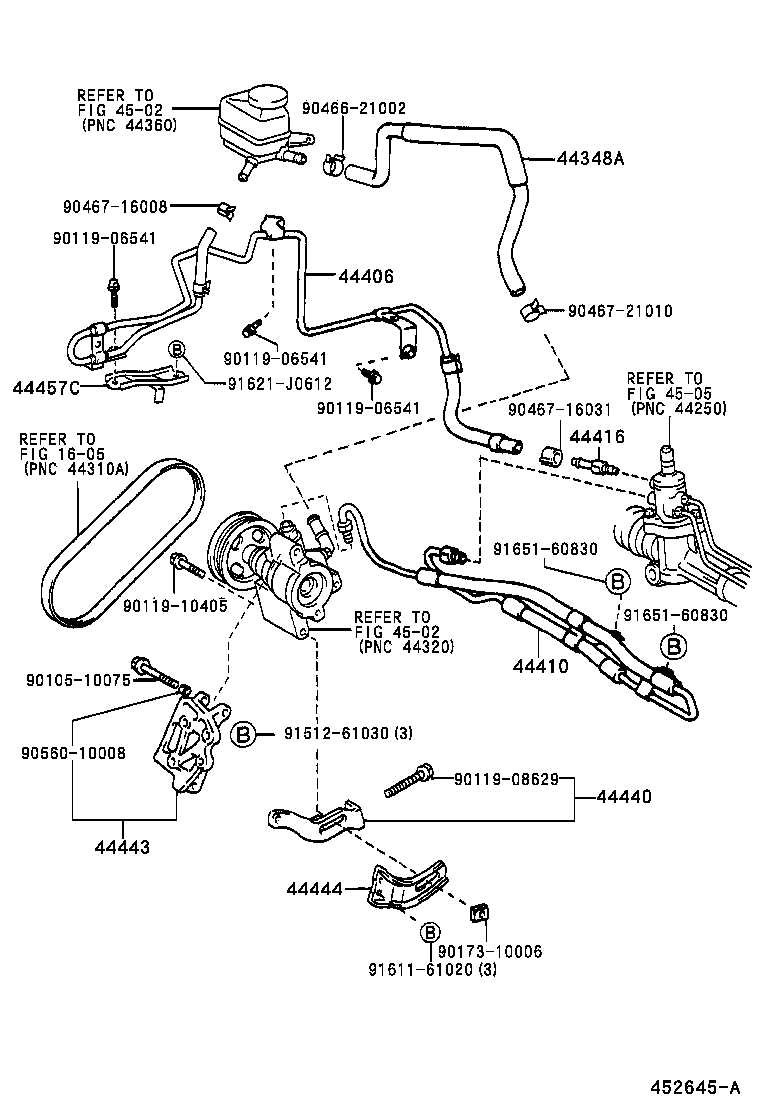

Figure 451412B 451412B 1998-07 → 2001-04 Figure 451413A 451413A 1998-07 → 2001-04 Figure 451414A 451414A 1998-07 → 2001-04 Figure 452645A 452645A 2001-04 → 2002-08 Figure 452646A 452646A 2001-04 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416E Bolt, Union(FOR RETURN TUBE)
44440 Bracket Assy, Pump
44441 Bracket, Pump, Front
44443 Bracket, Pump
44444 Stay, Pump, Rear
44457C Bracket, Power Steering Tube Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
