Toyota Nadia

1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

8 part groups · 2 illustrations

Illustrations

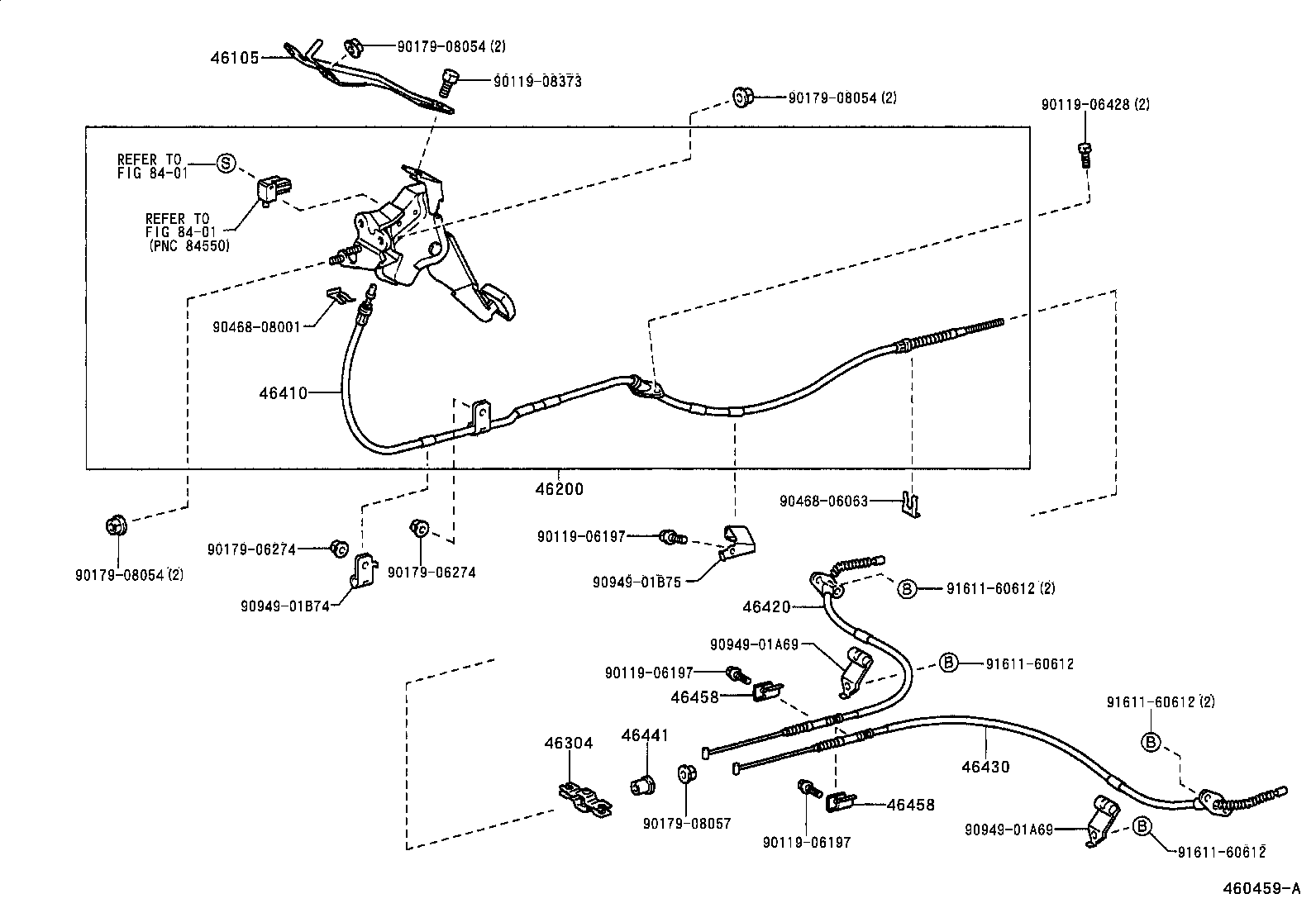

Figure 460226B 460226B 1998-07 → 2002-08 Figure 460459A 460459A 2002-08 → —

Part groups

PNCDescription
46105 Bracket Sub-assy, Parking Brake Planger OR Pedal
46200 Pedal Assy, Parking Brake Control
46304 Equalizer Sub-assy, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46458 Retainer, Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
