Toyota Nadia

1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

78 part groups · 11 illustrations

Illustrations

715395A 1998-07 → 2001-04

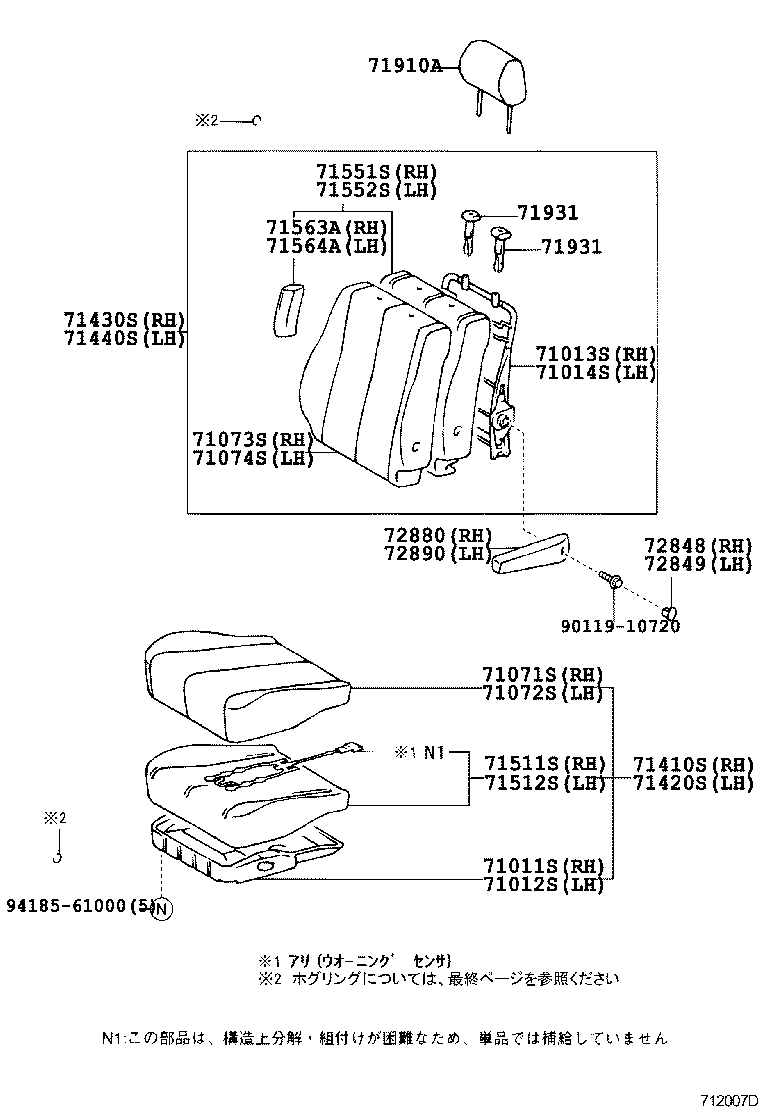

712007D 2001-04 → —

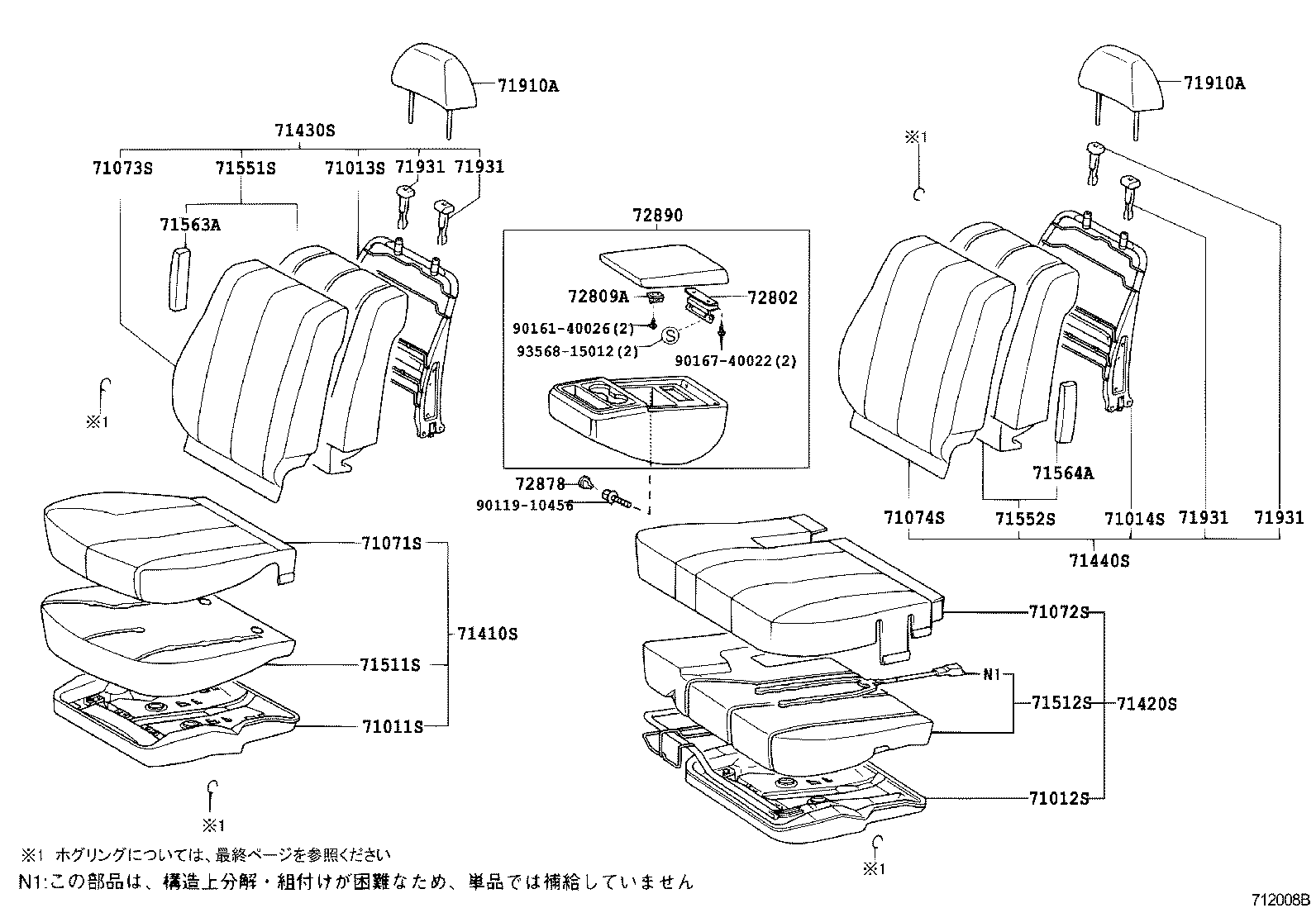

712008B 2001-04 → —

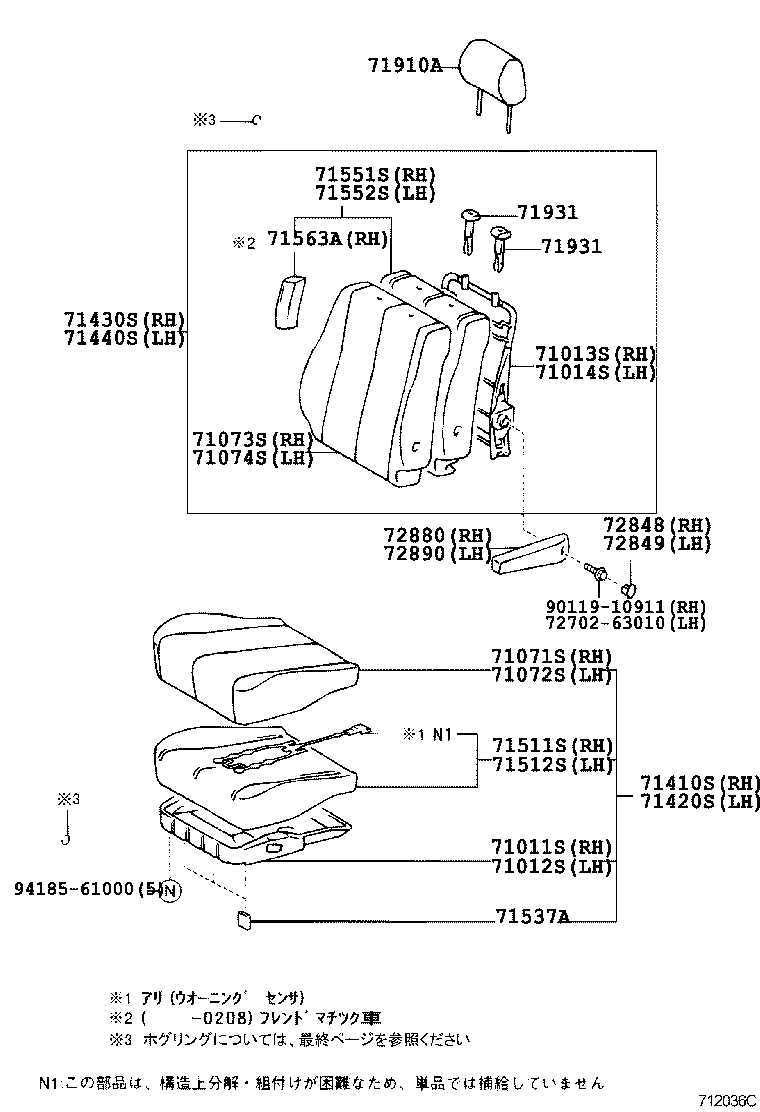

712036C 2001-04 → —

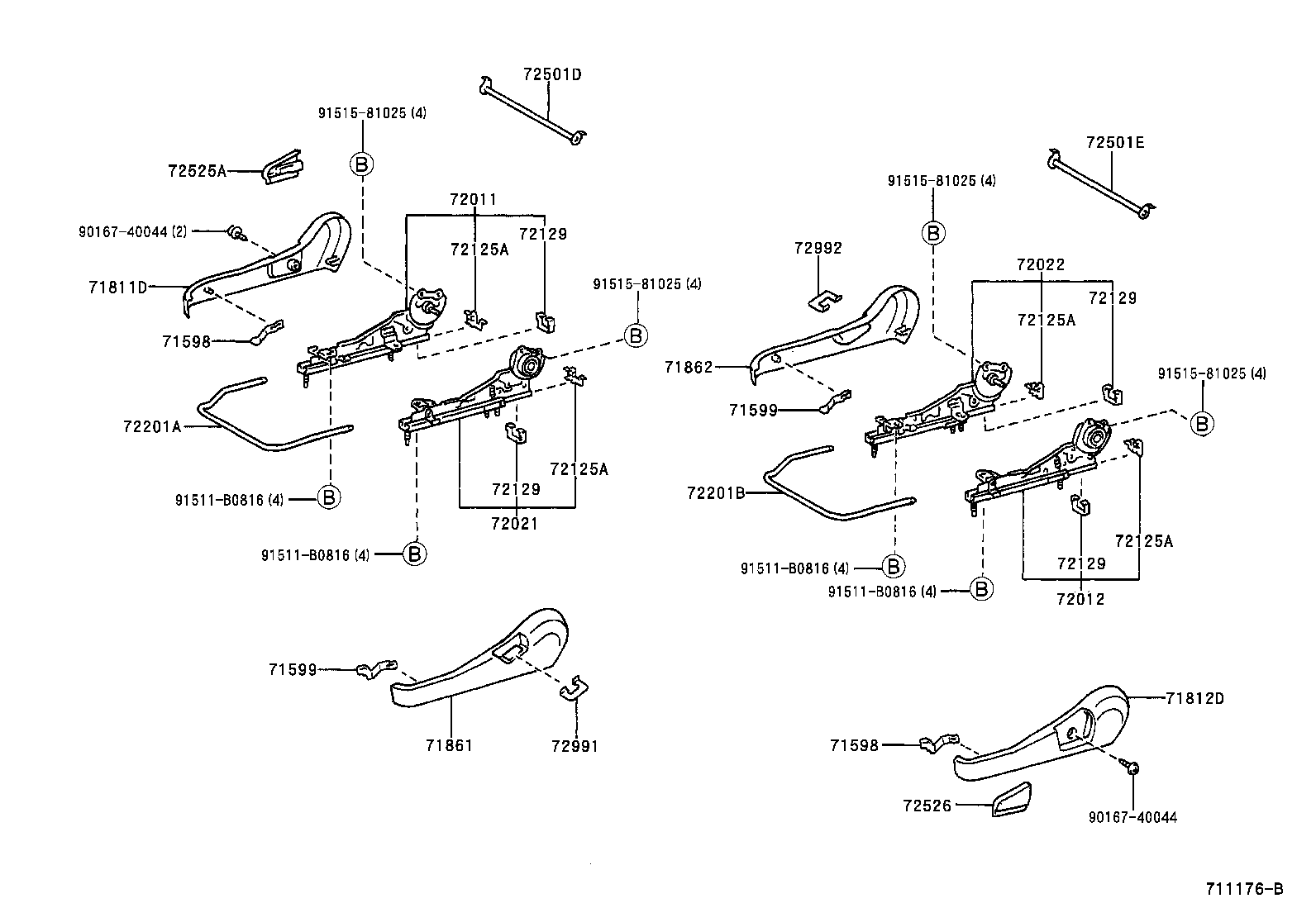

711176B 1998-07 → 2001-04

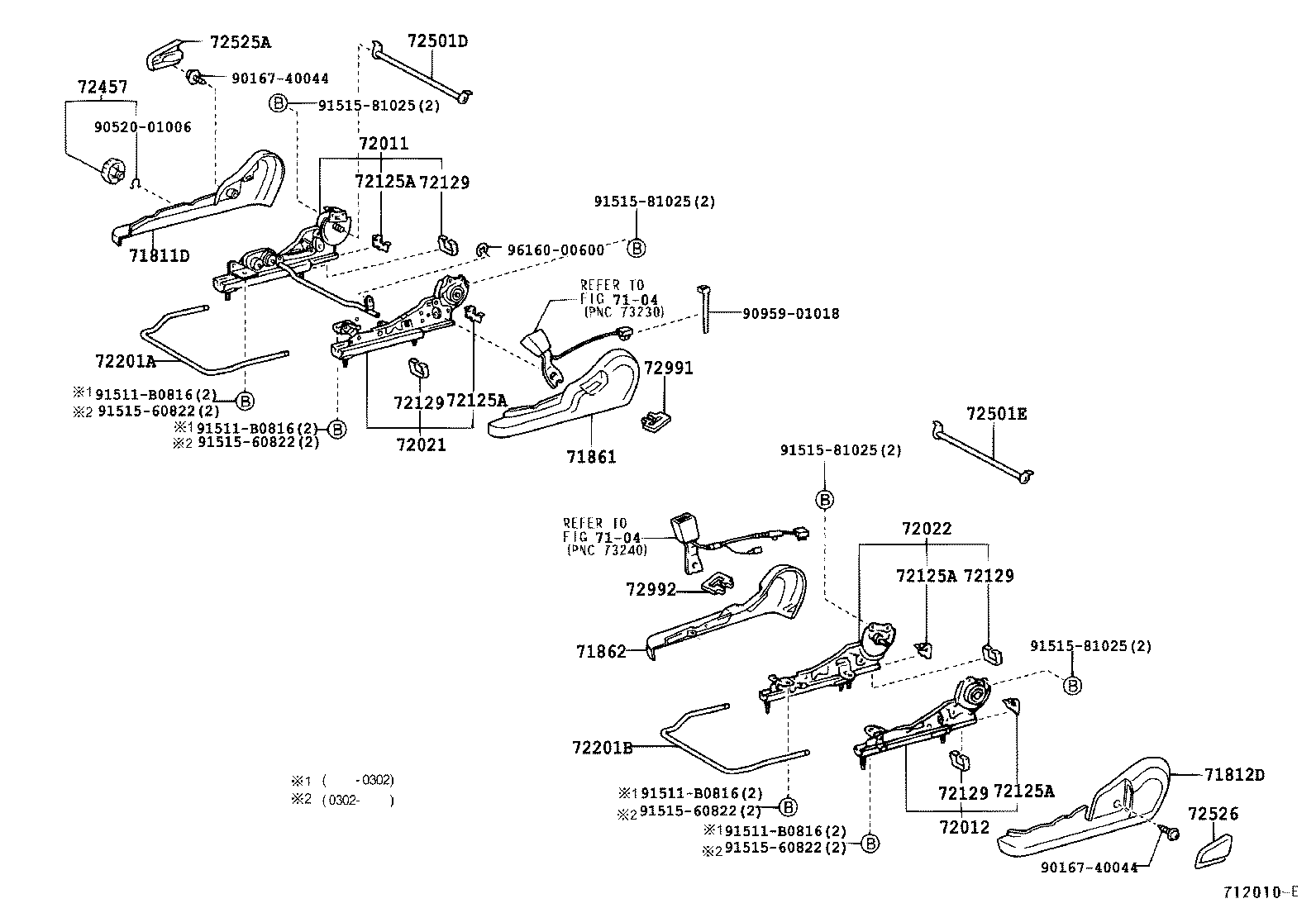

712010E 2001-04 → —

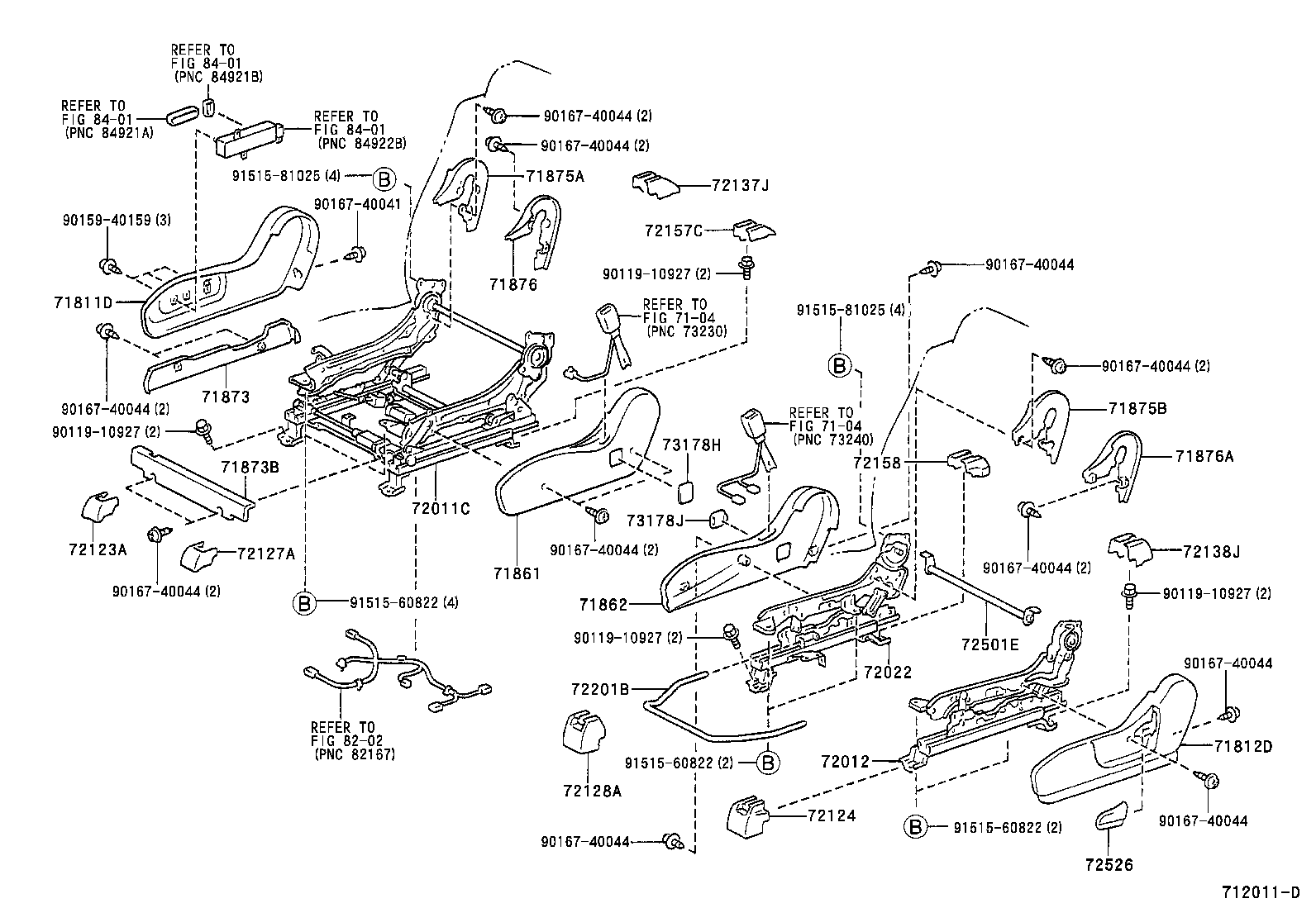

712011D 2001-04 → —

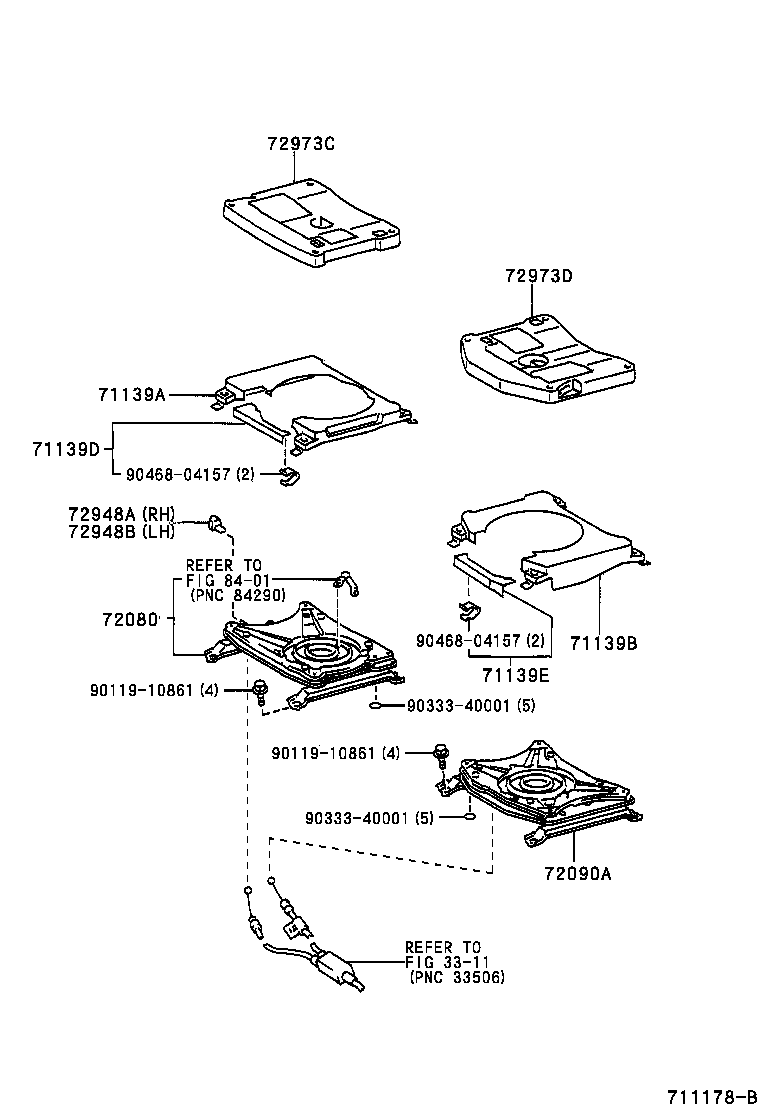

711178B 1998-07 → 2001-04

711177A 1998-07 → 2001-04

712009B 2001-04 → —

718165A 1998-07 → —

Part groups

PNC	Description
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71108B	Leg Sub-assy, Front Seat, RH
71109B	Leg Sub-assy, Front Seat, LH
71139A	Cover, Front Seat Leg, NO.1
71139B	Cover, Front Seat Leg, NO.2
71139D	Cover, Front Seat Leg NO.1
71139E	Cover, Front Seat Leg NO.2
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71563A	Pad, Front Seatback Side, RH
71564A	Pad, Front Seatback Side, LH
71598	Plate, Seat Cover
71599	Plate, Seat Cover, NO.2
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71873	Shield, Front Seat Cushion, Lower RH
71873B	Shield, Front Seat Cushion, Lower RH, NO.1
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72011	Adjuster Sub-assy, Front Seat, Outer RH
72011C	Adjuster Sub-assy, Front Seat, RH
72012	Adjuster Sub-assy, Front Seat, Outer LH
72021	Adjuster Sub-assy, Front Seat, Inner RH
72022	Adjuster Sub-assy, Front Seat, Inner LH
72080	Table Assy, Front Seat Turn, RH
72090A	Table Assy, Front Seat Turn, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72125A	Cover, Seat Track, Upper Rear
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72129	Protector, Seat Track Lower Rail, NO.1
72137J	Cover, Front Seat Track, RH Rear Outer
72138J	Cover, Front Seat Track, LH Rear Outer
72157C	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72201A	Handle Sub-assy, Seat Track RH
72201B	Handle Sub-assy, Seat Track LH
72457	Knob, Vertical Seat Adjuster
72501D	Pipe Sub-assy, Reclining Connecting, RH
72501E	Pipe Sub-assy, Reclining Connecting, LH
72525A	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72802	Hinge Sub-assy, Armrest Console
72809A	Lock Sub-assy, Center Armrest
72848	Cap, NO.3 Seat Armrest
72849	Cap, Seat Armrest, NO.2
72878	Cover, Seat Armrest, LH
72880	Armrest Assy, Seat, C RH
72890	Armrest Assy, Seat, C LH
72948A	Knob, Seat Turn Lock
72948B	Knob, Seat Turn Lock
72973C	Cover, Front Seat Turn Table,NO.1
72973D	Cover, Front Seat Turn Table, NO.2
72991	Cover, Front Seat Cushion, RH
72992	Cover, Front Seat Cushion, LH
73178H	Cap, Seat Belt Anchor Cover, RH
73178J	Cap, Seat Belt Anchor Cover, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
