Toyota Nadia
1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan
Discontinued model
Data version 2004-01

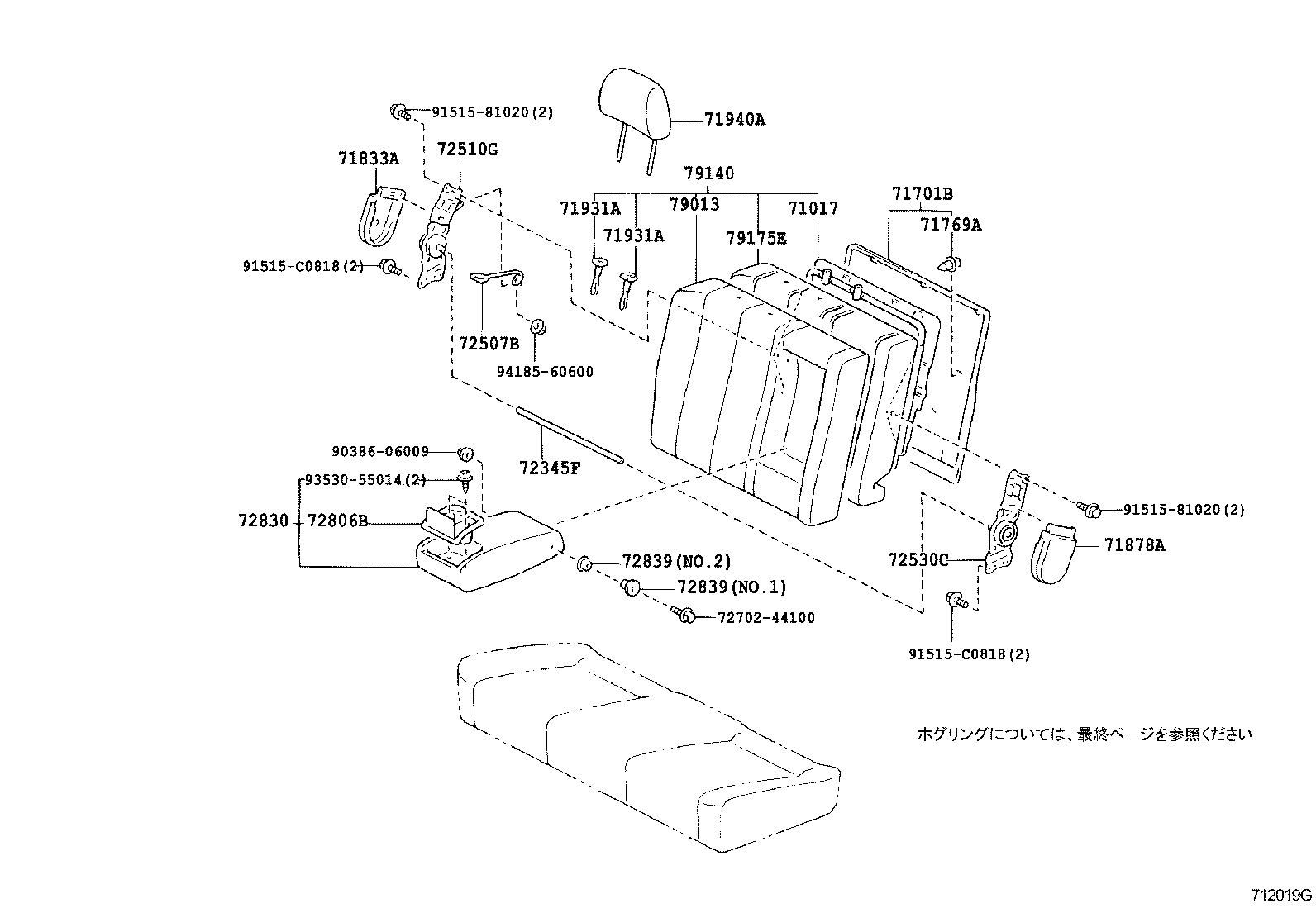

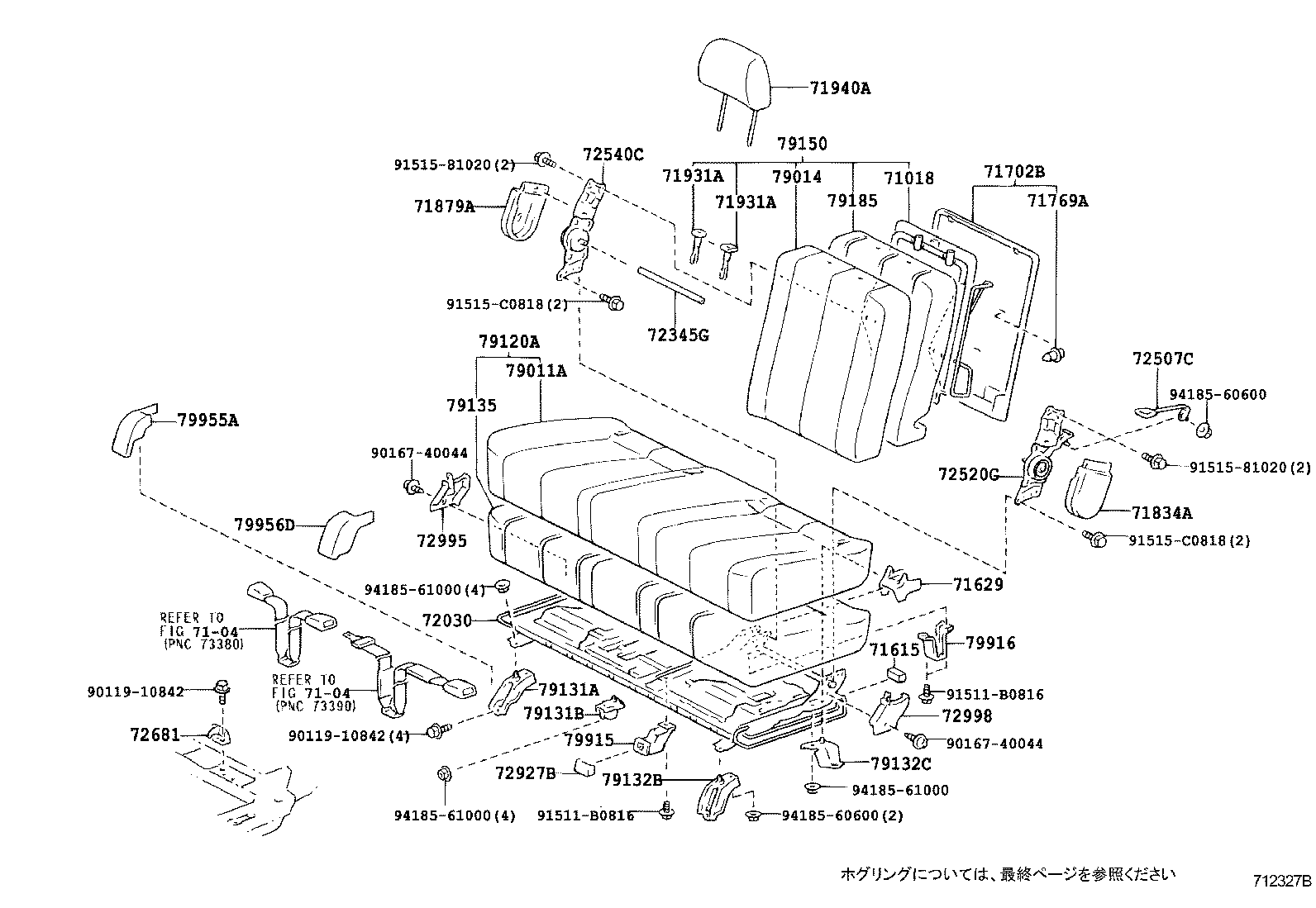

Rear Seat & Seat Track
94 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 66990 | Holder Assy, Cup |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71221A | Reinforcement, Rear Seat Cushion, Rear |
| 71222A | Reinforcement, Rear Seat Cushion, Rear |
| 71325D | Hinge, Rear Seat Cushion, Upper |
| 71329A | Reinforcement, Rear Seat Cushion Support, RH |
| 71329B | Reinforcement, Rear Seat Cushion Support, LH |
| 71381A | Bracket, Rear Seat Cushion Set, RH |
| 71382A | Bracket, Rear Seat Cushion Set, LH |
| 71615 | Pad, Rear Seat Cushion, E |
| 71628E | Spacer, Rear Seat Cushion |
| 71629 | Cover, Rear Seat Cushion Hinge |
| 71629A | Cover, Rear Seat Cushion Hinge, RH |
| 71639 | Cover, Rear Seat Cushion Hinge, LH |
| 71691D | Cover, Rear Seat Cushion Hinge, Upper RH |
| 71692D | Cover, Rear Seat Cushion Hinge, Upper LH |
| 71701B | Board Sub-assy, Rear Seatback, RH |
| 71702B | Board Sub-assy, Rear Seatback, LH |
| 71769A | Clip, Rear Seatback Board |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71878A | Cover, Rear Seat Reclining, Inner RH |
| 71879A | Cover, Rear Seat Reclining, Inner LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 72030 | Adjuster Assy, Rear NO.1 Seat |
| 72160 | Track Assy, Rear Seat, Outer RH |
| 72170 | Track Assy, Rear Seat, Outer LH |
| 72180C | Track Assy, Rear Seat, Inner RH |
| 72190 | Track Assy, Rear Seat Inner, LH |
| 72302C | Wire Sub-assy, Rear Seat Track Equalizing, RH |
| 72302D | Wire Sub-assy, Rear Seat Track Equalizing, LH |
| 72345C | Pipe,Reclining Connecting, RH |
| 72345D | Pipe, Reclining Connecting, LH |
| 72345F | Pipe, Reclining Connecting, RH |
| 72345G | Pipe, Reclining Connecting, LH |
| 72345H | Cap, Seat Stand Frame |
| 72507B | Handle Sub-assy, Reclining Release, RH |
| 72507C | Handle Sub-assy, Reclining Release, LH |
| 72510G | Adjuster Assy, Rear Reclining Seat, Outer RH |
| 72520G | Adjuster Assy, Rear Reclining Seat, Outer LH |
| 72525C | Handle, Reclining Adjuster Release, NO.1 RH |
| 72526B | Handle, Reclining Adjuster Release, NO.1 LH |
| 72530B | Adjuster Assy, Reclining Seat, Inner RH |
| 72530C | Adjuster Assy, Rear Reclining Seat, Inner RH |
| 72540B | Adjuster Assy, Reclining Seat, Inner LH |
| 72540C | Adjuster Assy, Rear Reclining Seat, Inner LH |
| 72667 | Bezel, Rear Seatback Lock, Upper |
| 72681 | Hook, Rear Seatback Lock, Lower |
| 72730A | Adjuster Assy, Rear Seat Reclining, RH |
| 72740A | Adjuster Assy, Rear Seat Reclining, LH |
| 72806B | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830D | Armrest Assy, Rear Seat, RH |
| 72839 | Shim, Rear Seat Armrest Hinge |
| 72840D | Armrest Assy, Rear Seat, LH |
| 72927B | Cover, Rear Seat Cushion Under |
| 72995 | Cover, Rear Seat Cushion, RH |
| 72998 | Cover, Rear Seat Cushion, LH |
| 76973E | Cover, Rear Under Side, RH |
| 76974E | Cover, Rear Under Side, LH |
| 79011 | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79011A | Cover Sub-assy, NO.1 Seat Cushion |
| 79012 | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013 | Cover Sub-assy, NO.1 Seatback, RH |
| 79014 | Cover Sub-assy, NO.1 Seatback, LH |
| 79019 | Board Sub-assy, NO.1 Seat Cushion |
| 79101B | Frame Sub-assy, NO.1 Seat Cushion, RH |
| 79102 | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 79103A | Frame Sub-assy, NO.1 Seatback, RH |
| 79104 | Frame Sub-assy, NO.1 Seatback, LH |
| 79120 | Cushion Assy, NO.1 Seat, RH |
| 79120A | Cushion Assy, NO.1 Seat |
| 79130 | Cushion Assy, NO.1 Seat, LH |
| 79131A | Leg, NO.1 Seat, Front RH |
| 79131B | Leg, NO.1 Seat, Rear RH |
| 79132B | Leg, NO.1 Seat, Front LH |
| 79132C | Leg, NO.1 Seat, Rear LH |
| 79135 | Pad, NO.1 Seat Cushion |
| 79135A | Pad, NO.1 Seat Cushion, RH |
| 79136B | Pad, NO.1 Seat Cushion, LH |
| 79140 | Back Assy, NO.1 Seat, RH |
| 79150 | Back Assy, NO.1 Seat, LH |
| 79175E | Pad, NO.1 Seatback, RH |
| 79185 | Pad, NO.1 Seatback, LH |
| 79915 | Bracket, Seat Leg |
| 79916 | Bracket, Seat Leg, NO.2 |
| 79955A | Cover, Rear Seat Front Bracket, RH |
| 79955B | Cover, NO.2 Seat Front Bracket, RH |
| 79956D | Cover, Rear Seat Front Bracket, LH |
| 79956L | Cover, NO.2 Seat Front Bracket, LH |
| 79957A | Cover, Rear Seat Rear Bracket, RH |
| 79958A | Cover, Rear Seat Rear Bracket, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
