Toyota Nadia

1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

10 part groups · 2 illustrations

Illustrations

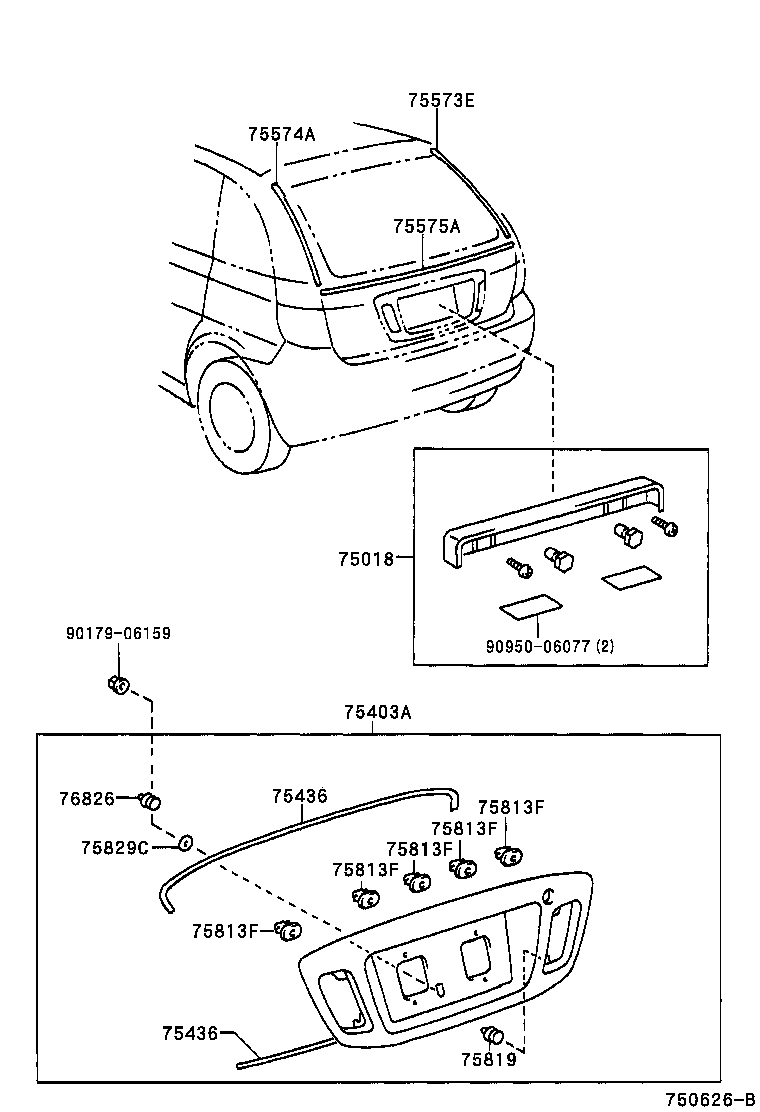

Figure 750520A 750520A 1998-07 → — Figure 750626B 750626B 1999-06 → —

Part groups

PNCDescription
75018 Frame Sub-assy, Rear License Plate
75403A Ornament Sub-assy, Back Door
75436 Protector, Back Door Ornament
75573E Moulding, Back Window, Outside
75574A Moulding, Back Window, Outside LH
75575A Moulding, Back Window, Outside Lower
75813F Clip, Back Door Moulding, NO.1
75819 Clip, Luggage Compartment Door Moulding
75829C Seal, Back Door Outside Moulding
76826 Retainer, Back Door Garnish, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
