Toyota Nadia
1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan
Discontinued model
Data version 2004-01

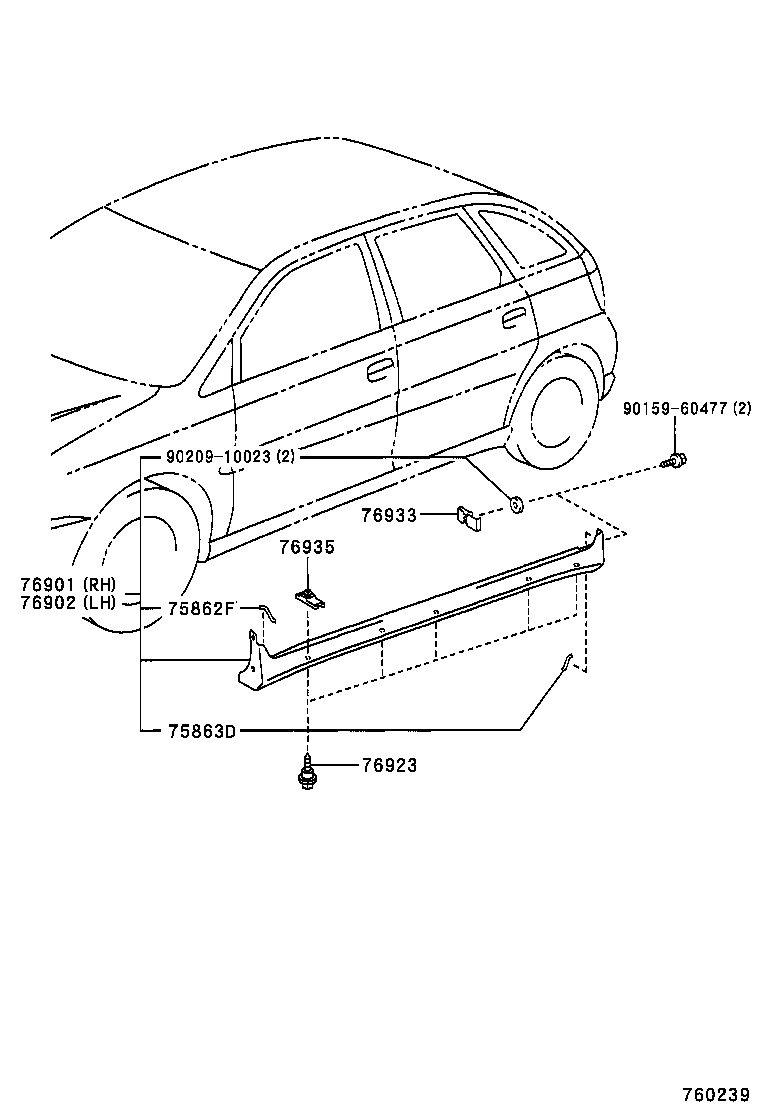

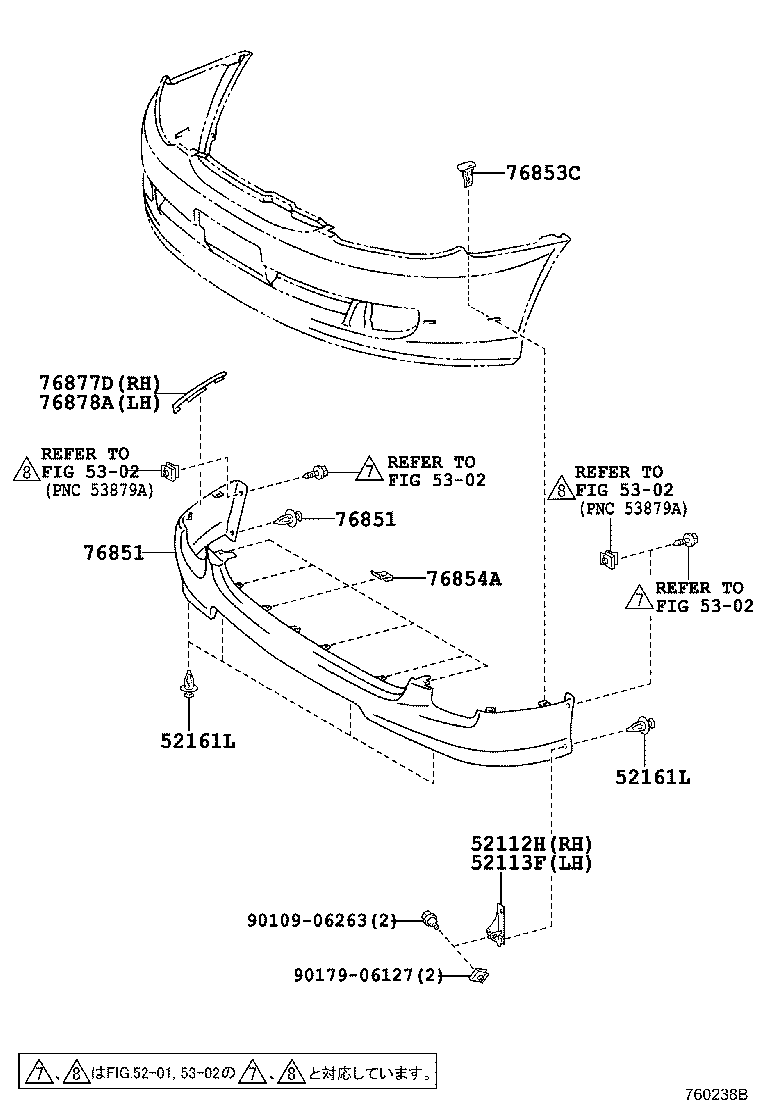

Mudguard & Spoiler
54 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 52112H | Extension, Front Bumper, RH |
| 52113F | Extension, Front Bumper, LH |
| 52161L | Piece, Front Spoiler |
| 71196 | Clip(FOR REAR SPOILER) |
| 75553C | Garnish, Roof Side, Rear RH |
| 75554C | Garnish, Roof Side, Rear LH |
| 75585E | Protector, Rear Pillar Garnish, NO.1 |
| 75587C | Bracket, Roof Side Garnish, NO.2 RH |
| 75588C | Bracket, Roof Side Garnish, NO.2 LH |
| 75687A | Protector, Quarter Moulding, Lower Rear RH |
| 75688A | Protector, Quarter Moulding, Lower Rear LH |
| 75862F | Protector, Rocker Panel Moulding, NO.2 |
| 75863D | Protector, Rocker Panel Moulding, NO.3 |
| 75867B | Clip, Rocker Panel Moulding |
| 76621C | Mudguad, Front Fender, RH |
| 76622C | Mudguard, Front Fender, LH |
| 76625D | Mudguard, Quarter Panel, Rear RH |
| 76626D | Mudguard, Quarter Panel, Rear LH |
| 76851 | Cover, Front Spoiler |
| 76853C | Retainer, Front Spoiler, NO.1 |
| 76853E | Retainer, Rear Spoiler, NO.1 |
| 76854A | Retainer, Front Spoiler, NO.2 |
| 76865 | Retainer, Rear Spoiler, NO.1 |
| 76871 | Spoiler, Rear |
| 76871B | Cover, Rear Spoiler |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76872A | Protector, Rear Spoiler, NO.1 |
| 76873A | Protector, Rear Spoiler, RH |
| 76874B | Protector, Rear Spoiler, LH |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76877D | Protector, Front Spoiler Side, RH |
| 76878A | Protector, Front Spoiler Side, LH |
| 76885 | Retainer, Rear Spoiler, NO.5 |
| 76886 | Retainer, Rear Spoiler, NO.6 |
| 76901 | Mudguard Sub-assy, Side, RH |
| 76902 | Mudguard Sub-assy, Side, LH |
| 76913 | Mudguard, Front Door, RH |
| 76914 | Mudguard, Front Door, LH |
| 76915 | Mudguard, Rear Door, RH |
| 76916B | Mudguard, Rear Door, LH |
| 76921C | Protector, Side Mudguard, RH |
| 76922D | Protector, Side Mudguard, NO.2 |
| 76922F | Protector, Side Mudguard, LH |
| 76923 | Retainer, Side Mudguard |
| 76924A | Retainer, Side Mudguard, NO.2 |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
| 76931A | Bracket, Side Mudguard, NO.1 RH |
| 76932 | Retainer, Side Mudguard, NO.4 |
| 76932A | Bracket, Side Mudguard, NO.1 LH |
| 76933 | Retainer, Side Mudguard, NO.5 |
| 76935 | Retainer, Side Mudguard, NO.7 |
| 76978A | Cover, Rear Door Mudguard, RH |
| 76988A | Cover, Rear Door Mudguard, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
