Toyota Nadia
1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan
Discontinued model
Data version 2004-01

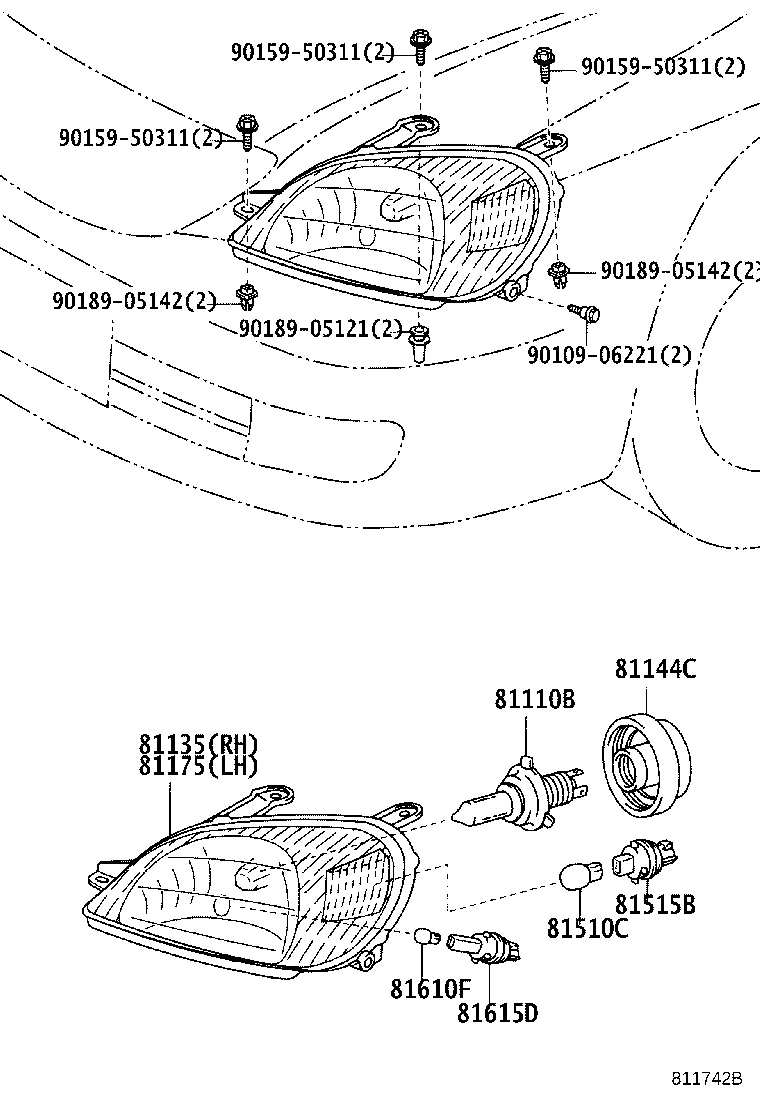

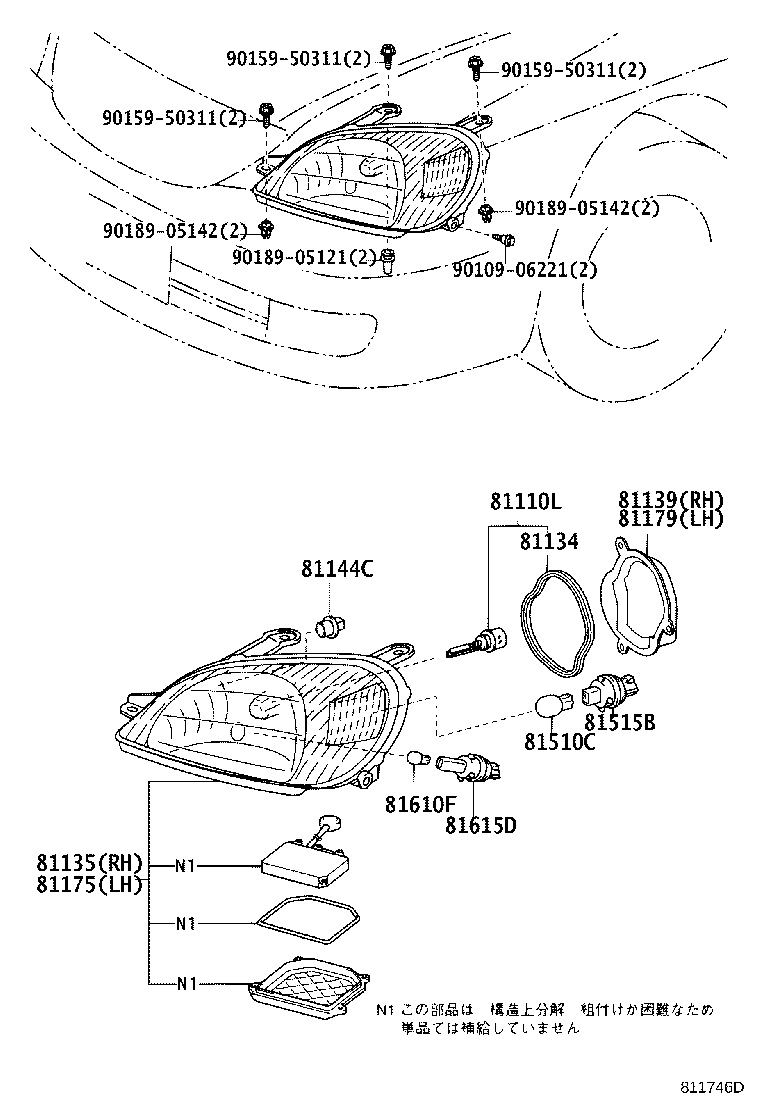

Headlamp
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110L | Bulb, Discharge Headlamp |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81144C | Cover, Headlamp Socket |
| 81175 | Unit Assy, Headlamp, LH |
| 81179 | Cover, Headlamp Socket |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81196 | Retainer, Headlamp |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
