Toyota Nadia

1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 4 illustrations

Illustrations

Figure 810956A

810956A 1998-07 → 2001-04

Figure 811145A

811145A 1999-06 → 2001-04

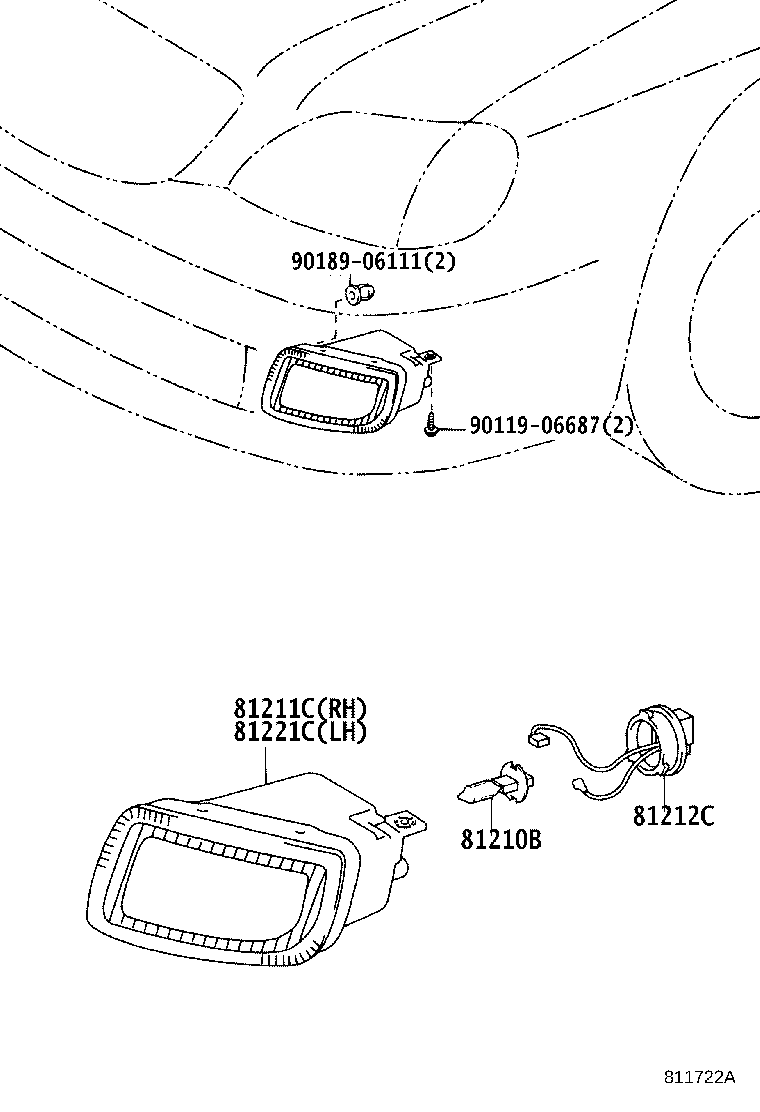

Figure 811722A

811722A 2001-04 → —

Figure 811723A

811723A 2001-04 → —

Part groups

PNC	Description
81127C	Bearing Fog Lamp
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81212C	Cover, Fog Lamp
81215D	Fog Lamp Socket Plug Assy
81221C	Lamp Unit, Fog Lamp, LH
81229	Bracket, Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
