Toyota Nadia
1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan
Discontinued model
Data version 2004-01
Meter
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

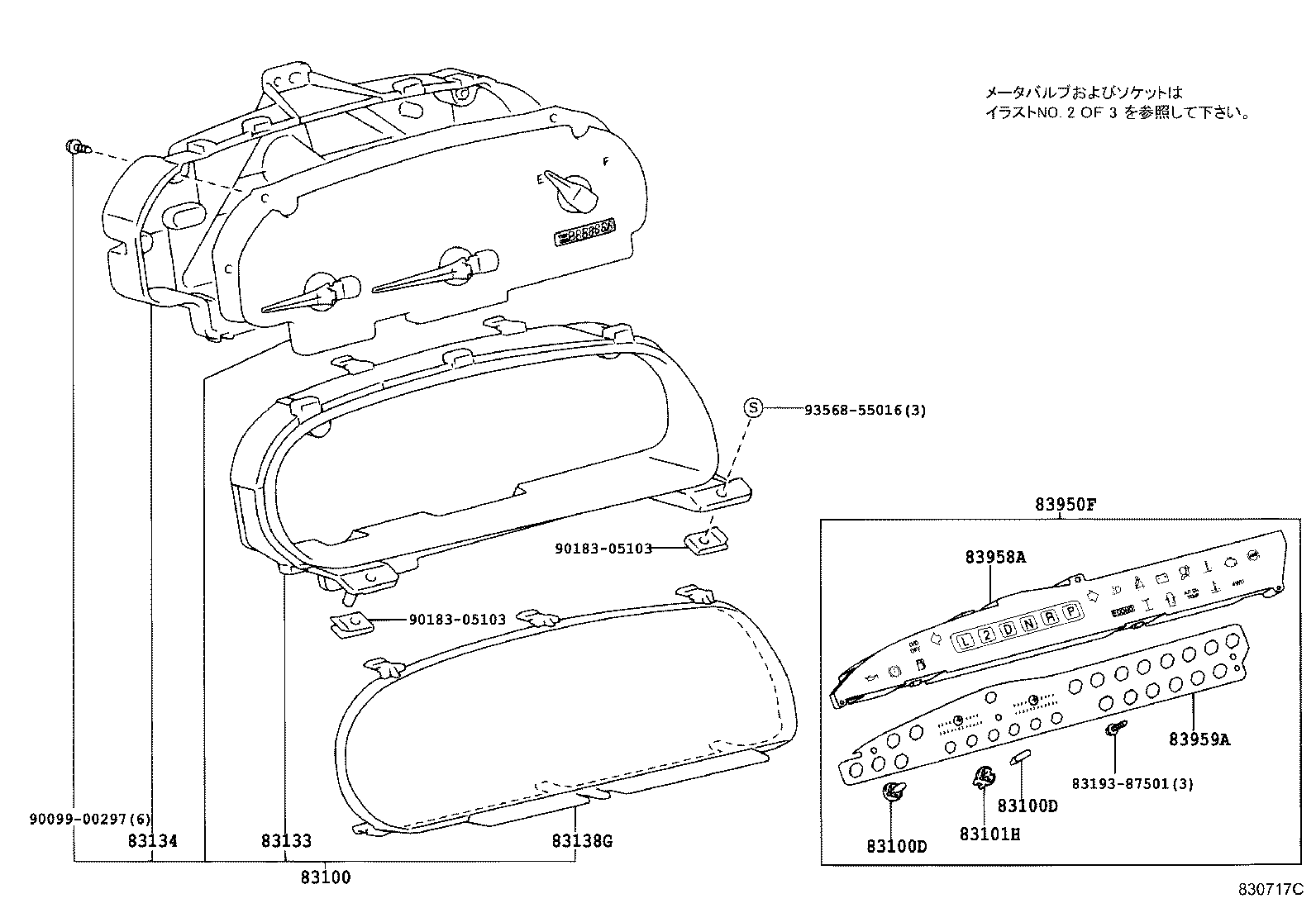

| 83100 | Meter Assy, Combination |

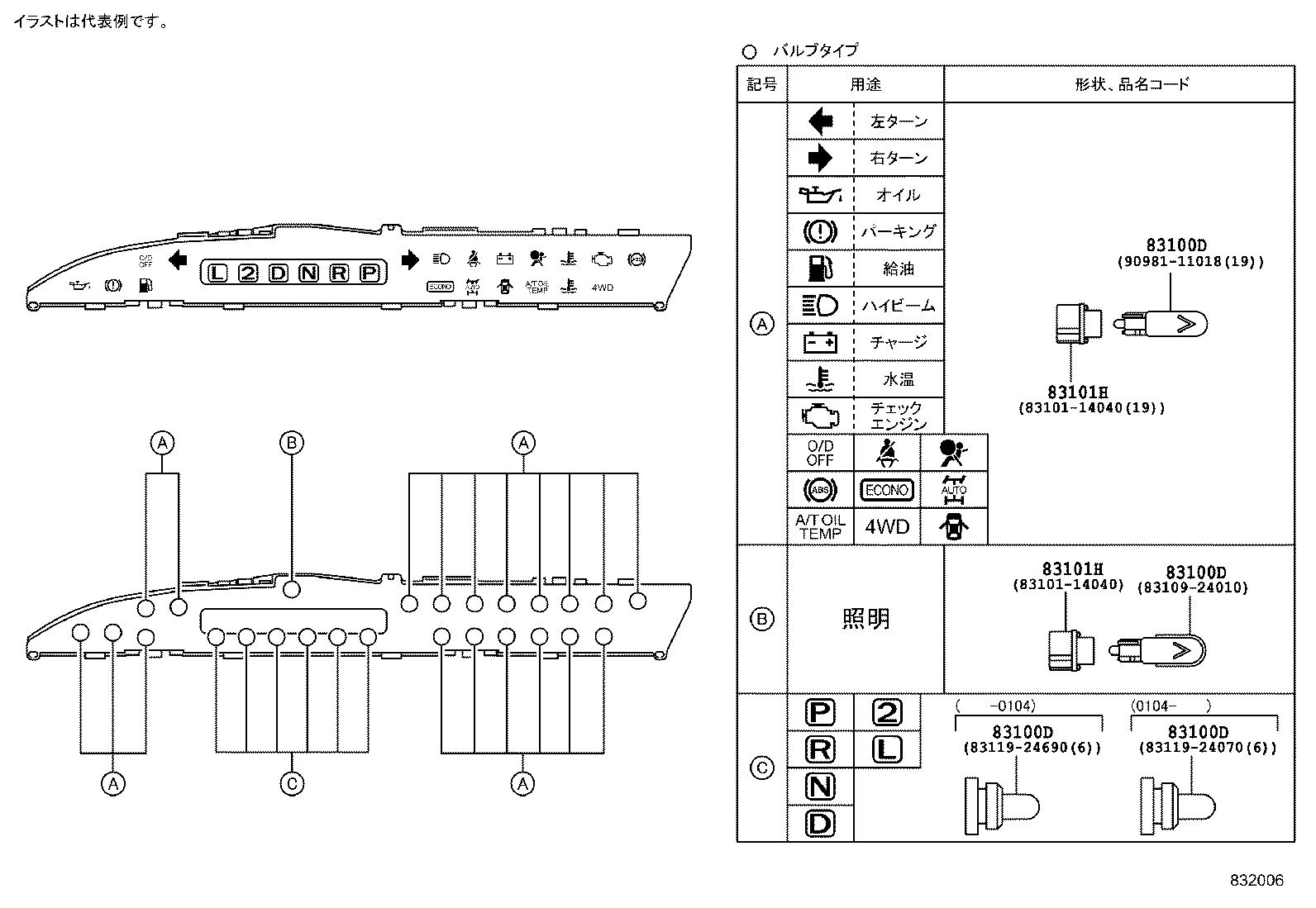

| 83100D | Bulb, Combination Meter, NO.2 |
| 83101H | Socket Sub-assy, Combination Meter Bulb, NO.2 |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138G | Glass, Combination Meter |
| 83275 | Plate,Computer Meter Circuit NO.1 |
| 83276 | Plate,Computer Meter Circuit NO.2 |
| 83291 | Computer, Combination Meter |
| 83875 | Wire, Combination Meter, NO.1 |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83910C | Socket Sub-assy, Clock Bulb |
| 83950F | Lamp Assy, Telltale |
| 83958A | Case, Telltale Lamp |
| 83959A | Plate, Telltale Lamp Circuit |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
