Toyota Nadia
1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan
Discontinued model
Data version 2004-01

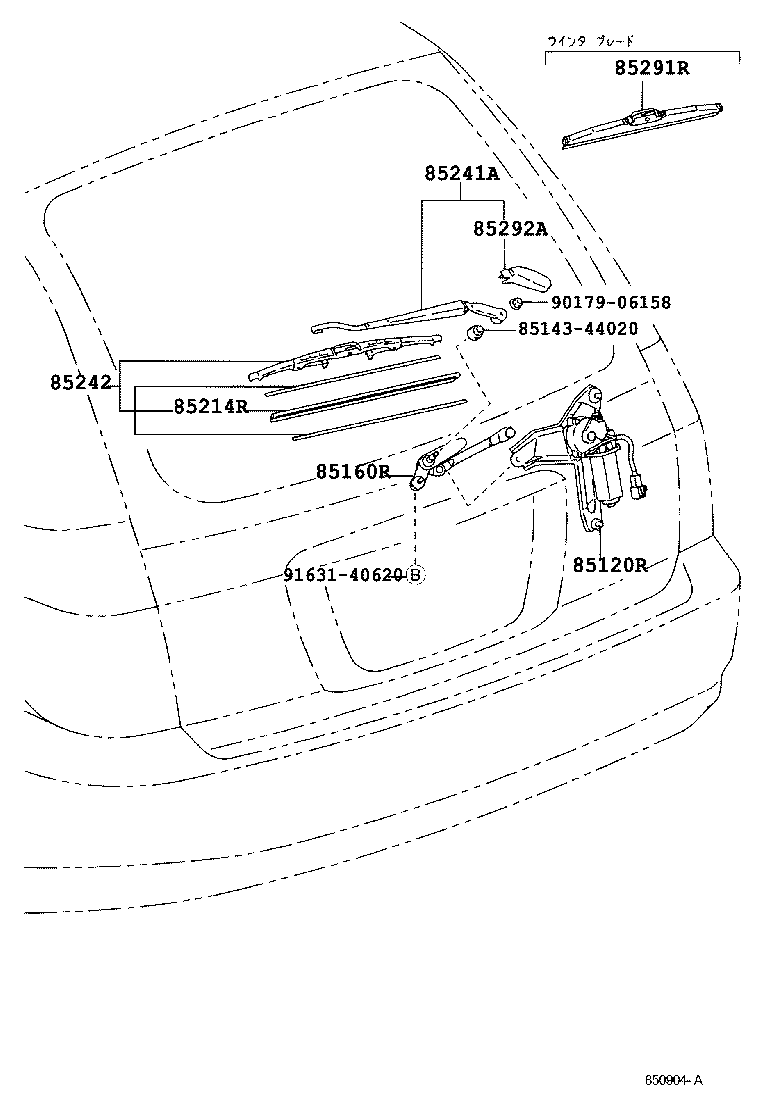

Rear Wiper
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85120R | Motor And Bracket Assy, Rear Wiper |
| 85160R | Link Assy, Rear Wiper |
| 85214R | Rubber, Rear Wiper |
| 85224E | Plate, Rear Wiper Rubber Backing, NO.1 |
| 85224F | Plate, Rear Wiper Rubber Backing, NO.2 |
| 85241A | Arm, Rear Wiper |
| 85242 | Blade, RR Wiper |
| 85291R | Blade,Rear Wiper, Winter |
| 85292A | Cap, Rear Wiper Arm Head |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
