Toyota Nadia

1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

6 part groups · 3 illustrations

Illustrations

Figure 860780A

860780A 1998-07 → —

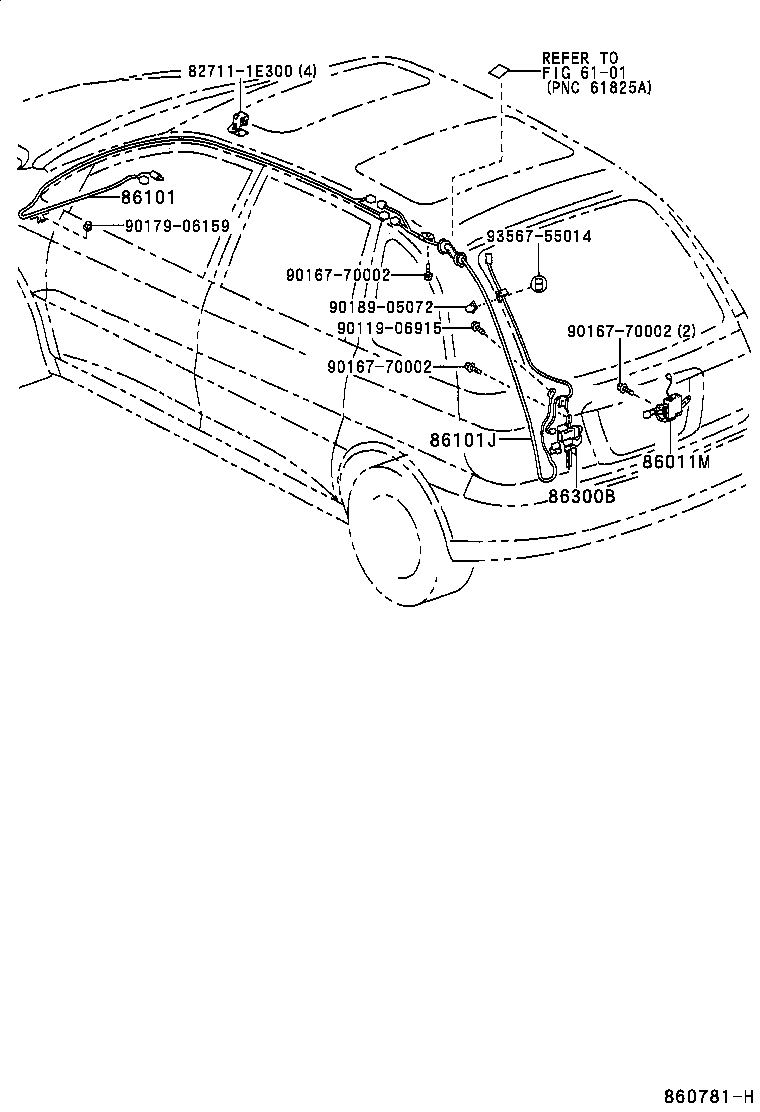

Figure 860781H

860781H 1998-07 → —

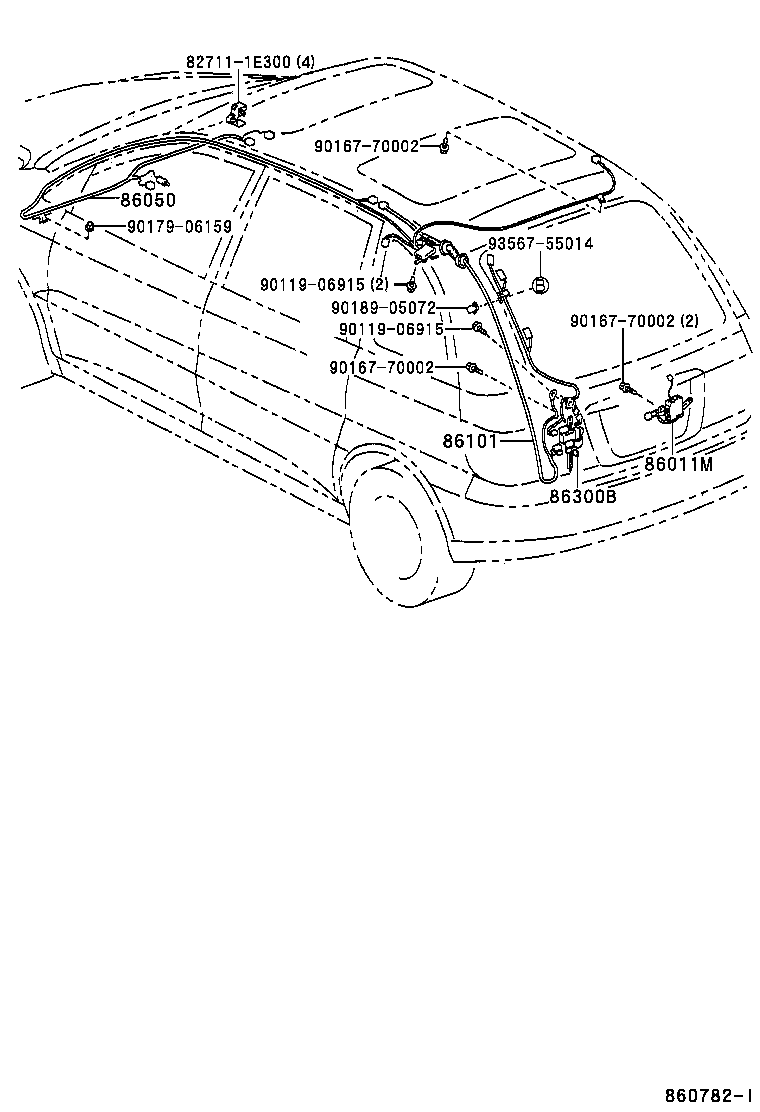

Figure 860782I

860782I 1998-07 → —

Part groups

PNC	Description
86011M	Filter, Noise
86050	Antenna Assy, Television
86101	Cord Sub-assy, Antenna
86101J	Cord Sub-assy, Antenna, NO.2
86300	Antenna Assy, W/Holder
86300B	Antenna Assy, Amplifier, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
