Toyota Nadia

1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

30 part groups · 6 illustrations

Illustrations

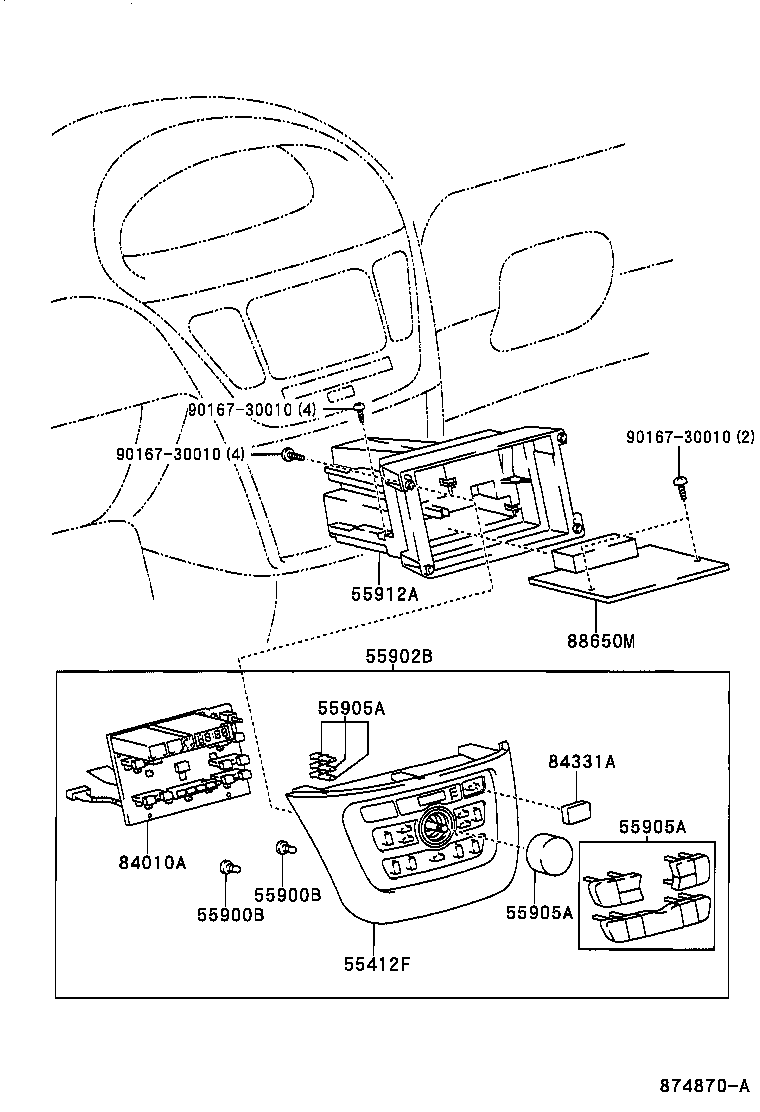

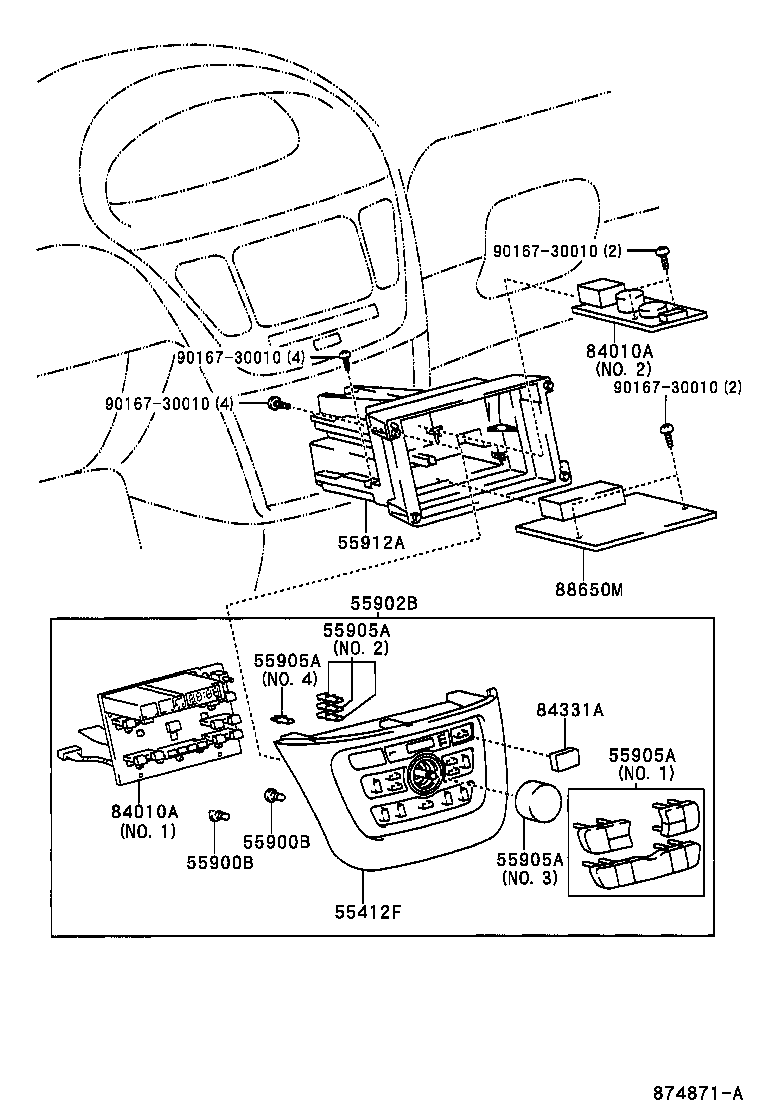

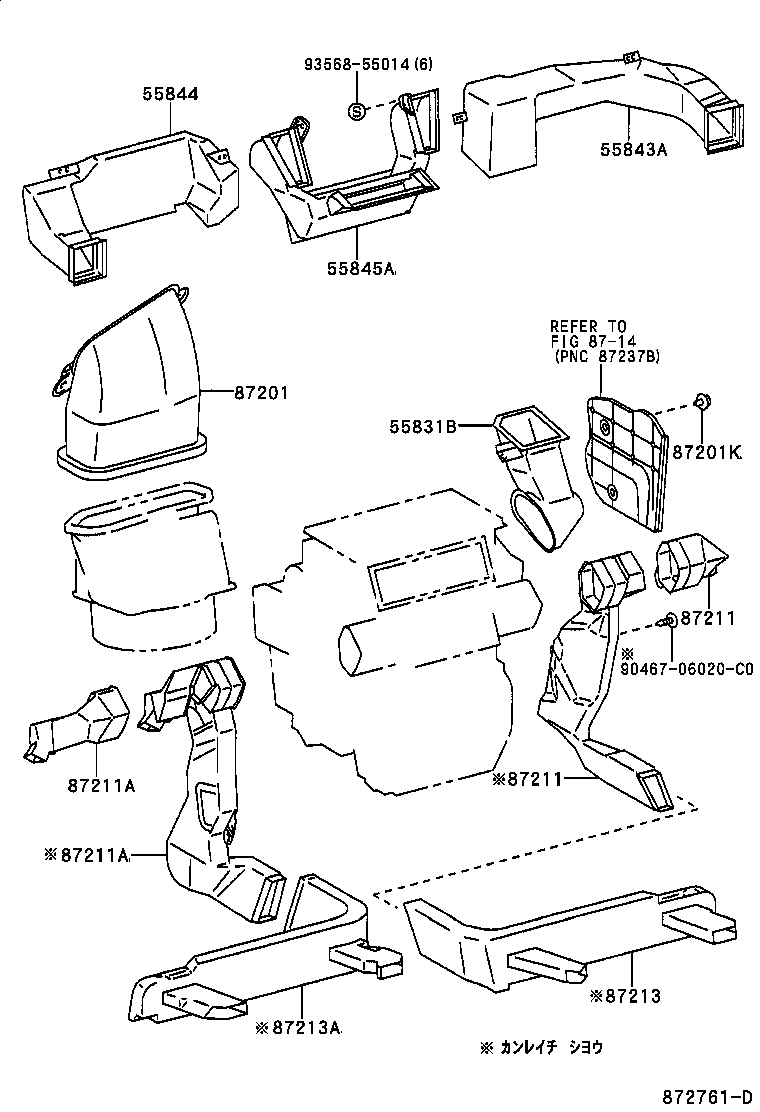

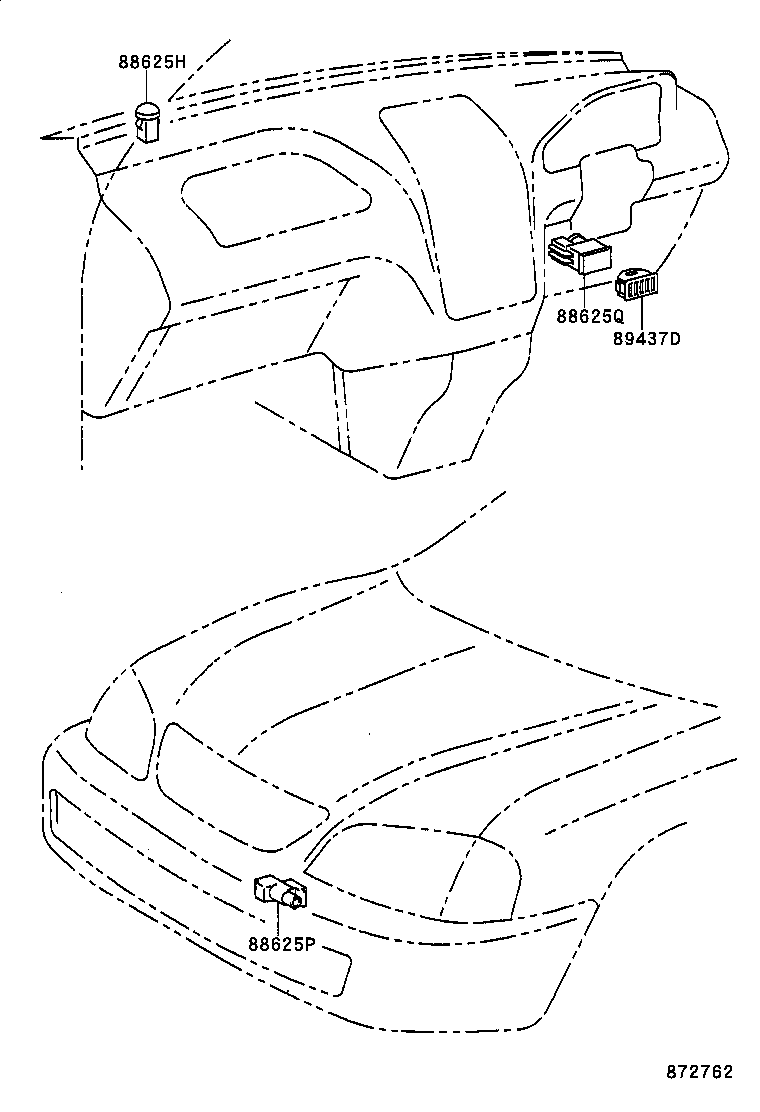

Figure 872759A 872759A 1998-07 → 2001-04 Figure 872760B 872760B 1998-07 → 2001-04 Figure 874870A 874870A 2001-04 → — Figure 874871A 874871A 2001-04 → — Figure 872761D 872761D 1998-07 → — Figure 872762 872762 1998-07 → —

Part groups

PNCDescription
55412F Panel, Instrument Cluster Finish, Center
55519 Plate, Heater Control Name
55829 Clamp, Ventilator Control Cable, Lower
55831B Connector, Instrument Panel Register, RH
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55912A Housing, Heater Control
55921A Retainer, Heater Control
81942A Sheet, Heater Control Name, NO.1
84010A Control & Panel Assy, Integration
84331A Knob, Hazard Warning Signal Switch
87201 Duct Sub-assy, Air, NO.1
87201K Clip (FOR AIR DUCT)
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87213 Duct, Air, Rear NO.2
87213A Duct, Air Rear NO.2
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88650M Computer Assy, Air Conditioner
89437D Cover, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
