Toyota Nadia

1998-07 → 2003-07 · chassis ACN1#,SXN1# · catalogue 512110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

19 part groups · 3 illustrations

Illustrations

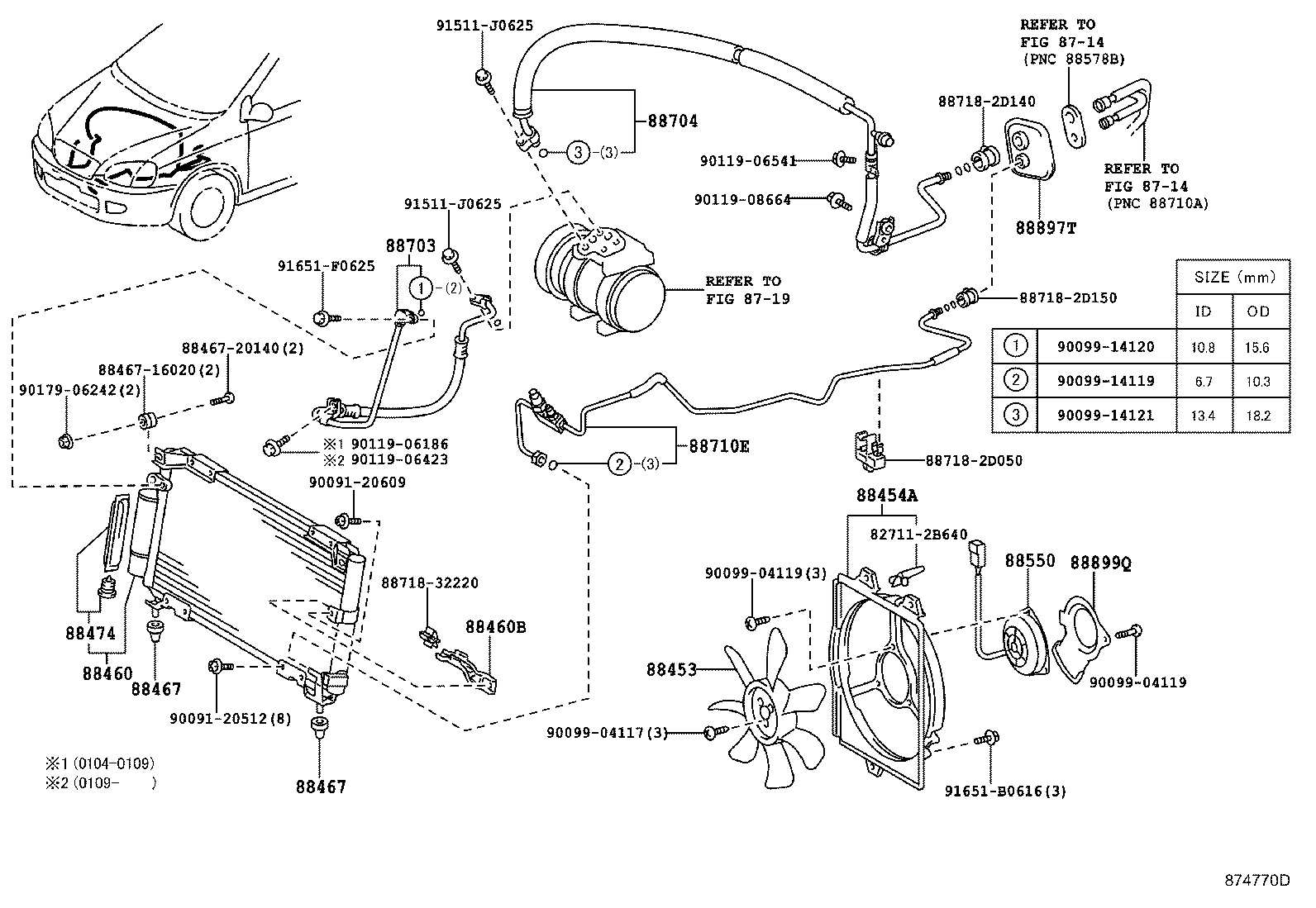

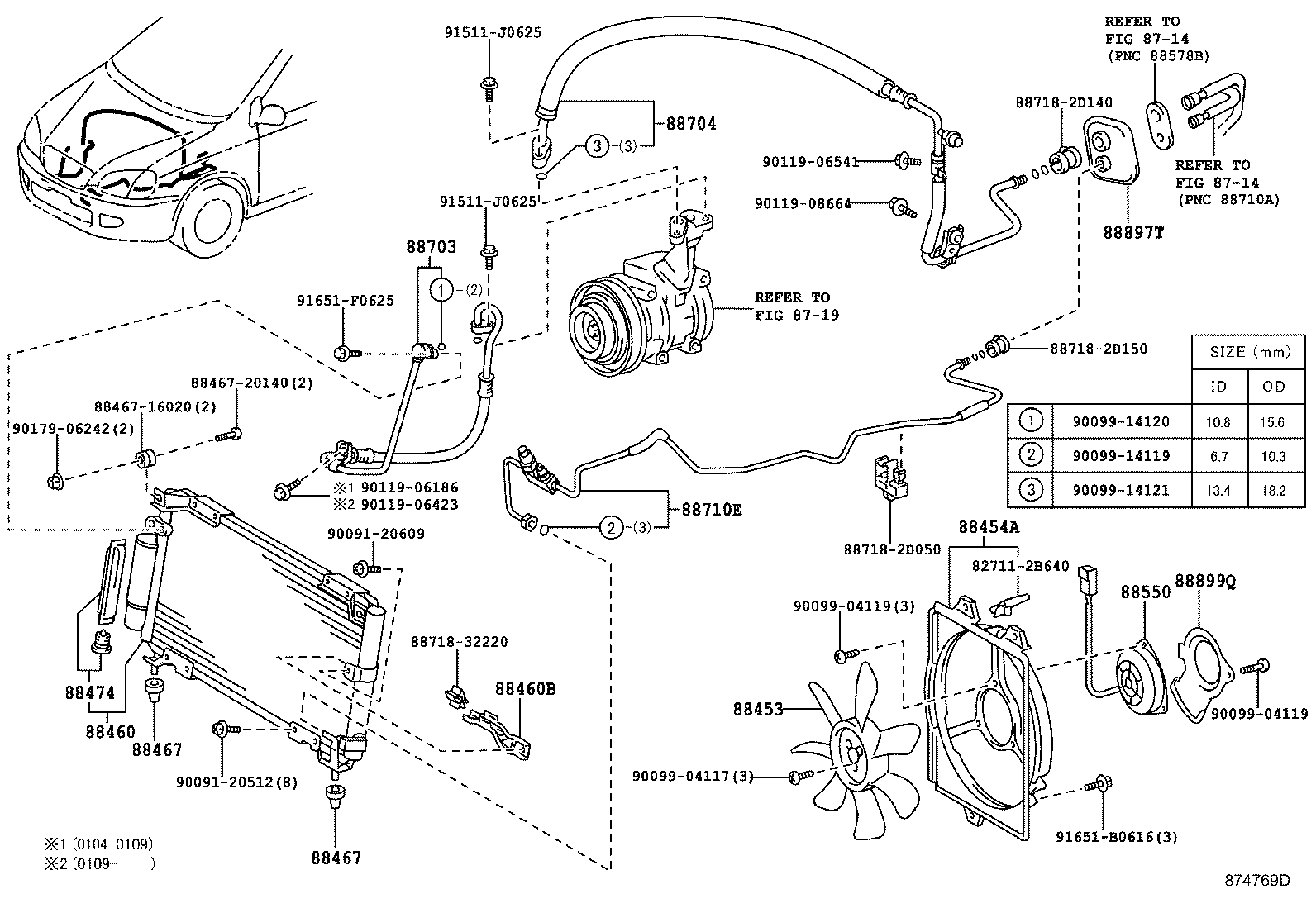

Figure 872766I 872766I 1998-07 → 2001-04 Figure 874770D 874770D 2001-04 → 2002-08 Figure 874769D 874769D 2001-04 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375B Cap, Service Valve, NO.1
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88467 Cushion, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88897T Grommet, Cooler
88899Q Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
