Toyota Gaia
1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan
Discontinued model
Data version 2005-04

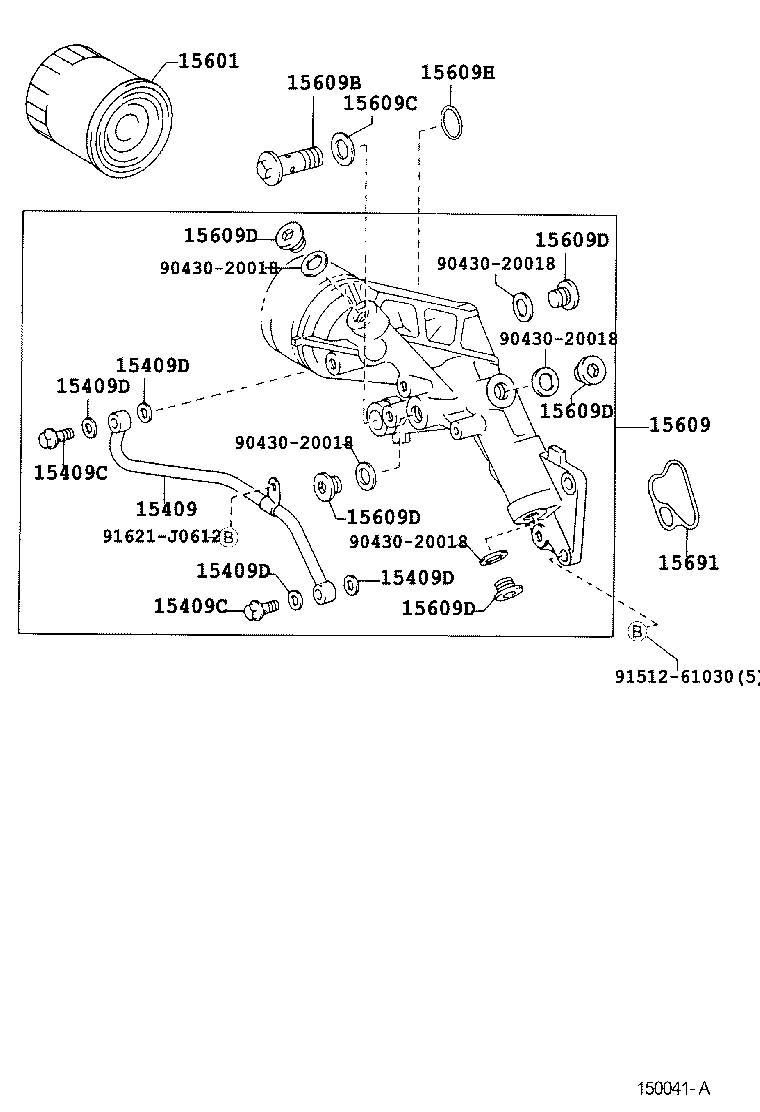

Oil Filter
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 15409 | Pipe OR Hose, Oil Filter Outlet |
| 15409C | Bolt, Union(FOR OIL FILTER OUTLET PIPE) |
| 15409D | Gasket(FOR OIL FILTER OUTLET PIPE) |
| 15600A | Union(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609B | Union(FOR OIL FILTER BRACKET) |
| 15609C | Gasket(FOR OIL FILTER BRACKET UNION) |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609H | Ring, O(FOR OIL FILTER BRACKET) |
| 15691 | Gasket, Oil Filter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
