Toyota Gaia

1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

14 part groups · 6 illustrations

Illustrations

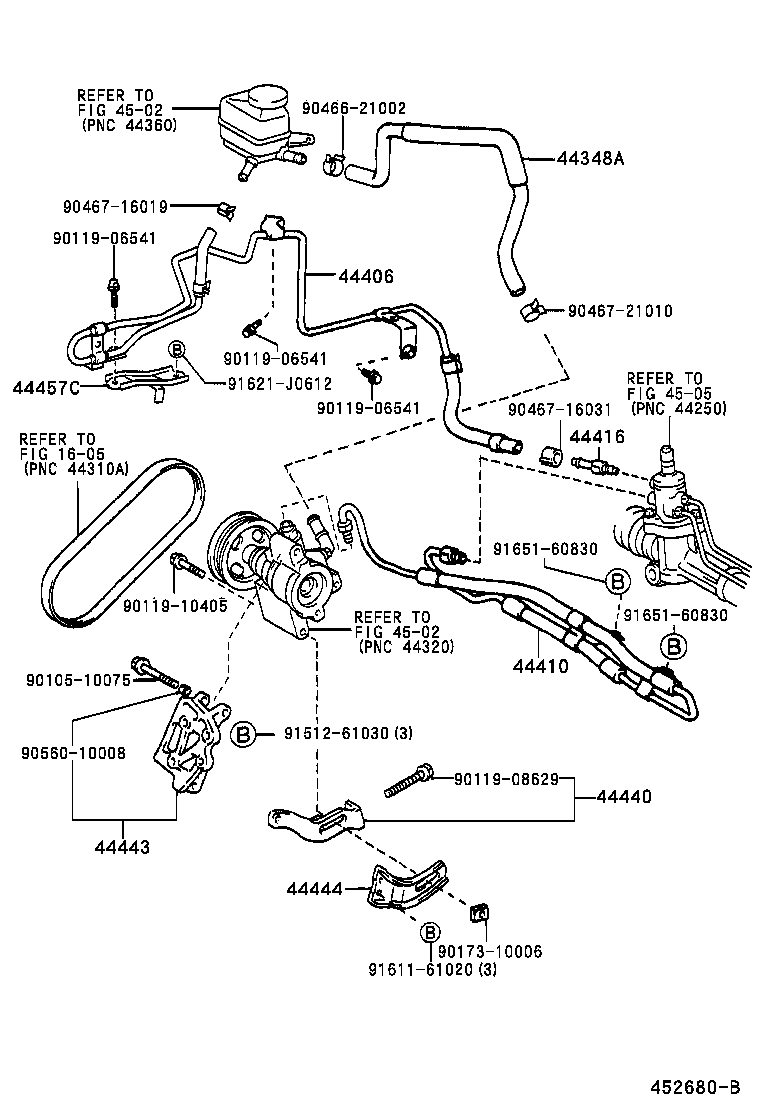

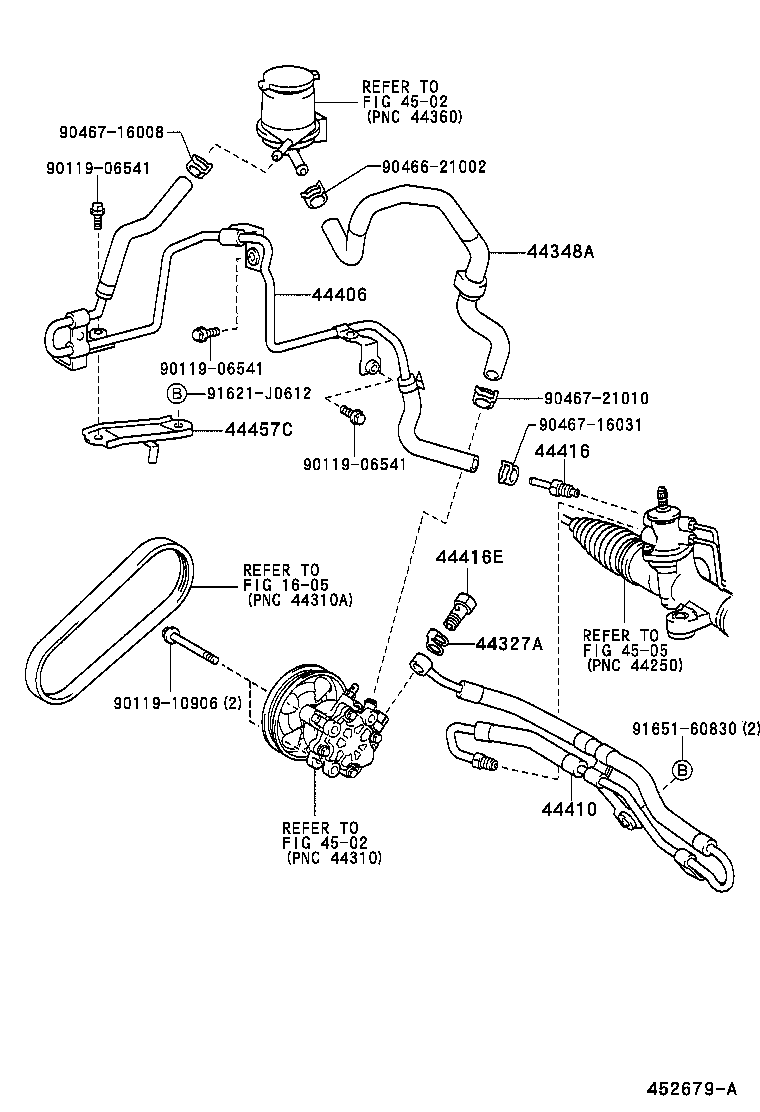

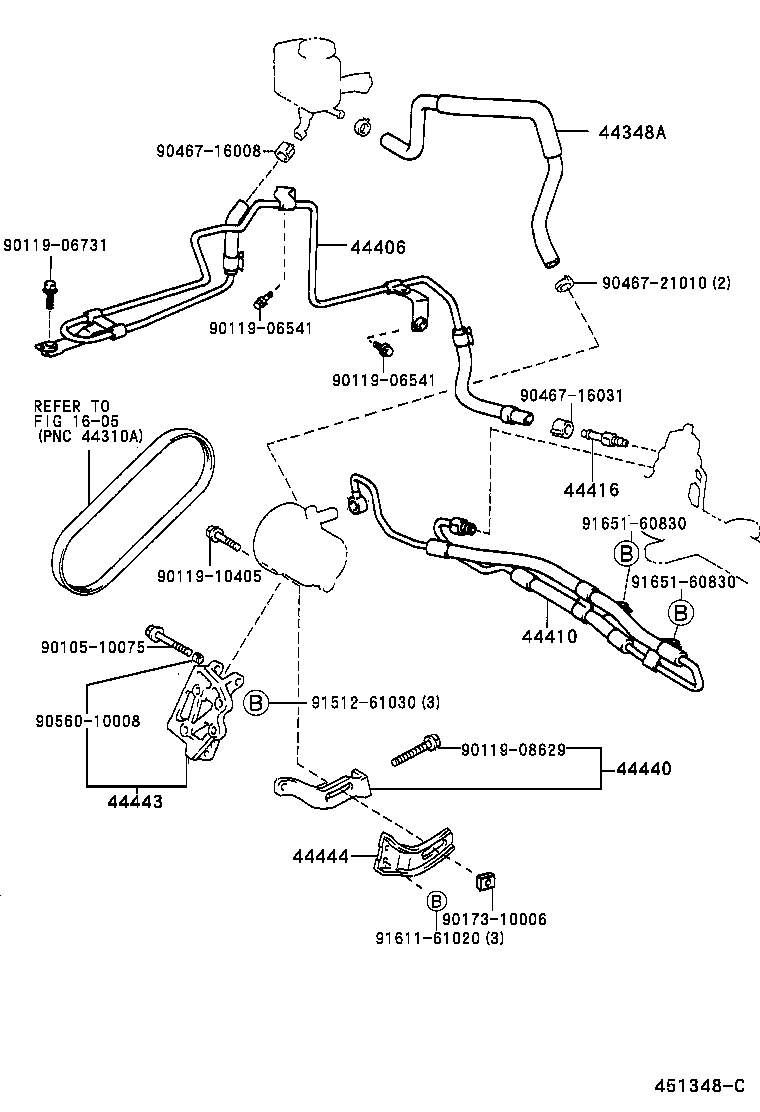

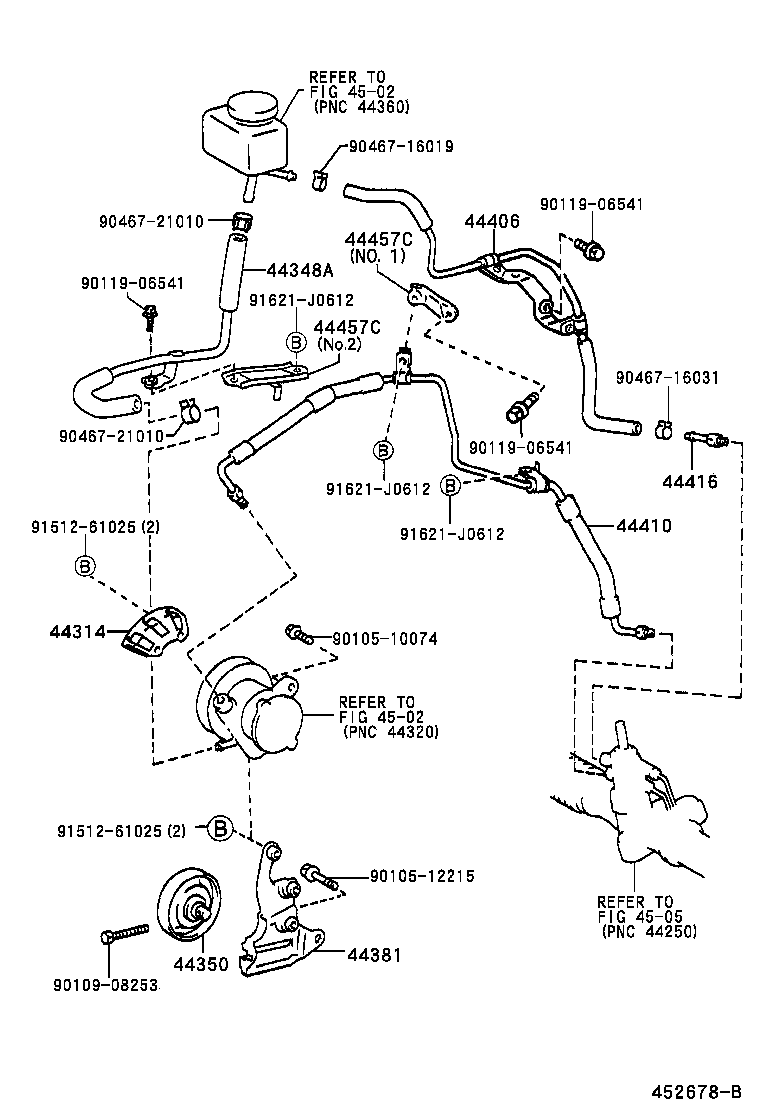

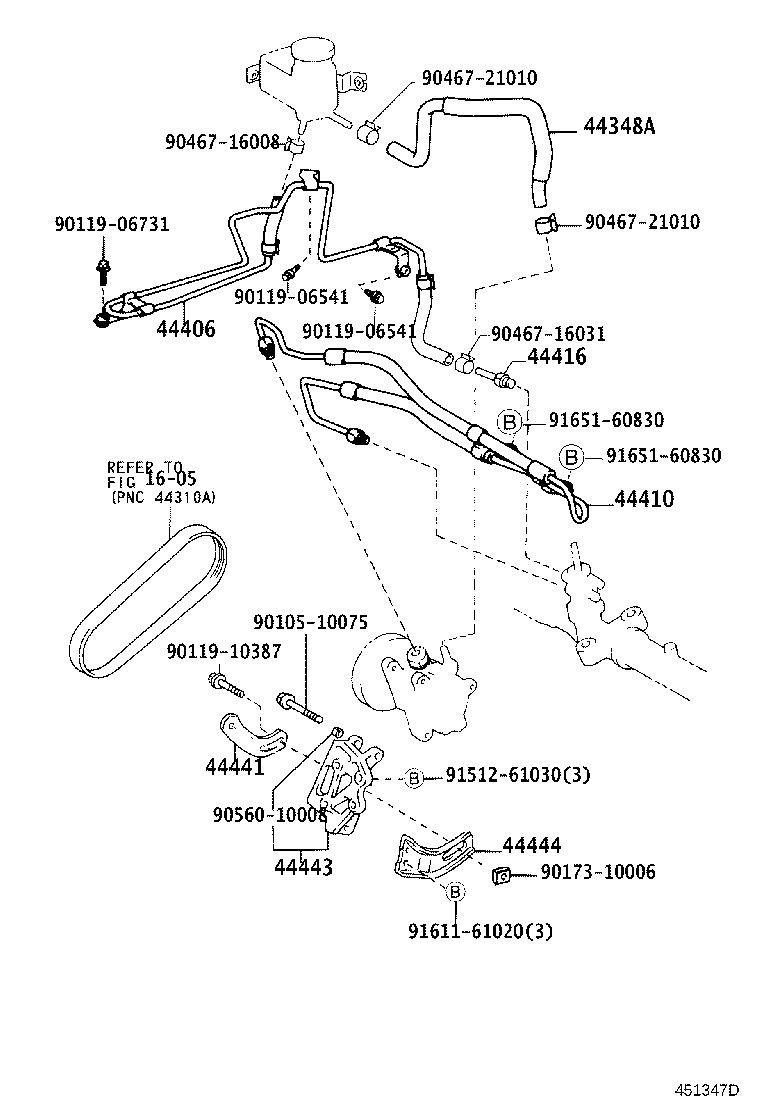

Figure 451346E 451346E 1998-05 → 2001-04 Figure 451347D 451347D 1998-05 → 2001-04 Figure 451348C 451348C 1998-05 → 2001-04 Figure 452680B 452680B 2001-04 → 2002-08 Figure 452678B 452678B 2001-04 → — Figure 452679A 452679A 2001-04 → —

Part groups

PNCDescription
44314 Cover, Pulley
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416E Bolt, Union(FOR RETURN TUBE)
44440 Bracket Assy, Pump
44441 Bracket, Pump, Front
44443 Bracket, Pump
44444 Stay, Pump, Rear
44457C Bracket, Power Steering Tube Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
