Toyota Gaia

1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

10 part groups · 2 illustrations

Illustrations

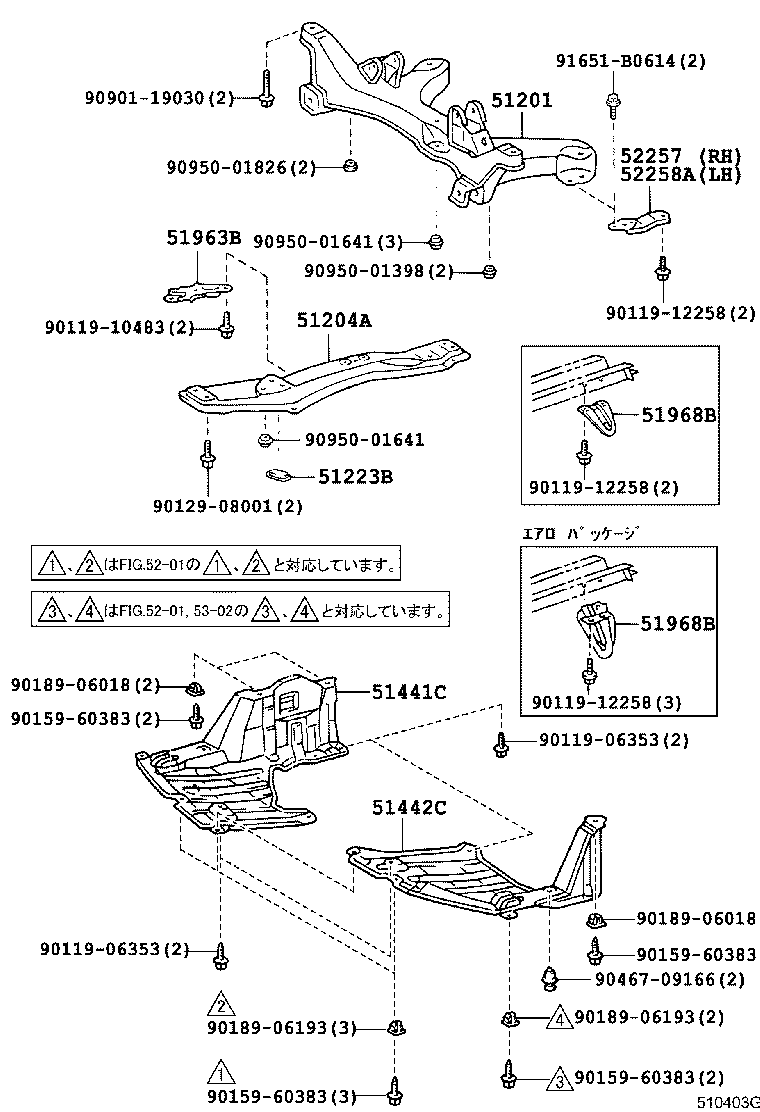

Figure 510402G 510402G 1998-05 → — Figure 510403G 510403G 1998-05 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51223B Cover, Engine Mounting Hole
51227B Damper, Front Suspension Member Dynamic
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51963B Hook, Transport, Front RH
51968B Hook, Transport, Rear LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
