Toyota Gaia

1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

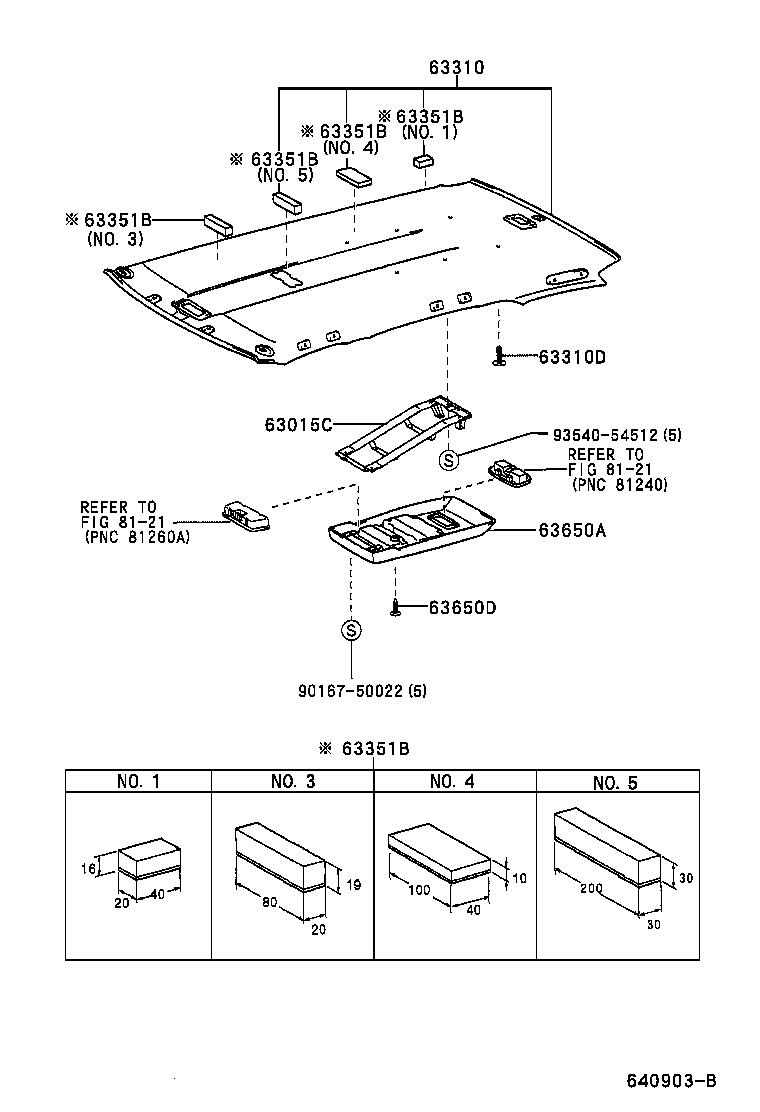

Figure 640507B 640507B 1998-05 → — Figure 640903B 640903B 2001-04 → —

Part groups

PNCDescription
63015C Bracket Sub-assy, Roof Console
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63318C Moulding, Sun Roof Opening Trim
63319C Joint, Sun Roof Opening Trim
63328C Knob, Sunshade Trim
63329 Moulding, Sun Roof Opening Trim, NO.2
63351B Pad, Roof Headlining
63650A Box Assy, Roof Console
63650D Clip(FOR ROOF CONSOLE BOX)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
