Toyota Gaia
1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan
Discontinued model
Data version 2005-04

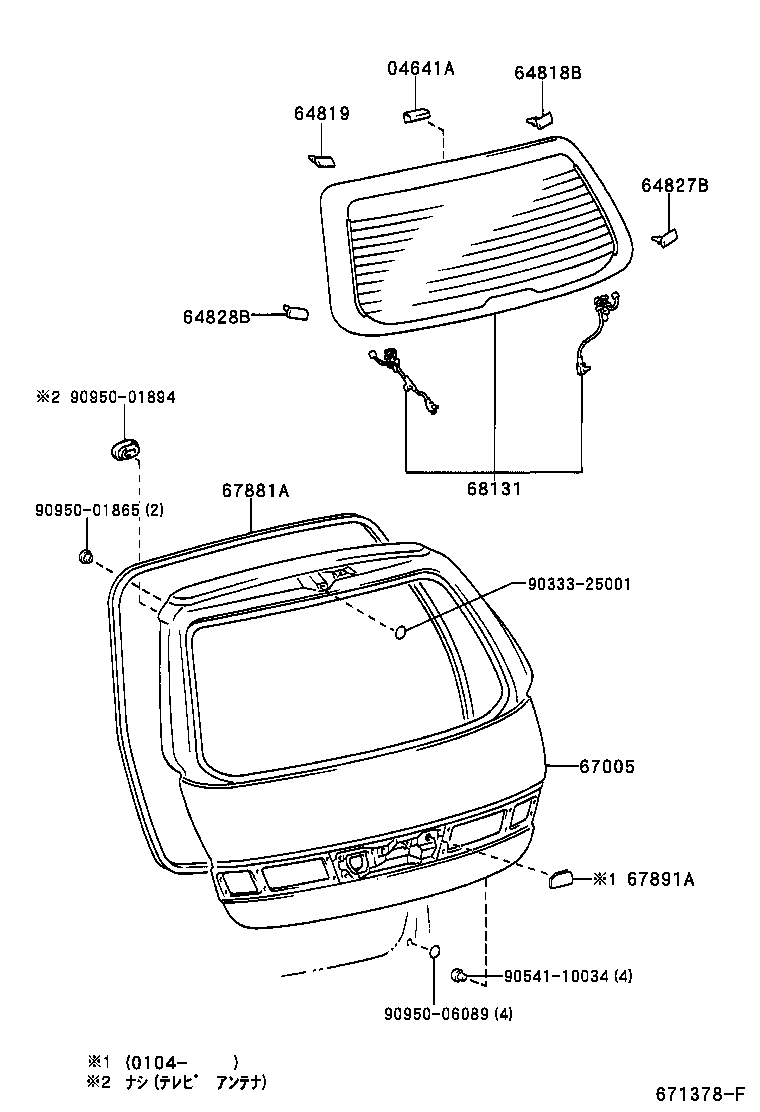

Back Door Panel & Glass
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641A | Dam Kit, Back Window Glass Adhesive |
| 62581H | Garnish, Rear Window Side, RH |
| 62582H | Garnish, Rear Window Side, LH |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 64827B | Clip, Back Window Glass, RH |
| 64828B | Clip, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67687B | Garnish, Back Window |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67847E | Cover, Back Door Service Hole, RH |
| 67848E | Cover, Back Door Service Hole, LH |
| 67881A | Weatherstrip, Back Door |
| 67891A | Seal, Back Door |
| 68131 | Glass, Back Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
