Toyota Gaia

1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan

Discontinued model Data version 2005-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

131 part groups · 11 illustrations

Illustrations

711144B 1998-05 → —

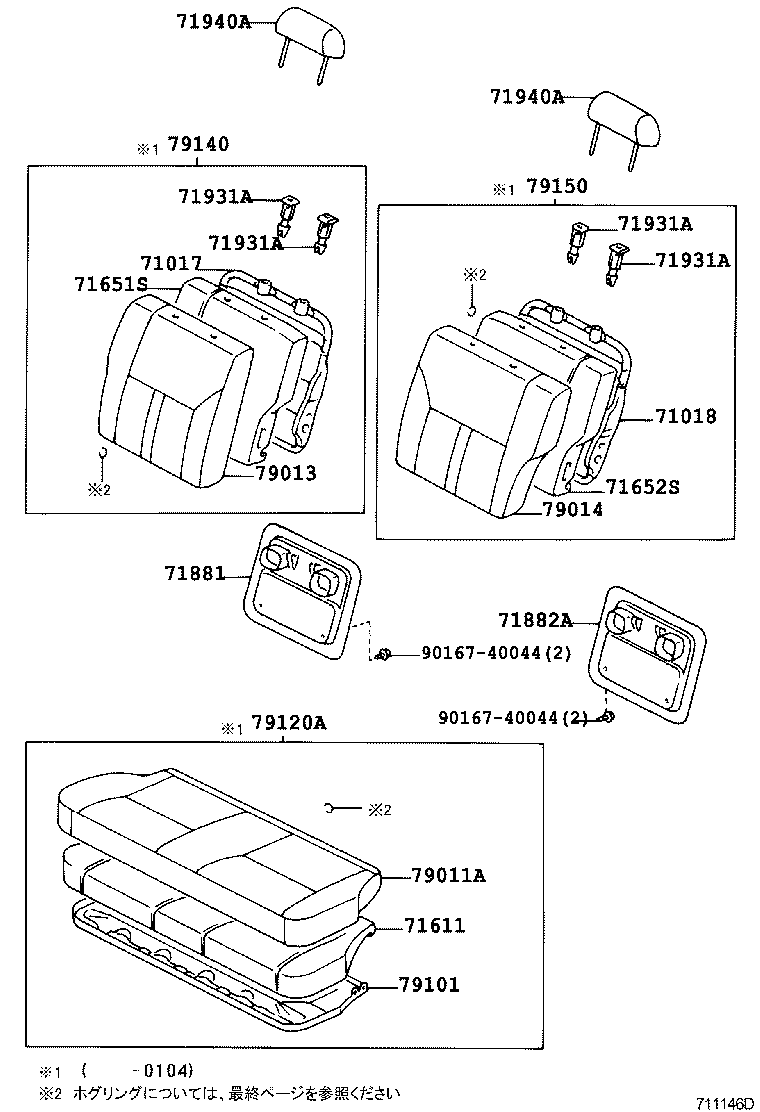

711146D 1998-05 → 2002-08

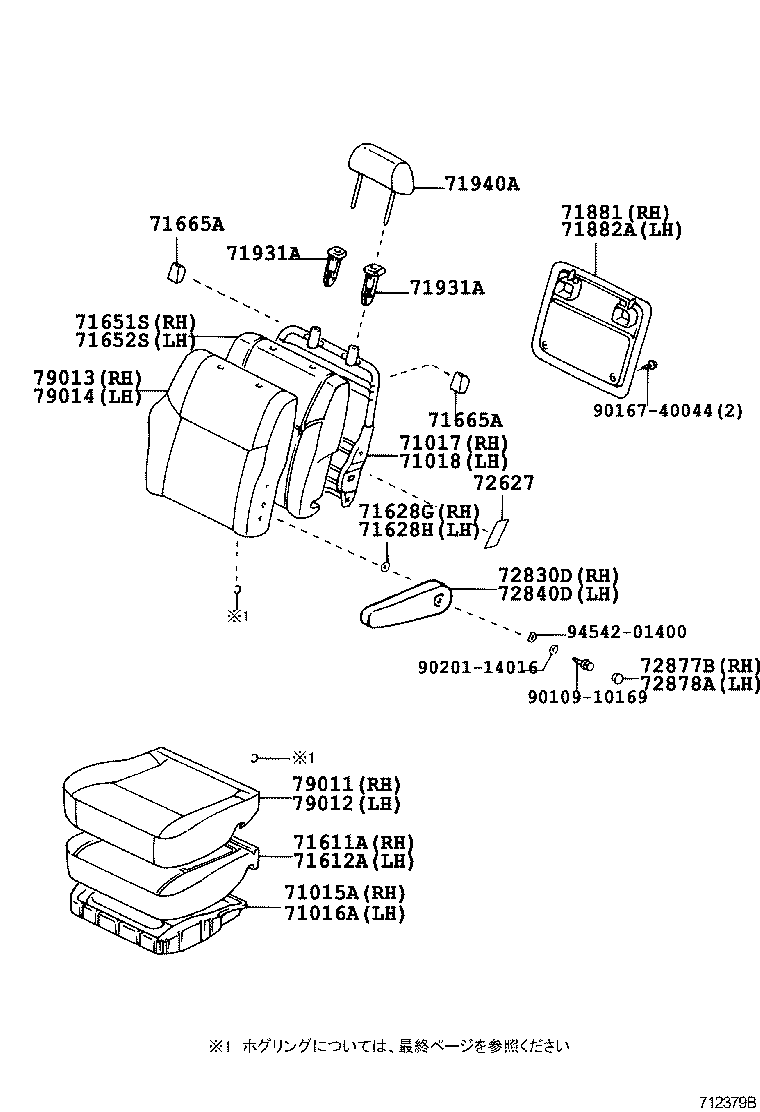

712379B 2002-08 → —

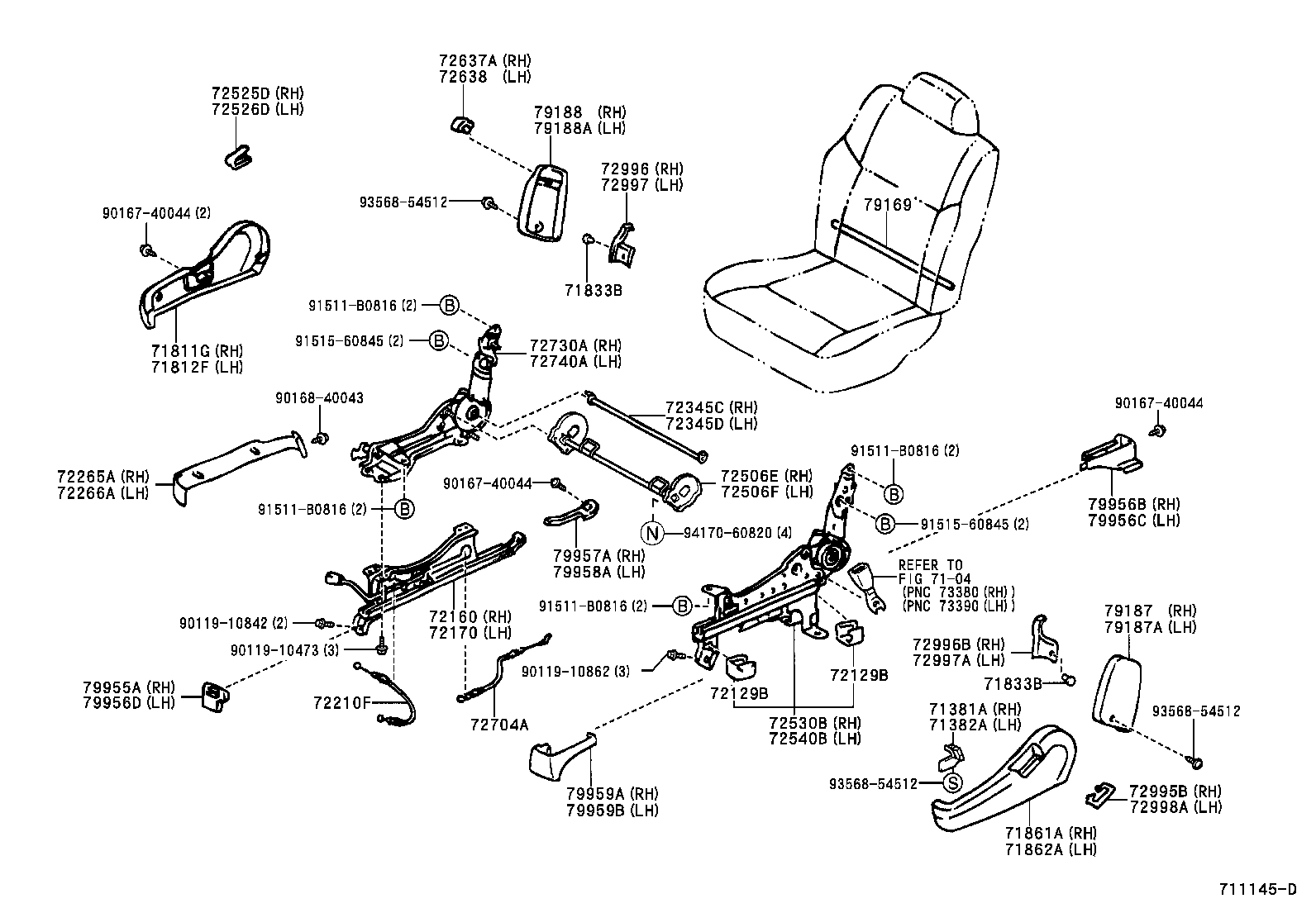

711145D 1998-05 → —

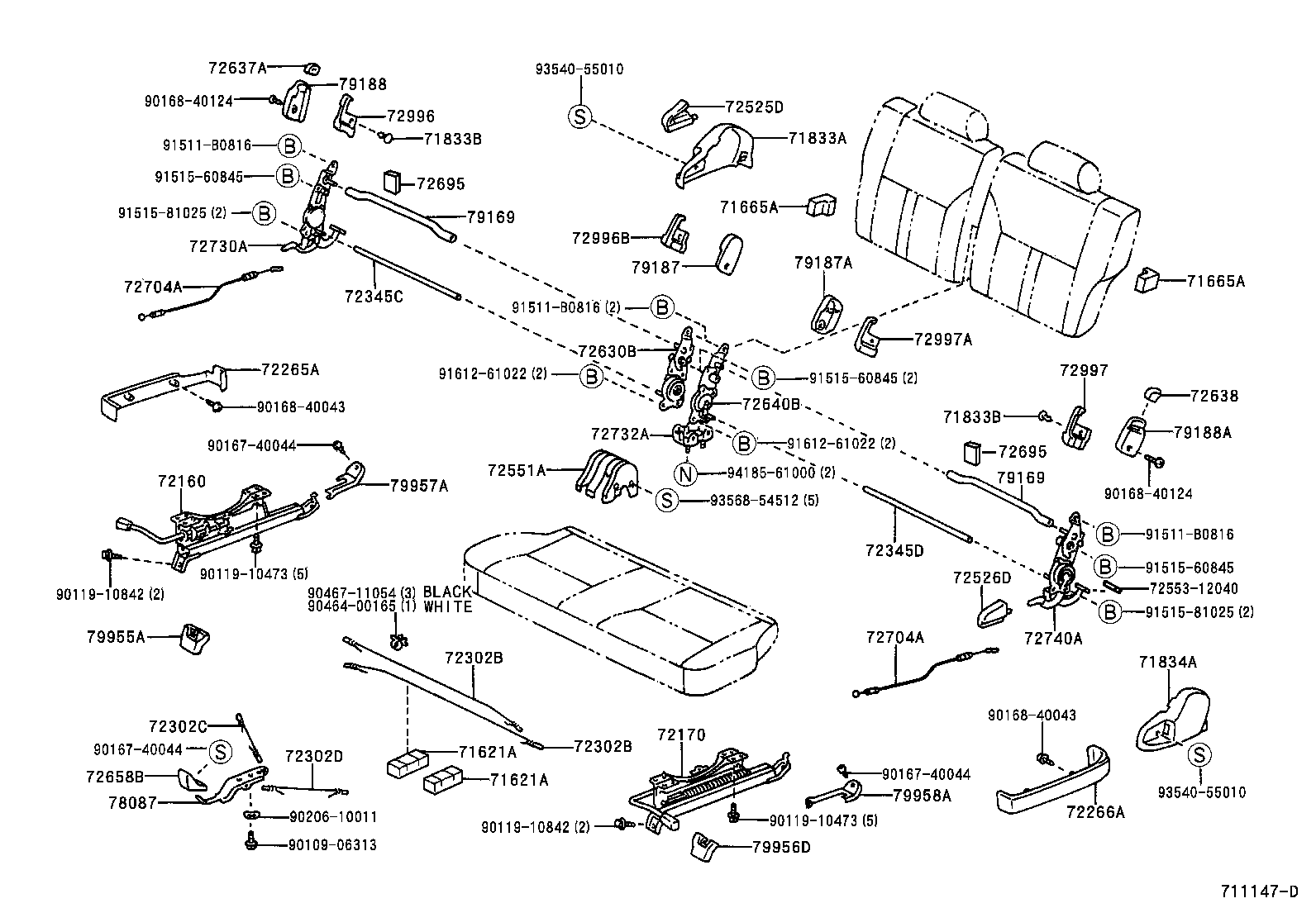

711147D 1998-05 → 2002-08

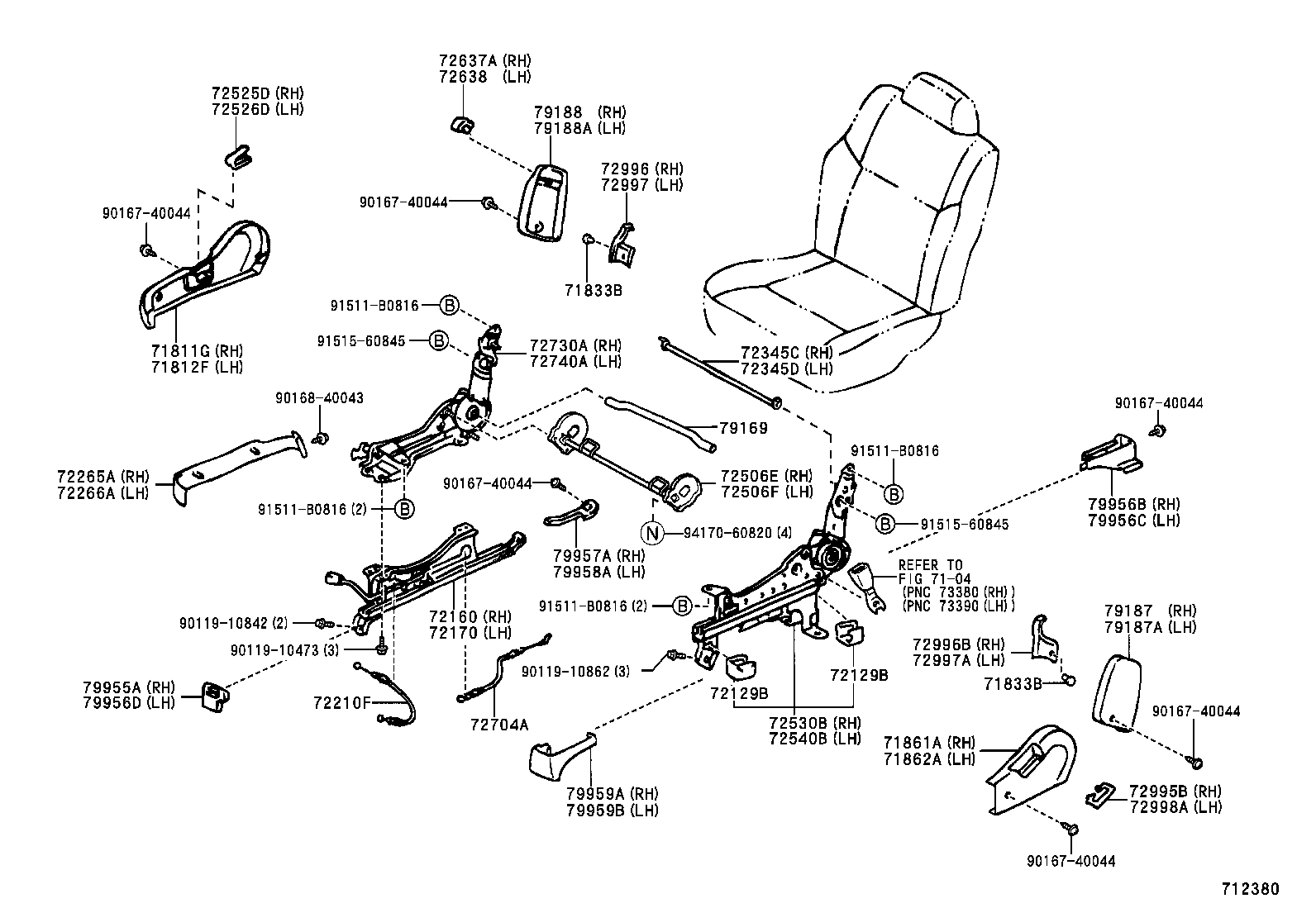

712380 2002-08 → —

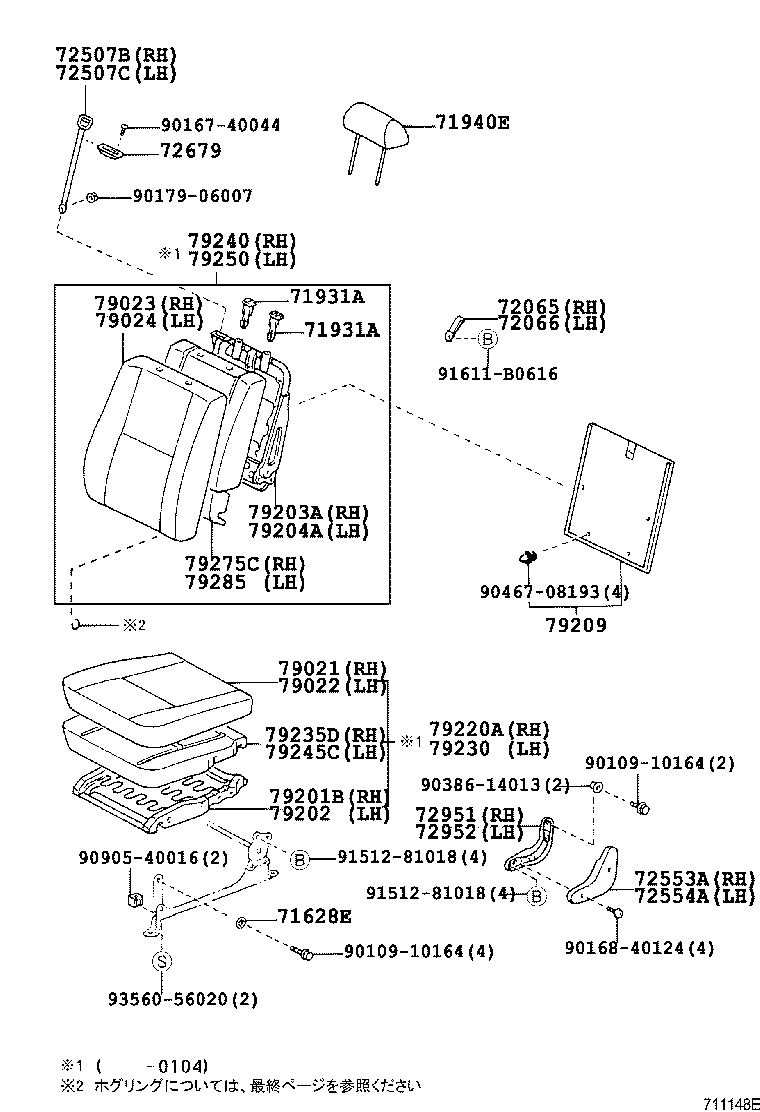

711148E 1998-05 → —

711149E 1998-05 → —

71C602 1998-05 → 2001-04

71C603 2001-04 → —

718165A 1998-05 → —

Part groups

PNC	Description
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71381A	Bracket, Rear Seat Cushion Set, RH
71382A	Bracket, Rear Seat Cushion Set, LH
71611	Pad, Rear Seat Cushion
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71621A	Pad, Rear Seat Cushion Silencer, A
71628E	Spacer, Rear Seat Cushion
71628G	Spacer, Rear Seat Cushion, RH
71628H	Spacer, Rear Seat Cushion, LH
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71665A	Pad, Rear Seatback, Side A
71811G	Shield, Rear Seat Cushion, RH
71812F	Shield, Rear Seat Cushion, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833B	Clip (FOR REAR SEAT RECLINING COVER)
71834A	Cover, Rear Seat Reclining, NO.1 LH
71861A	Shield, Rear Seat Cushion, Inner RH
71862A	Shield, Rear Seat Cushion, Inner LH
71881	Board, Rear Seatback, RH
71882A	Board, Rear Seatback, LH
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71940E	Headrest Assy, NO.2 Seat
72065	Belt Sub-assy, Rear Seat Hook, RH
72066	Belt Sub-assy, Rear Seat Hook, LH
72067	Lever Sub-assy, Rear Back Lock Control, RH
72068	Lever Sub-assy, Rear Back Lock Control, LH
72129B	Protector, Seat Track Lower Rail
72160	Track Assy, Rear Seat, Outer RH
72170	Track Assy, Rear Seat, Outer LH
72210F	Cable Assy, Seat Track Control
72265A	Cover, Seat Track Upper Rail, RH
72266A	Cover, Seat Track Upper Rail, LH
72302B	Wire Sub-assy, Rear Seat Track Equalizing
72302C	Wire Sub-assy, Rear Seat Track Equalizing, RH
72302D	Wire Sub-assy, Rear Seat Track Equalizing, LH
72345C	Pipe,Reclining Connecting, RH
72345D	Pipe, Reclining Connecting, LH
72345E	Pipe, Reclining Connecting
72506E	Rod Sub-assy, Reclining Connecting, RH
72506F	Rod Sub-assy, Reclining Connecting, LH
72507B	Handle Sub-assy, Reclining Release, RH
72507C	Handle Sub-assy, Reclining Release, LH
72525D	Handle, Reclining Adjuster Release, NO.2 RH
72526D	Handle, Reclining Adjuster Release, NO.3 LH
72530B	Adjuster Assy, Reclining Seat, Inner RH
72540B	Adjuster Assy, Reclining Seat, Inner LH
72551A	Cover, Reclining Hinge
72553A	Protector, Reclining Cover, RH
72554A	Protector, Reclining Cover, LH
72627	Plate, Rear Seatback Protector
72630B	Adjuster Assy, Rear NO.1 Seat, Inner RH
72637A	Handle, Rear Seat Lock
72638	Handle, Rear Seat Lock, LH
72640B	Adjuster Assy, Rear NO.1 Seat, Inner LH
72658B	Knob, Rear Seat Lock Handle
72679	Bezel, Rear Seatback Lock Control
72695	Silencer, Rear Seatback Lock Control Rod
72704A	Cable, Rear Seat Reclining Control
72730A	Adjuster Assy, Rear Seat Reclining, RH
72732A	Bracket, Rear Seat Adjuster, Inner
72740A	Adjuster Assy, Rear Seat Reclining, LH
72748	Wire, Rear Seat Reclining Control
72750E	Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH
72750F	Adjuster Assy, Rear NO.2 Seat Reclining, Inner LH
72760E	Adjuster Assy, Rear NO.2 Seat Reclining, Inner RH
72760F	Adjuster Assy, Rear NO.2 Seat Reclining, Outer LH
72830D	Armrest Assy, Rear Seat, RH
72840D	Armrest Assy, Rear Seat, LH
72849A	Cap, Seat Armrest, NO.2
72877B	Cover, Seat Armrest, RH
72878A	Cover, Seat Armrest, NO.2 LH
72951	Link, NO.2 Seat, Upr RH
72952	Link, NO.2 Seat Upr LH
72995B	Cover, NO.1 Seat Cushion, RH
72996	Cover, Rear Seatback, RH
72996B	Cover, Rear Seatback, Inner RH
72997	Cover, Rear Seatback, LH
72997A	Cover, Rear Seatback, Inner LH
72998A	Cover, NO.1 Seat Cushion, LH
78087	Lever Sub-assy, Sub Seat Lock
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79011A	Cover Sub-assy, NO.1 Seat Cushion
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79013	Cover Sub-assy, NO.1 Seatback, RH
79014	Cover Sub-assy, NO.1 Seatback, LH
79021	Cover Sub-assy, NO.2 Seat Cushion, RH
79022	Cover Sub-assy, NO.2 Seat Cushion, LH
79023	Cover Sub-assy, NO.2 Seatback, RH
79024	Cover Sub-assy, NO.2 Seatback, LH
79101	Frame Sub-assy, NO.1 Seat Cushion
79120	Cushion Assy, NO.1 Seat, RH
79120A	Cushion Assy, NO.1 Seat
79130	Cushion Assy, NO.1 Seat, LH
79140	Back Assy, NO.1 Seat, RH
79150	Back Assy, NO.1 Seat, LH
79169	Rod, Rear Seat Hinge Connector
79187	Cover, NO.1 Seat Inner Bracket
79187A	Cover, NO.1 Seat Inner Bracket, LH
79188	Cover, NO.1 Seat Outer Bracket
79188A	Cover, NO.1 Seat Outer Bracket, LH
79201B	Frame Sub-assy, NO.2 Seat Cushion, RH
79202	Frame Sub-assy, NO.2 Seat Cushion, LH
79203A	Frame Sub-assy, NO.2 Seatback, RH
79204A	Frame Sub-assy, NO.2 Seatback, LH
79209	Board Sub-assy, NO.2 Seatback
79220A	Cushion Assy, NO.2 Seat
79230	Cushion Assy, NO.2 Seat, LH
79235D	Pad, NO.2 Seat Cushion, RH
79240	Back Assy, NO.2 Seat, RH
79245C	Pad, NO.2 Seat Cushion, LH
79250	Back Assy, NO.2 Seat, LH
79275C	Pad, NO.2 Seatback, RH
79285	Pad, NO.2 Seatback, LH
79955A	Cover, Rear Seat Front Bracket, RH
79955C	Cover, Rear Seat Front Bracket, RH
79955D	Cover, Rear Seat Front Bracket, RH
79956B	Cover, Rear Seat Leg Side, RH
79956C	Cover, Rear Seat Leg Side, LH
79956D	Cover, Rear Seat Front Bracket, LH
79956N	Cover, Rear Seat Front Bracket, LH
79956P	Cover, Rear Seat Front Bracket, LH
79957A	Cover, Rear Seat Rear Bracket, RH
79958A	Cover, Rear Seat Rear Bracket, LH
79959A	Cover, Rear Seat Leg, RH
79959B	Cover, Rear Seat Leg, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
