Toyota Gaia

1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

20 part groups · 2 illustrations

Illustrations

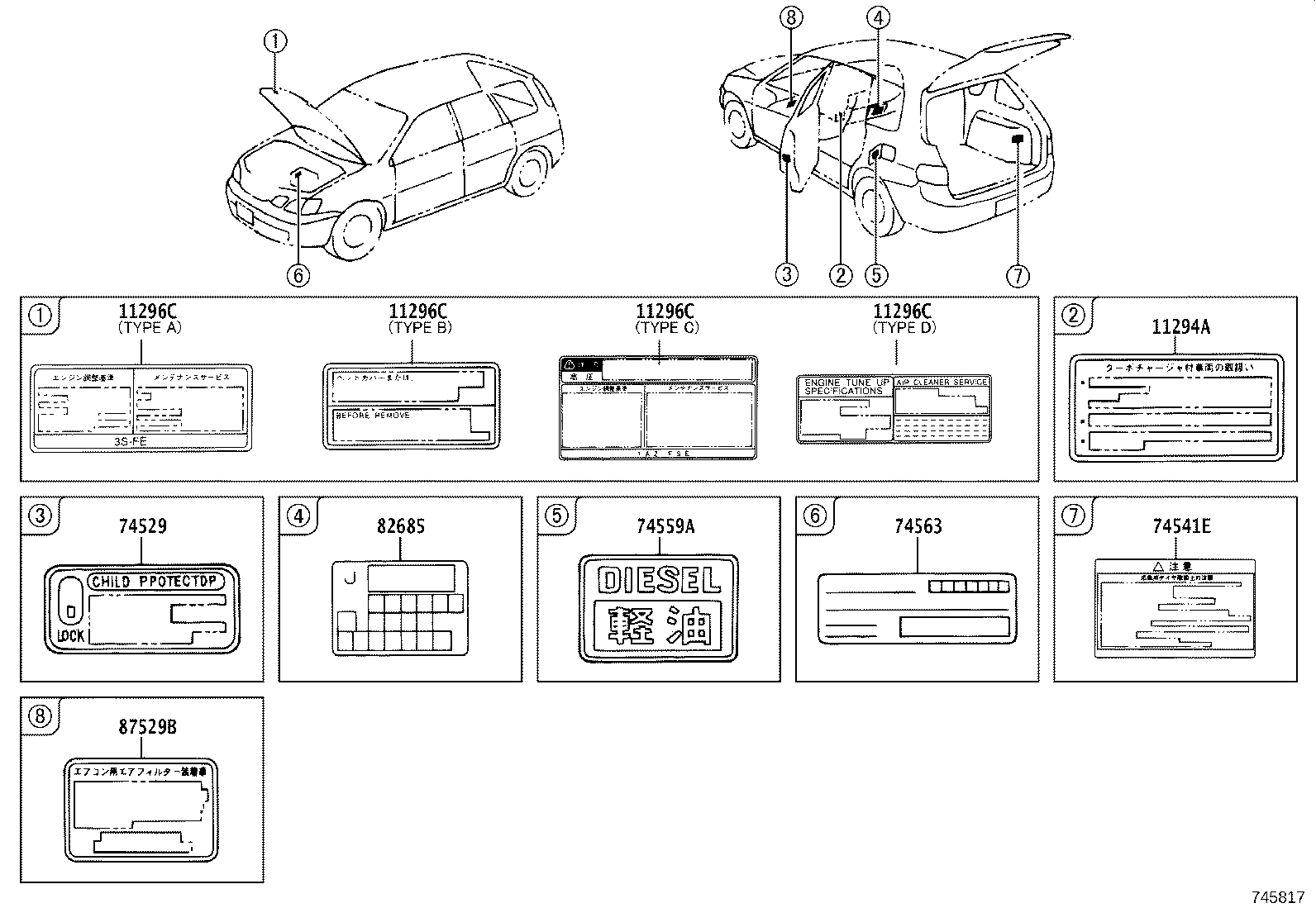

Figure 740496I 740496I 1998-05 → — Figure 745817 745817 1998-05 → —

Part groups

PNCDescription
11285F Label, Coolant System Caution
11289B Label, Spark Plug Notice
11294A Label, Turbocharger Information
11296C Label, Engine Service Information
13564 Label, Timing Belt Replacement Information
15369A Label, Engine Oil Information
16793E Label, Cooling Fan Caution
17791A Label, Maintenance Information
41992 Label, Differential Notice
74529 Plate, Child Proof OR Child Protector Lock Caution
74541E Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74562B Label, Emission Information
74563 Plate, Emission Control Device Identification
74751 Label, Tire Pressure Information
75341C Plate, Hood Name
82685 Plate, Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
