Toyota Gaia

1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

18 part groups · 4 illustrations

Illustrations

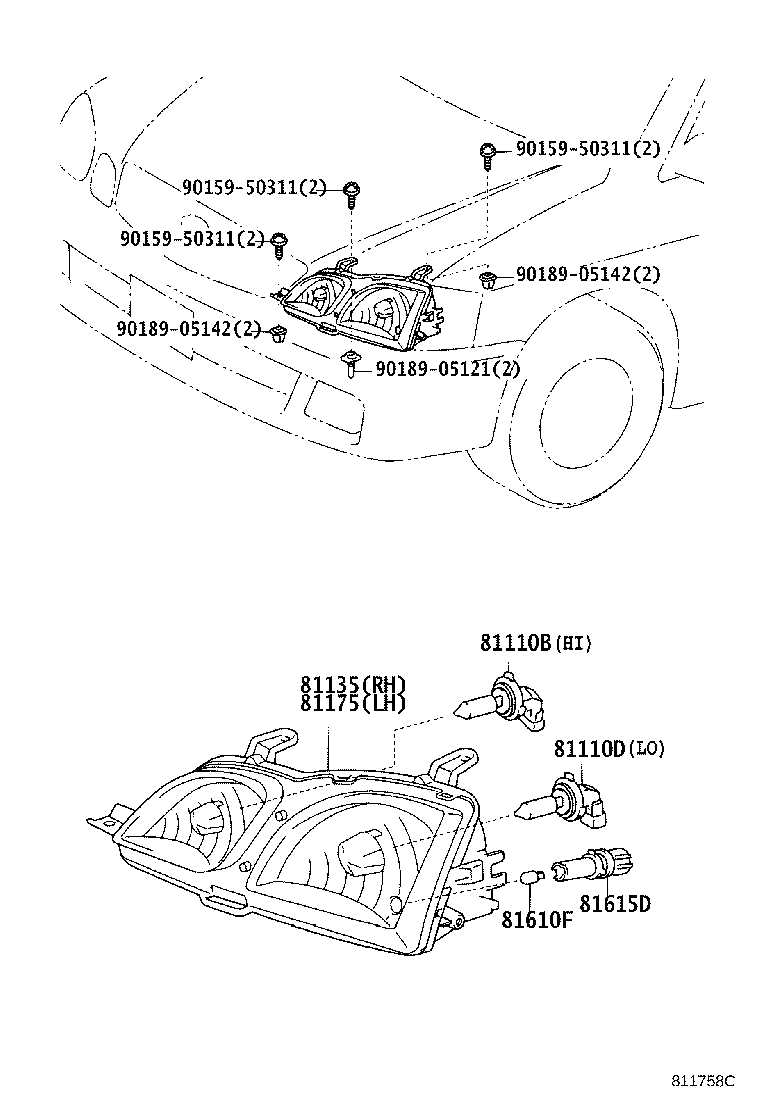

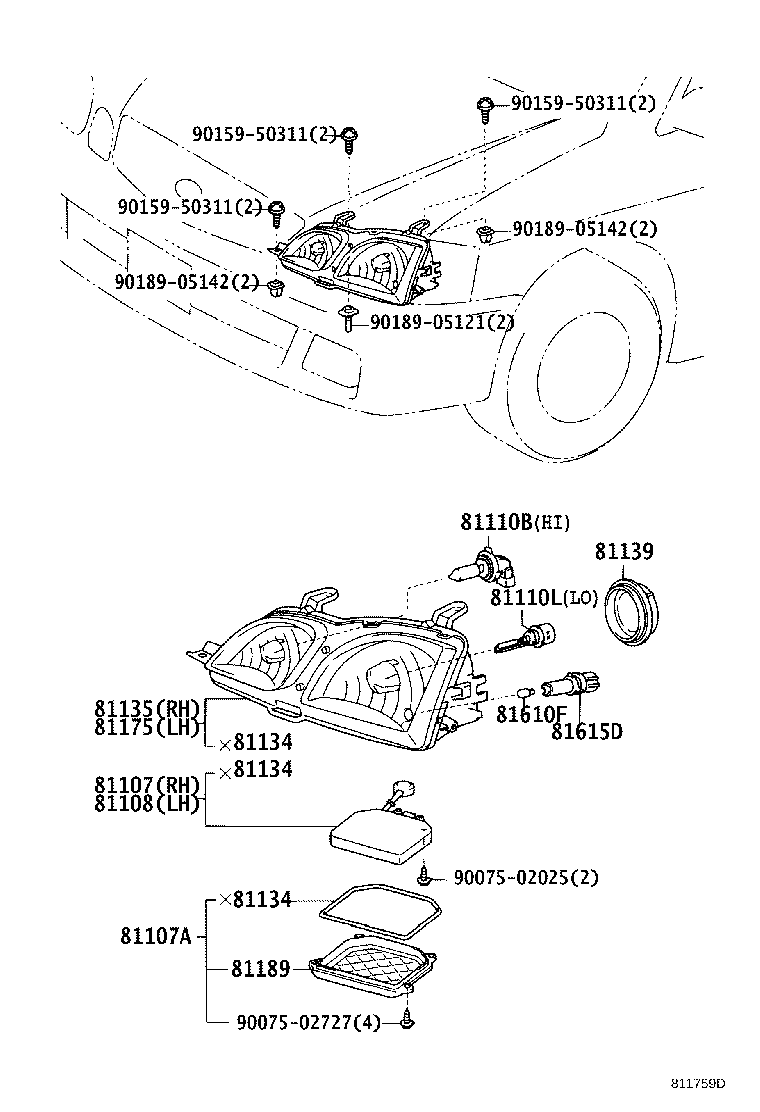

Figure 810912C 810912C 1998-05 → 2001-04 Figure 811758C 811758C 2001-04 → — Figure 811759D 811759D 2001-04 → — Figure 811788A 811788A 2001-04 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81107A Cover, Headlamp Light Control Computer
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81145C Cover, Headlamp Socket, NO.2
81175 Unit Assy, Headlamp, LH
81189 Cover, Headlamp
81193 Retainer, Headlamp Protector, Upper RH
81193A Protector, Headlamp, RH
81194 Retainer, Headlamp Protector, Upper LH
81194A Protector, Headlamp, LH
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
