Toyota Gaia

1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan

Discontinued model Data version 2005-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

5 part groups · 2 illustrations

Illustrations

Figure 810913B

810913B 1998-05 → 2001-04

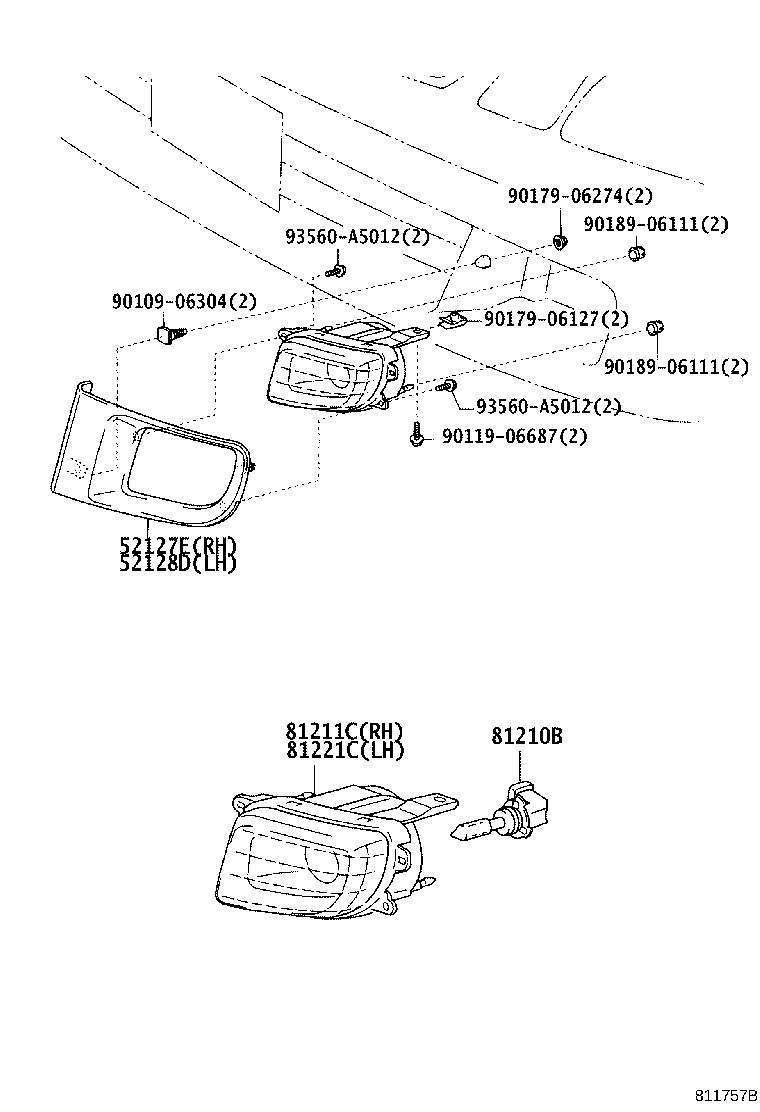

Figure 811757B

811757B 2001-04 → —

Part groups

PNC	Description
52127E	Cover, Front Bumper Hole, RH
52128D	Cover, Front Bumper Hole, LH
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81221C	Lamp Unit, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
