Toyota Gaia

1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

5 part groups · 2 illustrations

Illustrations

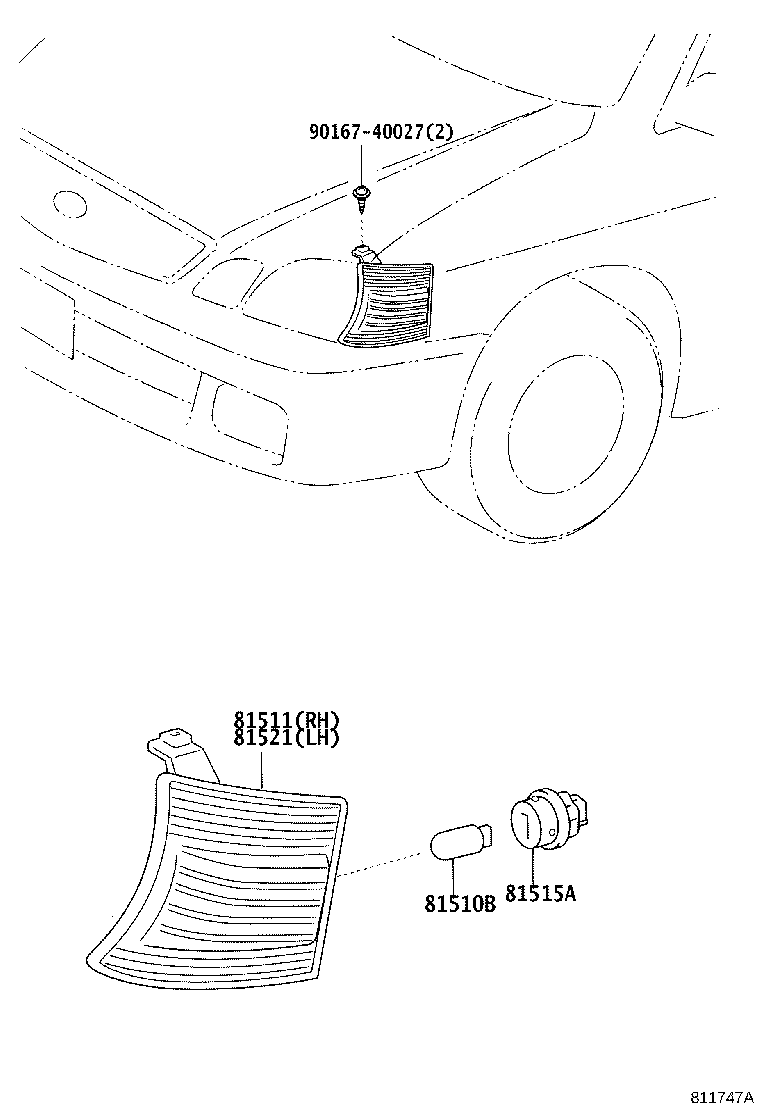

Figure 810914A 810914A 1998-05 → 2001-04 Figure 811747A 811747A 2001-04 → —

Part groups

PNCDescription
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81515A Plug Assy, Front Turn Signal Lamp
81515E Socket Plug Assy
81521 Lens, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
