Toyota Gaia

1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

84 part groups · 13 illustrations

Illustrations

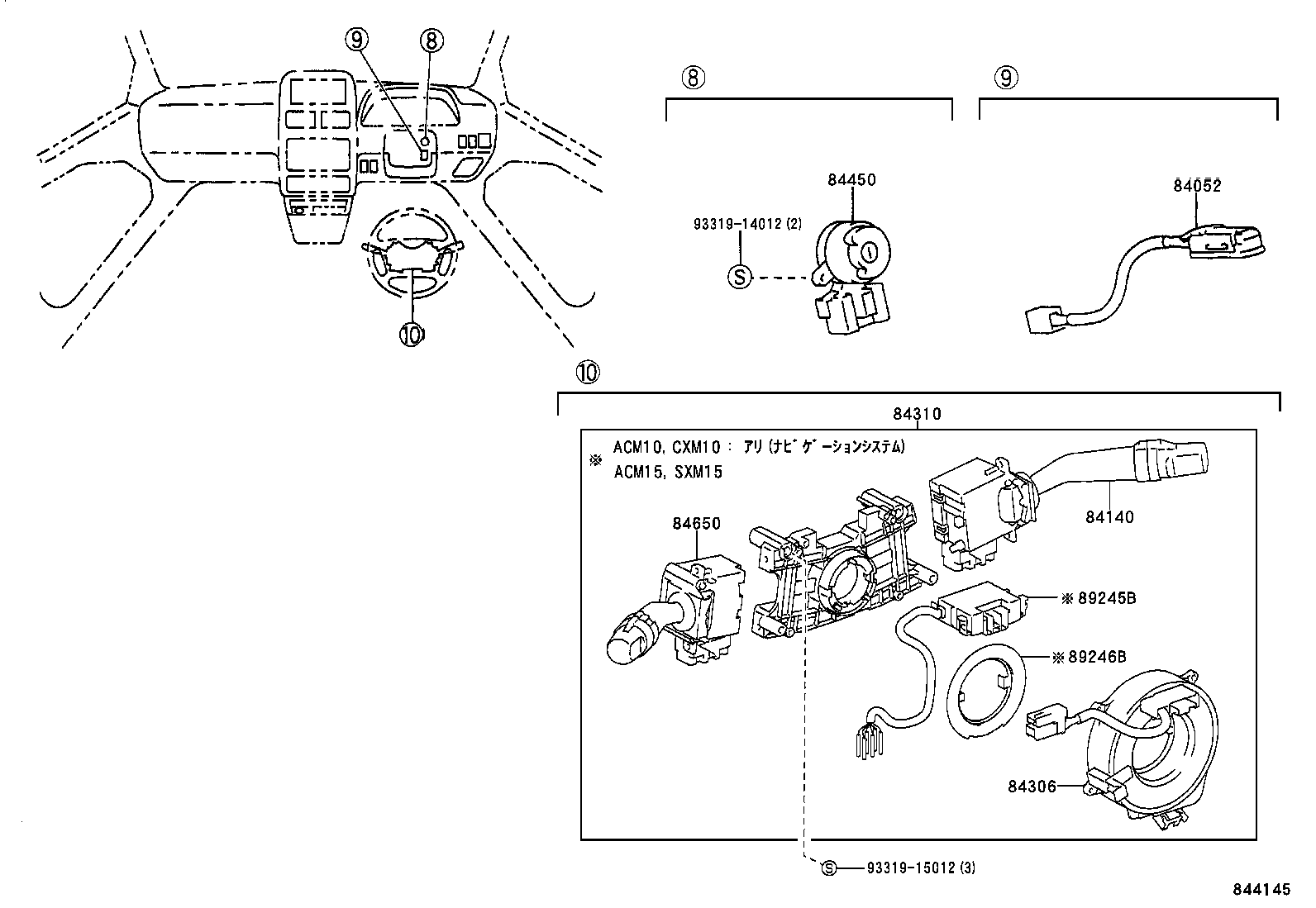

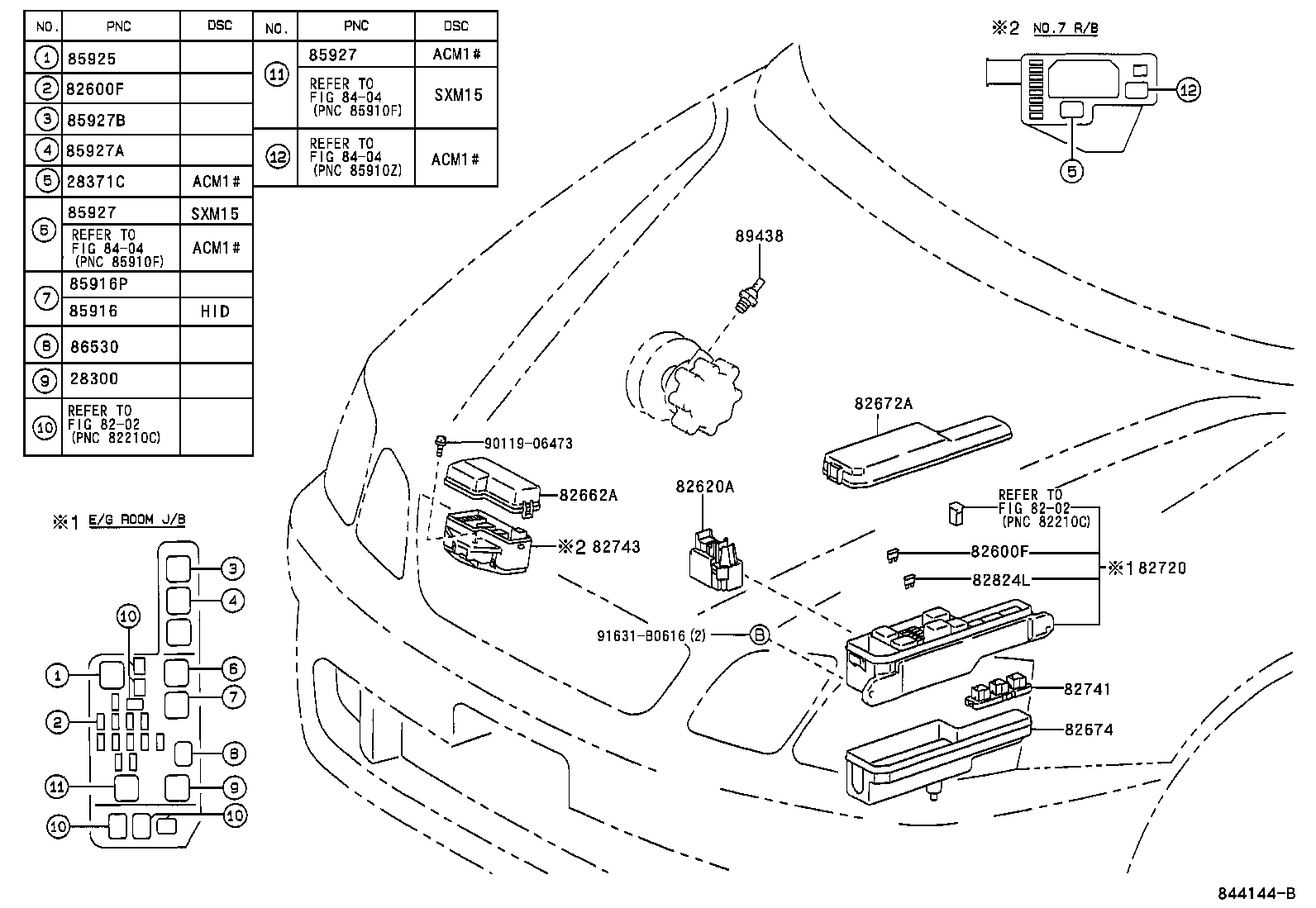

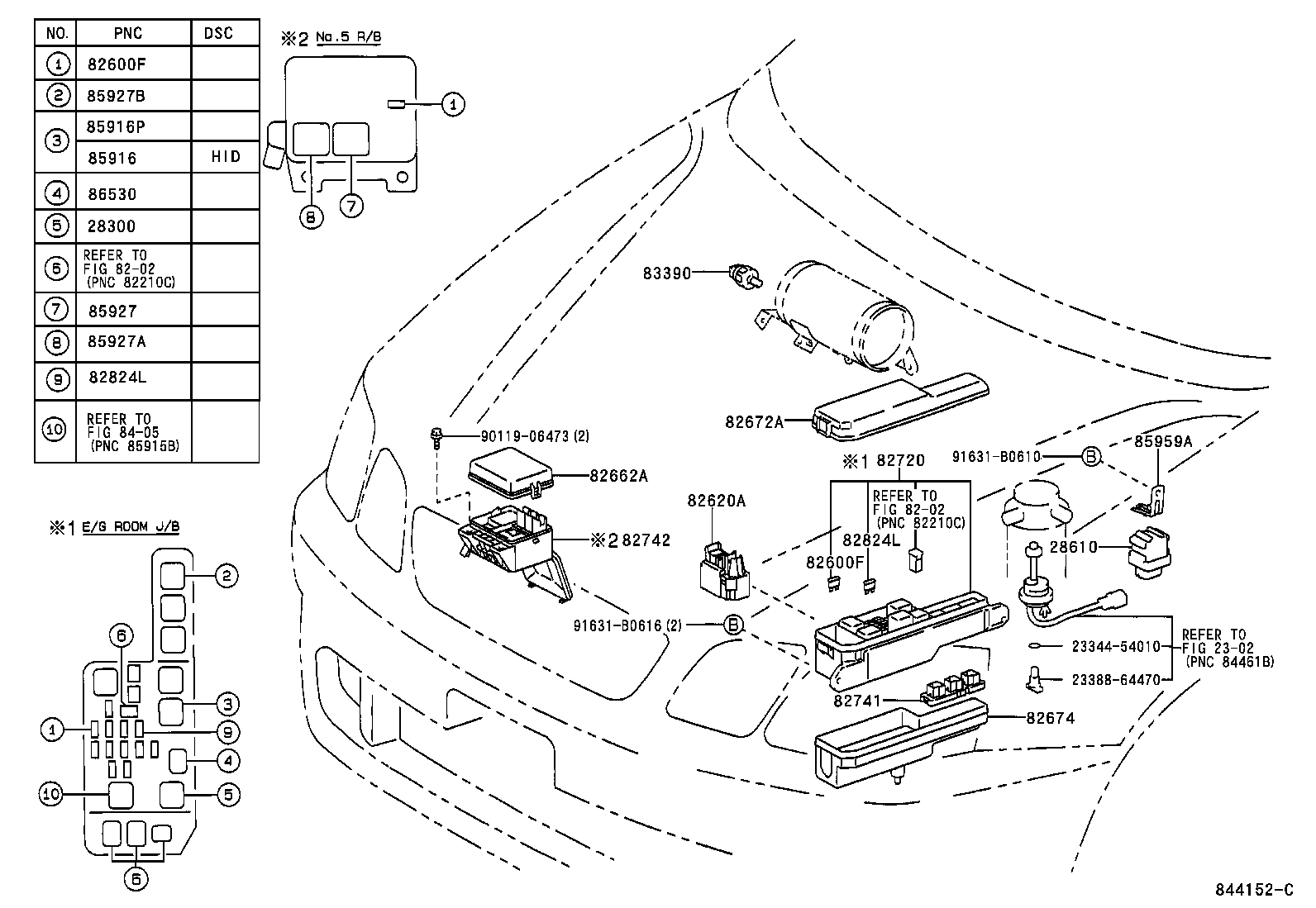

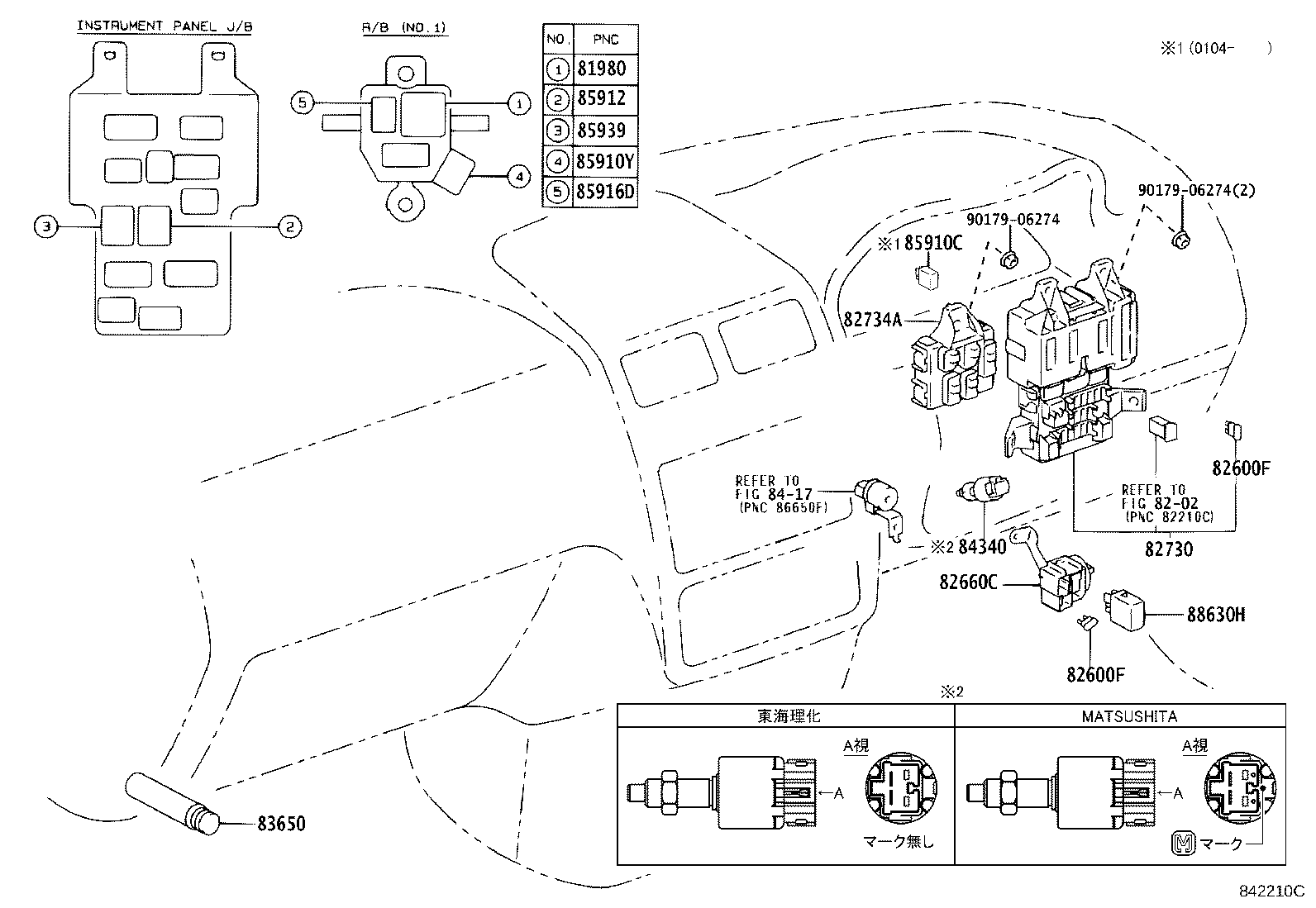

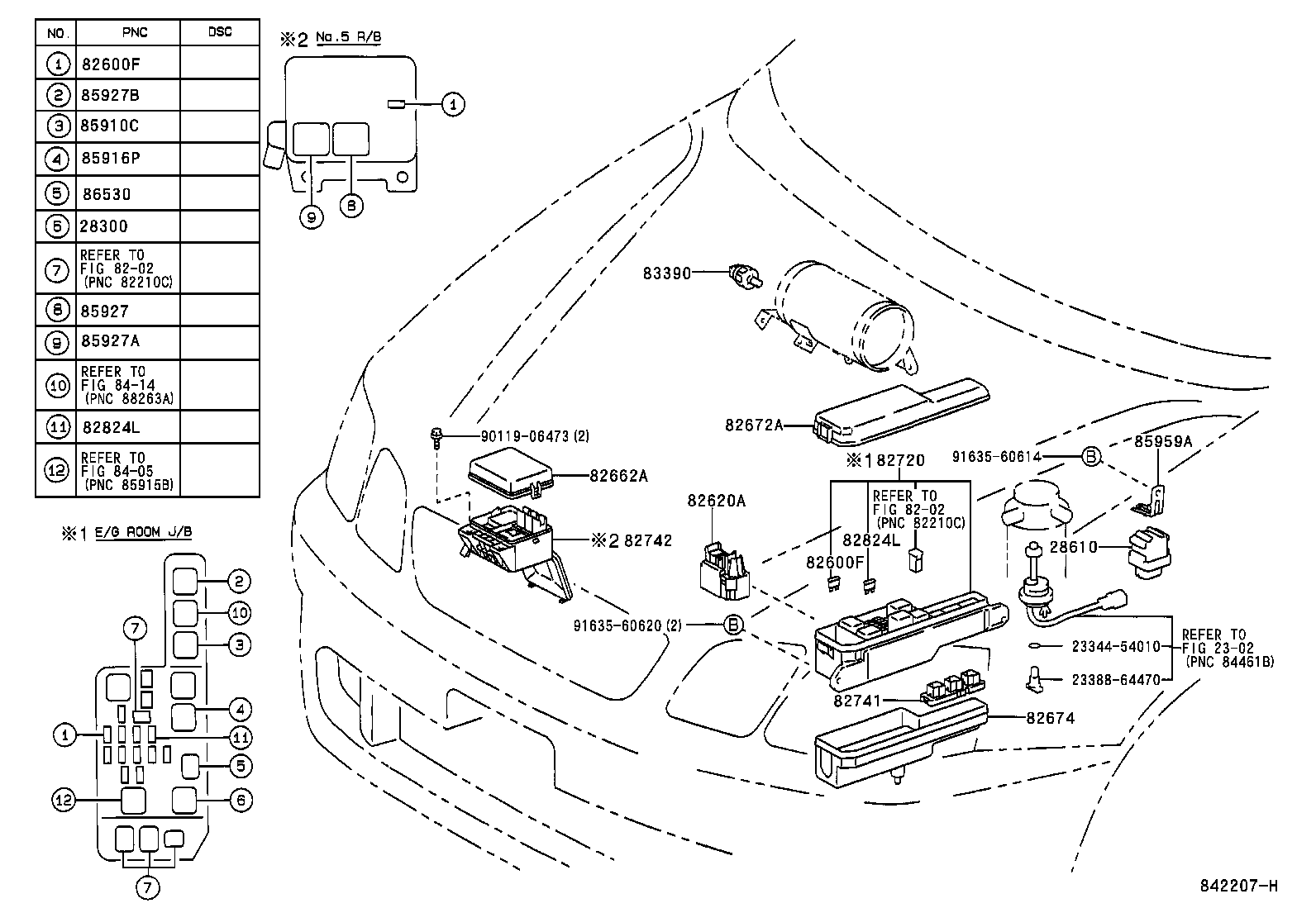

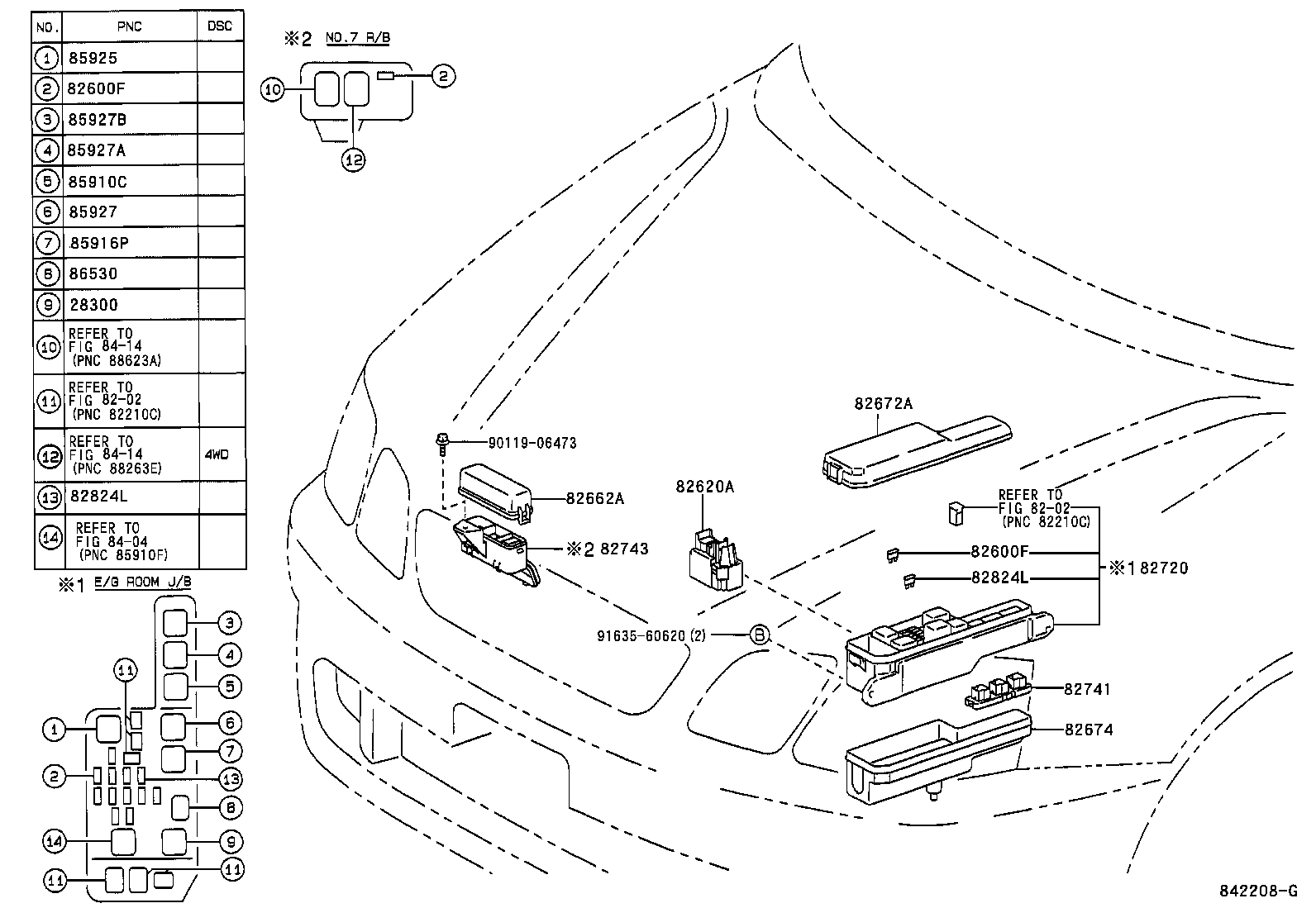

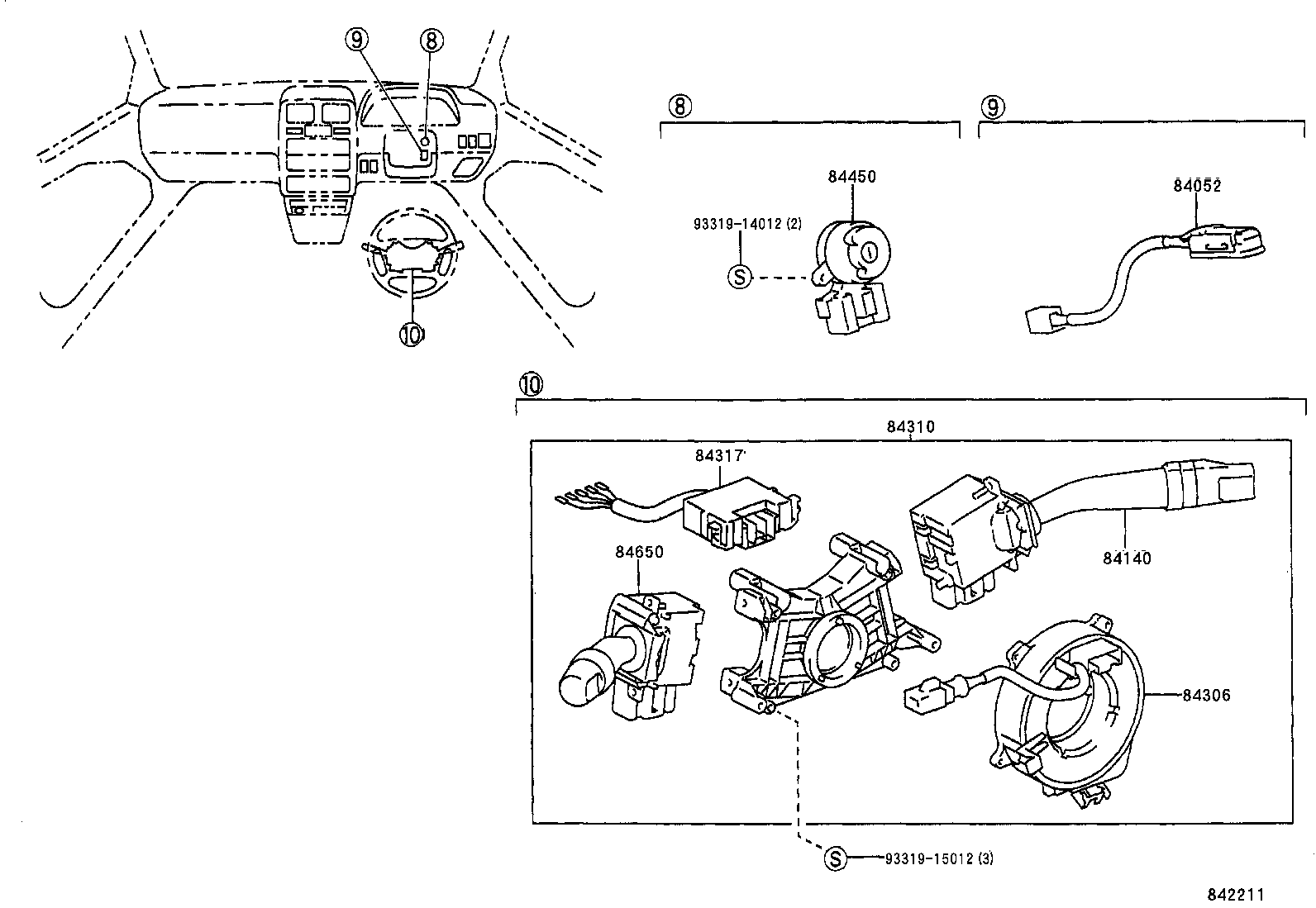

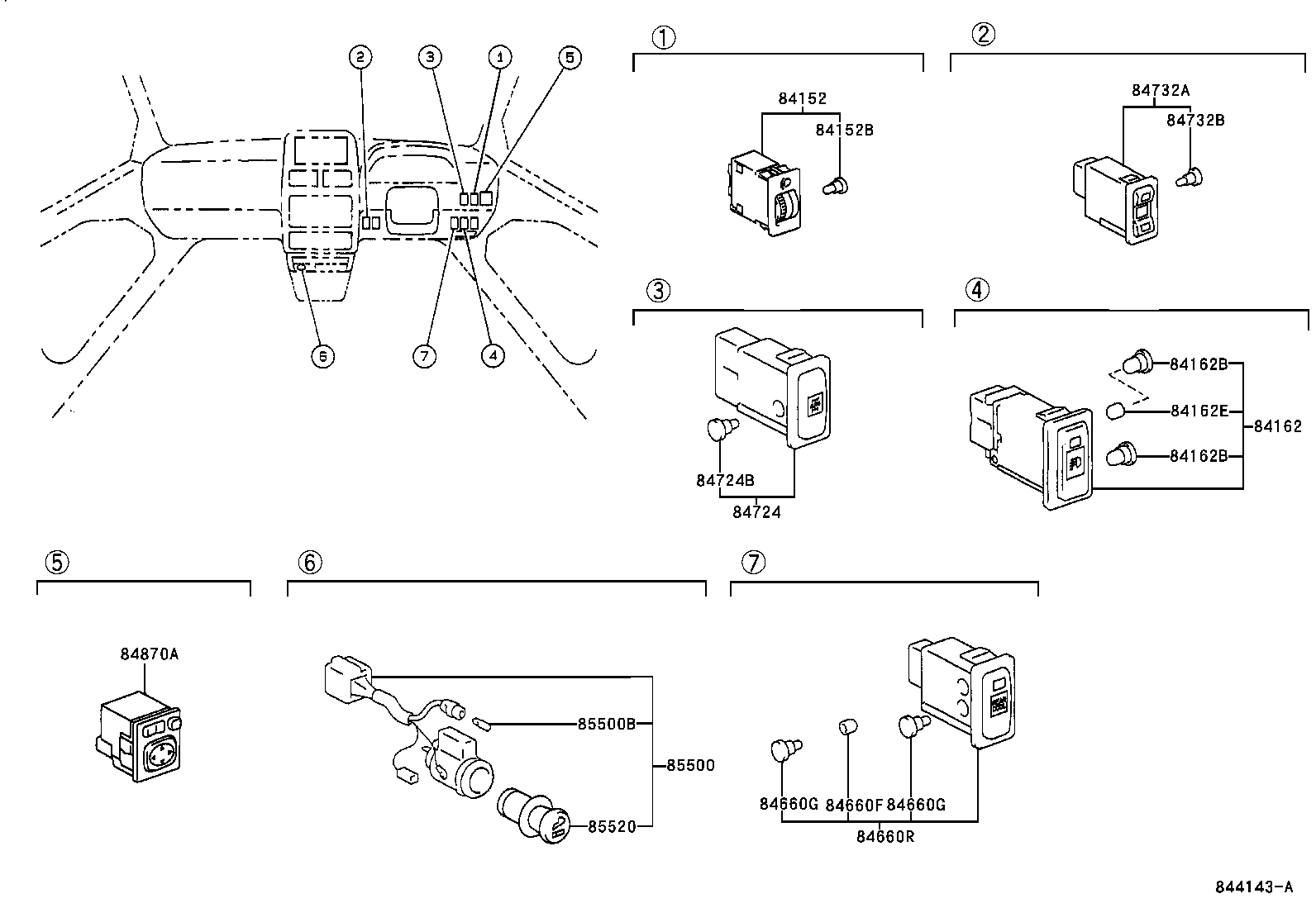

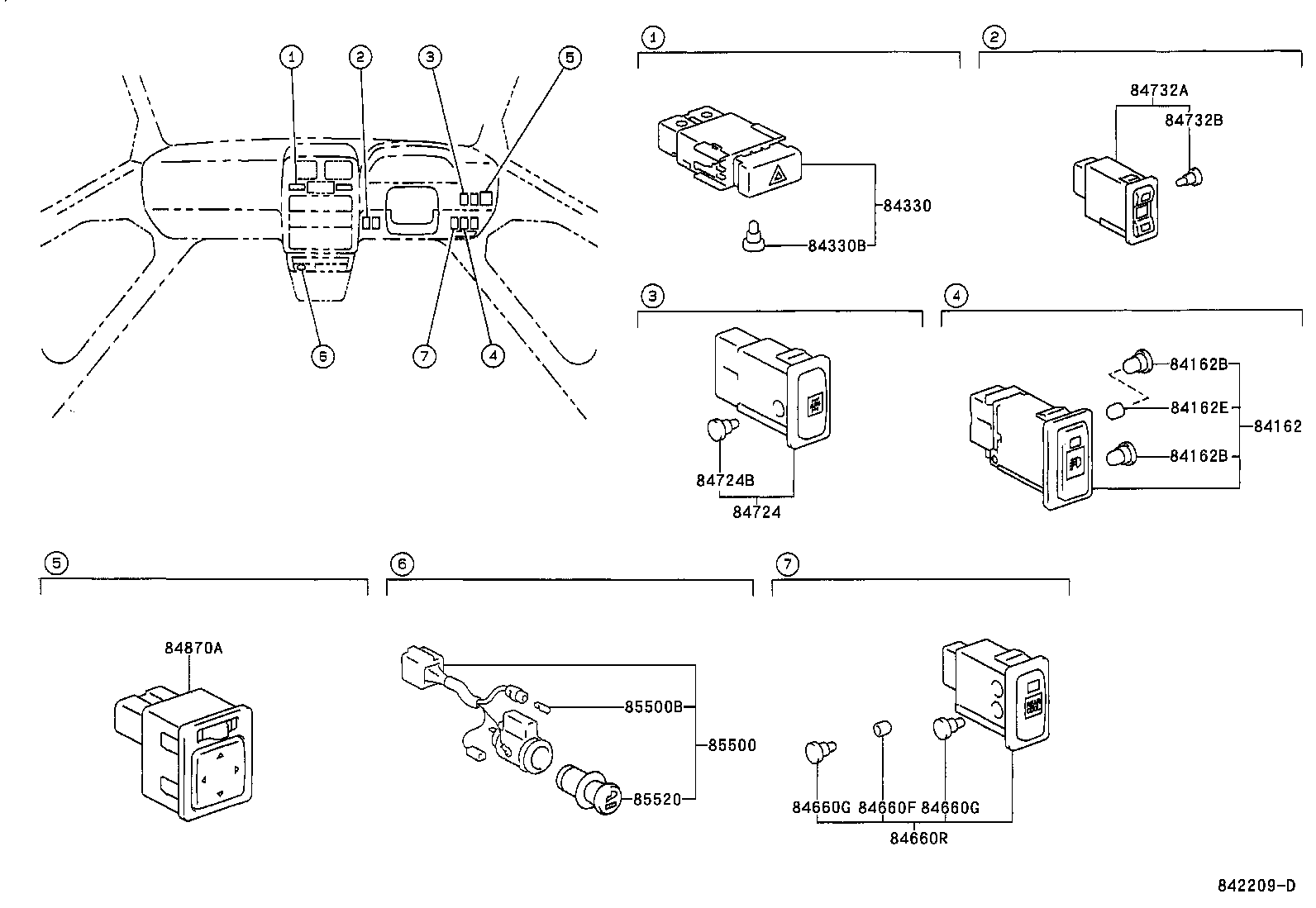

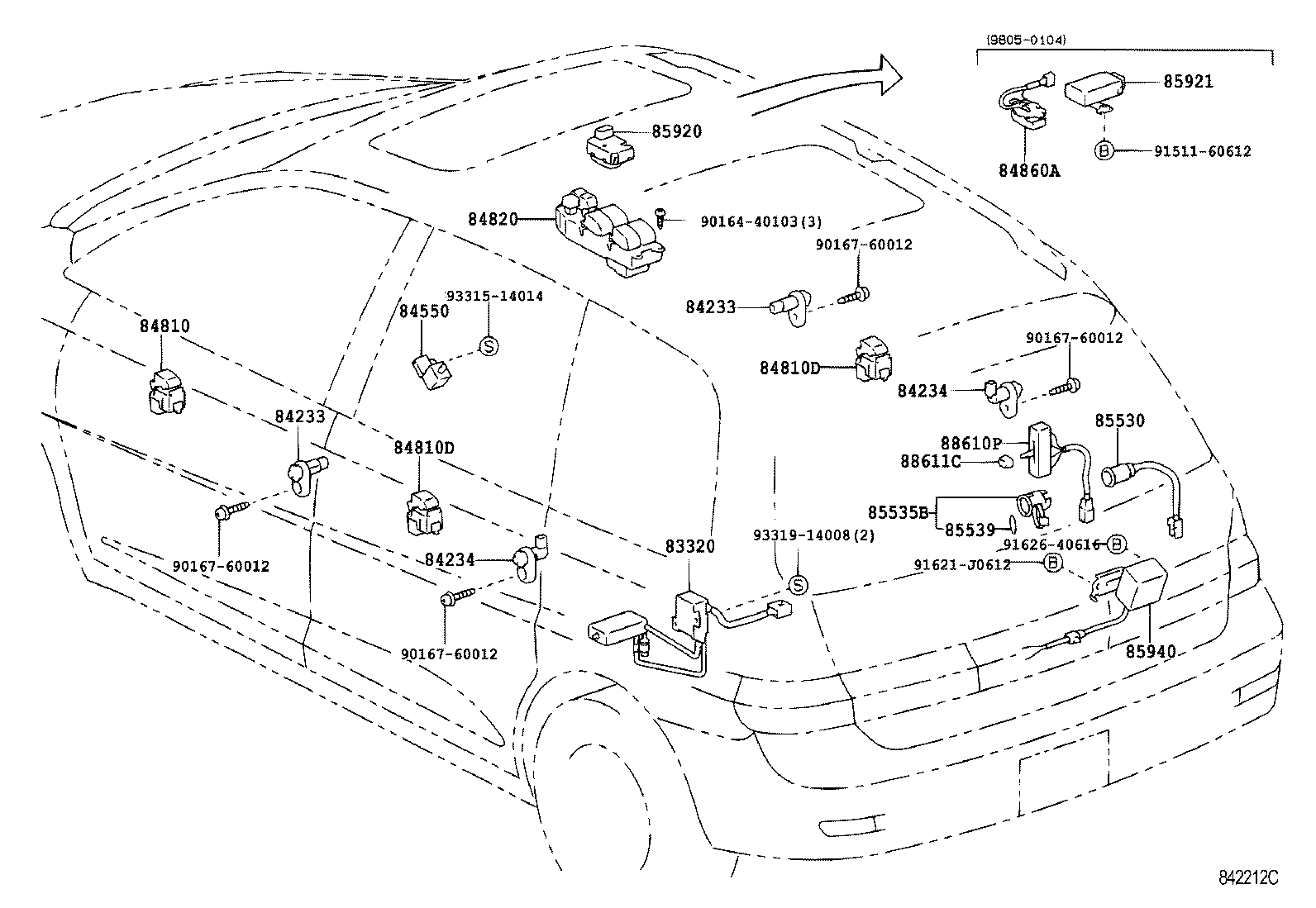

Figure 842205 842205 1998-05 → — Figure 842206A 842206A 1998-05 → 2002-08 Figure 844148 844148 2001-04 → — Figure 842207H 842207H 1998-05 → 2001-04 Figure 842208G 842208G 1998-05 → 2001-04 Figure 844152C 844152C 2001-04 → — Figure 844144B 844144B 2001-04 → — Figure 842209D 842209D 1998-05 → 2001-04 Figure 844143A 844143A 2001-04 → — Figure 842210C 842210C 1998-05 → — Figure 842211 842211 1998-05 → 2001-04 Figure 844145A 844145A 2001-04 → — Figure 842212C 842212C 1998-05 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371C Relay, Ignition, NO.2
28610 Relay Assy, Intake Heater OR Glow Plug
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82620A Block Assy, Fusible Link
82660C Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82672A Cover, Junction Block
82674 Cover, Junction Block Lower
82720 Block Assy, Engine Room Junction
82730 Block Assy, Instrument Panel Junction
82734A Block, Center Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82743 Block, Engine Room Relay, NO.3
82824L Pin, Short
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162 Switch, Front Fog Lamp
84162B Bulb, Fog Lamp Switch
84162E Cap, Fog Lamp Bulb
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84317 Sensor, Steering Position
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84660F Cap, Cooler Switch Bulb
84660G Bulb(FOR REAR COOLER SWITCH)
84660R Switch, Cooler(REAR)
84724 Switch, 4 Wheel Drive Control
84724B Bulb, 4 Wheel Drive Control Switch
84732A Switch, Rear Heater Blower
84732B Bulb, Rear Heater Blower Switch
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84860A Switch Assy, Sliding Roof
84870A Switch Assy, Outer Mirror
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85539 Label, Power Outlet Notice
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910Y Relay, Rear Heater
85912 Relay, Defogger
85916 Relay, Light Control
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85920 Relay & Switch Assy, Sliding Roof
85921 Relay, Sliding Roof Control
85925 Relay, Radiator Fan
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85939 Relay, Power Window
85940 Relay Assy, Windshield Wiper
85959A Holder, Relay
86530 Relay Assy, Horn
88610P Switch Assy, Control
88611C Knob, Cooler Control Switch
88630H Relay Assy, Cooler
89245B Sensor, Steering
89246B Disc, Sensor Steering
89428 Switch, Temperature Detect, NO.2
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89615 Sensor, Knock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
