Toyota Gaia
1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan
Discontinued model
Data version 2005-04

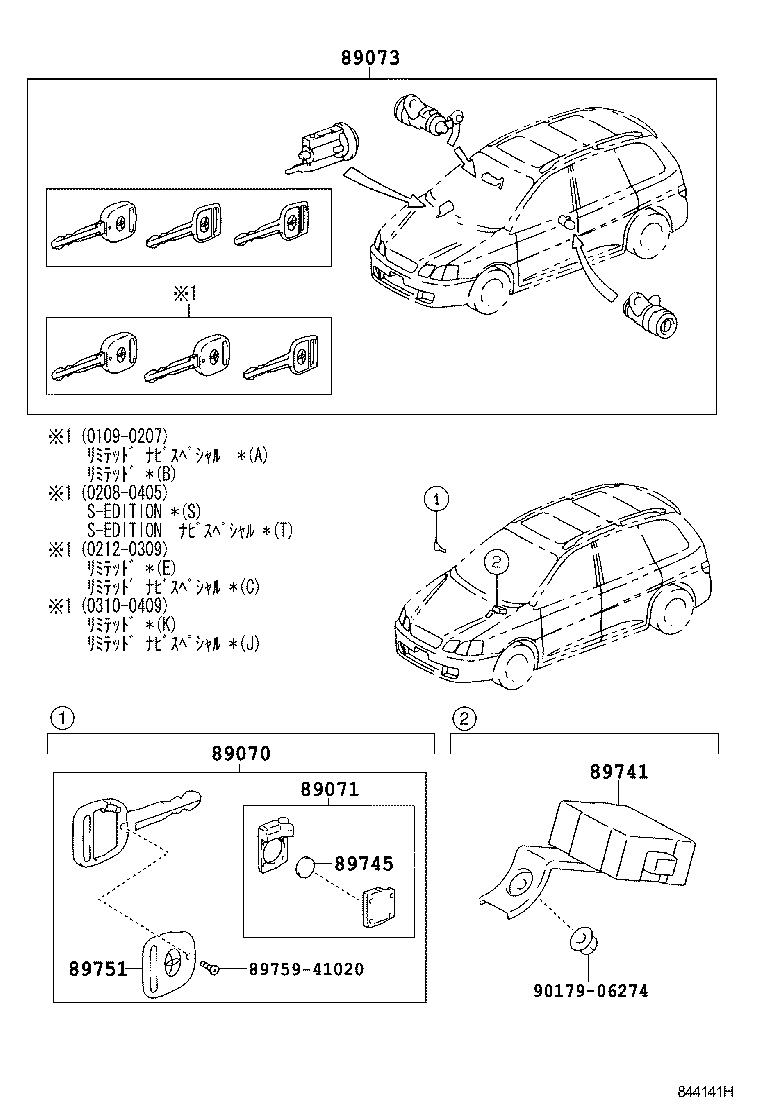

Wireless Door Lock
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89070 | Transmitter Assy, Door Control |
| 89071 | Module Set, Transmitter Sub-assy, Door Control |
| 89073 | Cylinder Set, Lock W/Transmitter Housing(LESS MODULE) |
| 89740 | Computer Assy, Door Control W/Receiver |
| 89741 | Receiver, Door Control |
| 89742 | Transmitter, Door Control |
| 89745 | Battery, Transmitter |
| 89751 | Cover, Transmitter Housing |
| 89752 | Case, Transmitter Housing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
