Toyota Gaia
1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan
Discontinued model
Data version 2005-04

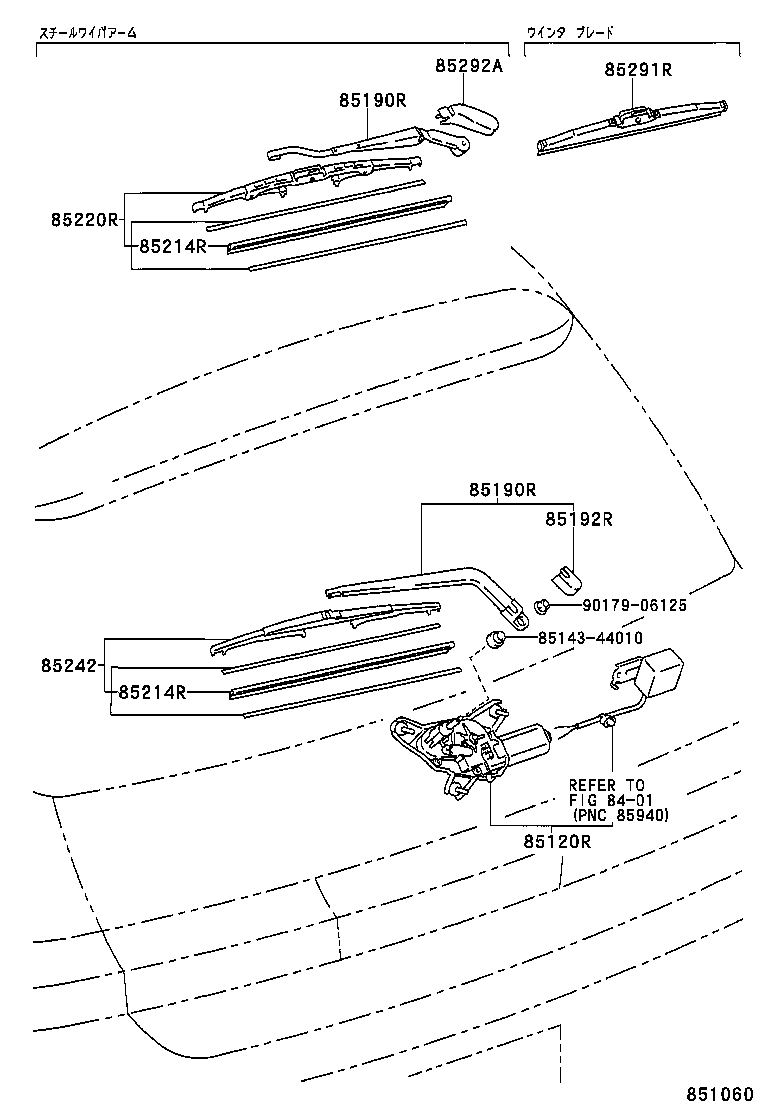

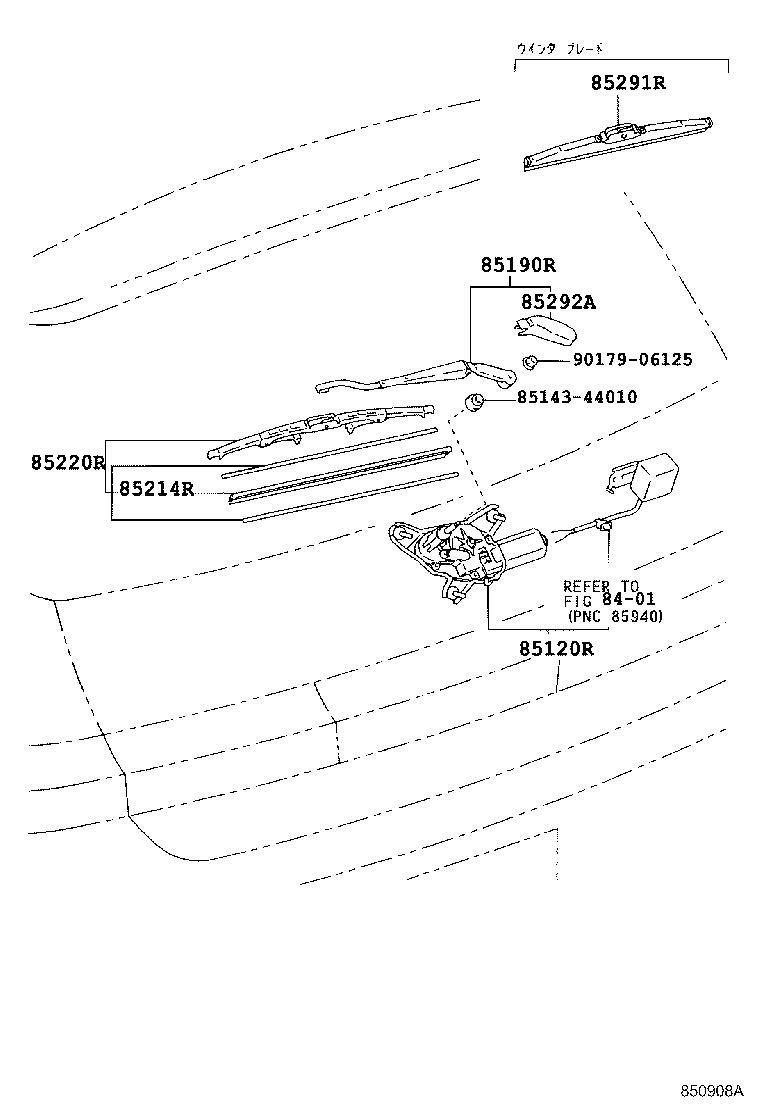

Rear Wiper
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85120R | Motor And Bracket Assy, Rear Wiper |
| 85190R | Arm Assy, Rear Wiper |
| 85192R | Cover, Rear Wiper Arm |
| 85214R | Rubber, Rear Wiper |
| 85220R | Blade Assy, Rear Wiper |
| 85224E | Plate, Rear Wiper Rubber Backing, NO.1 |
| 85224F | Plate, Rear Wiper Rubber Backing, NO.2 |
| 85242 | Blade, RR Wiper |
| 85291R | Blade,Rear Wiper, Winter |
| 85292A | Cap, Rear Wiper Arm Head |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
