Toyota Gaia
1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan
Discontinued model
Data version 2005-04
Navigation & Front Monitor Display

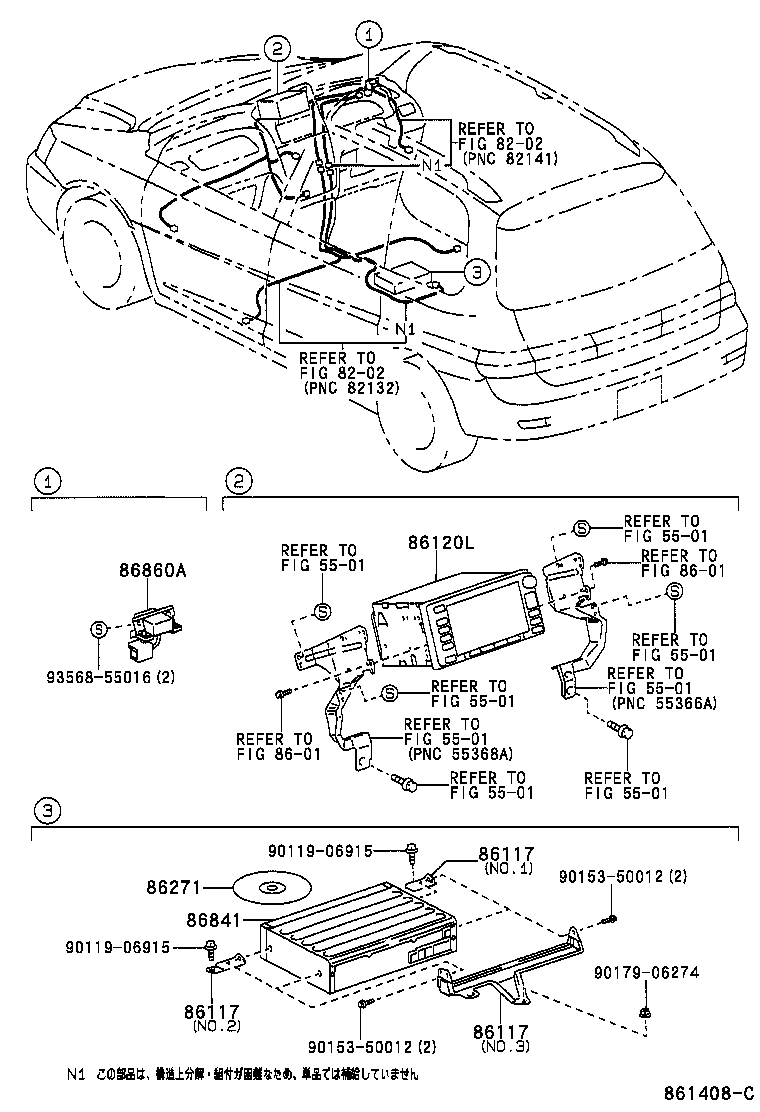

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86010 | Tuner Assy, Television |
| 86117 | Bracket, Multi-display Controller, A |
| 86117B | Bracket, Television Display, B |
| 86120L | Receiver Assy, Navigation |
| 86271 | Disc, Disc Player |
| 86273A | Magazine, Disc Player |
| 86275B | Changer, Disc Player |
| 86807 | Disc Kit, Cd-rom |
| 86808 | Cord Sub-assy, Navigation Antenna, NO.1 |
| 86841 | Computer, Navigation |
| 86860A | Antenna, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
