Toyota Gaia

1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

6 part groups · 2 illustrations

Illustrations

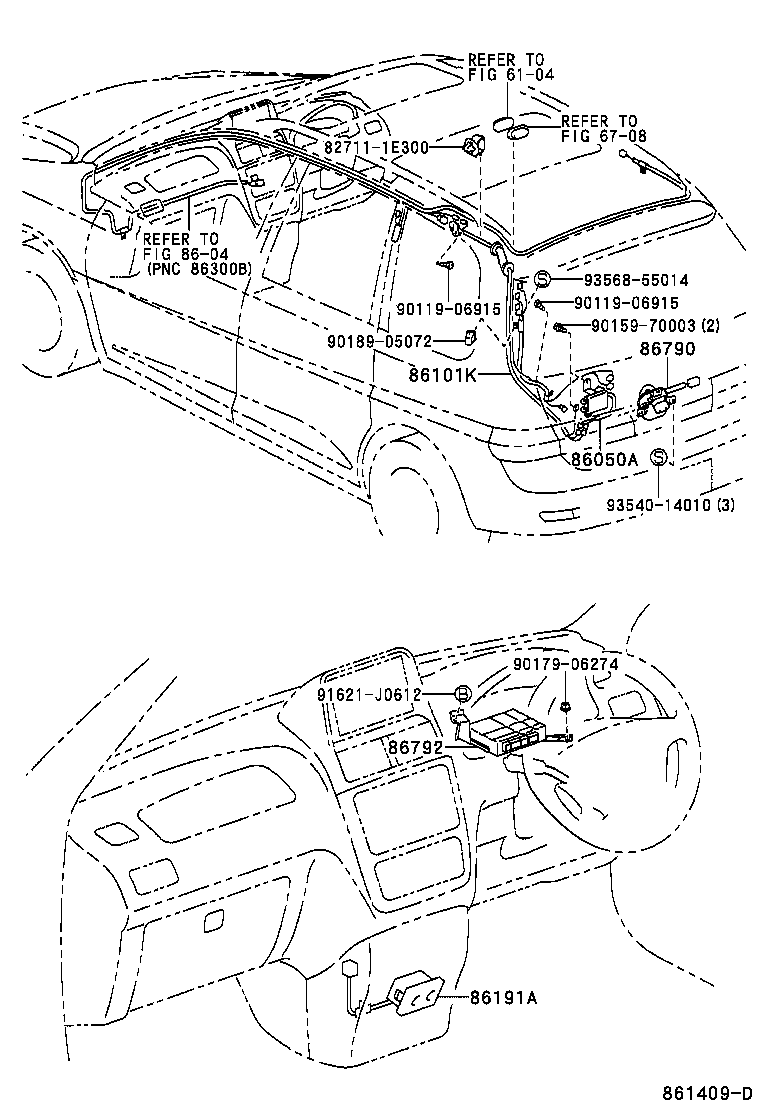

Figure 860709G 860709G 1998-05 → 2001-04 Figure 861409D 861409D 2001-04 → —

Part groups

PNCDescription
86050A Antenna Assy, Television
86101K Cord Sub-assy, Television Antenna
86191A Terminal, Video(VIDEO ADAPTER)
86790 Camera Assy, Television
86792 Controller, Television Camera
86793A Label, Television Camera Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
