Toyota Gaia

1998-05 → 2004-09 · chassis ACM1#,CXM10,SXM1# · catalogue 513110 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

29 part groups · 7 illustrations

Illustrations

Figure 872869B 872869B 1998-05 → 2001-04 Figure 872870B 872870B 1998-05 → 2001-04 Figure 874844B 874844B 2001-04 → — Figure 874845A 874845A 2001-04 → — Figure 872702D 872702D 1998-05 → — Figure 872703 872703 1998-05 → — Figure 872704 872704 1998-05 → —

Part groups

PNCDescription

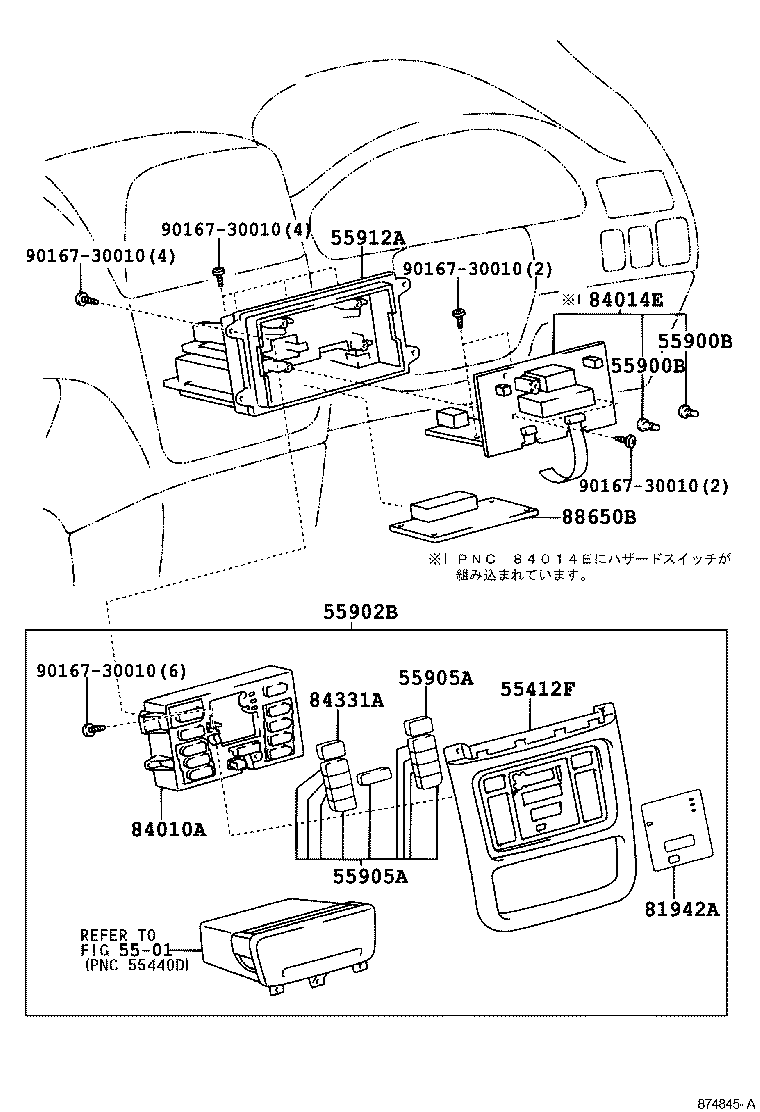

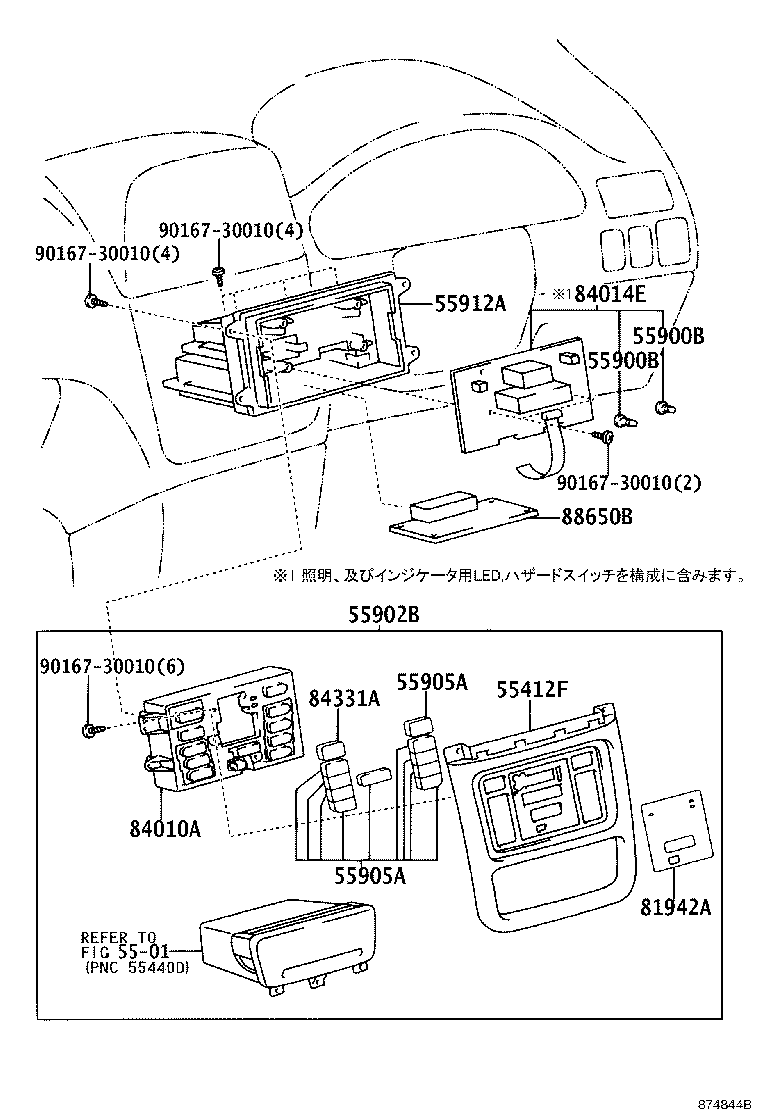

55412F Panel, Instrument Cluster Finish, Center
55831B Connector, Instrument Panel Register, RH
55843A Duct, Heater TO Register, NO.1

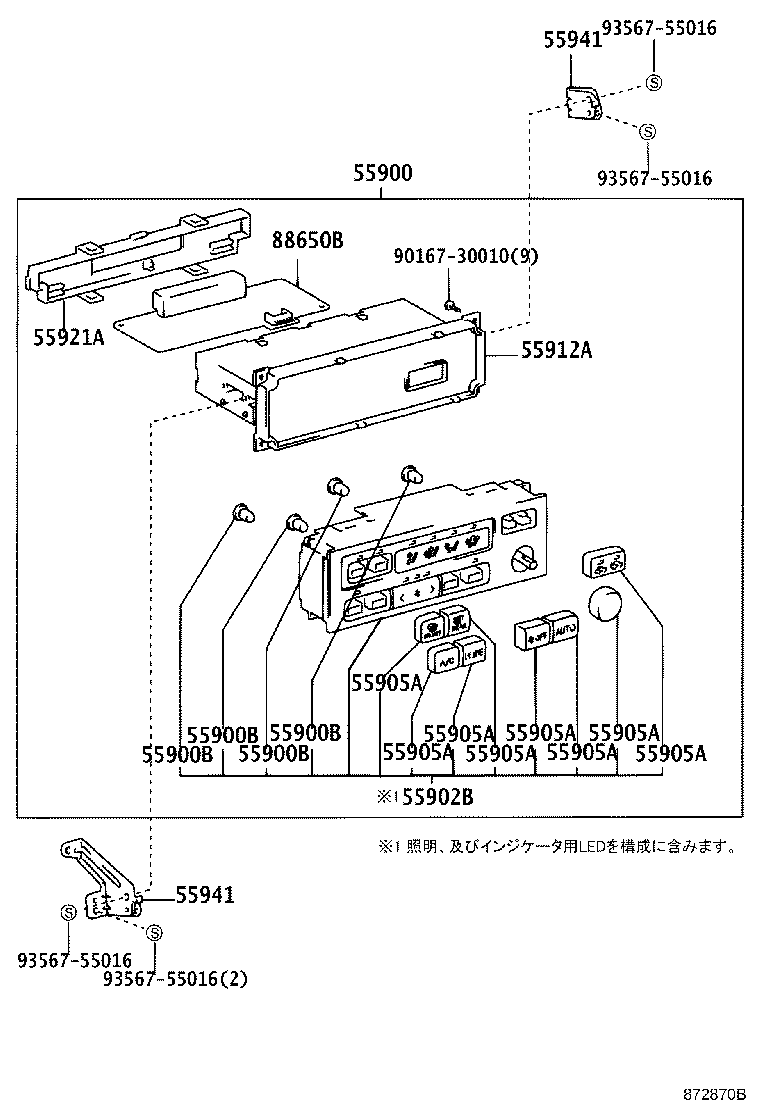

55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55912A Housing, Heater Control
55921A Retainer, Heater Control
55941 Bracket, Heater Control
81942A Sheet, Heater Control Name, NO.1
84010A Control & Panel Assy, Integration
84014E Board Sub-assy, Printed Wire Integration
84331A Knob, Hazard Warning Signal Switch
87201A Duct Sub-assy, Air
87201K Clip (FOR AIR DUCT)

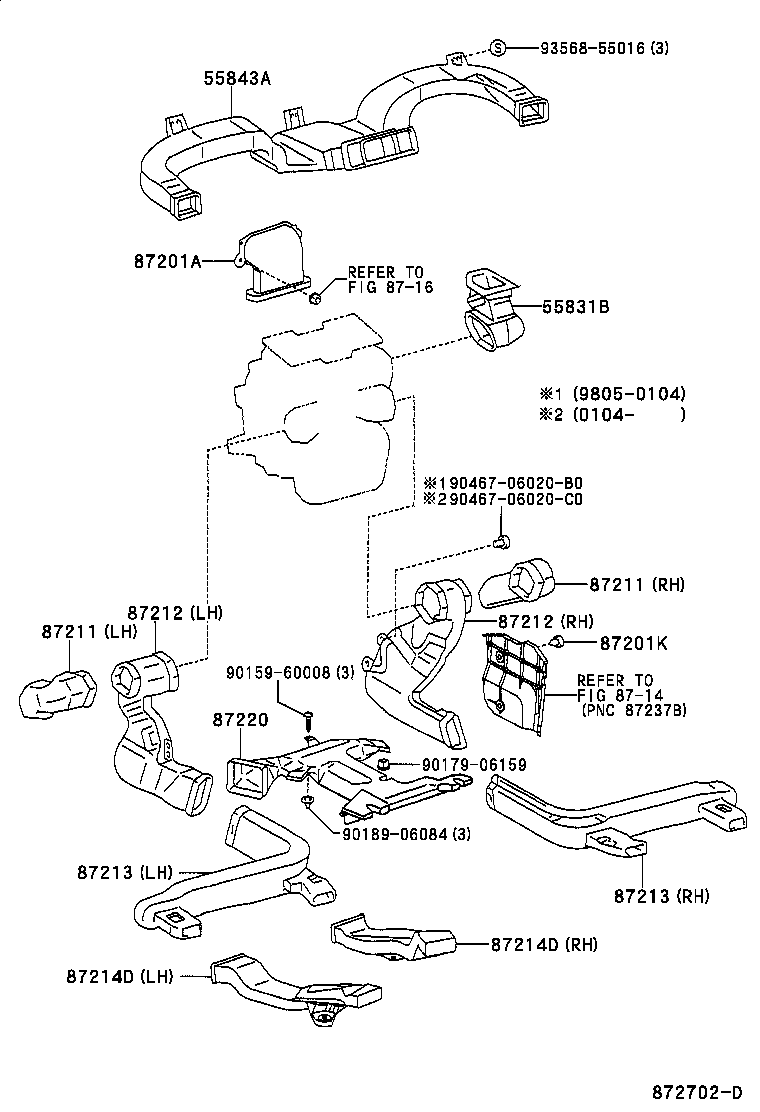

87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214D Duct, Air, Rear NO.3
87220 Duct Assy, Air
88566A Duct, Cooler Air, NO.1
88566C Duct, Cooler Air, NO.3
88566D Duct, Cooler Air, NO.4

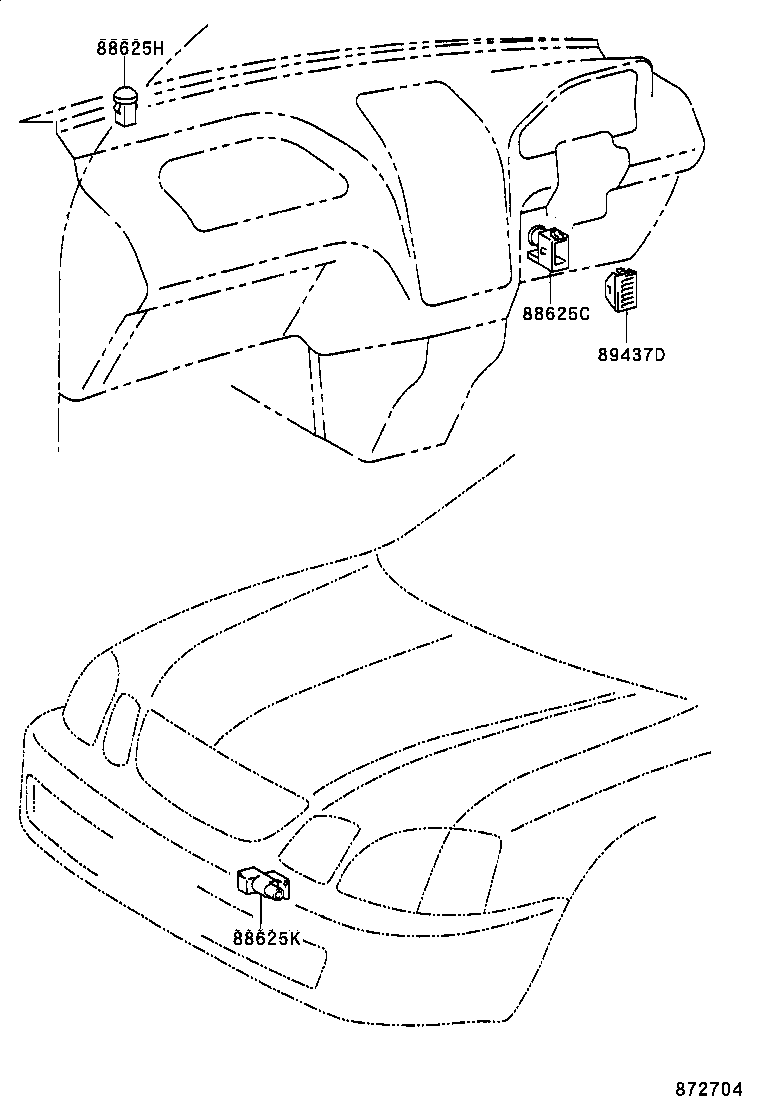

88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625K Thermistor, Cooler
88650B Amplifier Assy, Airconditioner
89437D Cover, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
