Heating & Air Conditioning - Cooler Piping

28 part groups · 7 illustrations

Illustrations

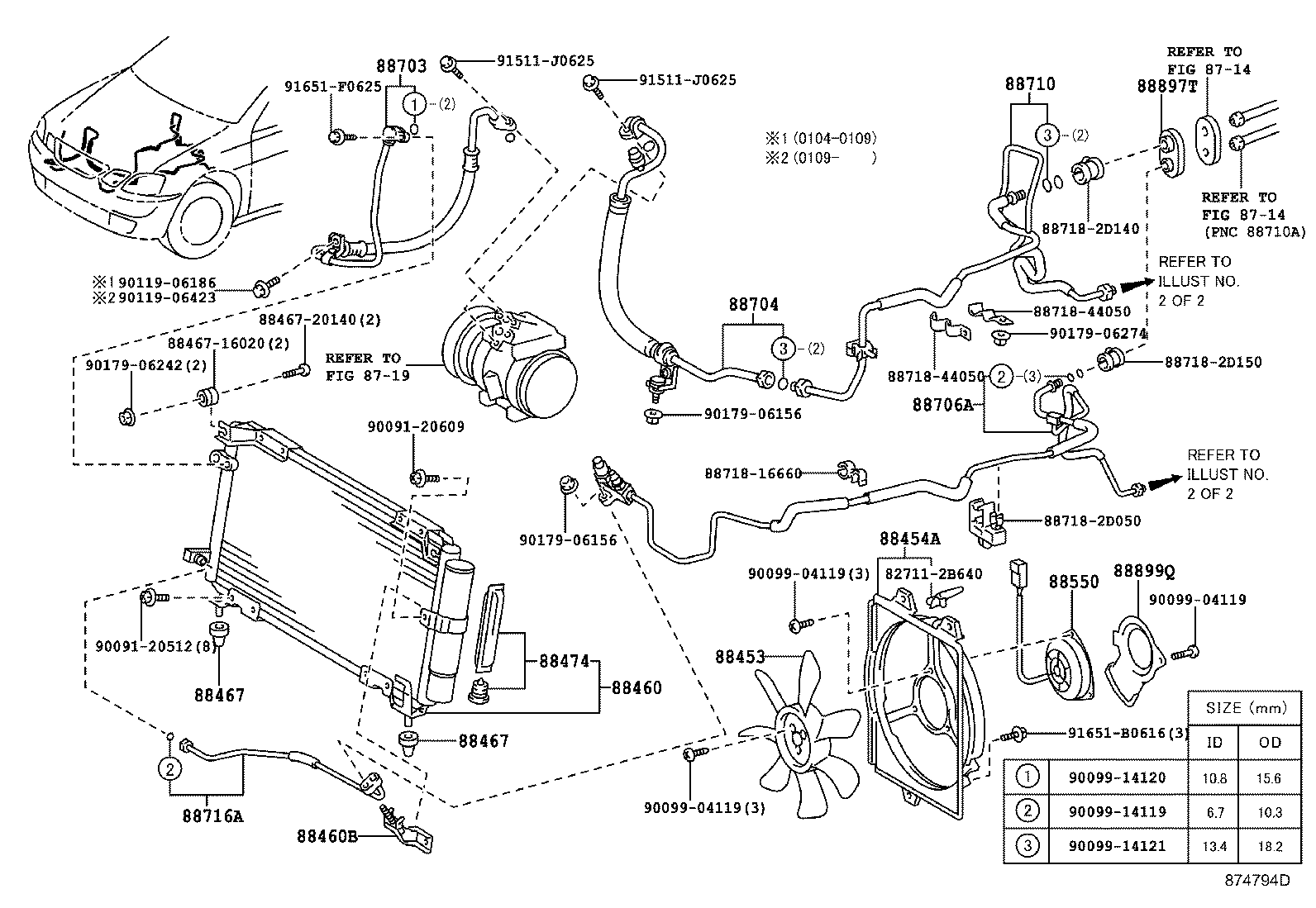

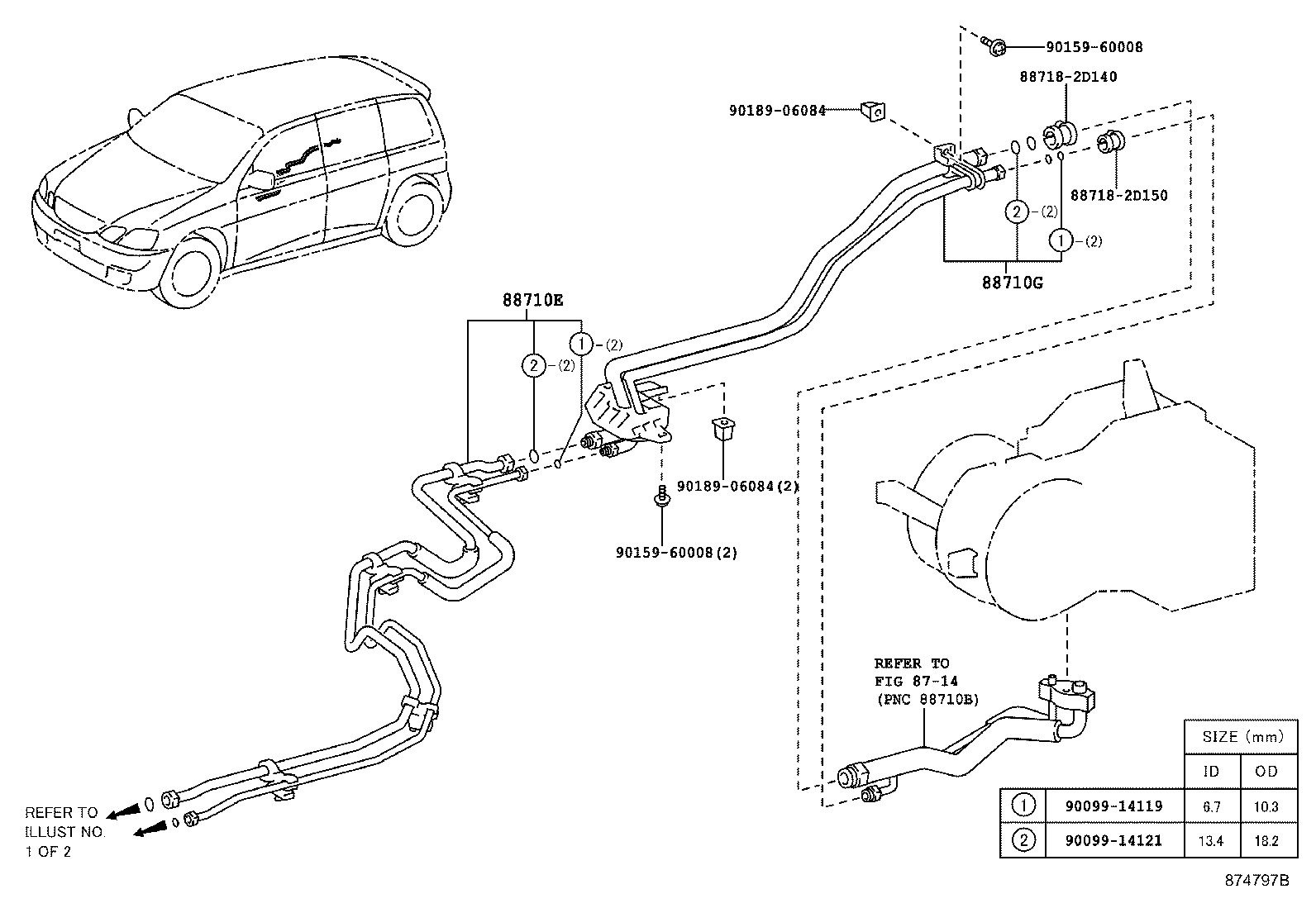

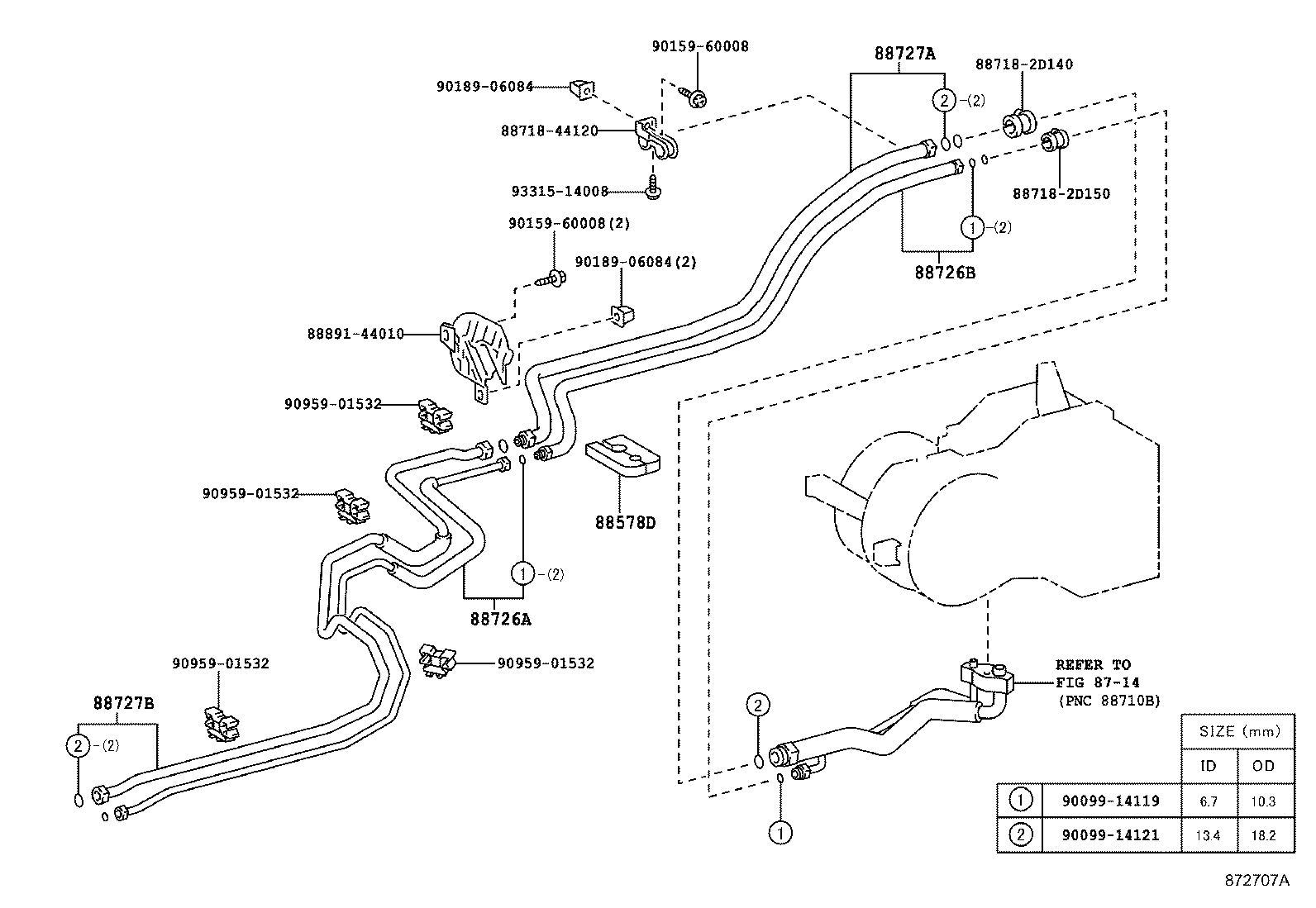

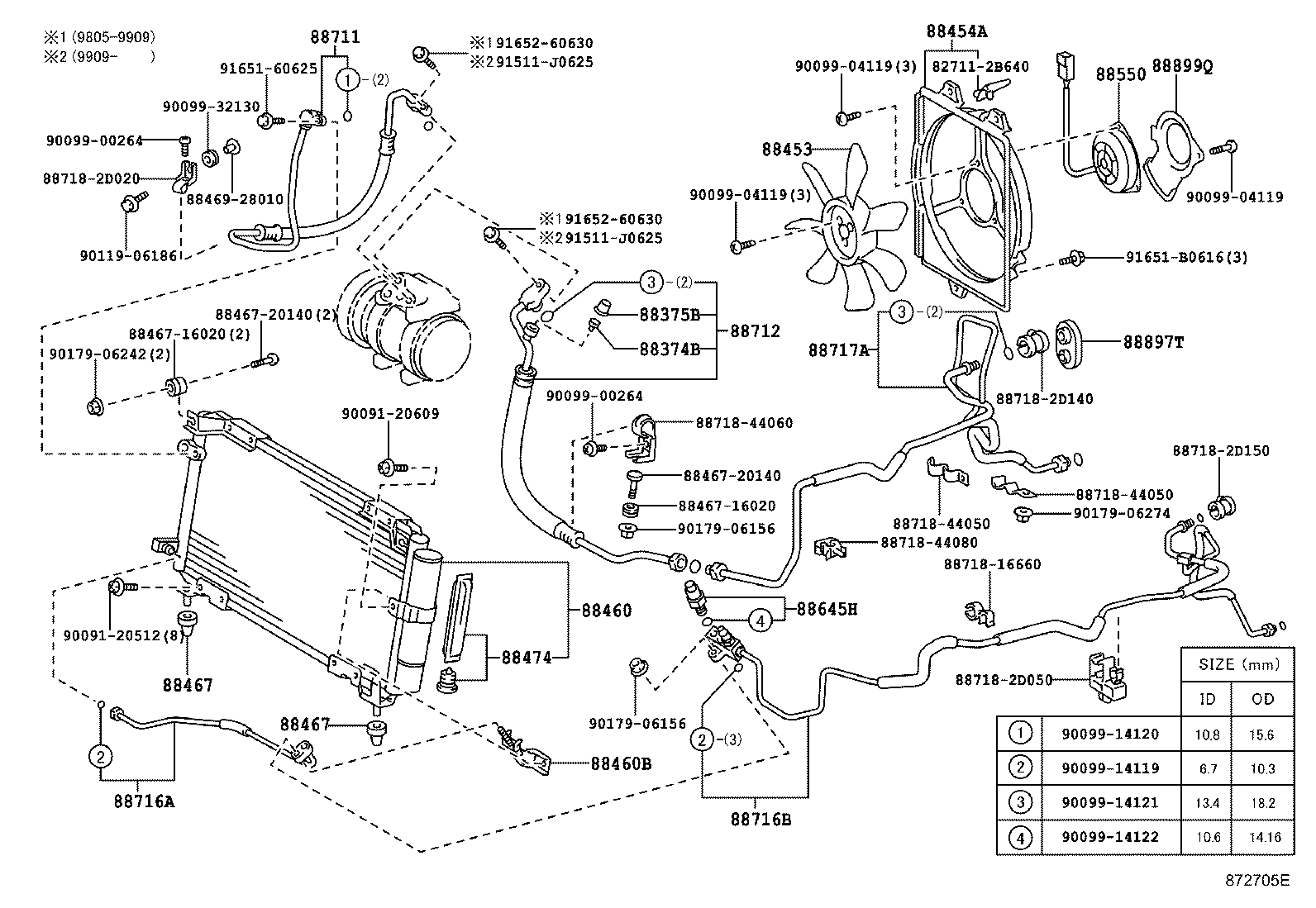

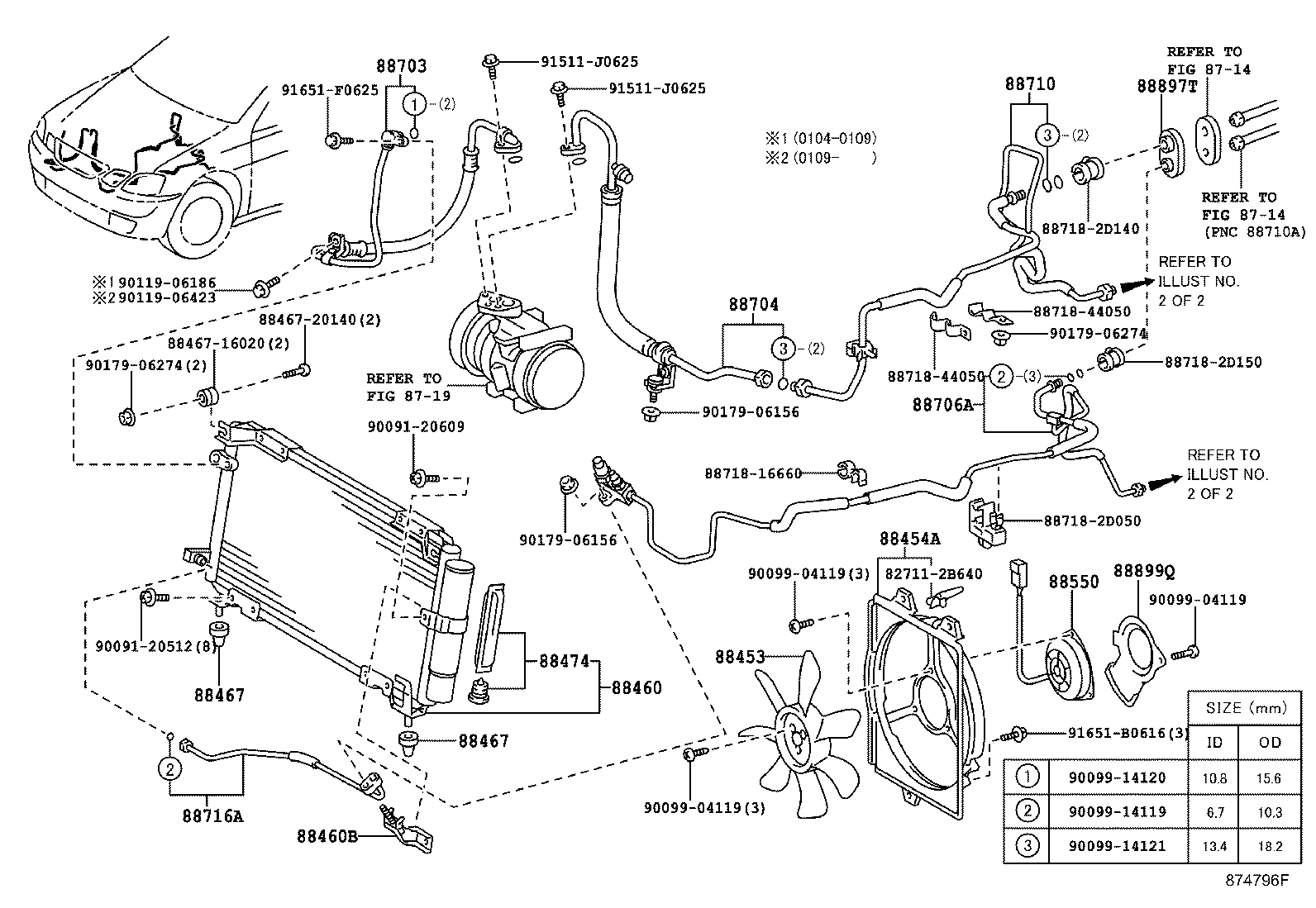

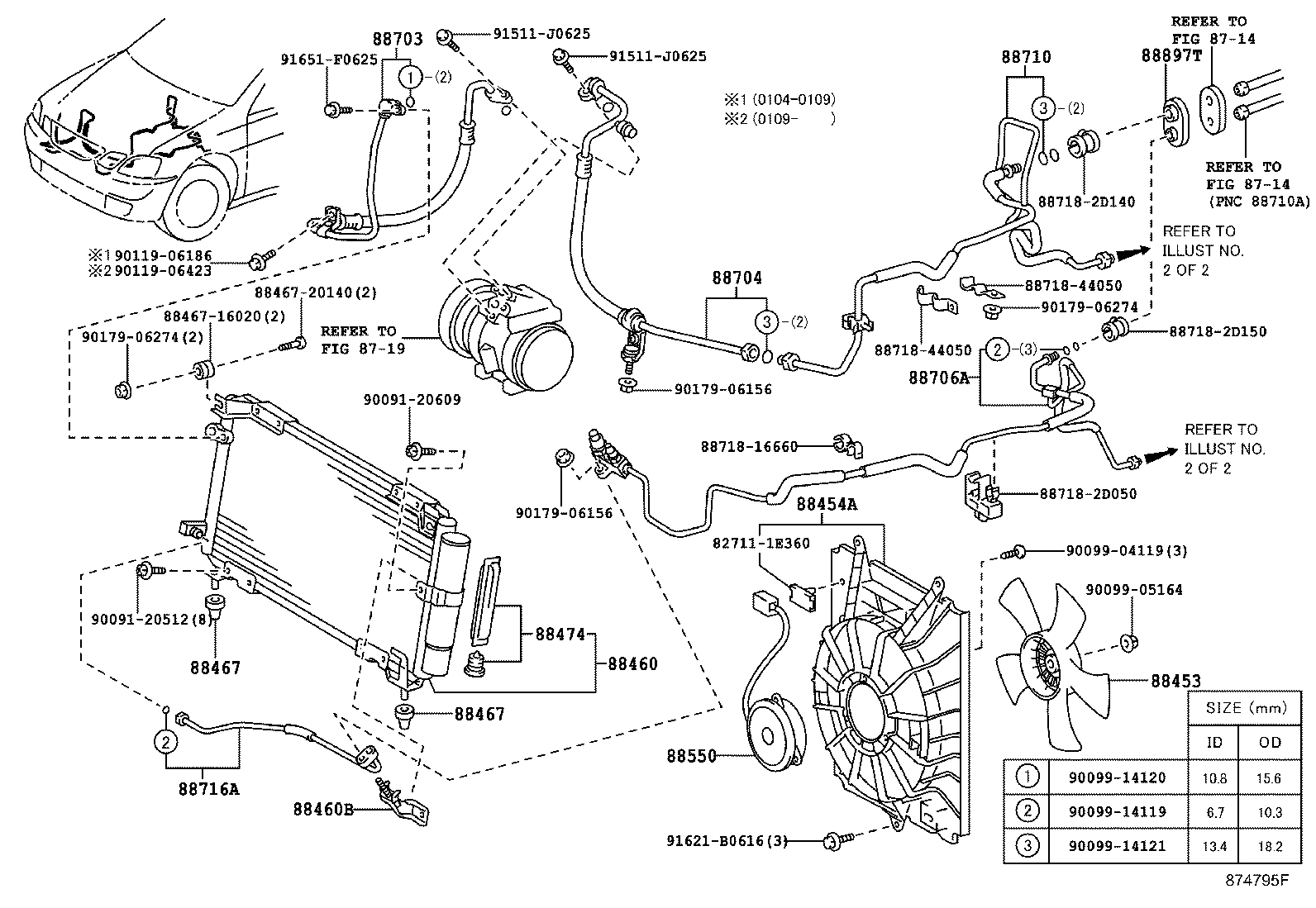

Figure 872706E 872706E 1998-05 → 2001-04 Figure 872705E 872705E 1998-05 → 2001-04 Figure 874794D 874794D 2001-04 → 2002-08 Figure 874796F 874796F 2001-04 → — Figure 874795F 874795F 2001-04 → — Figure 872707A 872707A 1998-05 → 2001-04 Figure 874797B 874797B 2001-04 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375B Cap, Service Valve, NO.1
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88578D Packing, Cooler Pipe, NO.1
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88710 Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717A Pipe, Cooler Refrigerant Suction, A
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88897T Grommet, Cooler
88899Q Plate, Cover
