Toyota Isis

2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

22 part groups · 7 illustrations

Illustrations

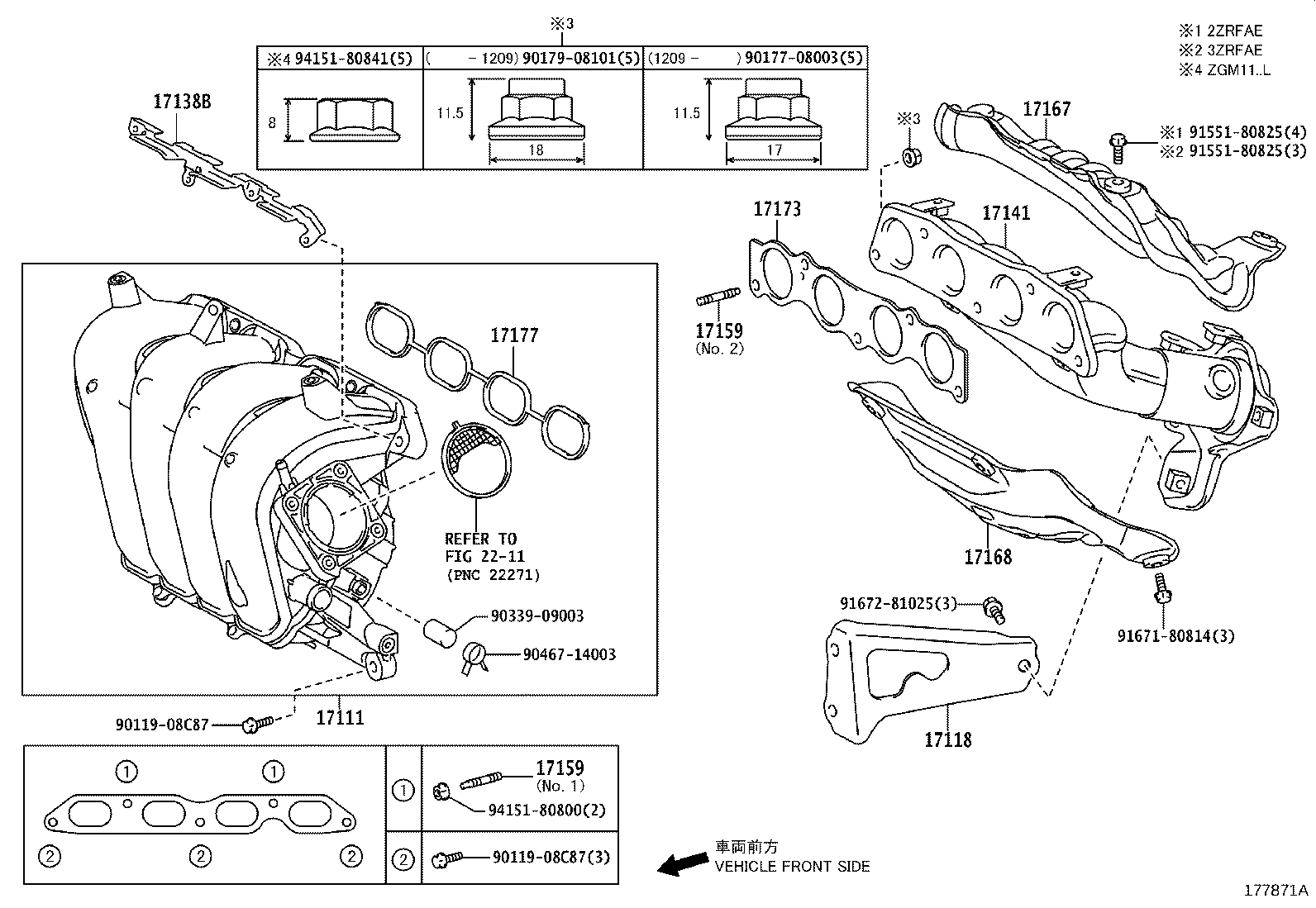

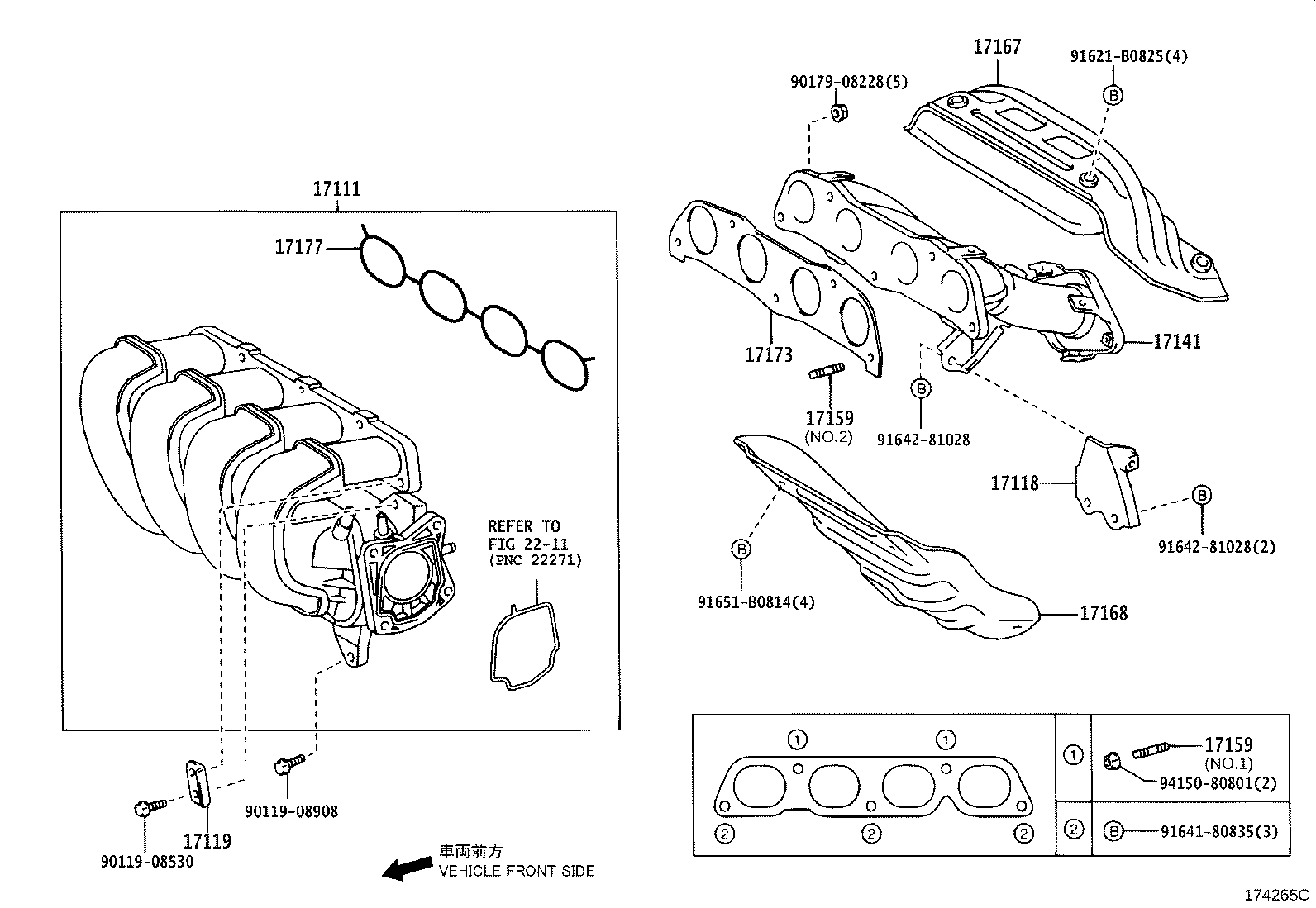

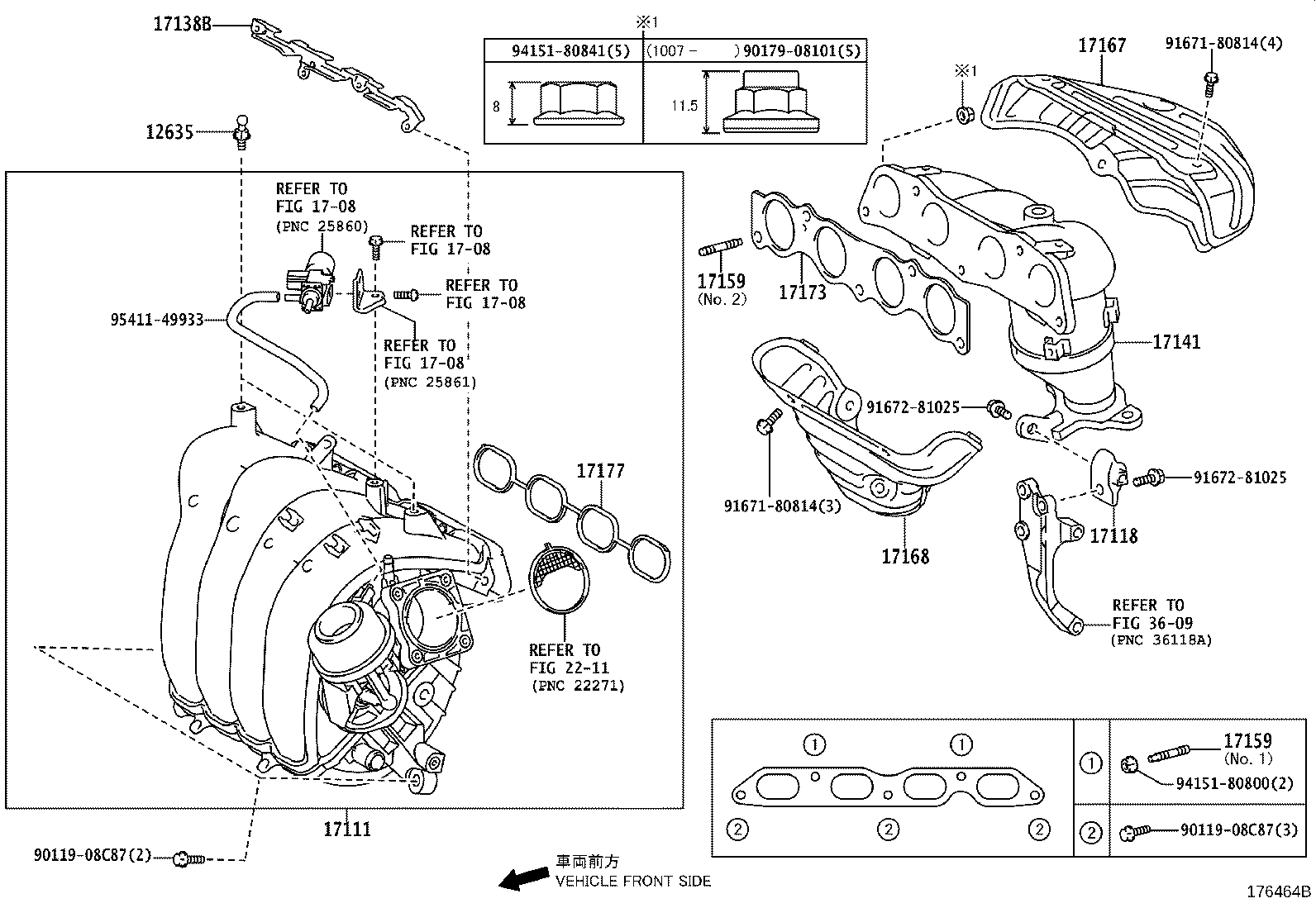

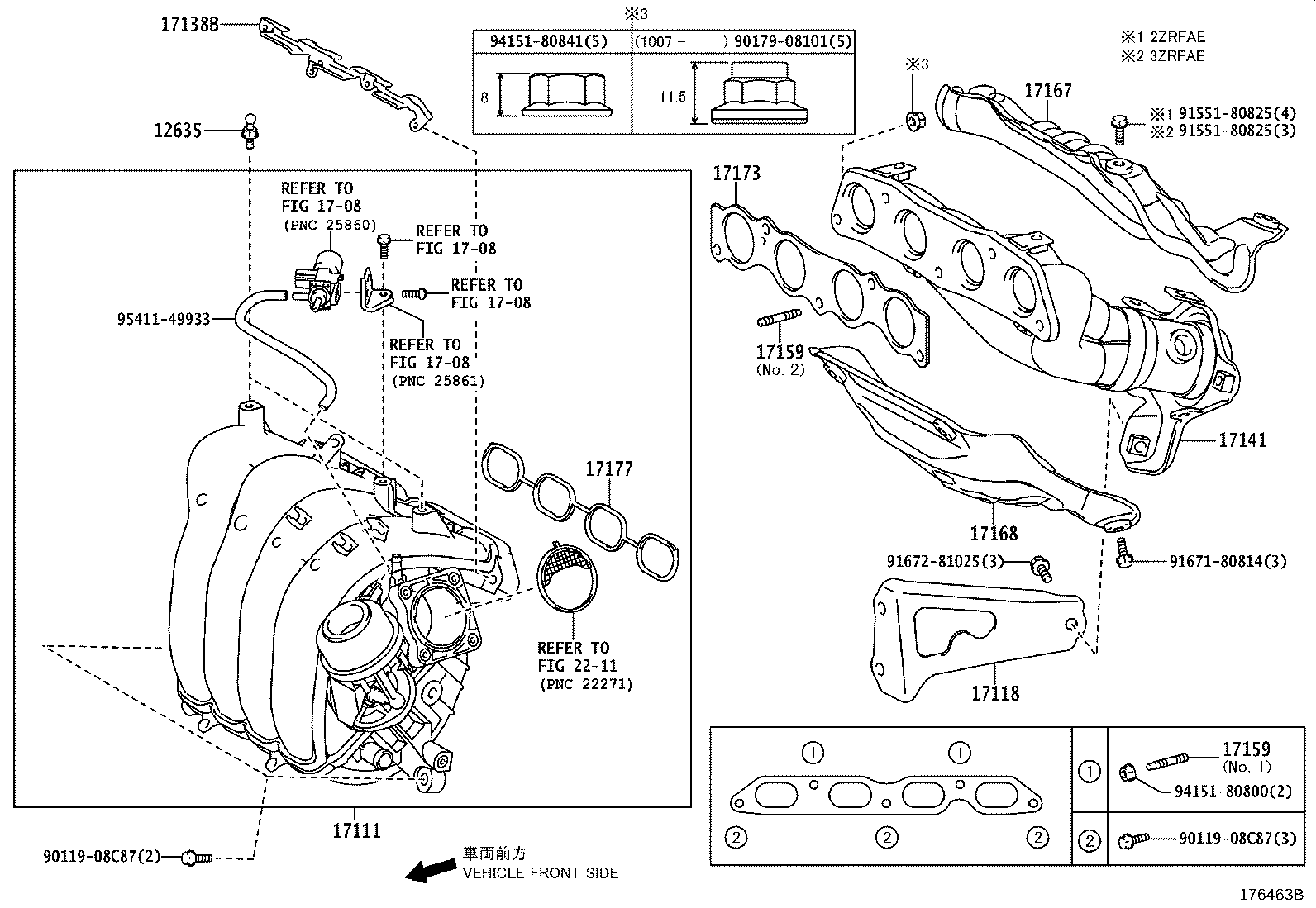

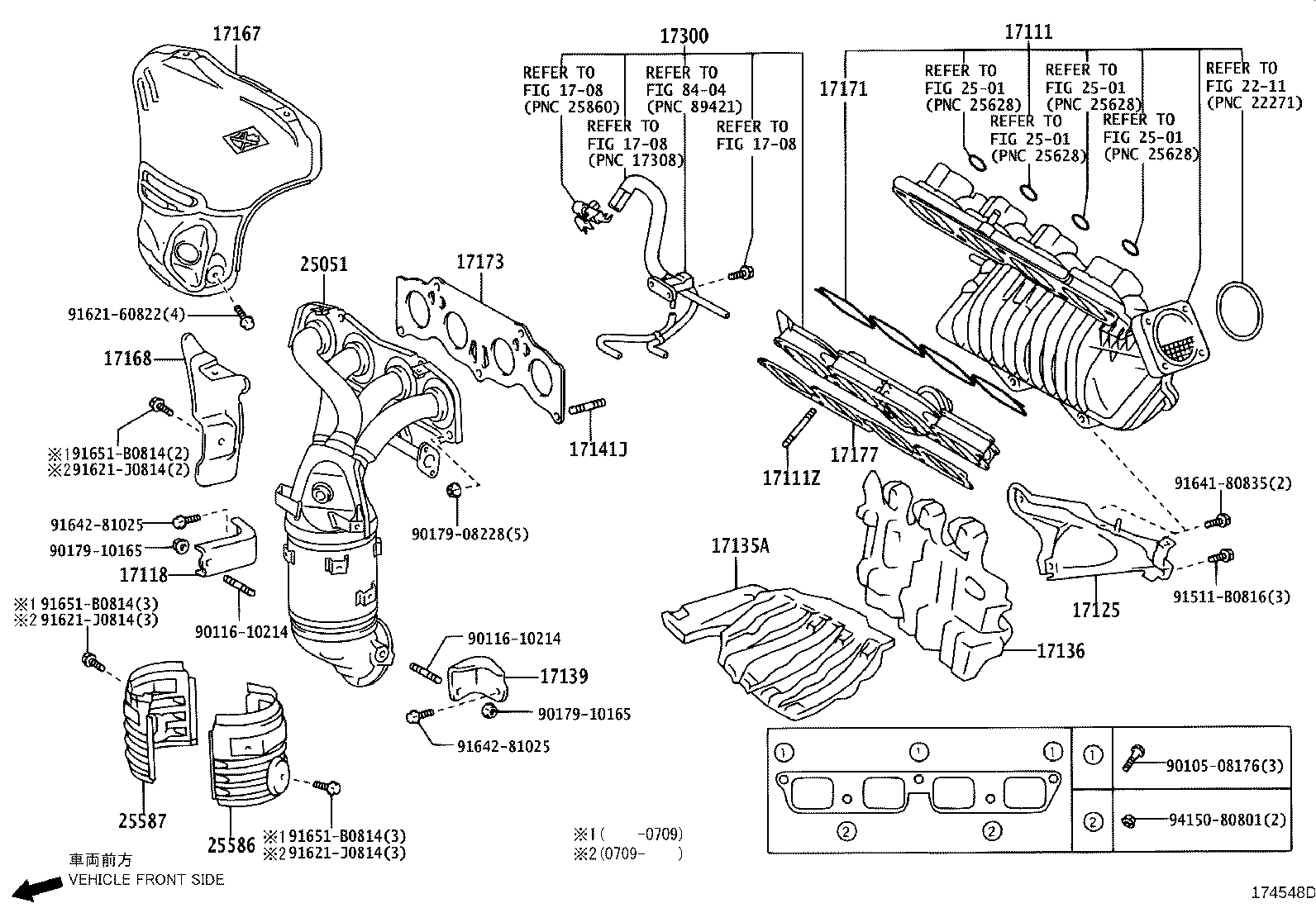

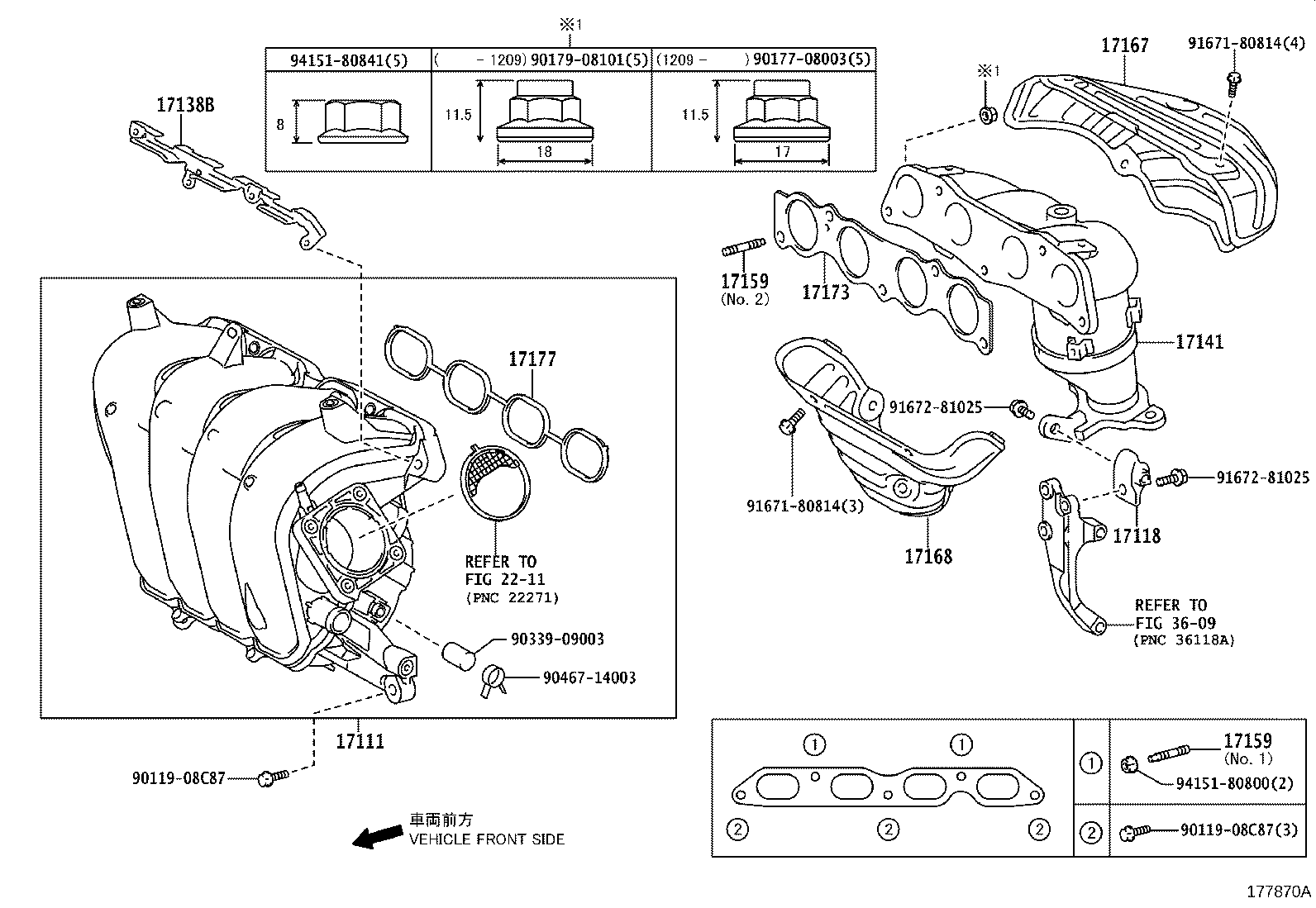

Figure 174269B 174269B 2004-09 → 2005-12 Figure 174548D 174548D 2005-12 → — Figure 174265C 174265C 2004-09 → — Figure 176463B 176463B 2009-09 → 2012-06 Figure 176464B 176464B 2009-09 → 2012-06 Figure 177871A 177871A 2012-06 → — Figure 177870A 177870A 2012-06 → —

Part groups

PNCDescription
12635 Joint, Engine Cover
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17135A Insulator, Intake Manifold, NO.1
17136 Insulator, Intake Manifold, NO.2
17138B Stay, Intake Manifold
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17171 Gasket, Intake TO Exhaust Manifold
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17300 Valve Assy, Intake Air Control
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
