Toyota Isis

2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 4 illustrations

Illustrations

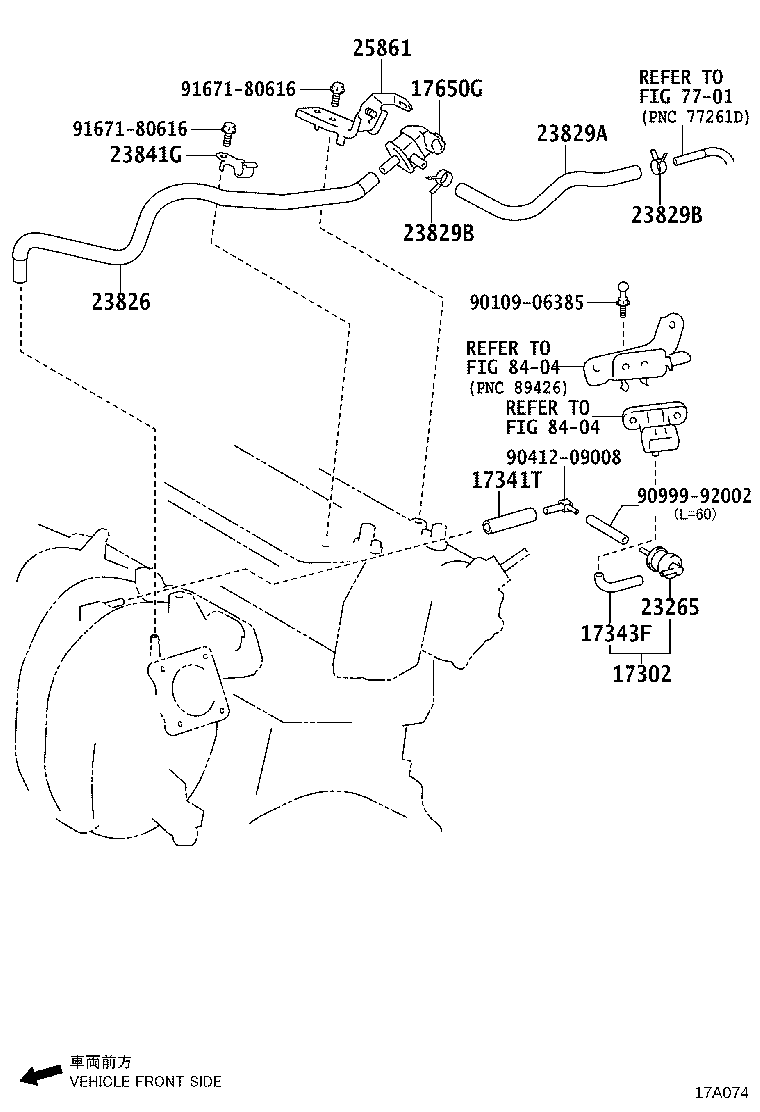

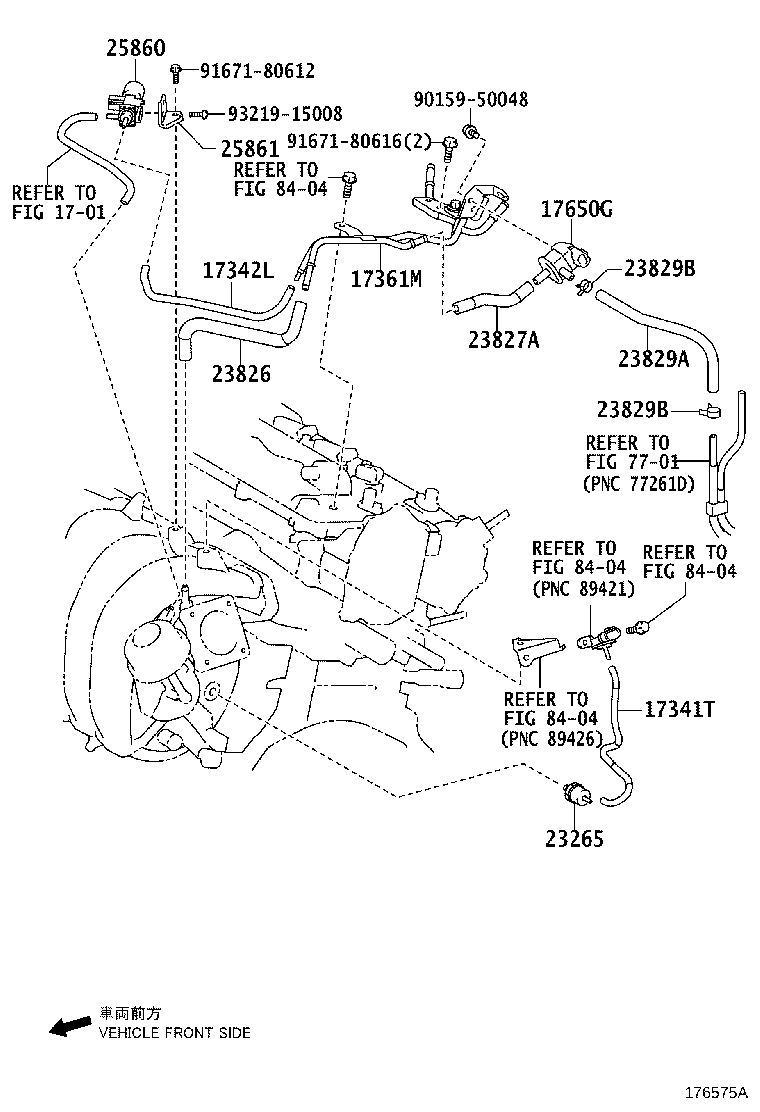

Figure 174271B 174271B 2004-09 → — Figure 174267A 174267A 2004-09 → — Figure 176575A 176575A 2009-09 → 2012-06 Figure 17A074 17A074 2012-06 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
17343F Hose, Air, NO.3
17361M Tube, Air
17650G Valve, Duty Vacuum Switching
23265 Filter, Gas, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829 Hose, Fuel Vapor Feed, NO.3
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23841G Clamp, Fuel Hose
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
