Toyota Isis

2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle Assy(CVT)

38 part groups · 13 illustrations

Illustrations

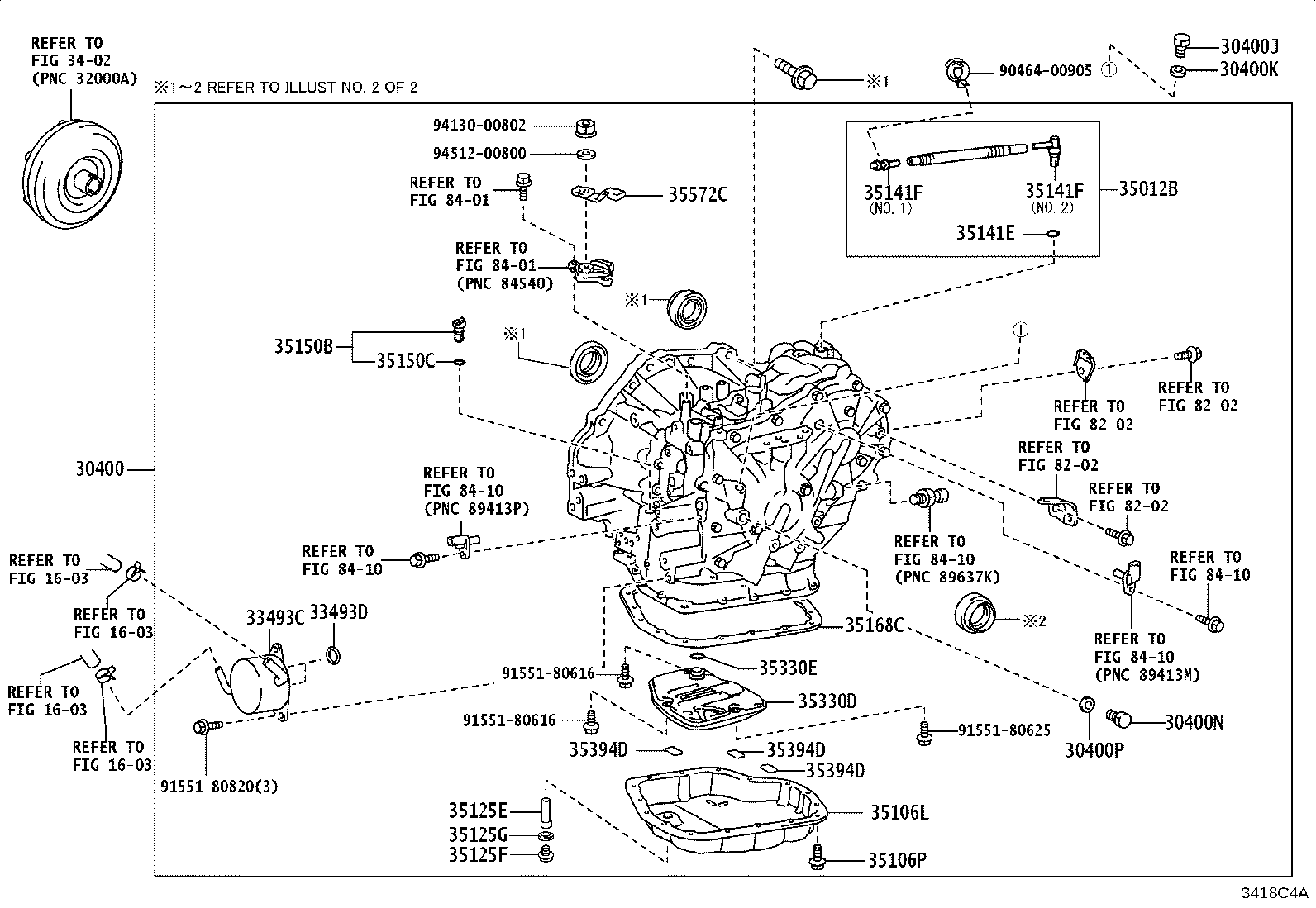

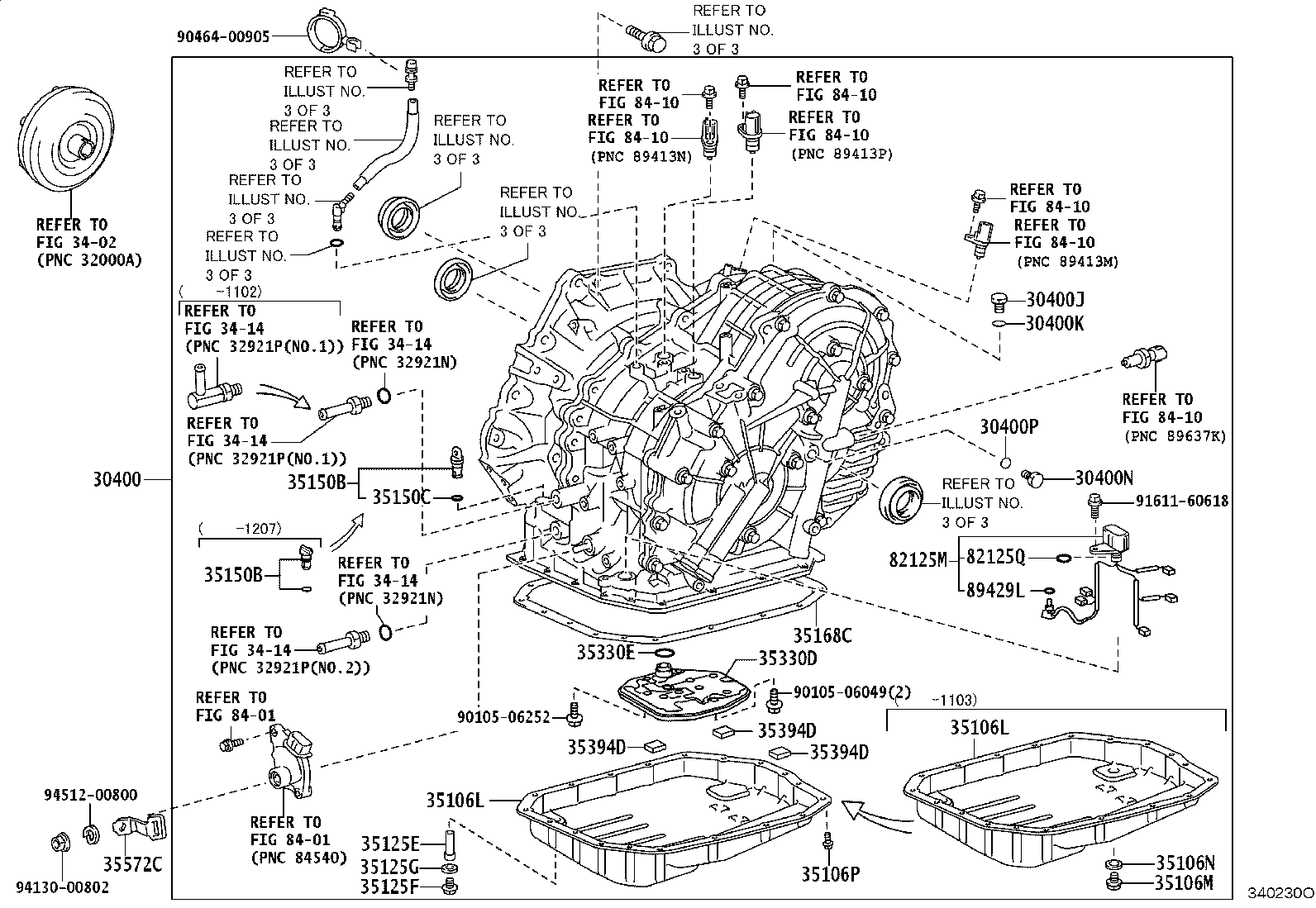

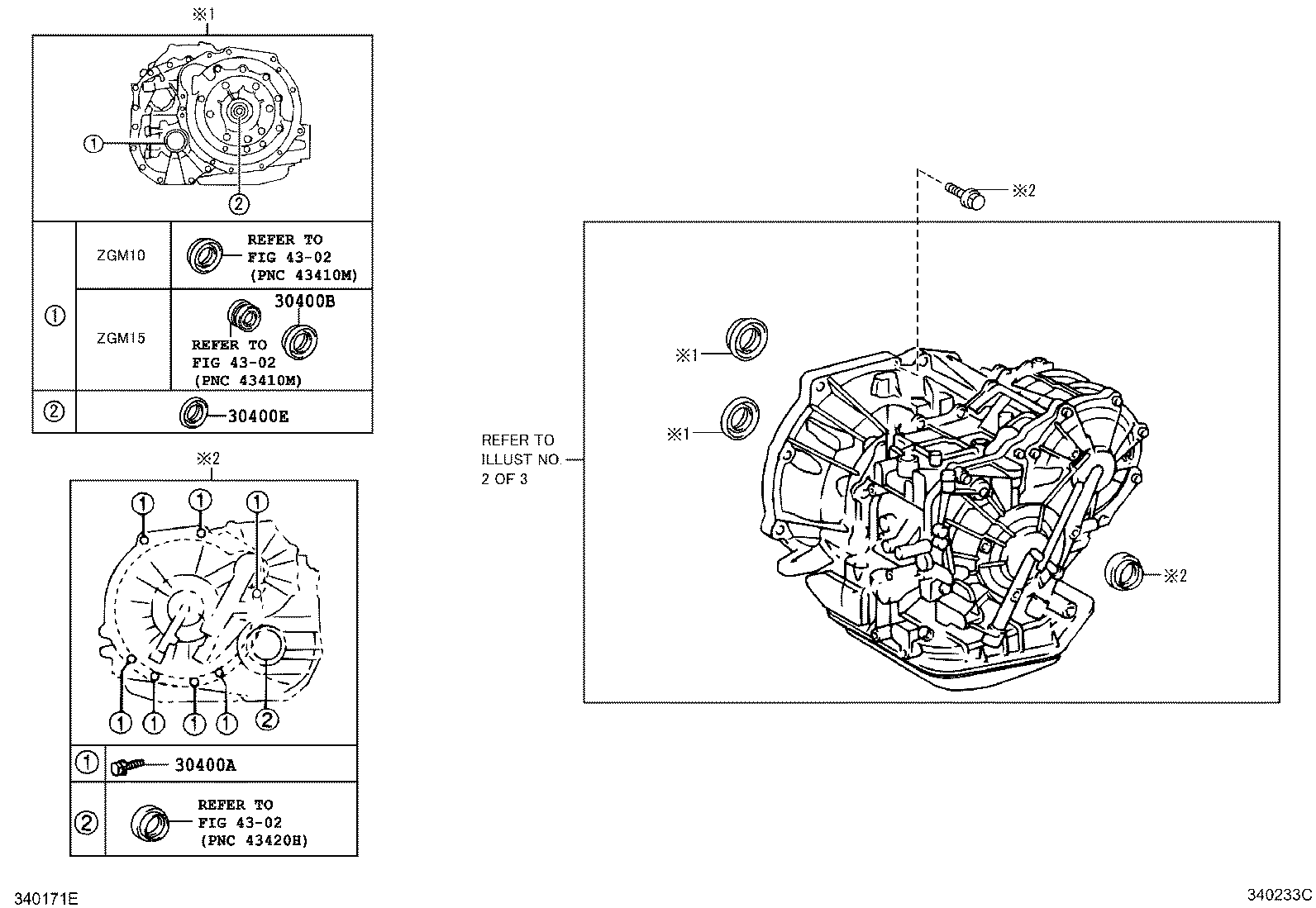

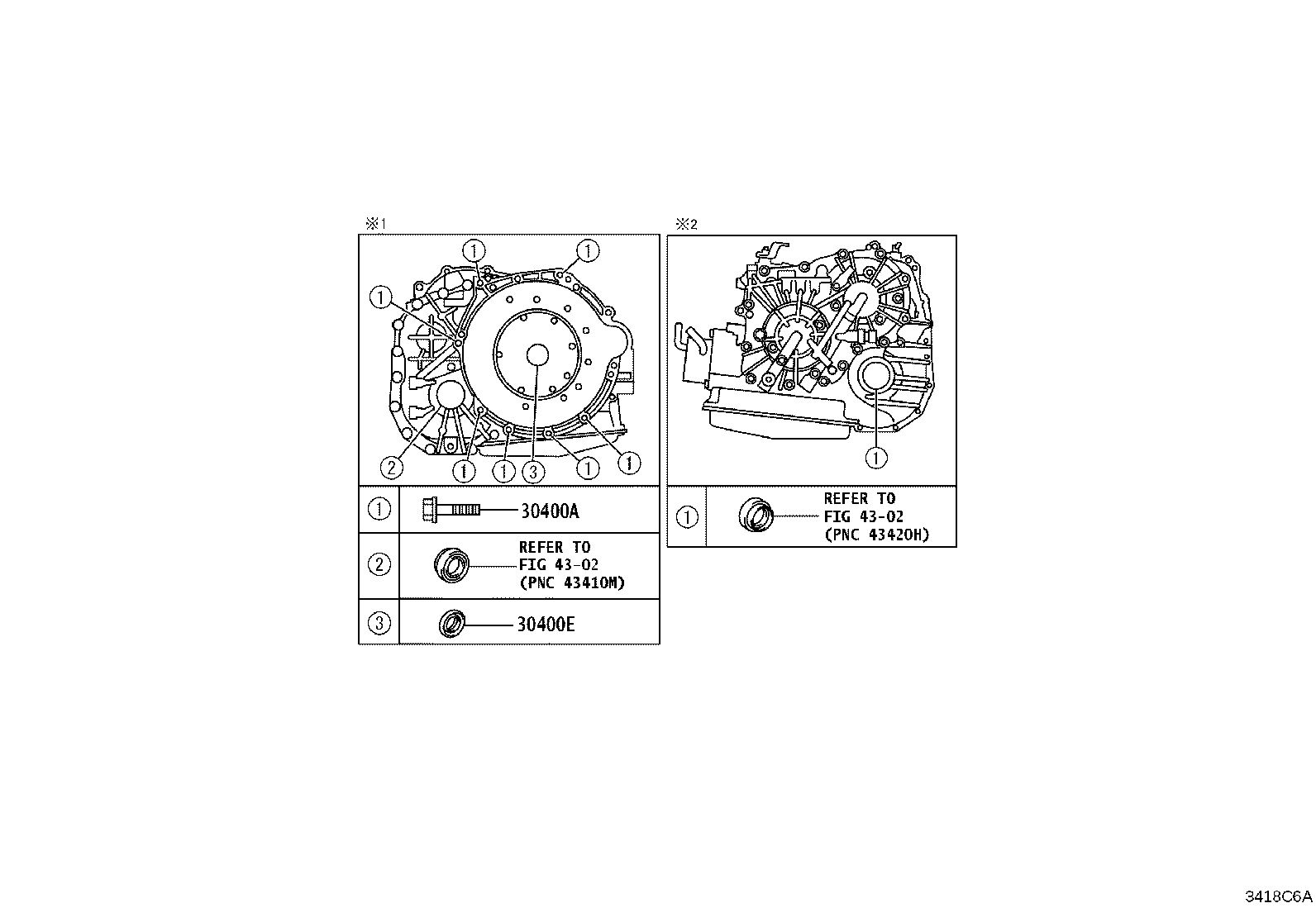

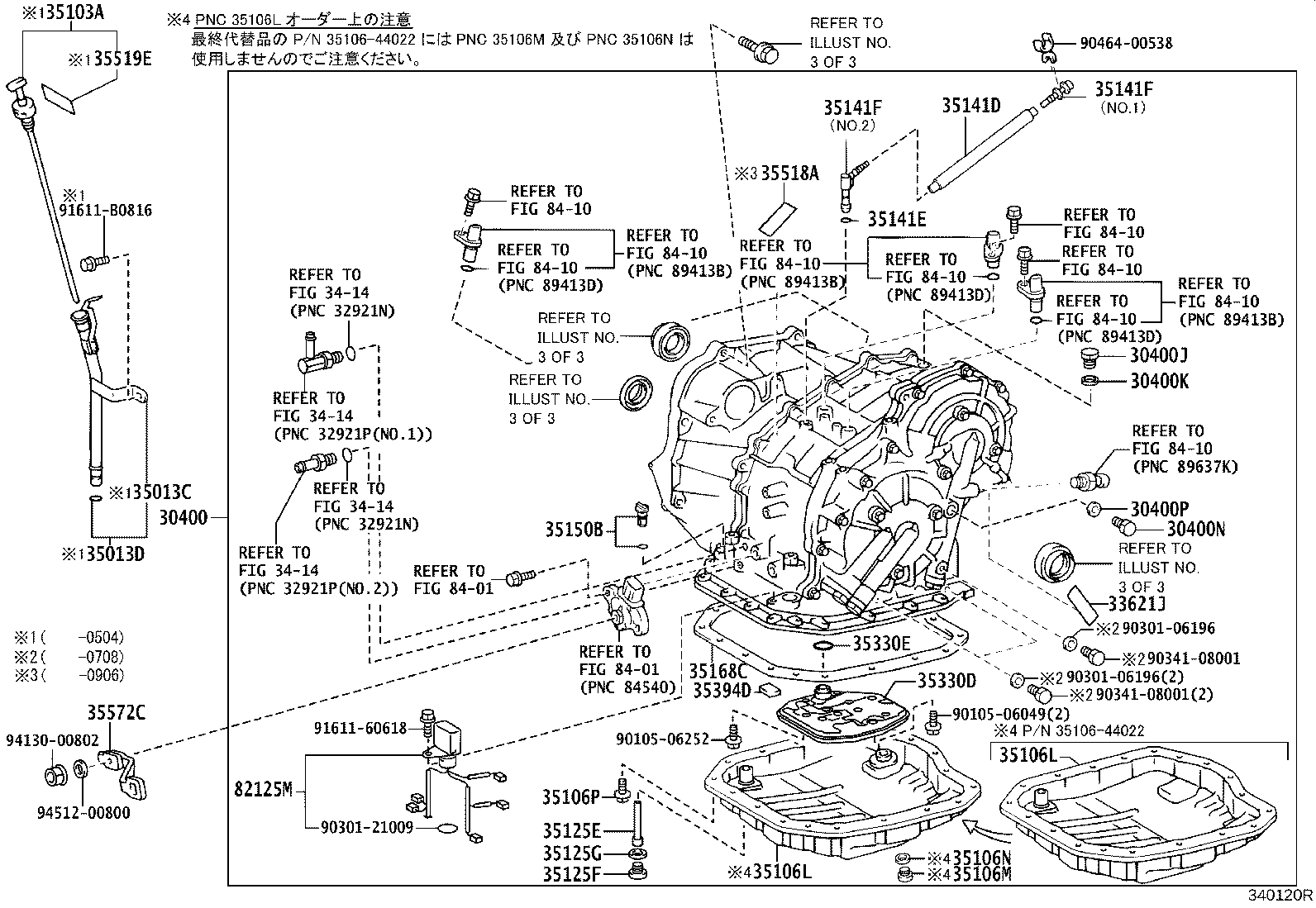

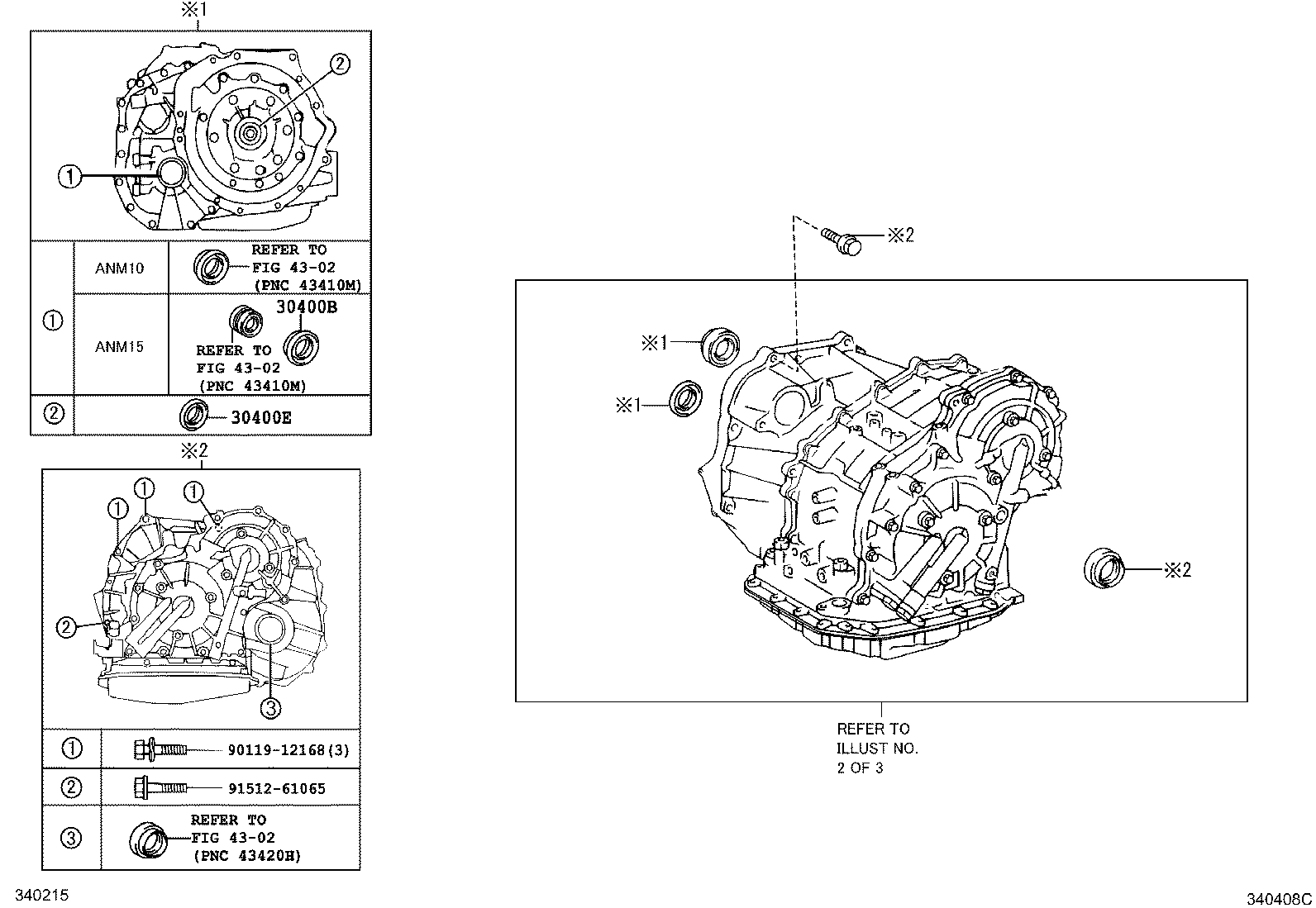

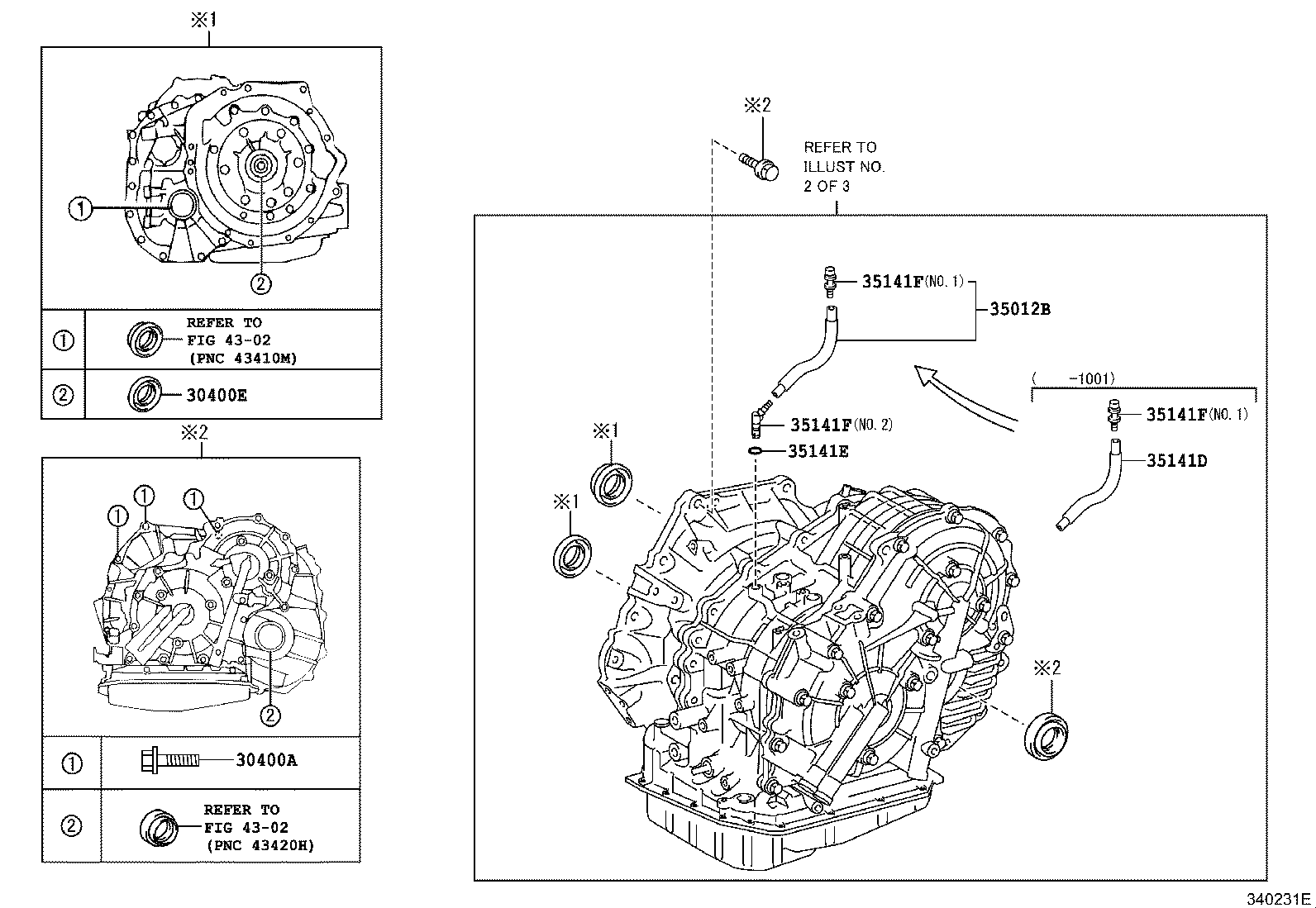

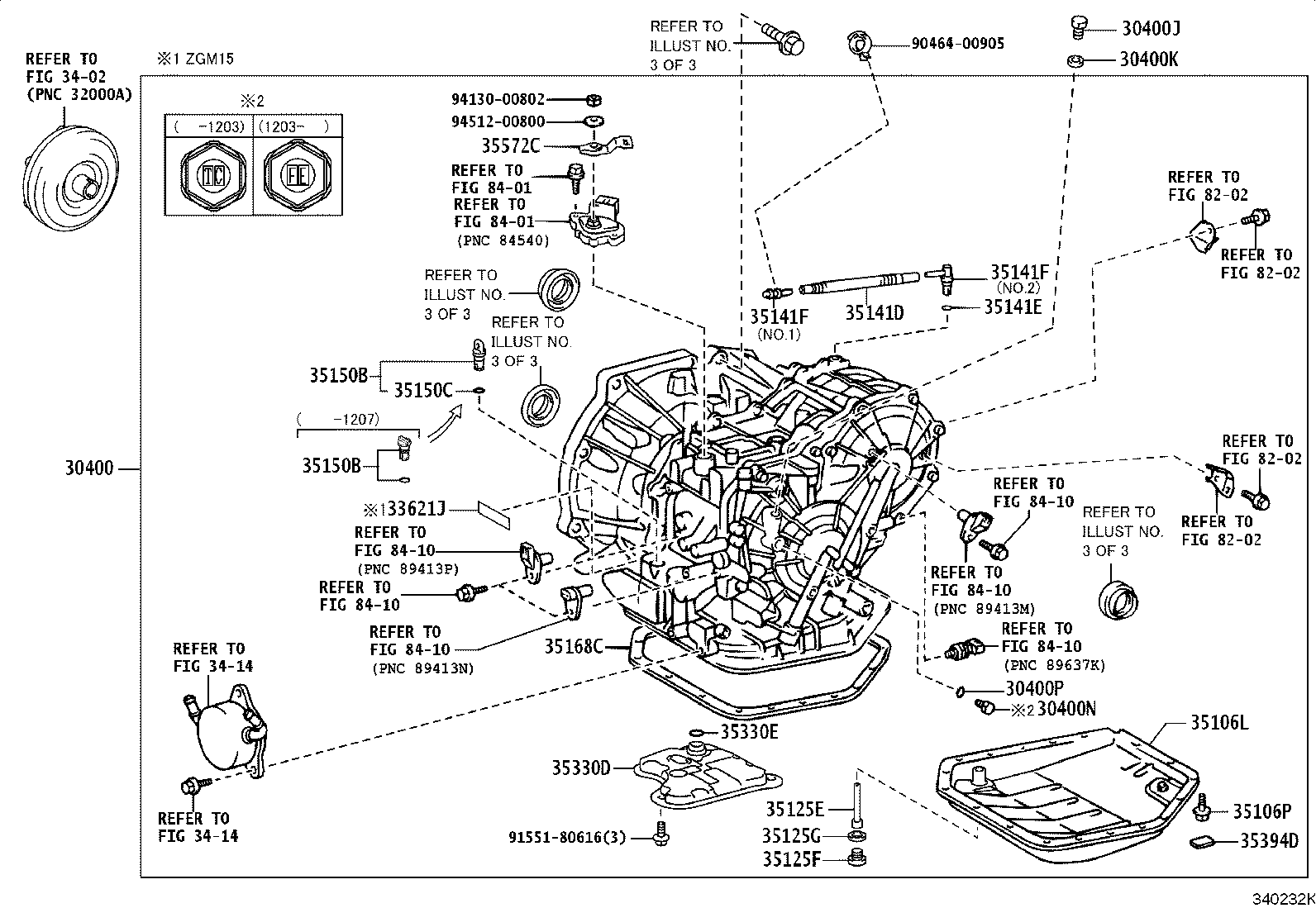

Figure 340572 340572 2004-09 → — Figure 340572 340572 2009-09 → 2012-02 Figure 340120R 340120R 2004-09 → 2009-09 Figure 340230O 340230O 2009-09 → — Figure 340232K 340232K 2009-09 → 2016-04 Figure 340232K 340232K 2009-09 → — Figure 340408C 340408C 2004-09 → 2009-09 Figure 340231E 340231E 2009-09 → — Figure 340233C 340233C 2009-09 → 2016-04 Figure 340233C 340233C 2009-09 → — Figure 3418C7 3418C7 2016-04 → 2018-01 Figure 3418C4A 3418C4A 2016-04 → 2018-01 Figure 3418C6A 3418C6A 2016-04 → 2018-01

Part groups

PNCDescription

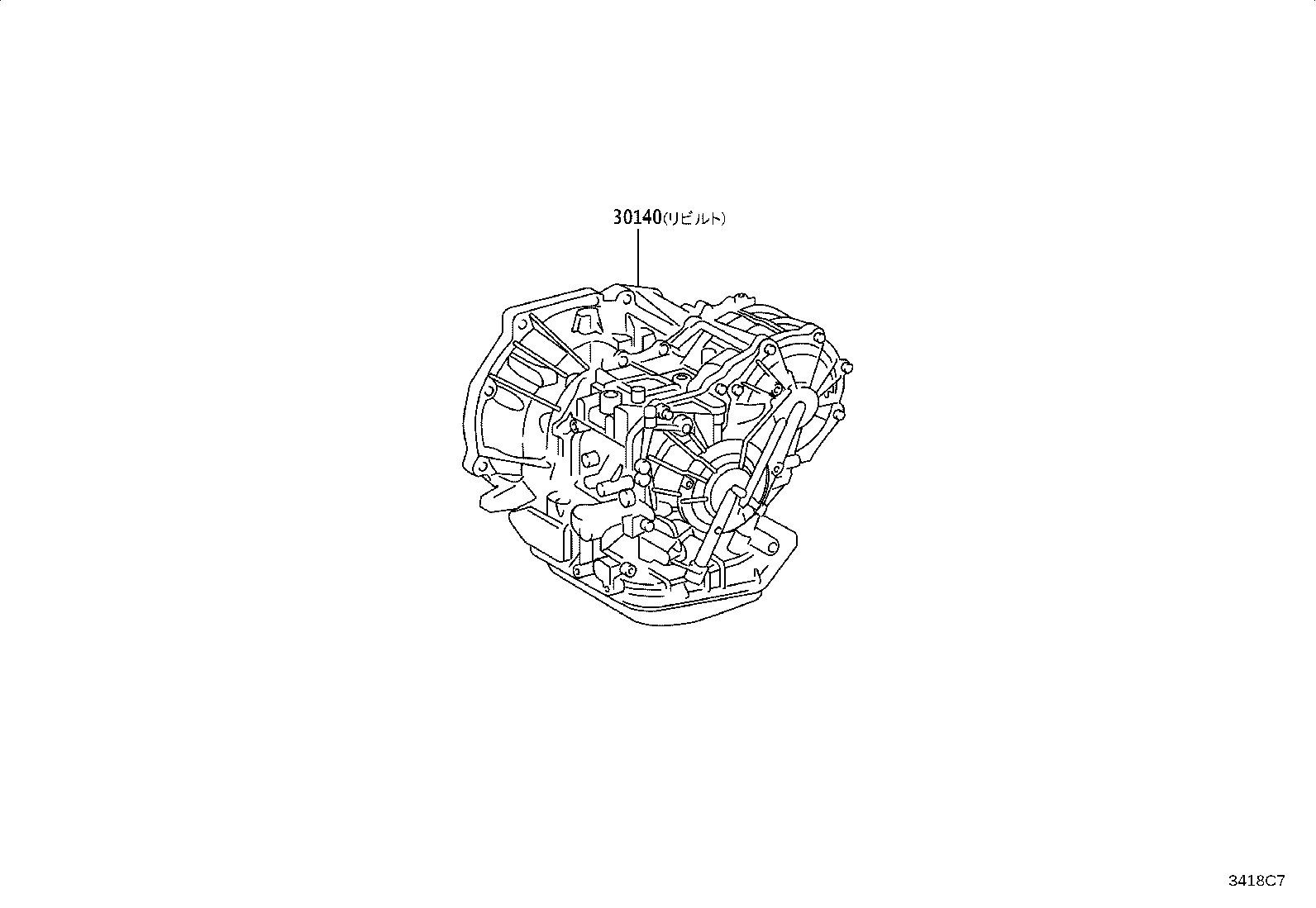

30140 Transaxle Assy, Cvt, Rebuilt(W/O TORQUE CONVERTER)
30400 Transaxle Assy, Continuously Variable
30400A Bolt(FOR TRANSAXLE & ENGINE SETTING)
30400B Seal, Type T Oil, NO.1(FOR CVT)
30400E Seal, Type T Oil(FOR CVT OIL PUMP)
30400J Plug, Transaxle Hole
30400K Gasket, Transaxle Hole Plug
30400N Plug, Refill(CVT)
30400P Gasket, Refill Plug(CVT)
33493C Cooler, Transmission Oil
33493D Ring, O (FOR TRANSMISSION OIL COOLER)
33621J Label, Transaxle Oil Information
35012B Hose Sub-assy, Transmission Breather
35013C Tube Sub-assy, Transmission Oil Filler
35013D Ring, O(FOR TRANSMISSION OIL FILLER TUBE)
35103A Gage Sub-assy, Transmission Oil Level
35106L Pan Sub-assy, Transaxle Oil(CVT)
35106M Plug Sub-assy, Drain(CVT)
35106N Gasket, Drain Plug(CVT)
35106P Bolt(FOR TRANSAXLE OIL PAN)
35125E Tube, Overflow(CVT)
35125F Plug, Overflow(CVT)
35125G Gasket, Overflow Plug(CVT)
35141D Hose(FOR BREATHER PLUG)
35141E Ring, O(FOR BREATHER PLUG)
35141F Plug, Breather, NO.1(CVT)
35150B Plug Assy, Transmission Case
35150C Ring, O (FOR TRANSMISSION CASE PLUG)
35168C Gasket, Transaxle Oil Pan(CVT)
35330D Strainer Assy, Oil
35330E Ring, O (FOR OIL STRAINER)
35394D Magnet, Oil Cleaner(CVT)
35518A Label, Automatic Transaxle Information, NO.2
35519E Label, Automatic Trans Information
35572C Lever, Transmission Control Shaft
82125M Wire, Transmission
82125Q Ring, O(FOR TRANSMISSION WIRE)
89429L Ring, O(FOR OIL TEMPERATURE SENSOR)
