Toyota Isis

2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube(CVT)

14 part groups · 3 illustrations

Illustrations

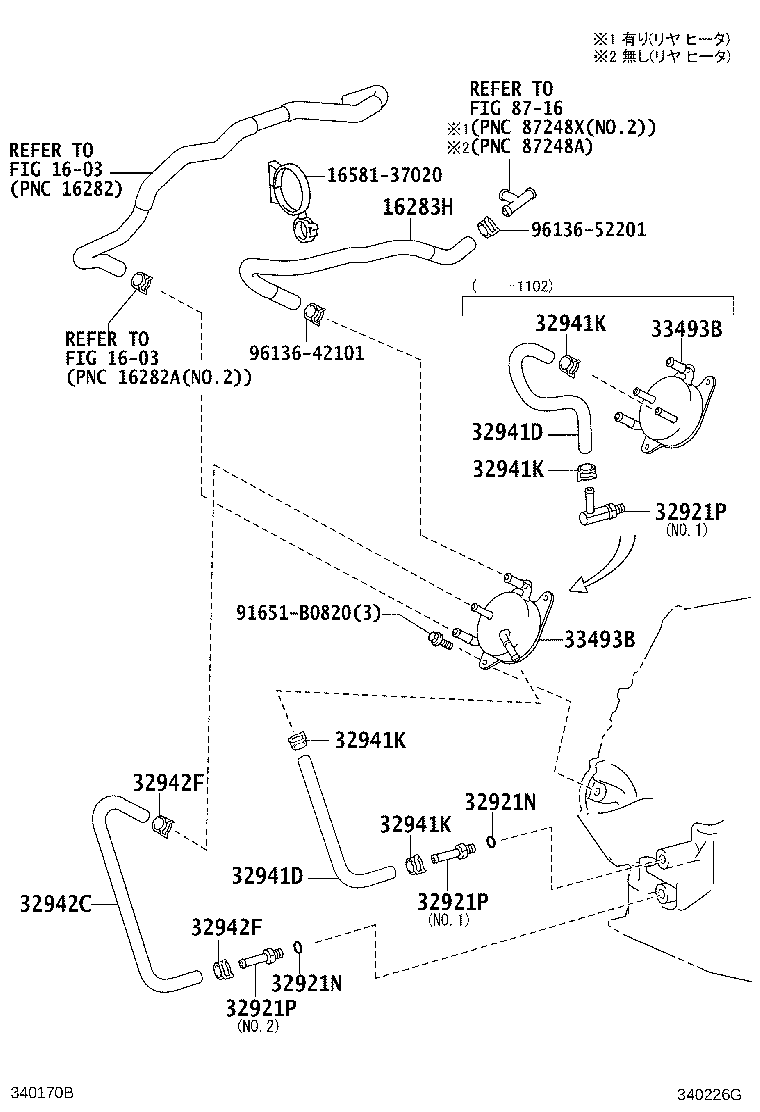

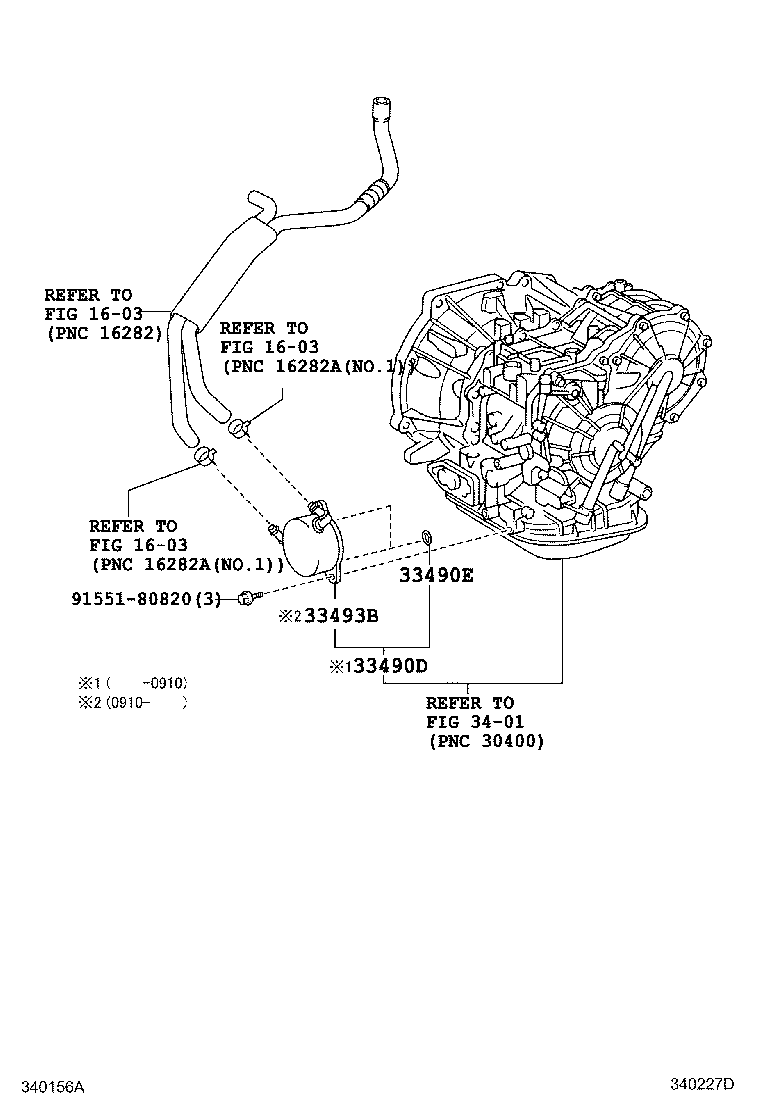

Figure 340121H 340121H 2004-09 → 2009-09 Figure 340226G 340226G 2009-09 → — Figure 340227D 340227D 2009-09 → —

Part groups

PNCDescription
16258E Gasket(FOR WATER BY-PASS PIPE)
16279G Pipe, Water By-pass, NO.3
16282D Hose, Water By-pass, NO.5
16283H Hose, Water By-pass, NO.6
32921N Ring, O(FOR OIL COOLER TUBE UNION)
32921P Union(FOR OIL COOLER TUBE)
32941D Hose, Oil Cooler Inlet
32941E Clip(FOR OIL COOLER TUBE)
32941K Clip, NO.1(FOR OIL COOLER HOSE)
32942C Hose, Oil Cooler Outlet, NO.1
32942F Clip, NO.2(FOR OIL COOLER HOSE)
33490D Cooler Assy, Transmission Oil
33490E Ring, O (FOR TRANSMISSION OIL COOLER)
33493B Cooler, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
