Toyota Isis

2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

18 part groups · 4 illustrations

Illustrations

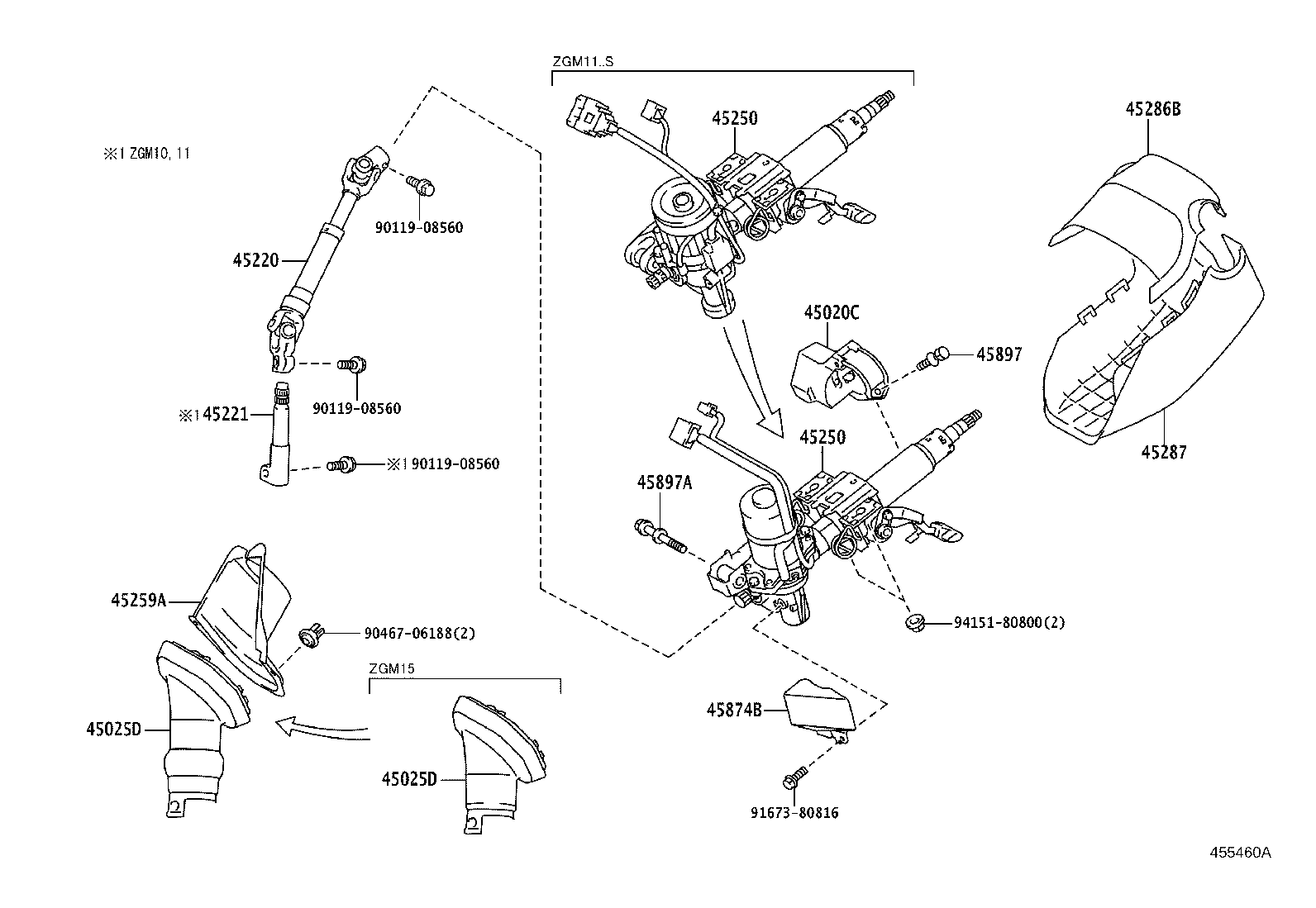

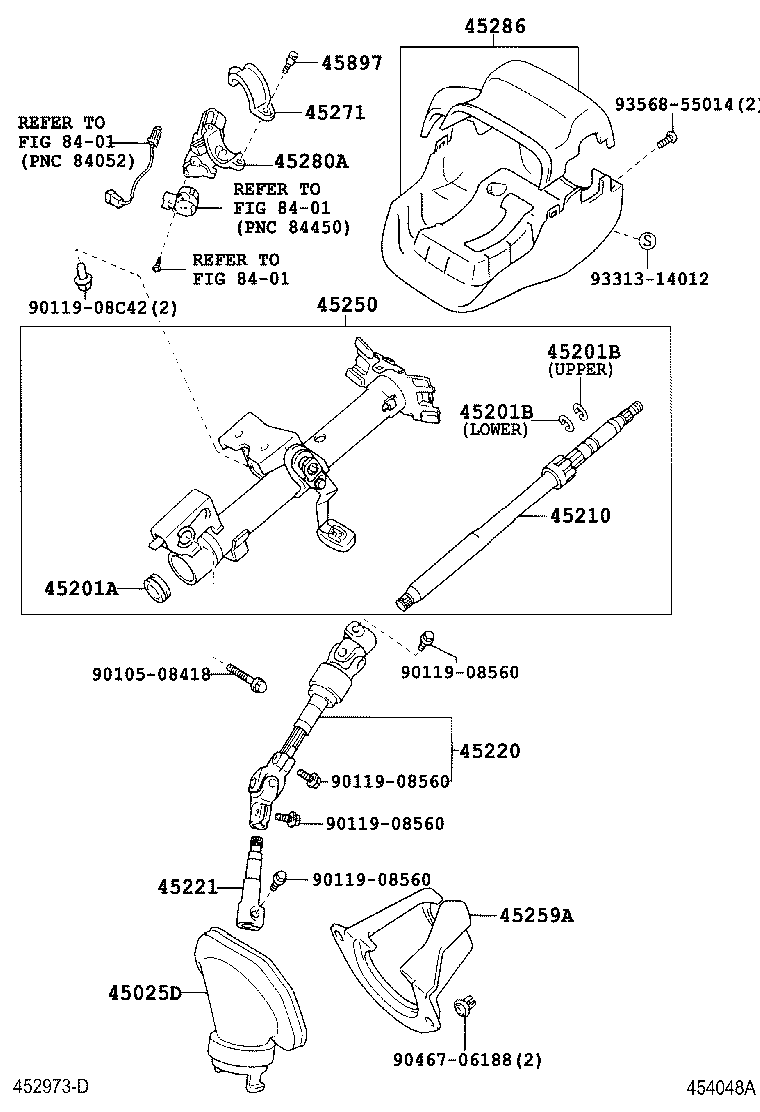

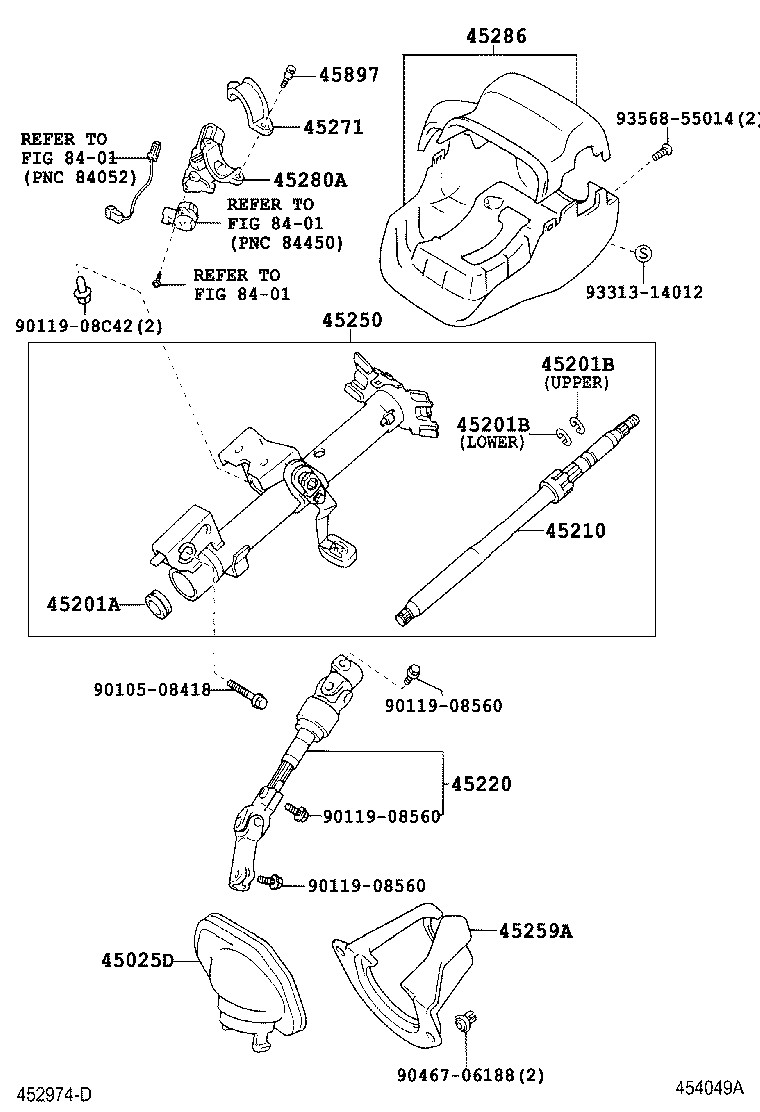

Figure 454047A 454047A 2004-09 → 2009-09 Figure 454048A 454048A 2004-09 → 2009-09 Figure 454049A 454049A 2004-09 → 2009-09 Figure 455460A 455460A 2009-09 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45210 Shaft Assy, Steering Main
45220 Shaft Assy, Steering Intermediate
45221 Shaft, Steering Intermediate
45250 Column Assy, Steering
45259A Sheet, Column Hole Cover Silencer
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45874B Protector, Steering Column, NO.1
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
80960 Motor Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
