Toyota Isis
2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan
Supported model
Data version 2018-07

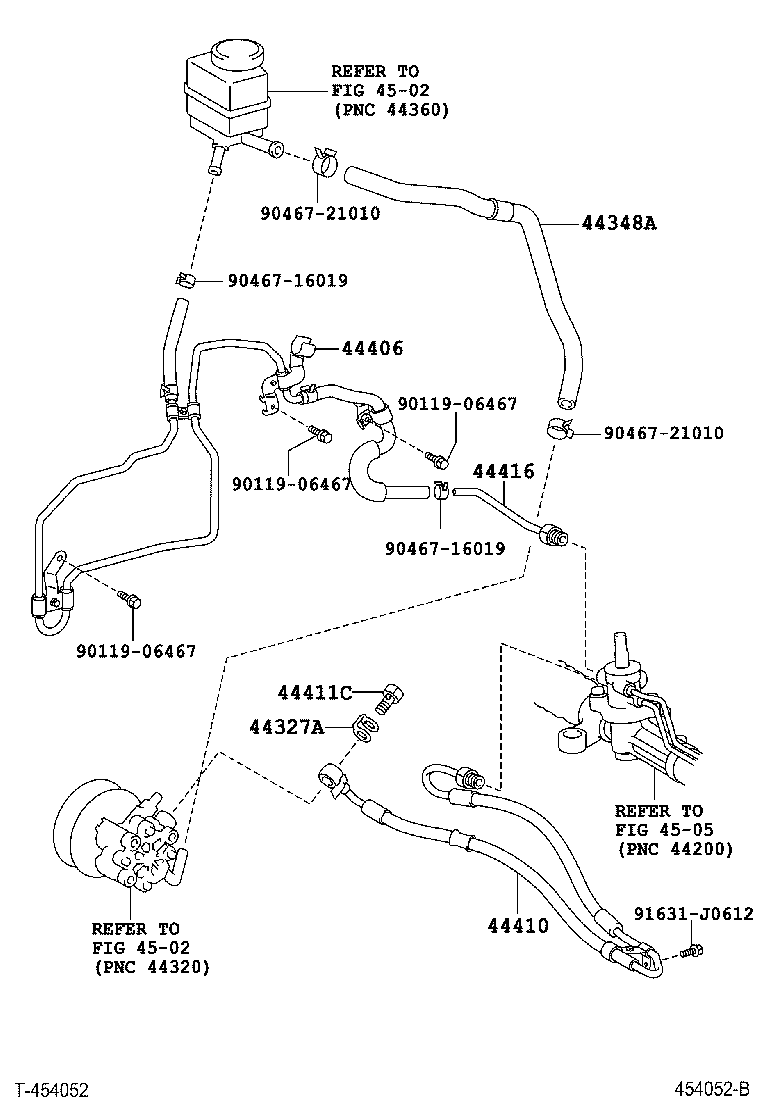

Power Steering Tube
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44406 | Tube Sub-assy, Return |
| 44410 | Tube Assy, Pressure Feed |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
