Toyota Isis

2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

9 part groups · 2 illustrations

Illustrations

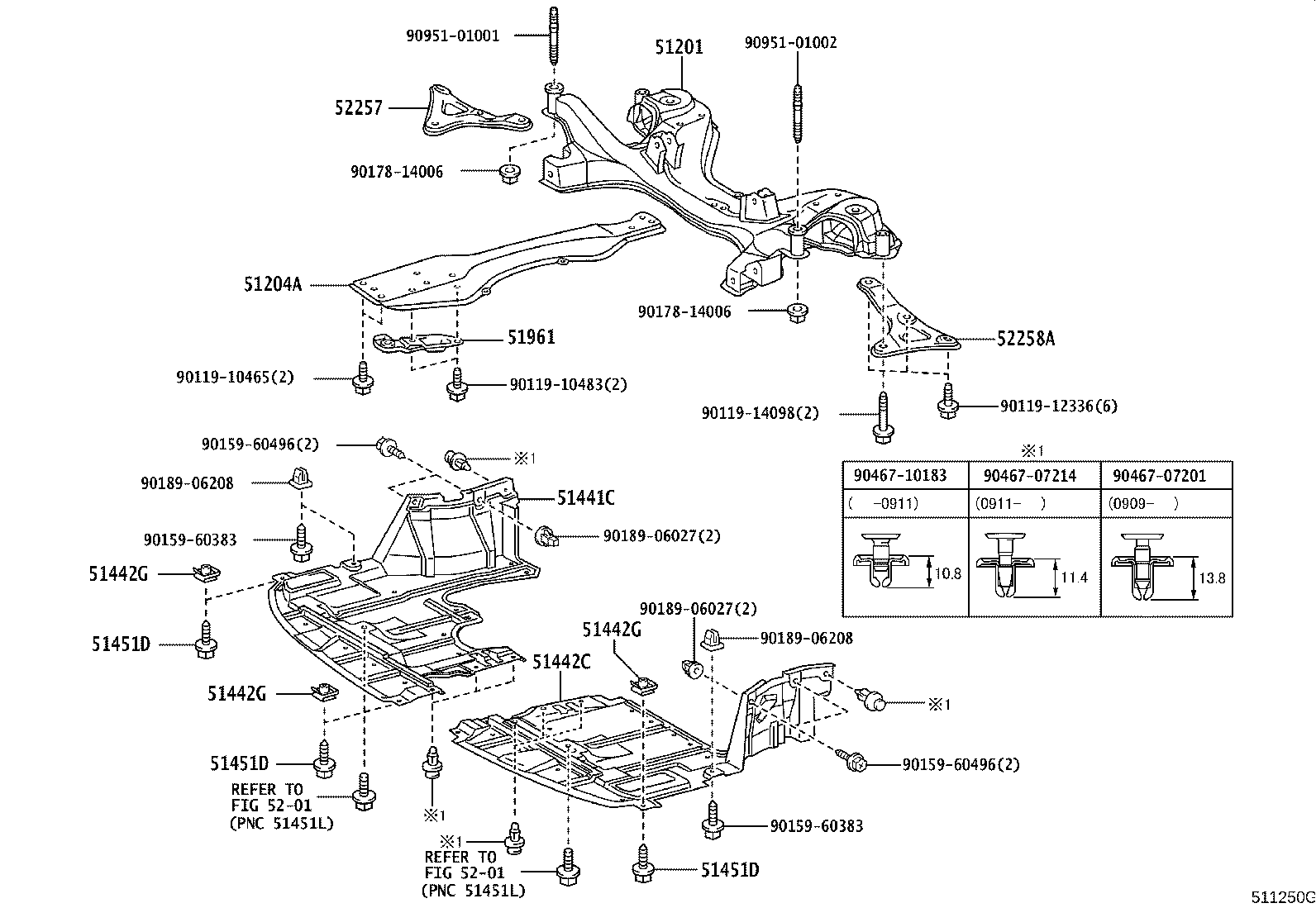

Figure 511249G 511249G 2004-09 → — Figure 511250G 511250G 2004-09 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51442G Clip, Engine Under Cover, NO.1
51451D Screw, NO.1
51961 Hook, NO.1
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
