Toyota Isis

2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 4 illustrations

Illustrations

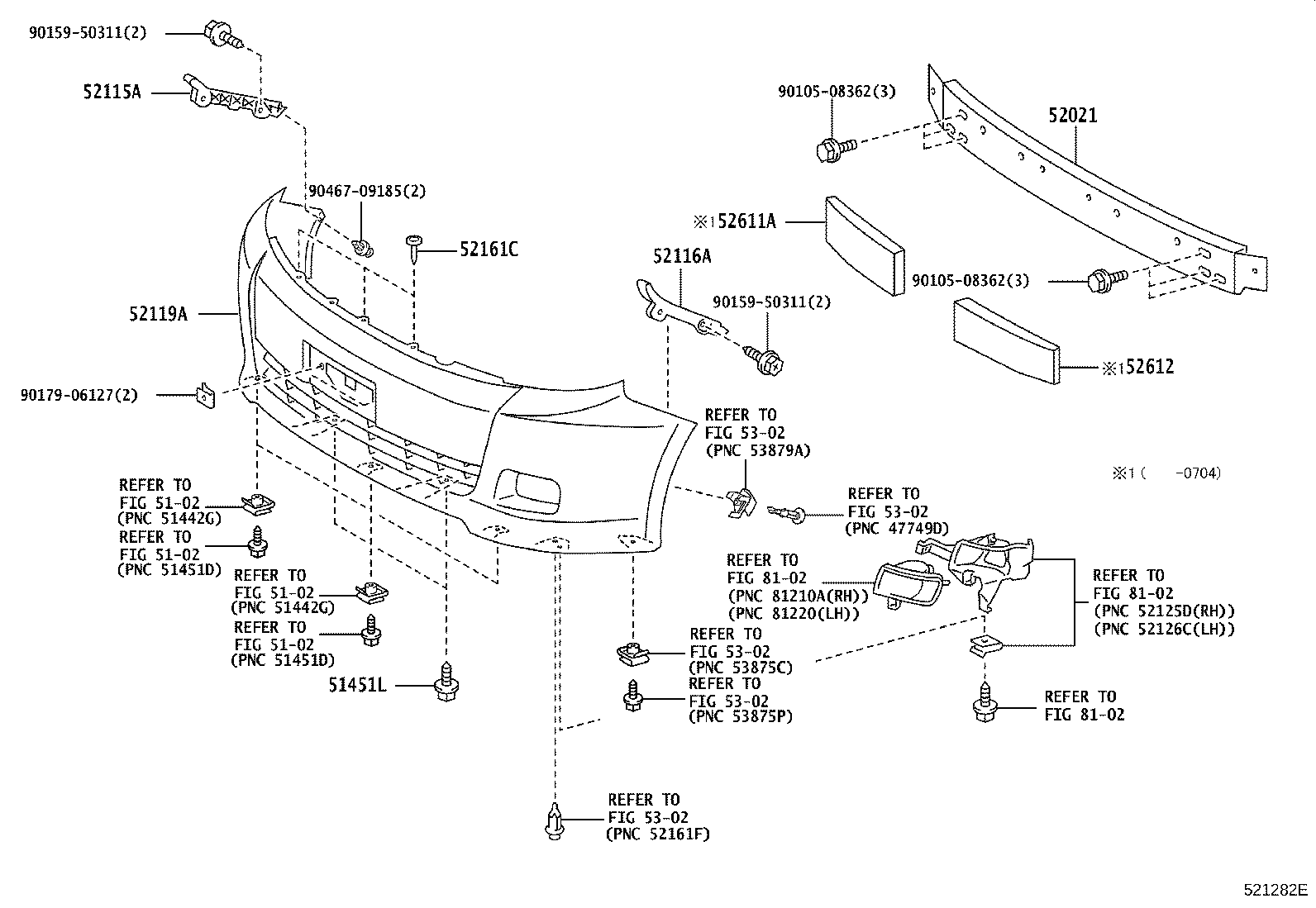

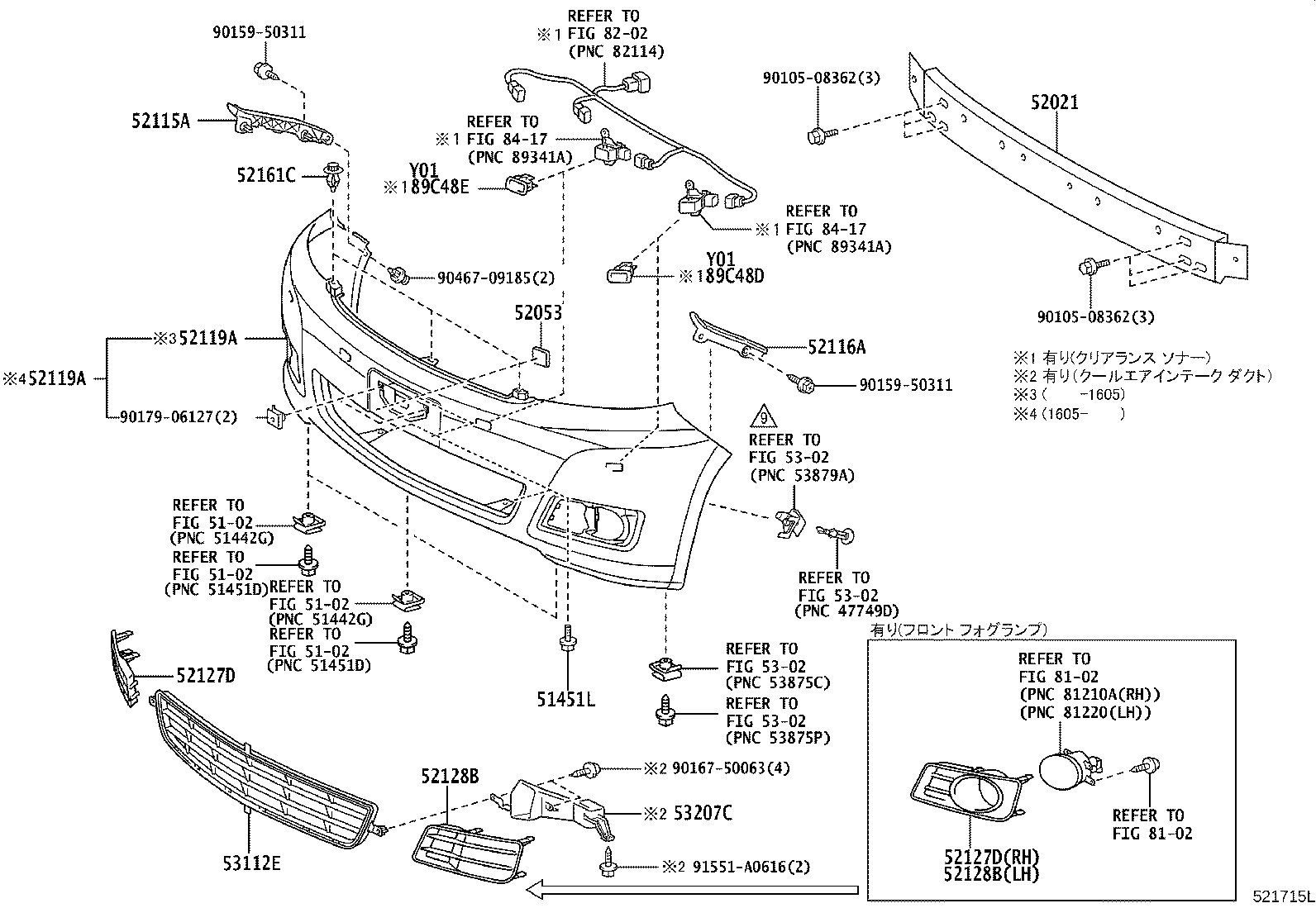

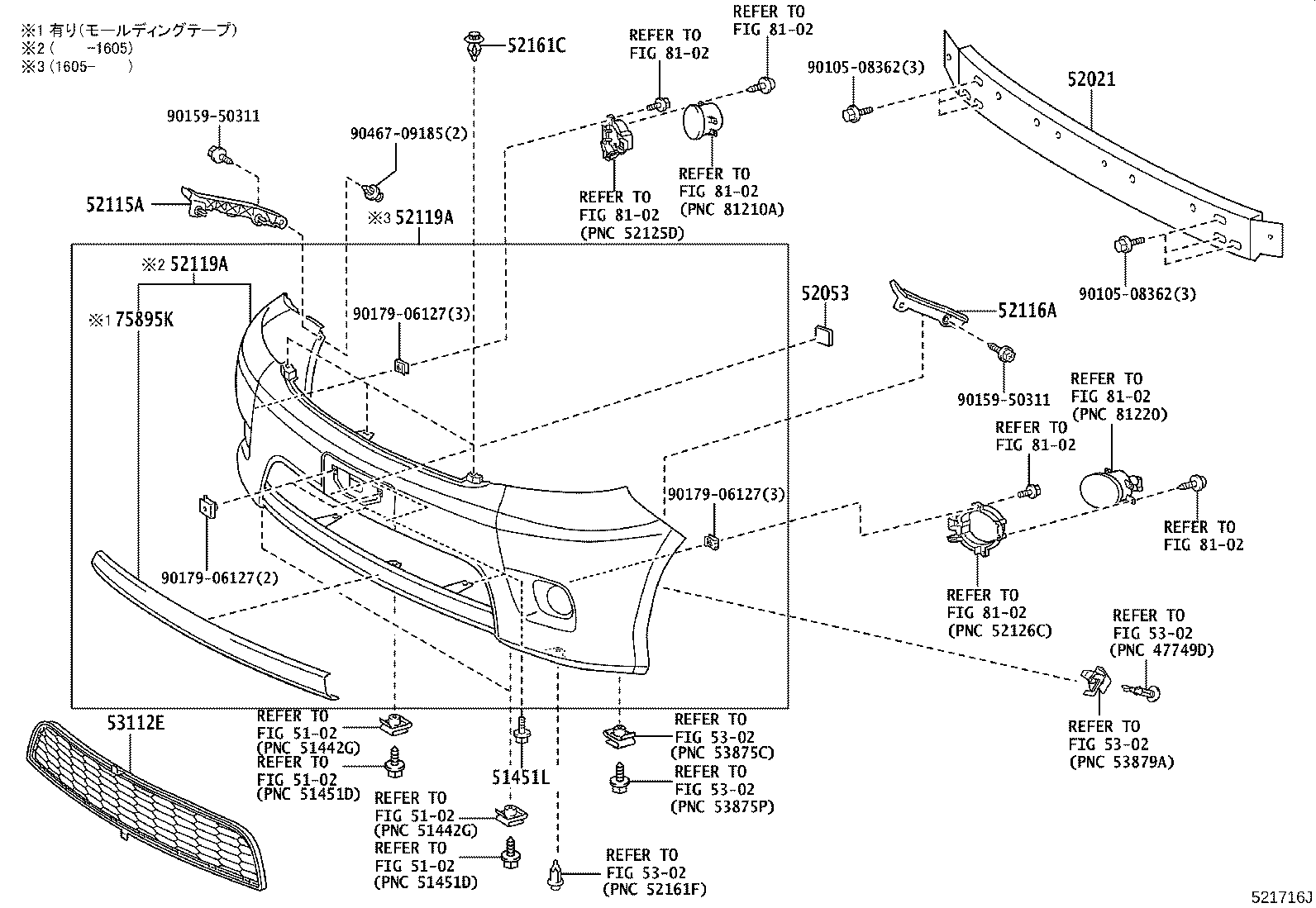

Figure 521283H 521283H 2004-09 → 2007-05 Figure 521282E 521282E 2004-09 → 2007-05 Figure 521715L 521715L 2007-05 → — Figure 521716J 521716J 2007-05 → —

Part groups

PNCDescription
51451L Bolt, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52053 Pad Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52611A Absorber, Front Bumper Energy, RH
52612 Absorber, Front Bumper Energy, LH
53112E Grille, Radiator, Lower NO.1
53207C Duct Sub-assy, Cool Air Intake
75895K Tape, Moulding, NO.1
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
