Toyota Isis
2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan
Supported model
Data version 2018-07
Rear Door Panel & Glass
47 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67007 | Panel Sub-assy, Slide Door, RH |

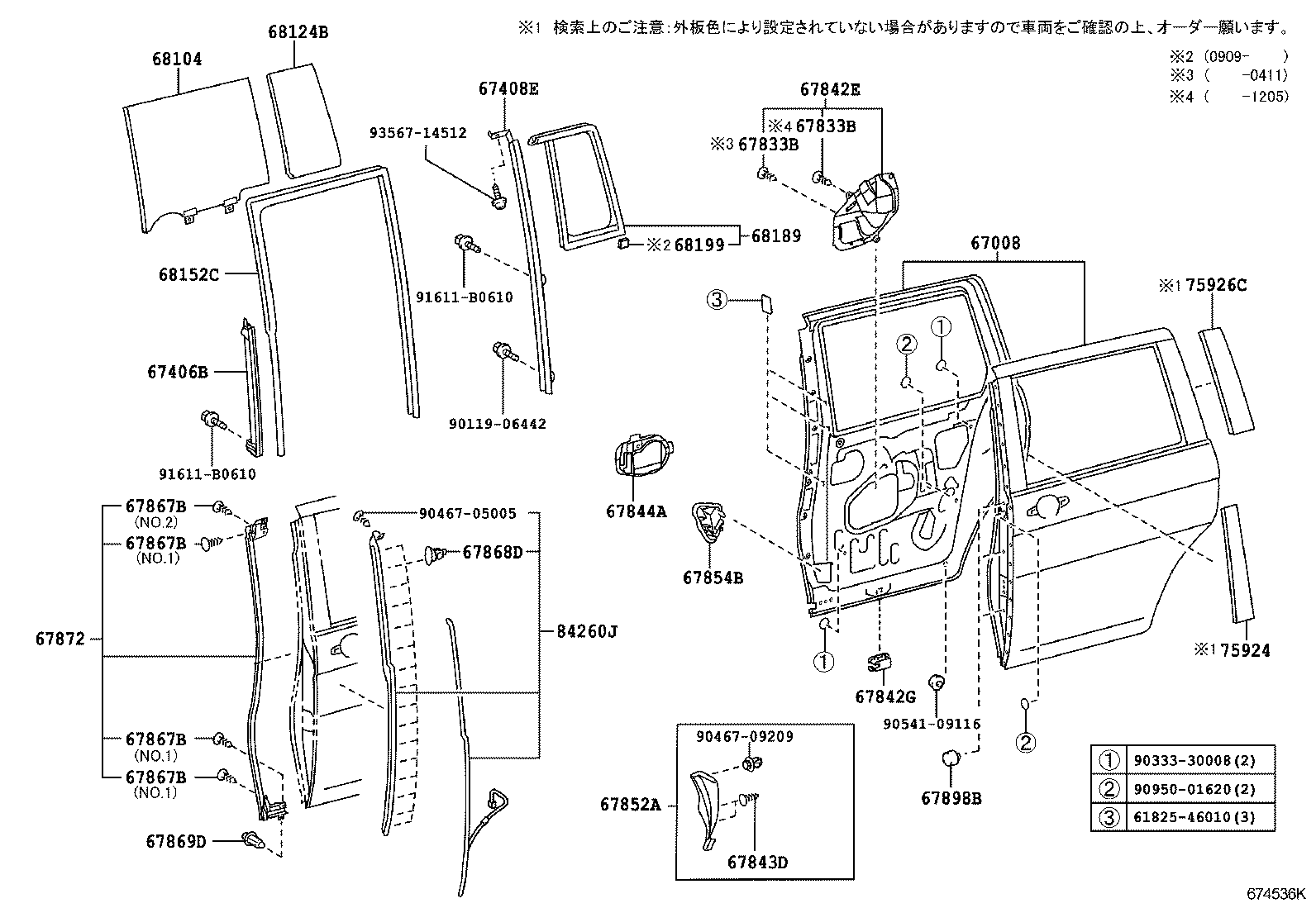

| 67008 | Panel Sub-assy, Slide Door, LH |
| 67405B | Guide Sub-assy, Rear Door Window, Front RH |
| 67406B | Guide Sub-assy, Rear Door Window, Front LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |

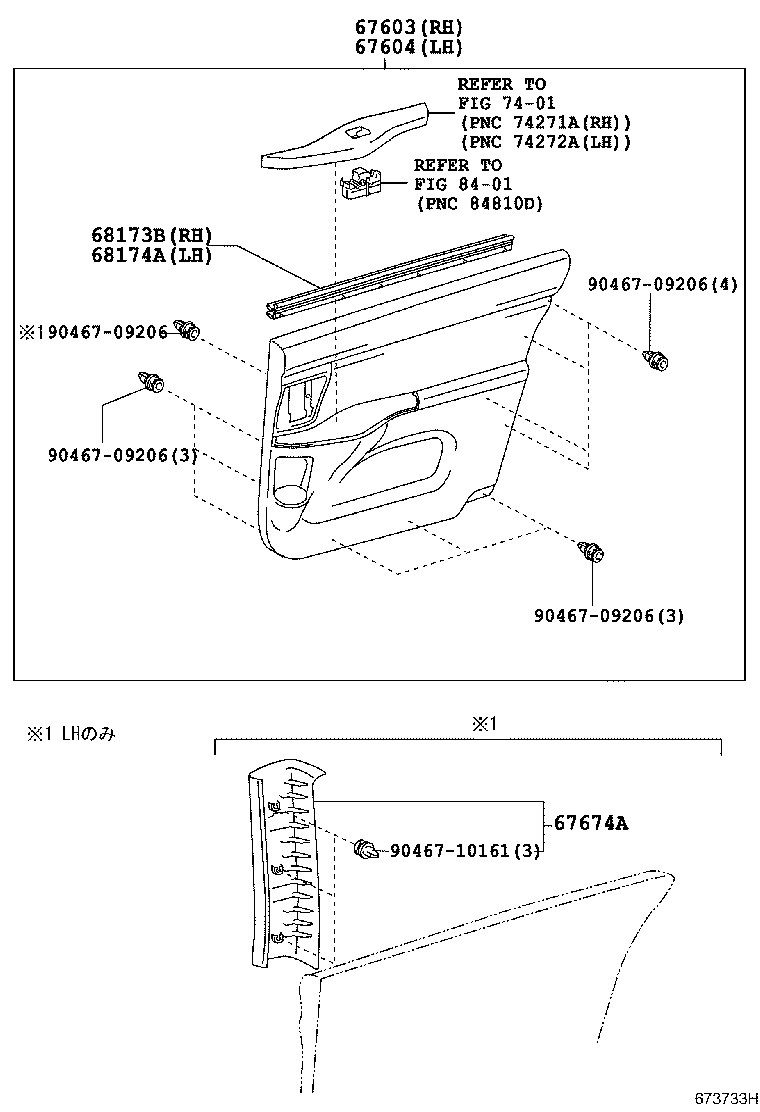

| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67833B | Clip(FOR REAR DOOR SERVICE HOLE COVER) |
| 67841B | Cover, Rear Door Service Hole |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67841G | Cover, Slide Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67842G | Cover, Slide Door Service Hole, LH |
| 67843B | Cover, Rear Door Service Hole, NO.2 RH |
| 67843D | Clip, Rear Door Service Hole |
| 67844A | Cover, Rear Door Service Hole, NO.2 LH |
| 67846 | Seal, Rear Door Service Hole |
| 67852A | Cover, Slide Door Service Hole, NO.2 |
| 67854B | Cover, Slide Door Service Hole, NO.3 |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67869D | Clip, Door Weatherstrip |
| 67872 | Weatherstrip, Rear Door, LH |
| 67887A | Weatherstrip, Rear Door, NO.2 RH |
| 67897B | Cushion, Rear Door, RH |
| 67897H | Cushion, Rear Door |
| 67898B | Cushion, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 75923 | Tape, Black Out, NO.2 RH |
| 75924 | Tape, Black Out, NO.2 LH |
| 75925C | Tape, Black Out, NO.3 RH |
| 75926C | Tape, Black Out, NO.3 LH |
| 84250D | Sensor Assy, Power Slide Door, RH |
| 84260J | Sensor Assy, Power Slide Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
