Toyota Isis
2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan
Supported model
Data version 2018-07

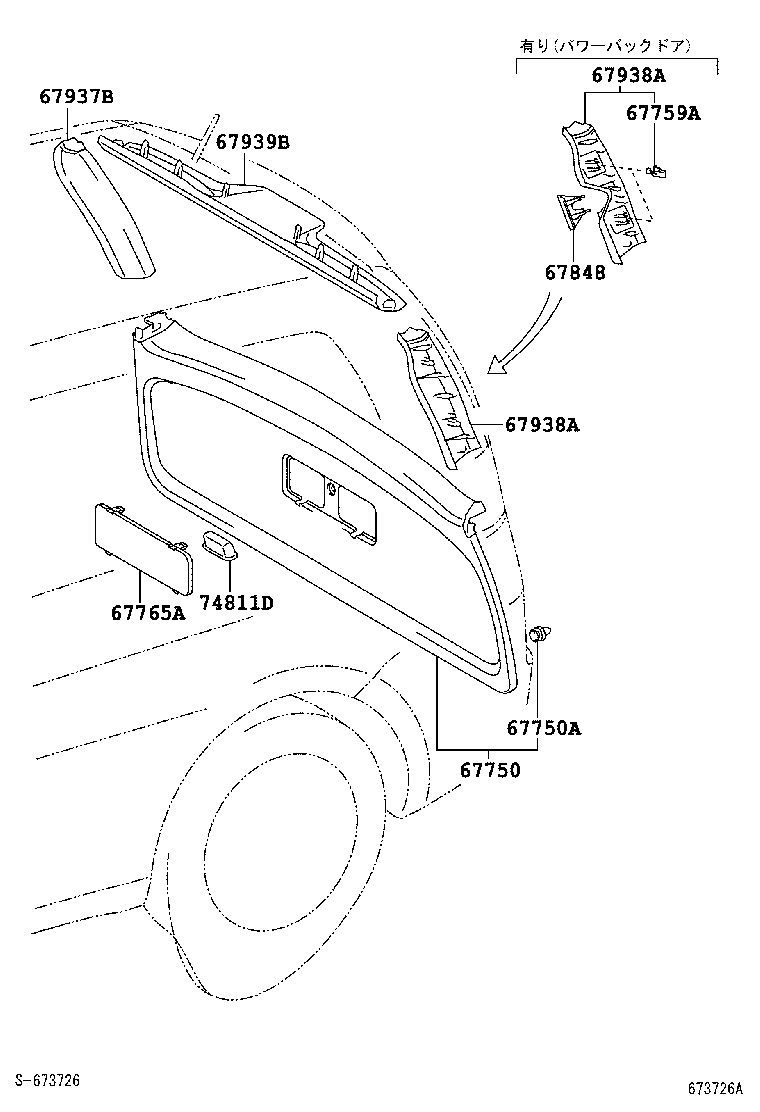

Back Door Panel & Glass
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 64885A | Channel, Back Window Glass, RH |
| 64886 | Channel, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67281B | Stopper, Back Door, Lower |
| 67283D | Plate, Back Door Lower Stopper, RH |
| 67284B | Plate, Back Door Lower Stopper, LH |
| 67291A | Bracket, Back Door Stopper |
| 67293 | Cushion, Back Door Lower Stopper |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67759A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67848 | Cover, Back Door Service Hole, LH |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 68131 | Glass, Back Door |
| 68291K | Dam Kit, Back Window Glass |
| 74811D | Handle, Door Pull |
| 75129C | Cushion, Rear Licence Plate |
| 75573C | Moulding, Back Window, Outside |
| 75574B | Moulding, Back Window, Outside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
