Toyota Isis

2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

15 part groups · 3 illustrations

Illustrations

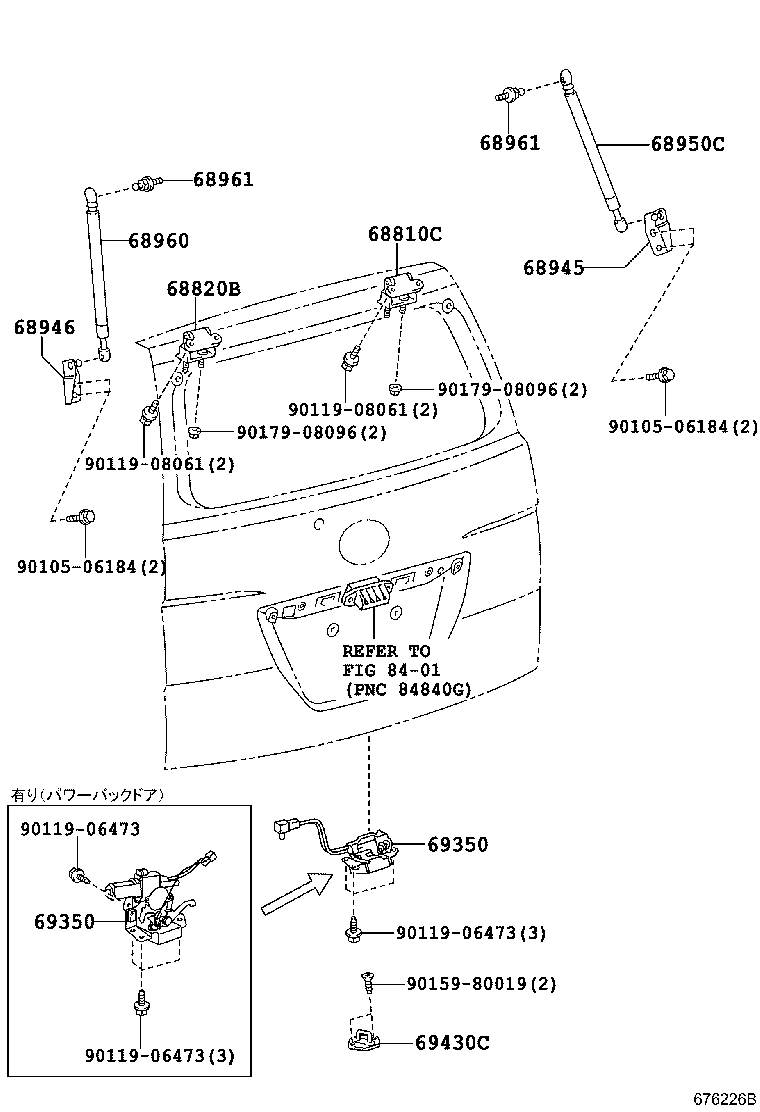

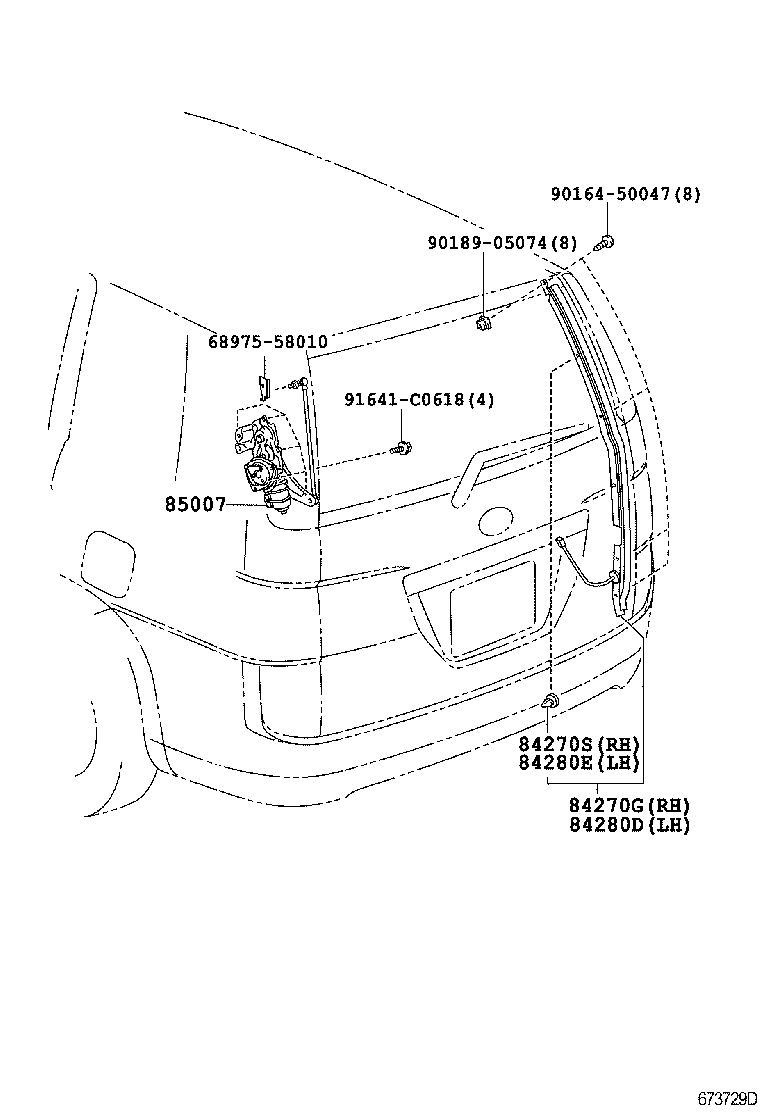

Figure 673728C 673728C 2004-09 → 2009-09 Figure 676226B 676226B 2009-09 → — Figure 673729D 673729D 2004-09 → —

Part groups

PNCDescription
68810C Hinge Assy, Back Door, RH
68820B Hinge Assy, Back Door, LH
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
68961 Bolt, Back Door Stay
69211C Handle, Back Door Outside
69350 Lock Assy, Back Door
69430C Striker Assy, Back Door Lock
84270G Sensor Assy, Power Back Door, RH
84270S Clip(POWER BACK DOOR SENSOR, RH)
84280D Sensor Assy, Power Back Door, LH
84280E Clip (FOR POWER BACK DOOR SENSOR, LH)
85007 Motor Unit, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
