Toyota Isis
2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan
Supported model
Data version 2018-07

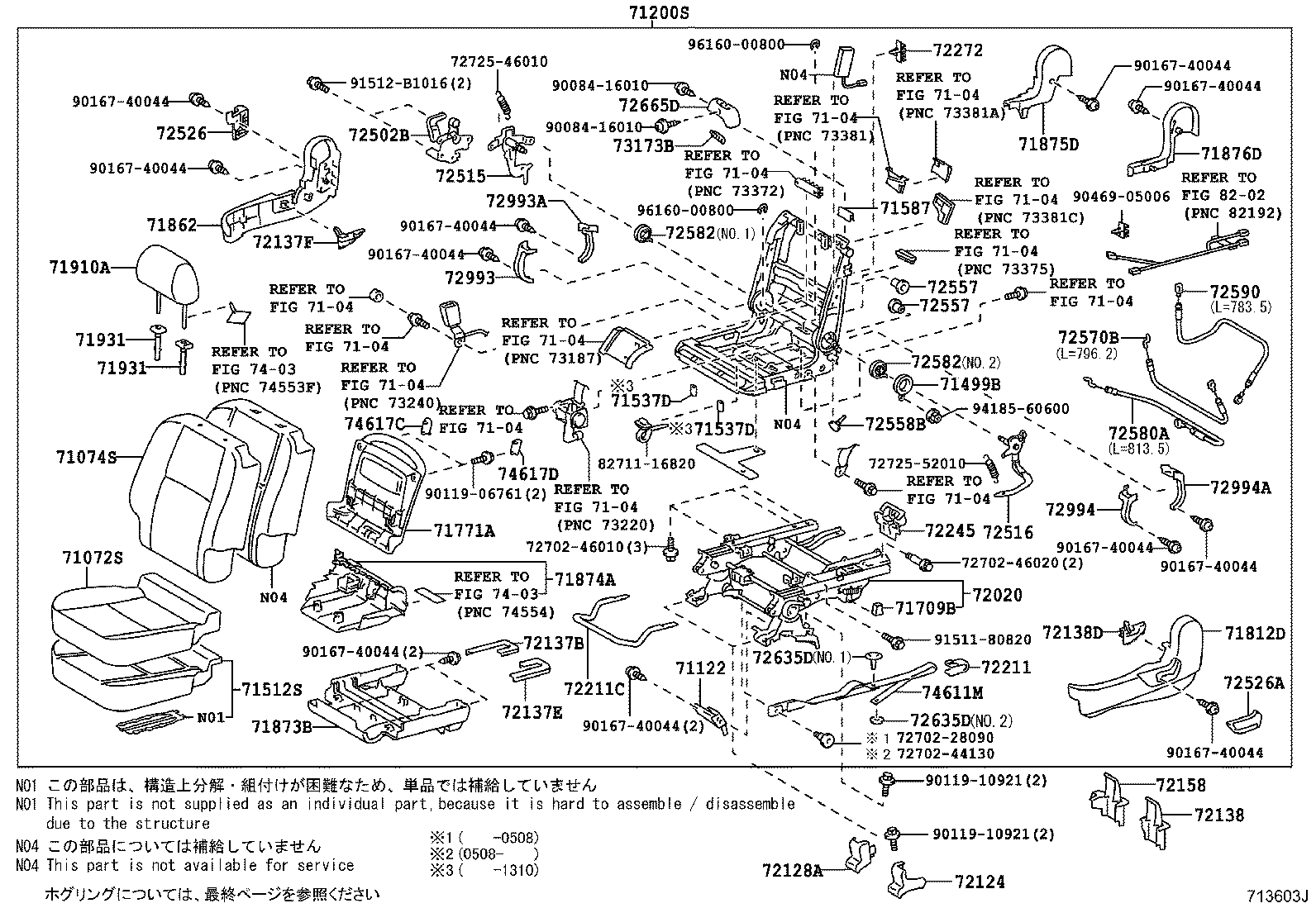

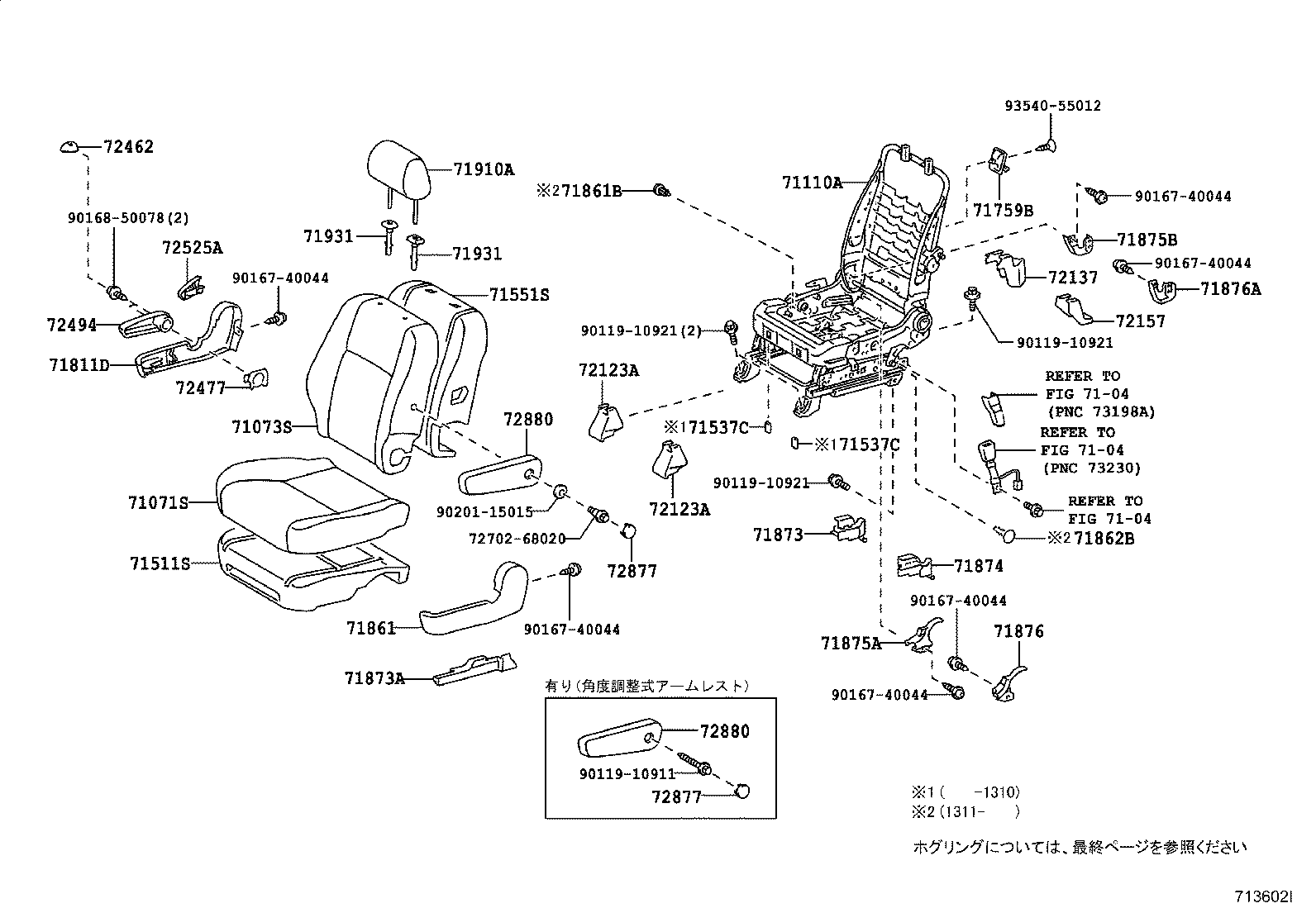

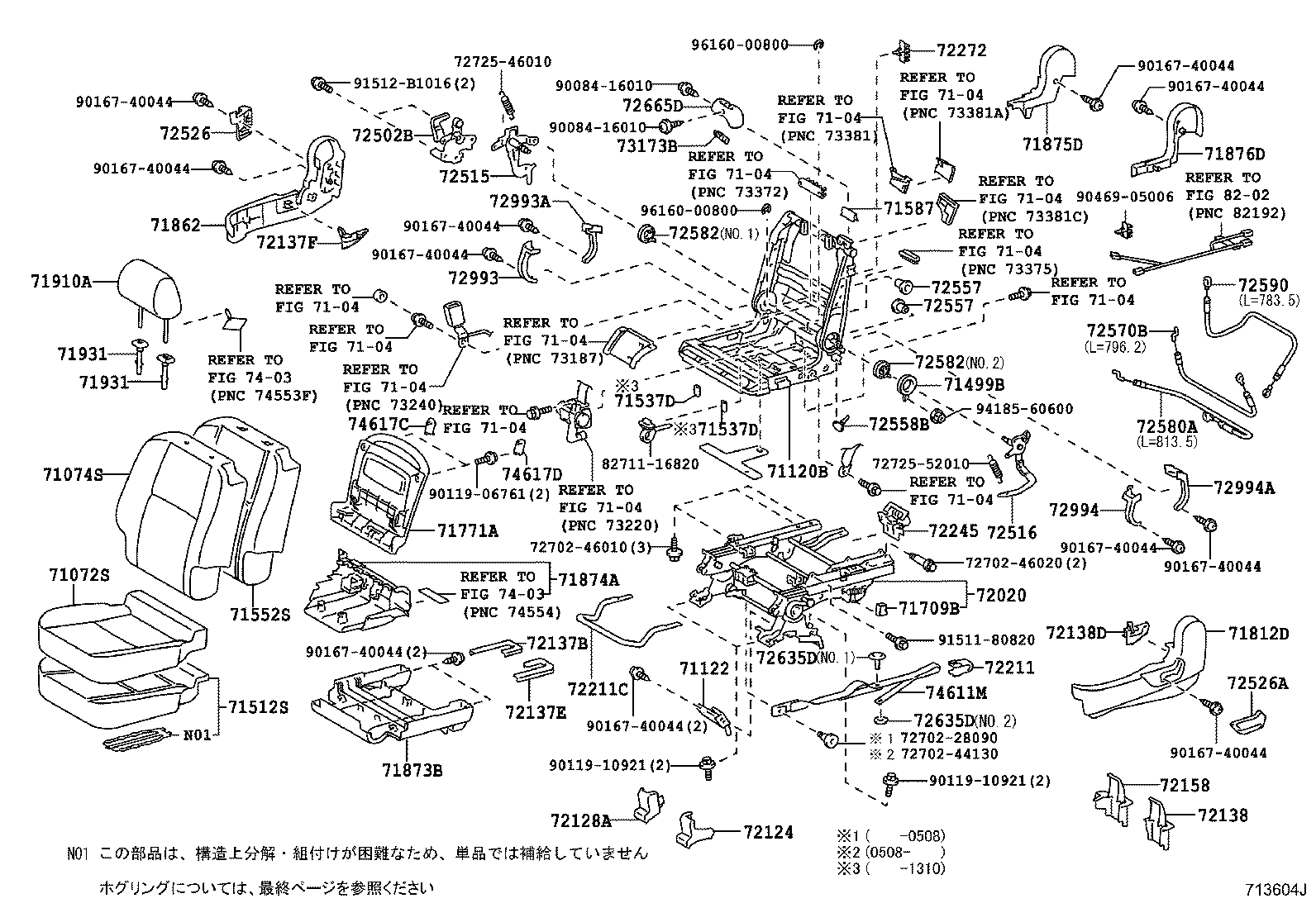

Front Seat & Seat Track
82 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71100S | Seat Assy, Front RH |
| 71110A | Frame Assy, Front Seat W/Adjuster, RH |
| 71120B | Frame Assy, Front Seat W/Adjuster, LH |
| 71122 | Bracket, Front Seat Cushion, LH |
| 71200S | Seat Assy, Front LH |
| 71499B | Damper, Seat Cushion Spring |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537C | Protector, Front Seat Cushion Edge, RH |
| 71537D | Protector, Front Seat Cushion Edge, LH |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71709B | Cushion Sub-assy, Seat Support |
| 71759B | Hook, Front Seatback |
| 71771A | Board, Front Seatback |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71861B | Clip(FOR FRONT SEAT SHIELD, RH) |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71862B | Clip(FOR FRONT SEAT SHIELD, LH) |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71873B | Shield, Front Seat Cushion, Lower RH, NO.1 |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71875D | Cover, Reclining Adjuster Outside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876D | Cover, Reclining Adjuster Outside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137 | Cover, Seat Track, Outer RH |
| 72137B | Cover, Seat Track, RH |
| 72137E | Cover, Seat Track, NO.1 |
| 72137F | Cover, Seat Track, NO.2 |
| 72138 | Cover, Seat Track, Outer LH |
| 72138D | Cover, Seat Track, Outer, LH |
| 72157 | Cover, Seat Track Bracket, Inner |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72245 | Lever, Seat Track Lock Open, RH |
| 72272 | Clamp, Seat Track Control Cable |
| 72462 | Cover, Vertical Adjuster RH |
| 72477 | Spacer, Vertical Adjuster |
| 72494 | Handle, Vertical Adjusting, RH |
| 72502B | Arm Sub-assy, NO.2 Seat Reclining Adjuster, Upper NO.1 LH |
| 72515 | Arm,Reclining Adjuster Releas, NO.1 |
| 72516 | Arm, Reclining Adjuster Releas, NO.2 |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72557 | Spacer, Reclining Adjuster |
| 72558B | Stopper, Reclining (FRONT SEAT) |
| 72570B | Cable Assy, Reclining Adjusting, RH |
| 72580A | Cable Assy, Reclining Adjusting, LH |
| 72582 | Bar, Reclining Torsion |
| 72590 | Cable Assy, Seatback Control |
| 72635D | Hook, Seatback Lock |
| 72665D | Cover, Front Seatback Lock |
| 72877 | Cover, Seat Armrest, RH |
| 72880 | Armrest Assy, Seat, C RH |
| 72993 | Cover, Front Seatback |
| 72993A | Cover, Front Seatback |
| 72994 | Cover, Front Seatback |
| 72994A | Cover, Front Seatback |
| 73173B | Cover, Front Seat Belt Hole |
| 74611M | Strap, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74617D | Plug, Assist Grip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
