Toyota Isis
2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan
Supported model
Data version 2018-07

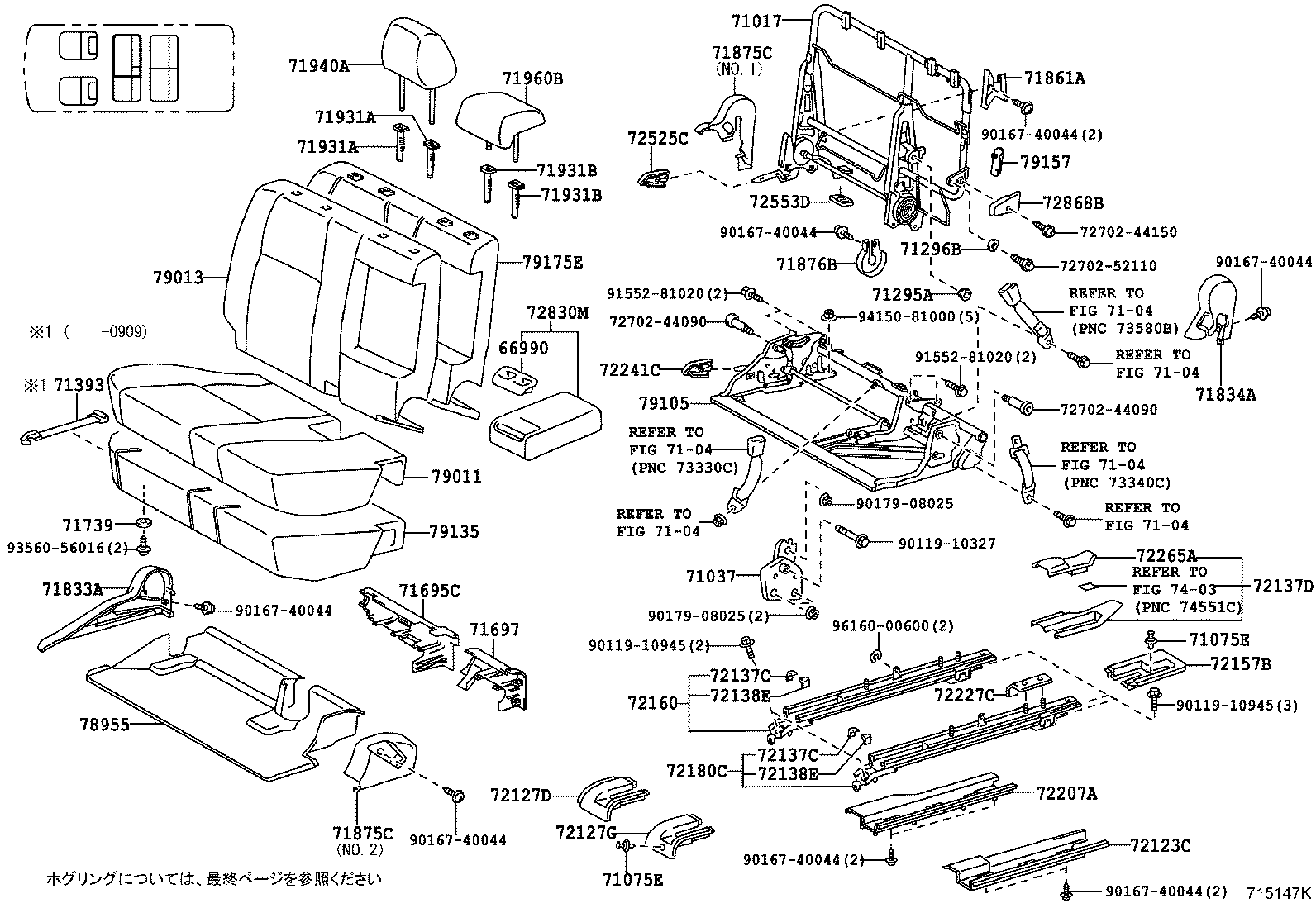

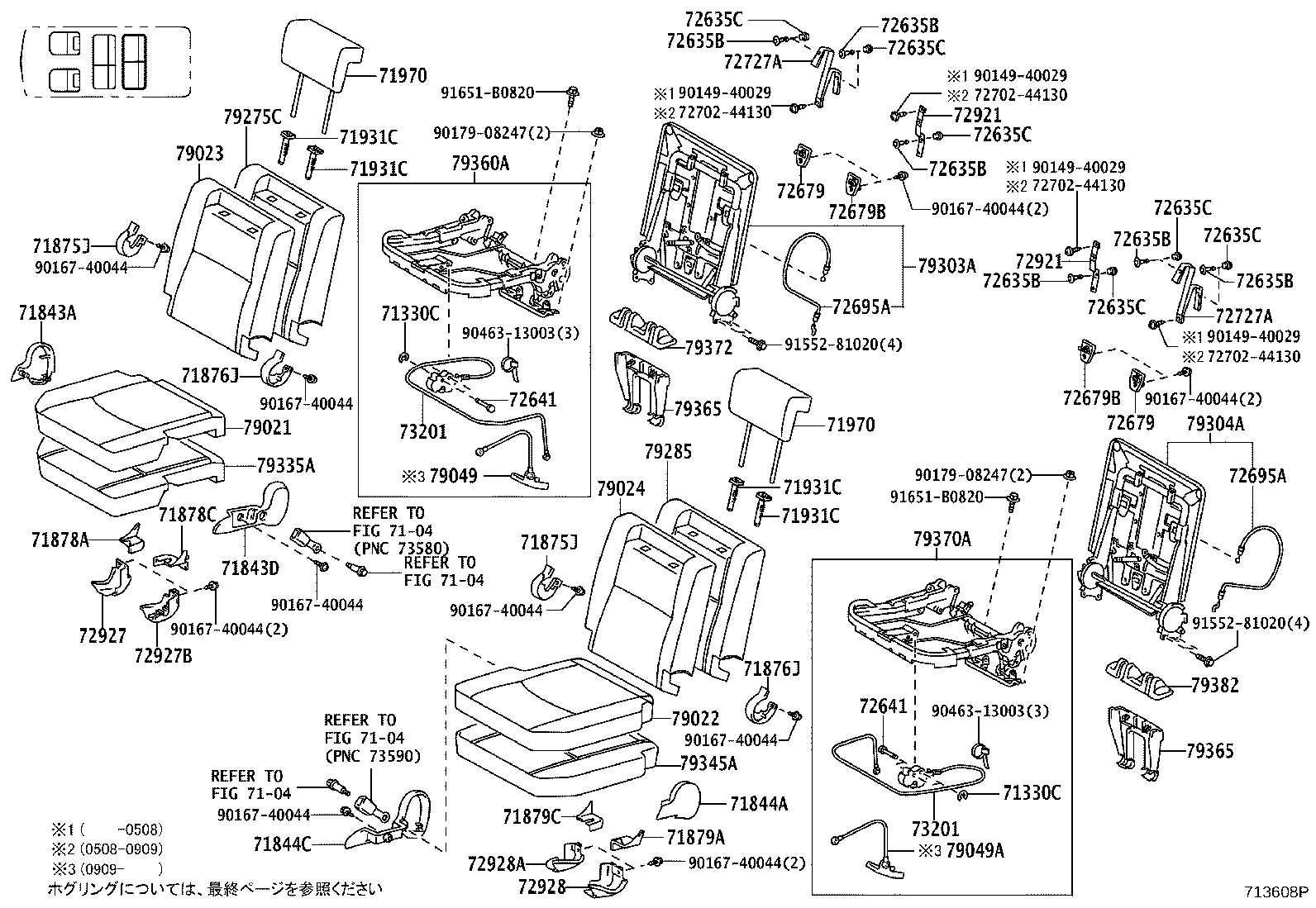

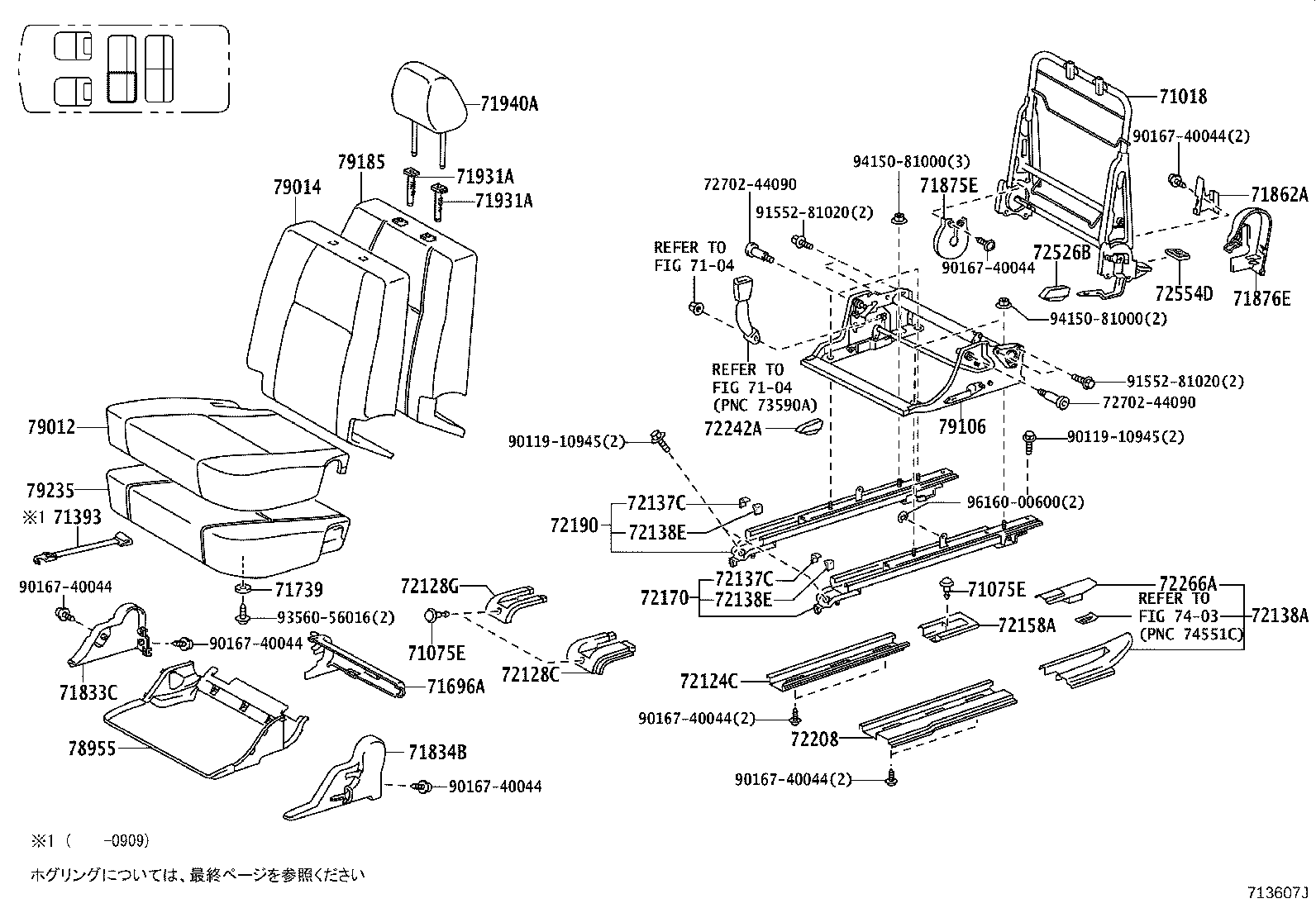

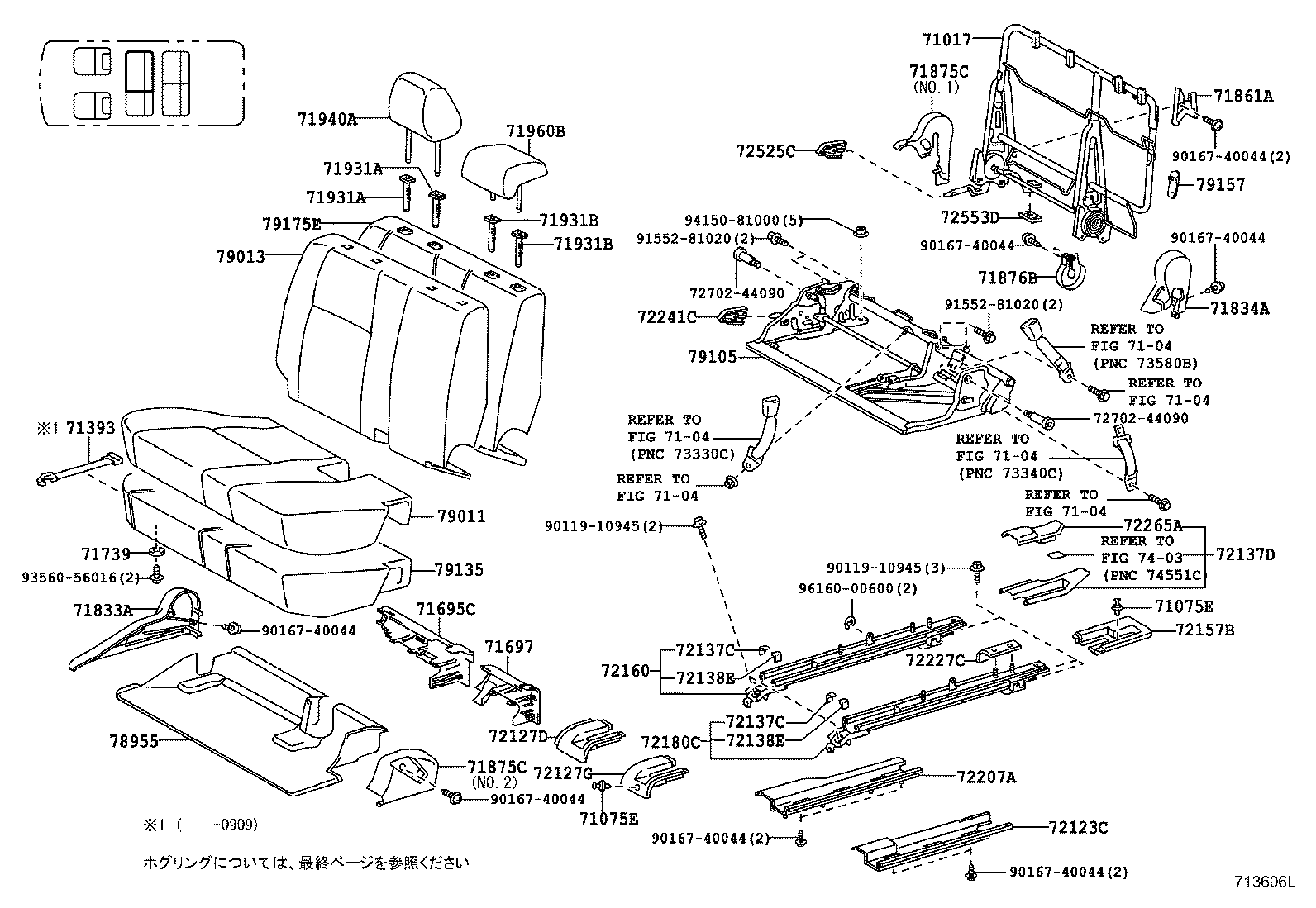

Rear Seat & Seat Track
112 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 66990 | Holder Assy, Cup |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71037 | Hinge Sub-assy, Center Seatback, RH |
| 71075E | Clip(FOR REAR SEAT) |
| 71295A | Plate, Rear Seatback, Upper RH |
| 71296B | Plate, Rear Seatback, Upper LH |
| 71330C | Ring, Retaining (FOR REAR SEAT CUSHION HINGE) |
| 71393 | Band, Rear Seat Cushion |
| 71695C | Protector, Rear Seat, NO.1 |
| 71696A | Protector, Rear Seat, NO.2 LH |
| 71697 | Protector, Rear Seatback Edge |
| 71739 | Cushion, Seat Support |
| 71811G | Shield, Rear Seat Cushion, RH |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71833C | Cover, Rear Seat Reclining, NO.2 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71834B | Cover, Rear Seat Reclining, NO.2 LH |
| 71843A | Cover, Rear Seat Reclining, NO.2 RH |
| 71843D | Cover, Rear Seat Reclining, NO.2 RH |
| 71844A | Cover, Rear Seat Reclining, NO.2 LH |
| 71844C | Cover, Rear Seat Reclining, NO.2 LH |
| 71861A | Shield, Rear Seat Cushion, Inner RH |
| 71862A | Shield, Rear Seat Cushion, Inner LH |
| 71875C | Cover, Reclining Adjuster Inside, RH |
| 71875E | Cover, Reclining Adjuster Inside, RH |
| 71875J | Cover, Reclining Adjuster Inside, RH |
| 71876B | Cover, Reclining Adjuster Inside, LH |
| 71876E | Cover, Reclining Adjuster Inside, LH |
| 71876J | Cover, Reclining Adjuster Inside, LH |
| 71878A | Cover, Rear Seat Reclining, Inner RH |
| 71878C | Cover, Rear Seat Reclining, Inner RH |
| 71879A | Cover, Rear Seat Reclining, Inner LH |
| 71879C | Cover, Rear Seat Reclining, Inner LH |
| 71931A | Support, Rear Seat Headrest |
| 71931B | Support Assy, Rear NO.1 Seat Headrest |
| 71931C | Support Assy, Rear NO.2 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 71970 | Headrest Assy, Rear Seat |
| 72123C | Cover, Seat Track Bracket, Outer Front RH |
| 72124C | Cover, Seat Track Bracket, Outer Front LH |
| 72127D | Cover, Seat Track Bracket, Front, RH |
| 72127G | Cover, Seat Track Bracket, Inner Front RH |
| 72128C | Cover, Seat Track Bracket, Front, LH |
| 72128G | Cover, Seat Track Bracket, Inner Front LH |
| 72137C | Cover, Seat Track Inner, RH |
| 72137D | Cover, Rear Seat Track, RH |
| 72138A | Cover, Rear Seat Track, LH |
| 72138E | Cover, Seat Track, Inner LH |
| 72157B | Cover, Rear Seat Track Bracket, Inner RH |
| 72158A | Cover, Rear Seat Track Bracket, Inner LH |
| 72160 | Track Assy, Rear Seat, Outer RH |
| 72170 | Track Assy, Rear Seat, Outer LH |
| 72180C | Track Assy, Rear Seat, Inner RH |
| 72190 | Track Assy, Rear Seat Inner, LH |
| 72207A | Plate, Seat Track Stop RH |
| 72208 | Plate, Seat Track Stop, LH |
| 72227C | Bracket, Seat Track, Upper RR |
| 72241C | Lever, Outer Seat Track Lock, RH |
| 72242A | Lever, Outer Seat Track Lock, LH |
| 72265A | Cover, Seat Track Upper Rail, RH |
| 72266A | Cover, Seat Track Upper Rail, LH |
| 72525C | Handle, Reclining Adjuster Release, NO.1 RH |
| 72526B | Handle, Reclining Adjuster Release, NO.1 LH |
| 72553D | Cover, Reclining Pedal, RH |
| 72554D | Cover, Reclining Pedal, LH |
| 72635B | Hook, Rear Seatback Lock(MALE) |
| 72635C | Hook, Rear Seatback Lock(FEMALE) |
| 72641 | Pin, Rear Seatback Lock |
| 72679 | Bezel, Rear Seatback Lock Control |
| 72679B | Bezel, Rear Seatback Lock Control |
| 72695A | Cable, Rear Seat Lock Control |
| 72727A | Knob, Rear Seat Reclining Control Lever |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830M | Armrest Assy, Seat Center, RH |
| 72868B | Cover, Center Armrest Hinge |
| 72921 | Strap, 3RD Seat |
| 72927 | Cover, Rear Seat Cushion Under, RH |
| 72927B | Cover, Rear Seat Cushion Under |
| 72928 | Cover, Rear Seat Cushion Under, LH |
| 72928A | Cover, Rear Seat Cushion Under, NO.2 |
| 73201 | Lock Sub-assy, Rear Seat Cushion |
| 78955 | Cover, Rear Seat Under Tray RH |
| 79011 | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79012 | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013 | Cover Sub-assy, NO.1 Seatback, RH |
| 79014 | Cover Sub-assy, NO.1 Seatback, LH |
| 79021 | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79022 | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79023 | Cover Sub-assy, NO.2 Seatback, RH |
| 79024 | Cover Sub-assy, NO.2 Seatback, LH |
| 79049 | Wire Sub-assy, Rear Seat Cushion, RH |
| 79049A | Wire Sub-assy, Rear Seat Cushion, LH |
| 79105 | Leg Sub-assy, NO.1 Seat, RH |
| 79106 | Leg Sub Assy, NO.1 Seat, LH |
| 79135 | Pad, NO.1 Seat Cushion |
| 79157 | Cover, NO.1 Seatback |
| 79175E | Pad, NO.1 Seatback, RH |
| 79185 | Pad, NO.1 Seatback, LH |
| 79235 | Pad, NO.2 Seat Cushion |
| 79275C | Pad, NO.2 Seatback, RH |
| 79285 | Pad, NO.2 Seatback, LH |
| 79303A | Frame Sub-assy, NO.3 Seatback, RH |
| 79304A | Frame Sub-assy, NO.3 Seatback, LH |
| 79335A | Pad, NO.3 Seat Cushion, RH |
| 79345A | Pad, NO.3 Seat Cushion, LH |
| 79360A | Spring Assy, NO.3 Seat Cushion, RH |
| 79365 | Cover, NO.3 Seat Leg Bracket |
| 79370A | Spring Assy, NO.3 Seat Cushion, LH |
| 79372 | Cover, NO.3 Seat Front Bracket, RH |
| 79382 | Cover, NO.3 Seat Front Bracket, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
