Toyota Isis

2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

2 part groups · 3 illustrations

Illustrations

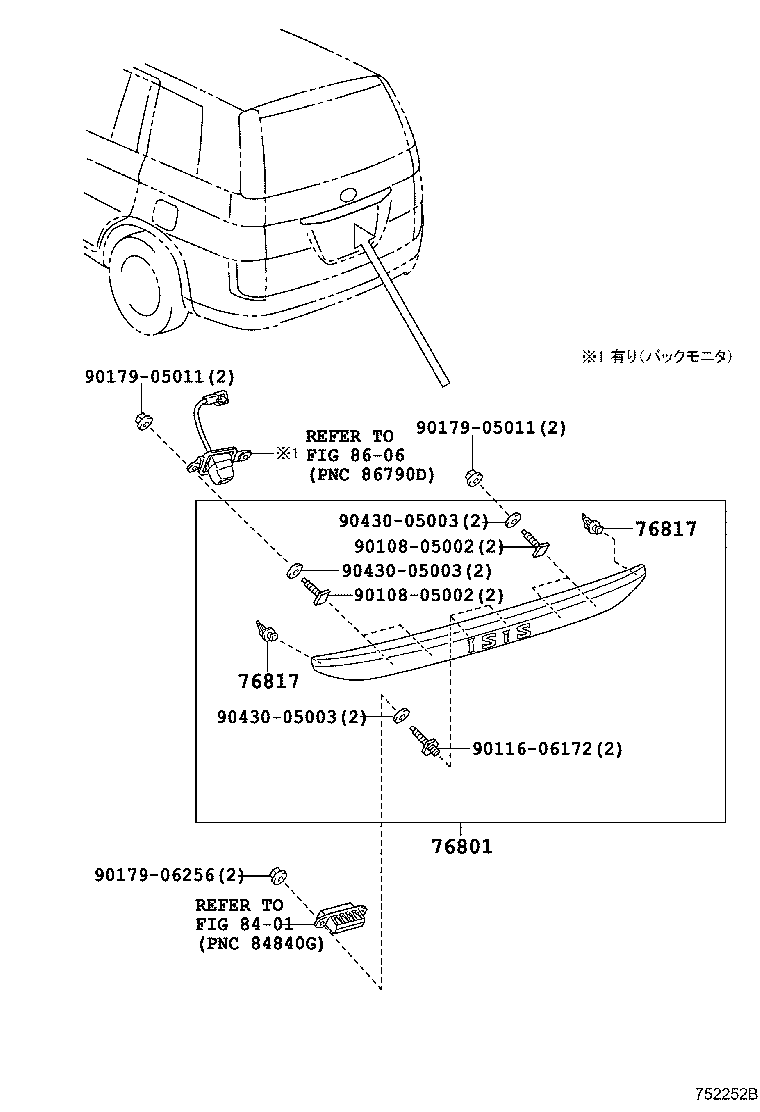

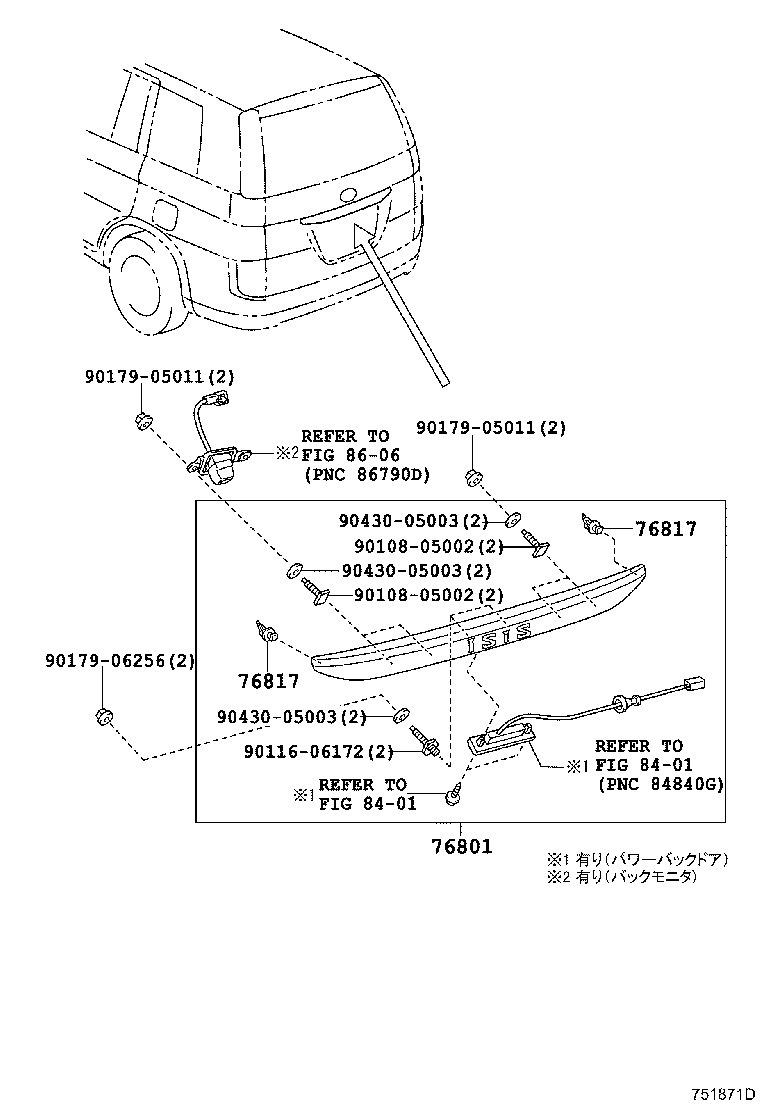

Figure 751453F 751453F 2004-09 → 2007-05 Figure 751871D 751871D 2007-05 → 2009-09 Figure 752252B 752252B 2009-09 → —

Part groups

PNCDescription
76801 Garnish Sub-assy, Back Door, Outside
76817 Clip, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
